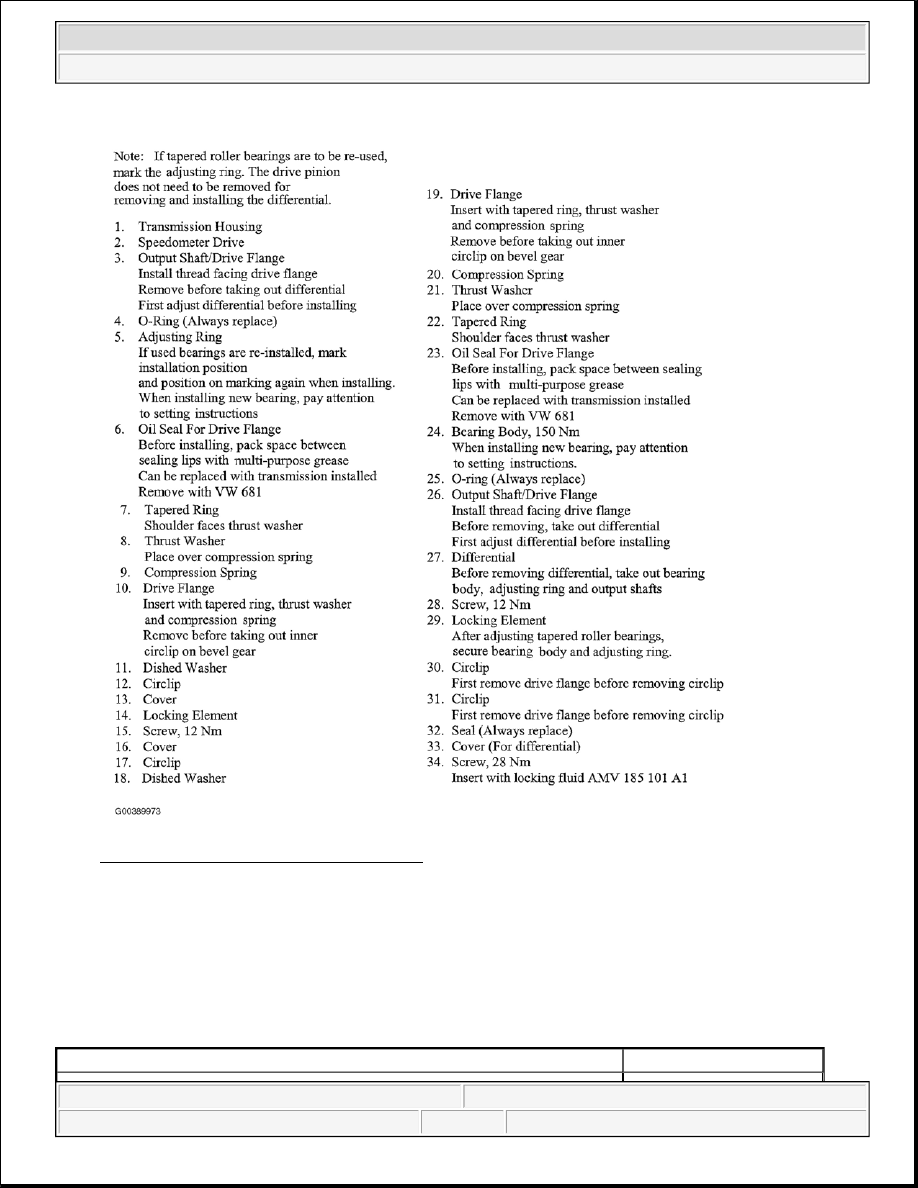

Clutch housing

z

Differential housing

or the

z

Differential tapered roller bearing

have been replaced.

Adjustment overview. See ADJUSTMENT OVERVIEW .

z

Press tapered roller outer race into clutch housing using press plate 30-205. See REMOVING .

z

Press tapered roller outer race into transmission housing, without adjustment shim, using press plate 30-
205. See REMOVING .

z

Insert differential into clutch housing.

z

Install transmission housing and tighten 5 bolts to 25 N.m.

z

Mount dial gauge and "0" with 1 mm preload.

z

Move differential up and down and recall play indicated on dial gauge (Example: 0.70 mm)

NOTE:

Tapered roller bearing inner and outer races are paired. Do not
interchange!



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 182: Measuring Differential End Play
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Determining shim thickness

The specified bearing preload is obtained by adding a constant figure (0.40 mm) to the reading obtained.

Example:

DETERMINING SHIM THICKNESS - DIFFERENTIAL BEARING PRELOAD

Reading

0.70 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



z

Remove transmission housing and pull tapered roller bearing outer race out from transmission housing.
See REMOVING .

z

Insert shims of correct thickness, thickest shim first.

The following shims are available:

SHIM THICKNESS AVAILABILITY - DIFFERENTIAL BEARING PRELOAD

If the size of shim required is larger than those listed in the table, insert two shims totalling the correct figure.

Varying tolerances make it possible by measuring the shims to obtain the exact shim thickness required.

z

Press outer race in again and tighten transmission housing securely.

+ Preload (constant figure)

0.40 mm

Thickness of shim =

1.10 mm

Size (mm)

Part No.

0.65

02A 409 210

0.70

02A 409 210 A

0.75

02A 409 210 B

0.80

02A 409 210 C

0.85

02A 409 210 D

0.90

02A 409 210 E

0.95

02A 409 210 F

1.00

02A 409 210 G

1.05

02A 409 210 H

1.10

02A 409 210 J

1.15

02A 409 210 K

1.20

02A 409 210 L

1.25

02A 409 210 M



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



1998-04 MANUAL TRANSMISSIONS

Servicing - New Beetle (5-Speed, 02J)

IDENTIFICATION

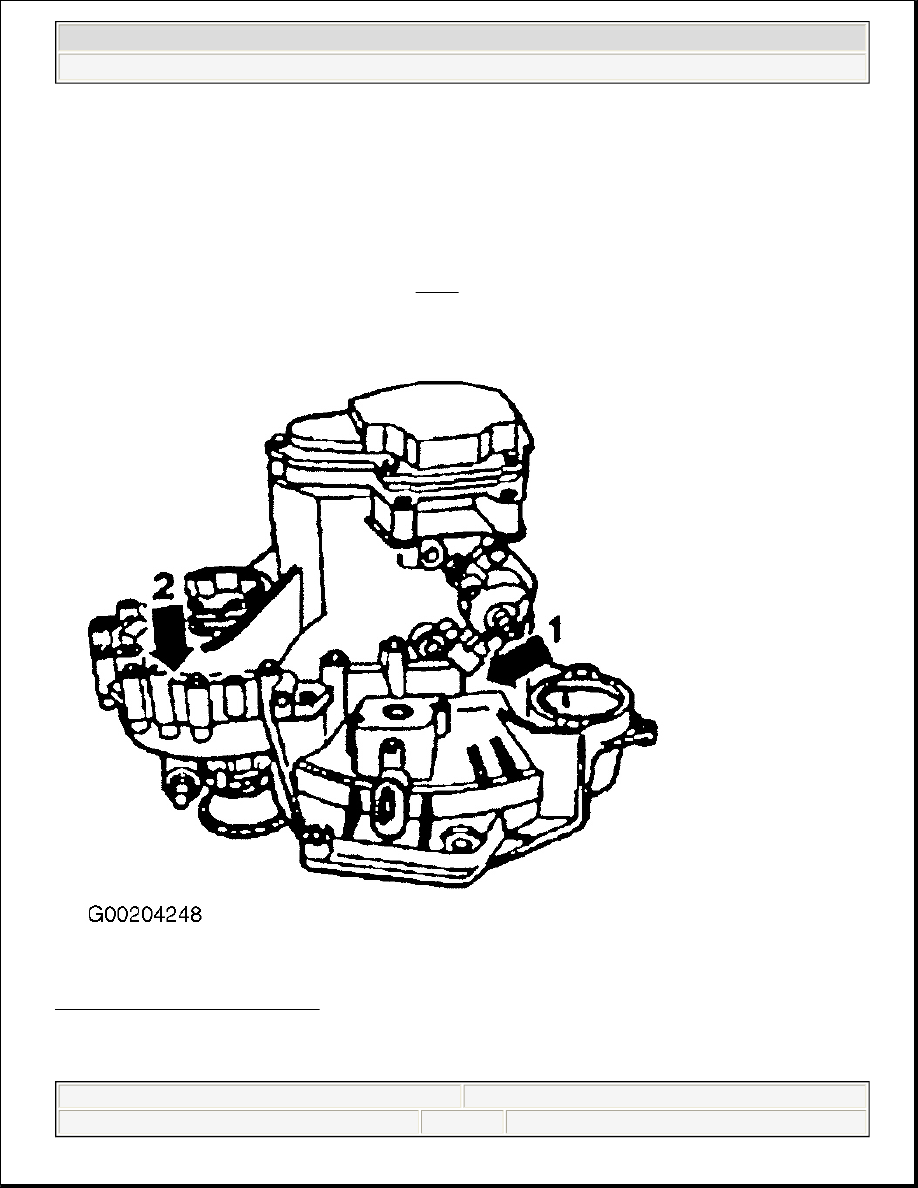

On 02J transmission identification tag is located on transmission, identifying code letters and date of
manufacture (1), and transmission model (2). See Fig. 1 .

Fig. 1: Locating Identification Tag
Courtesy of VOLKSWAGEN UNITED STATES, INC.

LUBRICATION



2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)





2003 Volkswagen New Beetle GLS

1998-04 MANUAL TRANSMISSIONS Servicing - New Beetle (5-Speed, 02J)
