Before installing puller insert a M 10 x 20 hex bolt in output shaft drilling.

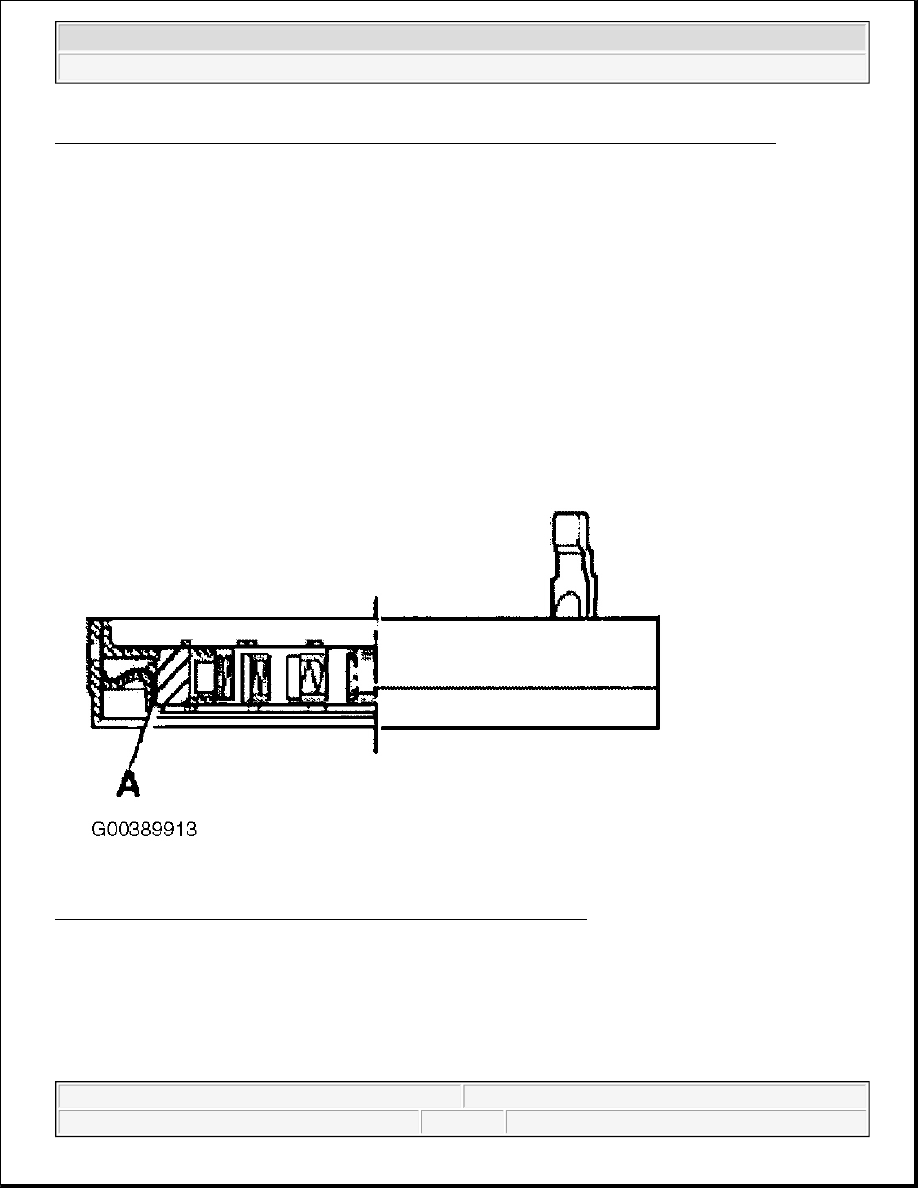

Pressing on large tapered roller bearing inner race

Fig. 117: Pressing On Large Tapered Roller Bearing Inner Race
Courtesy of VOLKSWAGEN OF AMERICA, INC.

A. Thrust washer



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



{

Install thrust washer before pressing on inner race. Shoulder faces inner race.

Checking synchro-ring for wear

Fig. 118: Checking Synchro-Ring For Wear (Output Shaft)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press synchro-ring onto gear wheel cone and measure gap "a" with feeler gauge.

SYNCHRO-RING GAP DIMENSIONS WEAR LIMIT (OUTPUT SHAFT)

Gap "a"

New dimension

Wear limit



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Disassembling and assembling 1st and 2nd gear locking collar and synchro-hub

1st gear

1.0 ... 1.7 mm

0.5 mm

3rd gear

1.0 ... 1.7 mm

4th gear

1.0 ... 1.7 mm



2003 Volkswagen New Beetle GLS

1998-2004 TRANSMISSION 5 Spd. Manual Transmission 02J - New Beetle



Fig. 119: Disassembling And Assembling 1st And 2nd Gear Locking Collar And Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.


1. Spring

2. Locking collar

3. Synchro-hub

4. Locking piece

{

Slide locking collar over synchro-hub.

The wide shoulder of the synchro-hub (arrow -A-) and the outer splines of the locking collar (arrow
-B-) face opposite directions after assembly. Recesses for locking pieces on synchro-hub and
locking collar must align.

Assembling 1st and 2nd gear locking collar/synchro-hub

Fig. 120: Assembling 1st And 2nd Gear Locking Collar/Synchro-Hub
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Locking collar is pushed over synchro-hub.

{

Insert locking pieces and install springs 120° off-set. The angled end of spring must locate in
hollow locking piece.

Installation position 1st and 2nd gear locking collar/synchro-hub
