Volkswagen New Beetle. Manual - part 2354

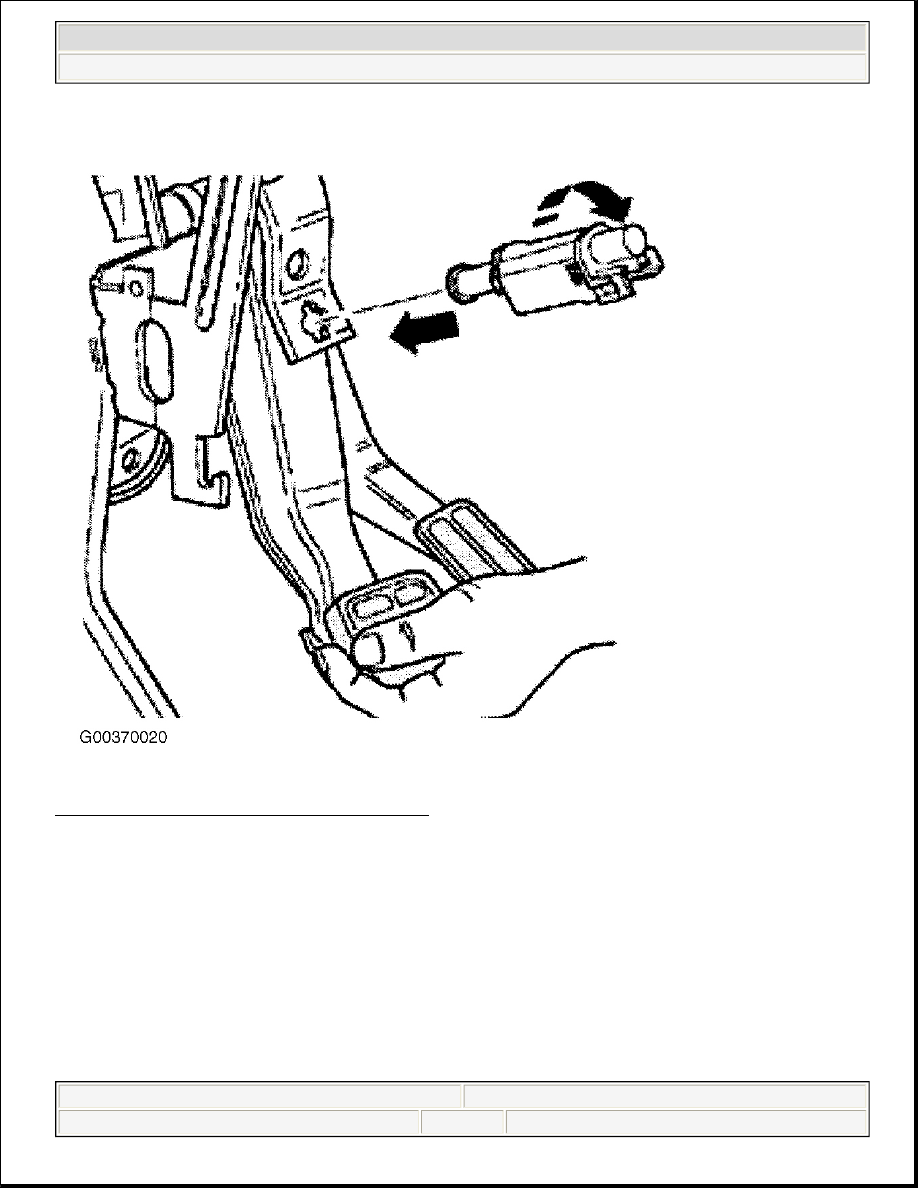

Fig. 4: Removing Brake Light Switch (Old Style)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Brake Light Switch (New Style)

1. Remove driver's side lower instrument panel cover. Disconnect brake light switch harness connector.

Turn switch counterclockwise 45 degrees. Pull switch out from retainer mounting hole. Pull plunger
completely out (arrow). See Fig. 5 .

CAUTION: "New style" switches have an internal switch mechanism that will be

damaged if not installed and adjusted accordingly. DO NOT depress
switch plunger or otherwise rotate retaining collar of switch prior to
installation. Brake pedal must be held in Up position (not depressed)
during switch installation.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 5

© 2004 Mitchell Repair Information Company, LLC.

2. Hold brake pedal in Up position (against stop). Note orientation of retainer tabs (1 and 2) on switch.

Carefully insert switch into retainer mounting hold. Push switch in and seat fully into opening (pressing
plunger against brake pedal to adjust). Once seated, secure switch by turning clockwise 45 degrees.

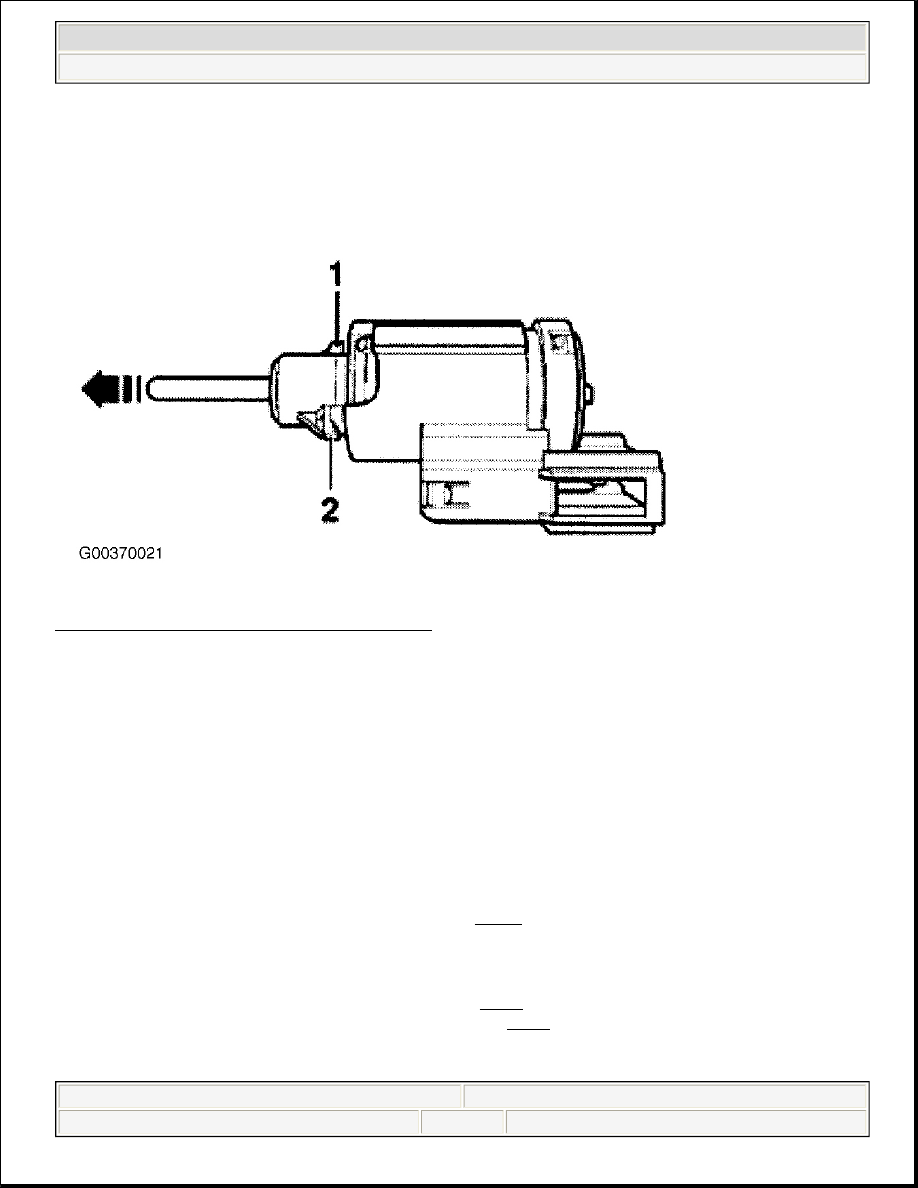

Fig. 5: Adjusting Brake Light Switch (New Style)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

CLUTCH

SELECTOR MECHANISM

Selector Mechanism (Vehicles Built Up To May 1999)

1. Carefully pry cover off center console (arrows). See Fig. 7 . Pull cover to rear off center console. Destroy

clip (arrow) and pull gear shift knob off with cover. See Fig. 8 . Remove rubber cover, if equipped.

NOTE:

Hydraulic clutch systems are automatically adjusted and require no manual
adjustment.

NOTE:

To ensure correct gear selector adjustment, moving parts of selector
mechanism and transmission elements must be in proper condition. Selector
mechanism must move freely. See Fig. 6 . Transmission, clutch and clutch
mechanism must also be in proper condition. Transmission is in Neutral
position.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 6

© 2004 Mitchell Repair Information Company, LLC.



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 7

© 2004 Mitchell Repair Information Company, LLC.

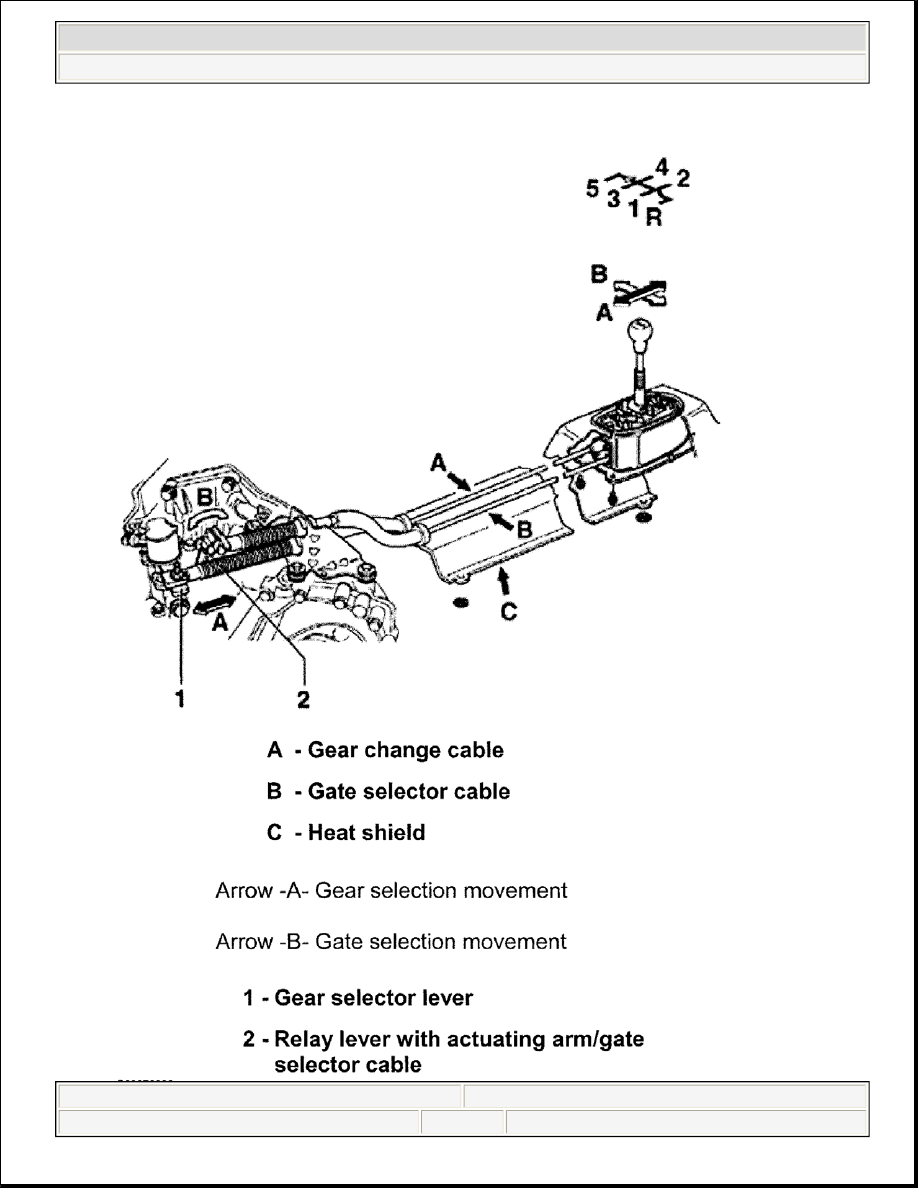

Fig. 6: Identifying Gear Selector Mechanism Components (Vehicles Built Up To May 1999)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

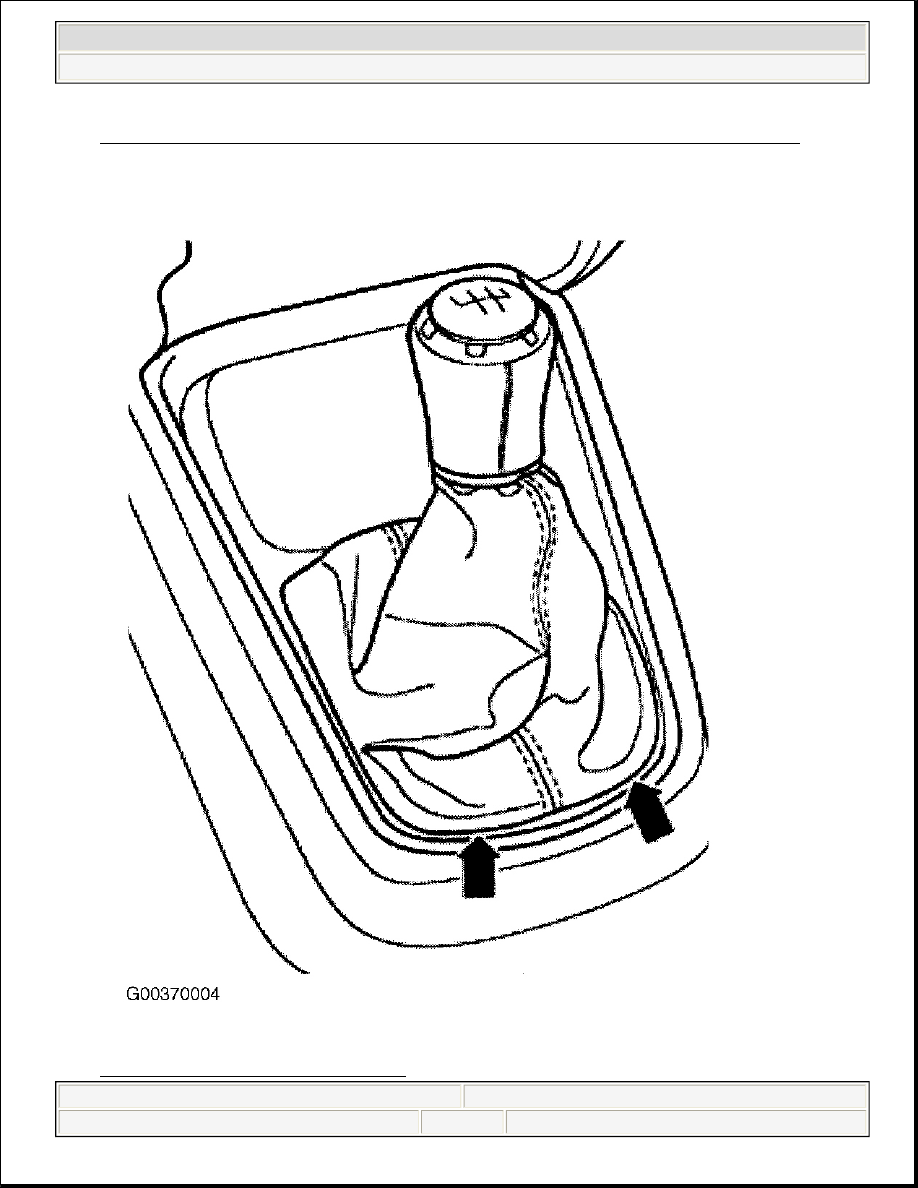

Fig. 7: Removing Center Console Cover



2003 Volkswagen New Beetle GLS

1998-2004 CLUTCHES New Beetle (5-Speed, 02J)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 9:04:01 AM

Page 8

© 2004 Mitchell Repair Information Company, LLC.
