Volkswagen New Beetle. Manual - part 226





5. Headlight housing

z

Removing and installing, See HEADLIGHT HOUSING WITH HIGH INTENSITY GAS
DISCHARGE (HID) LAMP, REMOVING AND INSTALLING
 .

6. Parking light bulb

z

Halogen bulb 12 V, 6W

z

Removing and installing, See PARKING LIGHT BULBS, REMOVING .

7. Sealing cap

z

Removing and installing, See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE
(HID) LAMP, REPLACING BULBS
 .

8. High beam bulb

z

H7 12V, 55 W

z

Removing and installing, See HIGH BEAM BULB, REMOVING .

9. High Intensity Gas Discharge (HID) lamp

z

Used for low beam

z

Type DS2, 35W

z

Operating voltage 80V to 117V

z

Removing and installing, See HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE
(HID) LAMP, REPLACING BULBS
 .

10. Headlight beam adjusting motor -V48- / -V49-

z

Removing and installing, See HEADLIGHT BEAM ADJUSTING MOTOR -V48- / -V49-,
REMOVING AND INSTALLING



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

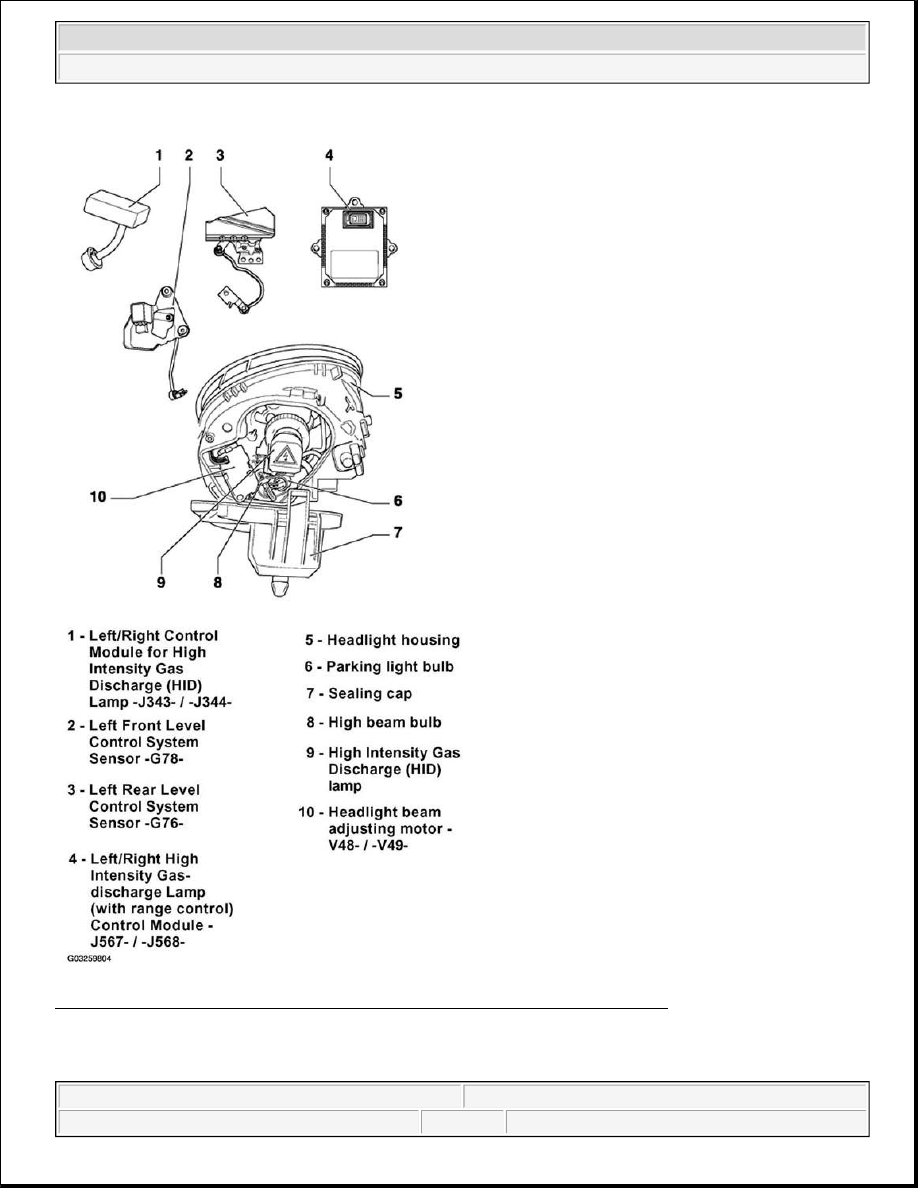

Fig. 18: Identifying Headlights With High Intensity Gas Discharge (Hid) Lamps
Courtesy of VOLKSWAGEN OF AMERICA, INC.

HEADLIGHTS WITH HIGH INTENSITY GAS DISCHARGE (HID) LAMP, REPLACING BULBS



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle



HID lamp bulb, removing

z

Remove applicable headlight housing, See HEADLIGHT HOUSING WITH HIGH INTENSITY
GAS DISCHARGE (HID) LAMP, REMOVING AND INSTALLING
 .

z

Remove screw -1- and open sealing cap by releasing retaining clip -2-.

z

Disengage sealing cap from mounting -3-.

WARNING:

z

HIGH VOLTAGE!

z

Always disconnect negative (-) battery terminal prior to servicing
any parts of the HID lamp system marked with the yellow "HIGH
VOLTAGE!"symbol.

z

After disconnecting battery, briefly turn headlights on and off in
order discharge any residual voltage.

z

Internal pressure of HID glass bulb may exceed 10 bar.

z

The physical and mechanical properties of HID bulbs are very
sensitive. Always wear safety glasses when removing and installing
HID bulb



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle

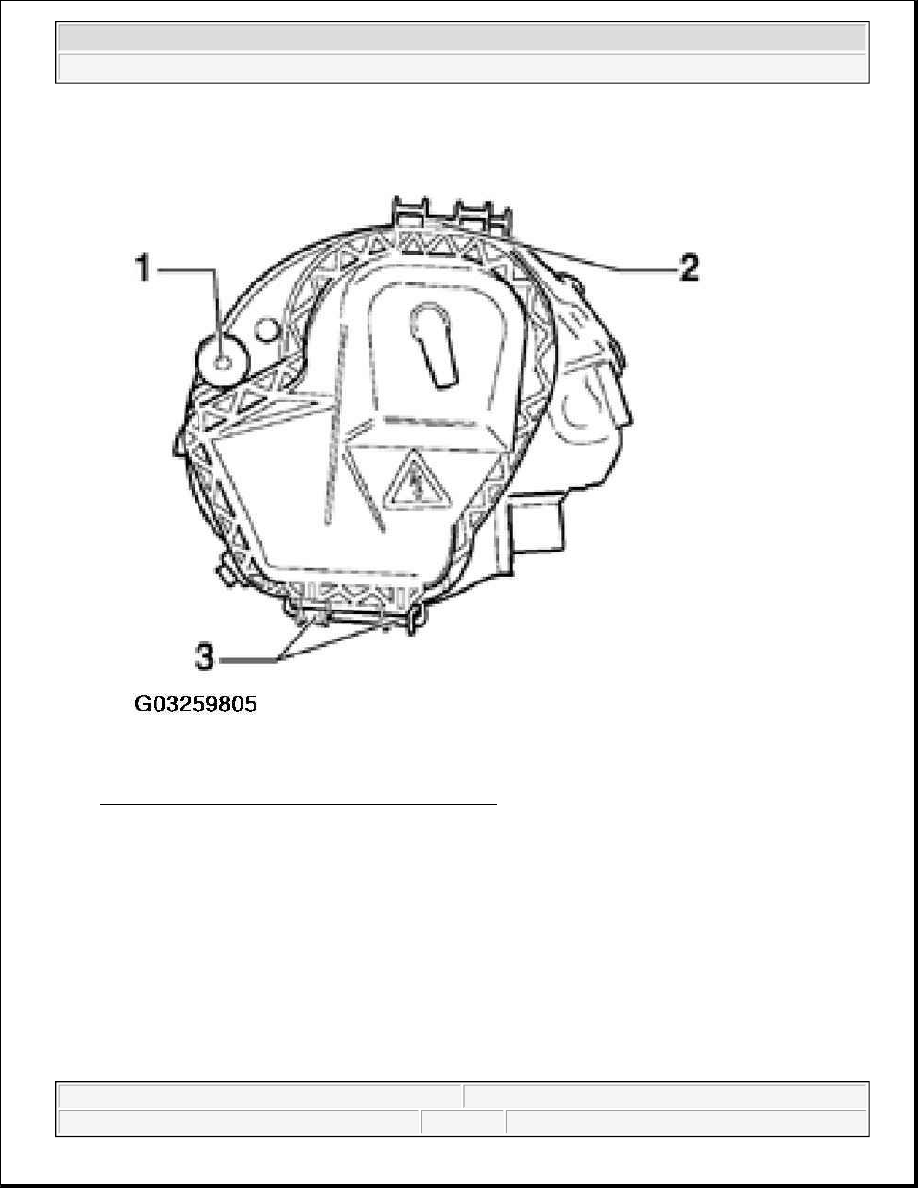

Fig. 19: Removing Screw And Opening Sealing Cap
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Release connector -1-, by turning 90° to the left -arrow- and pull off.

z

Turn gas discharge bulb retaining ring -2- to the left and remove bulb.

z

Carefully remove HID bulb.



2003 Volkswagen New Beetle GLS

1998-2004 ACCESSORIES & EQUIPMENT Lights, Switches - Exterior - New Beetle
