ATF PUMP TO SUPPORTING TUBE, REMOVING AND INSTALLING

Number of inner and outer plates varies based on transmission code. For correct number used, see CODE
LETTERS, TRANSMISSION APPLICATION, RATIOS, EQUIPMENT .

2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

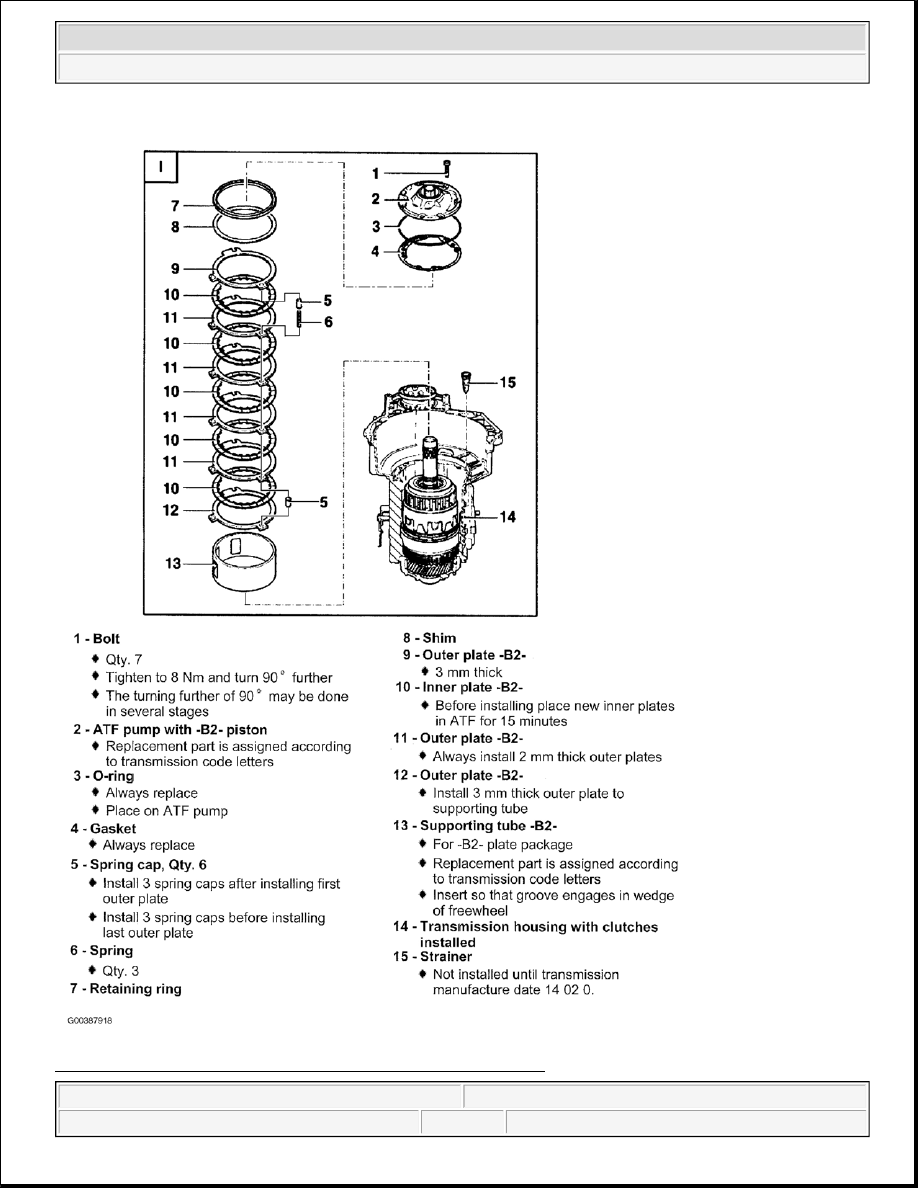

Fig. 46: Removing & Installing ATF Pump To Supporting Tube

2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

Courtesy of VOLKSWAGEN UNITED STATES, INC.

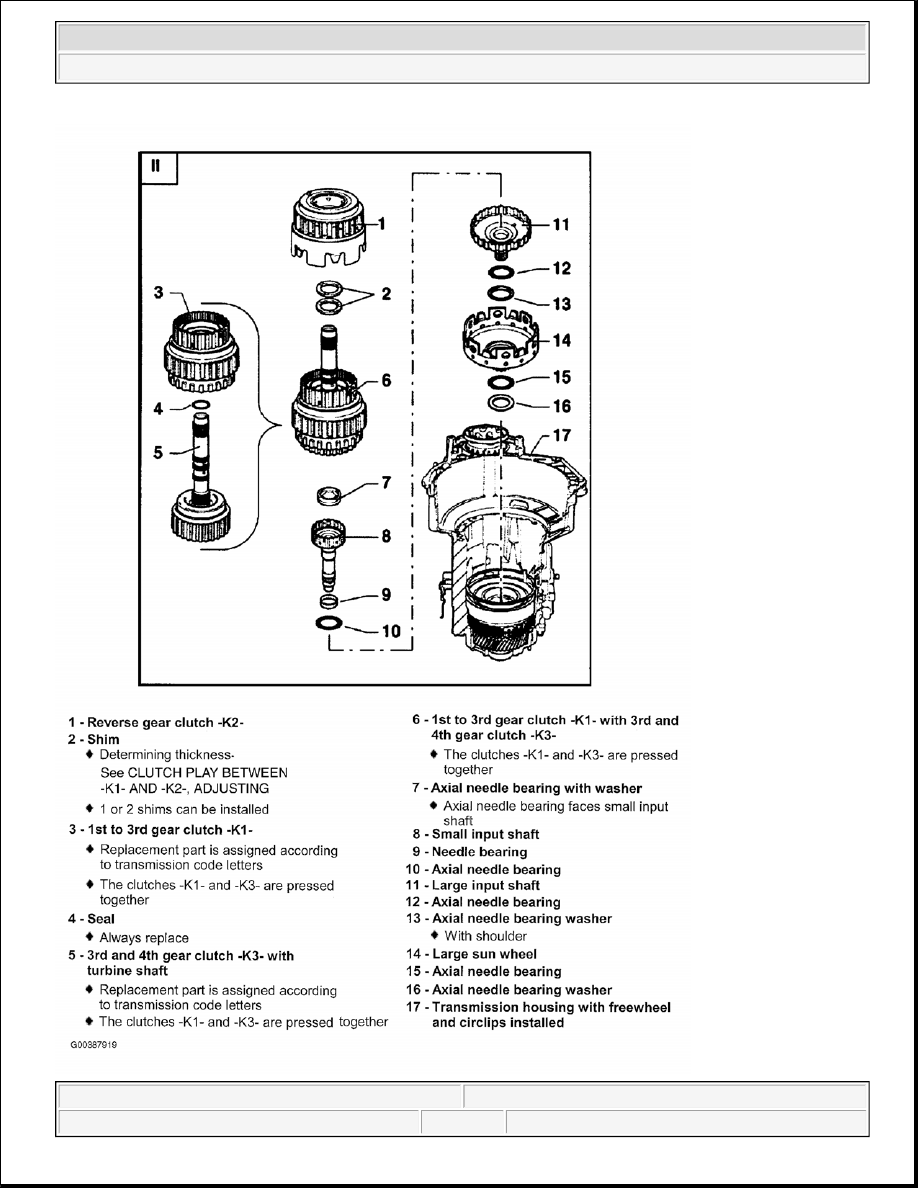

REVERSE GEAR CLUTCH -K2- TO LARGE SUN GEAR, REMOVING AND INSTALLING

2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
