the turbine shaft of the transmission with this type. Remove if necessary.

Removing Sleeve Bearing From Turbine Shaft

Place transmission in its installation position on transmission oil pan.

Remove torque converter.

Position holes -A- of turbine shaft in horizontal position. See Fig. 34 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M



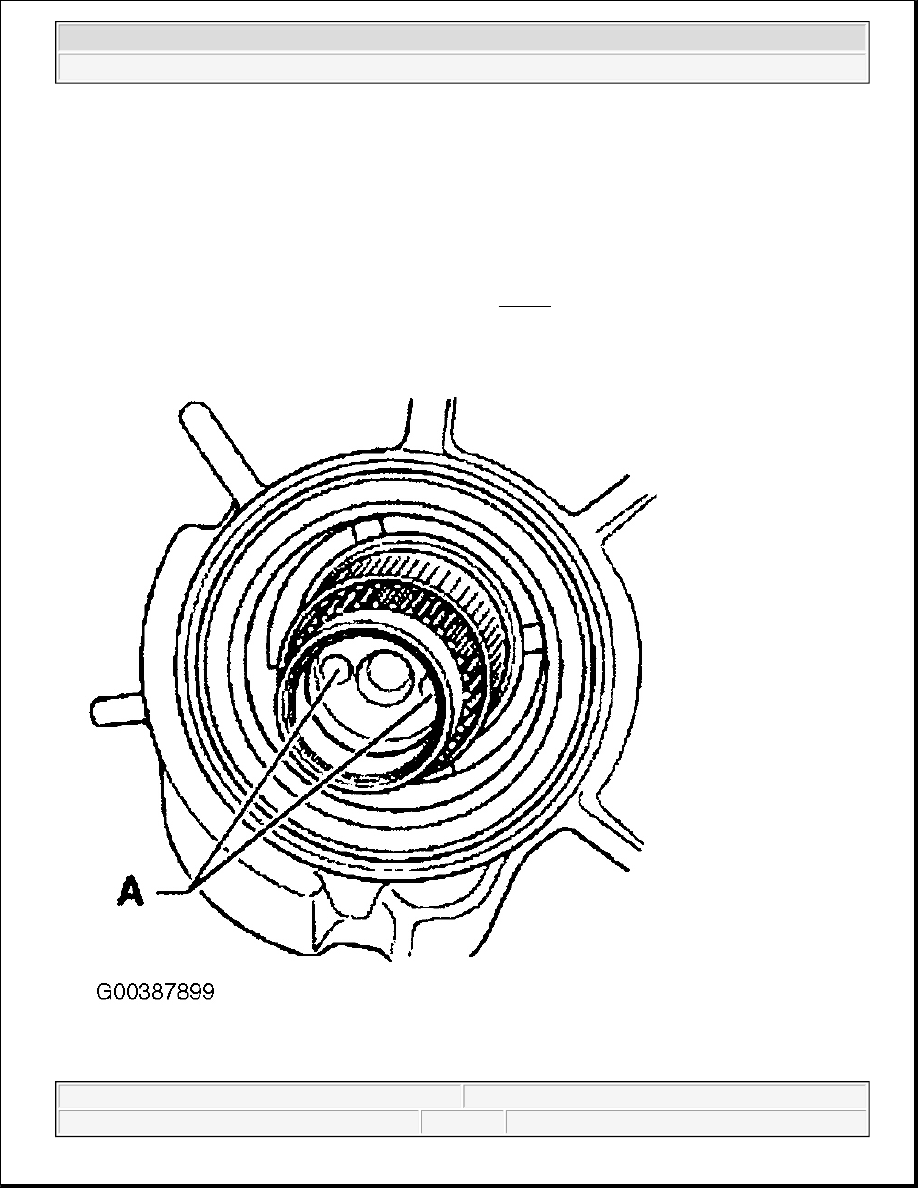

Fig. 34: Locating Turbine Shaft Holes
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Protect transmission by carefully taping around turbine shaft and over holes. See Fig. 35 .

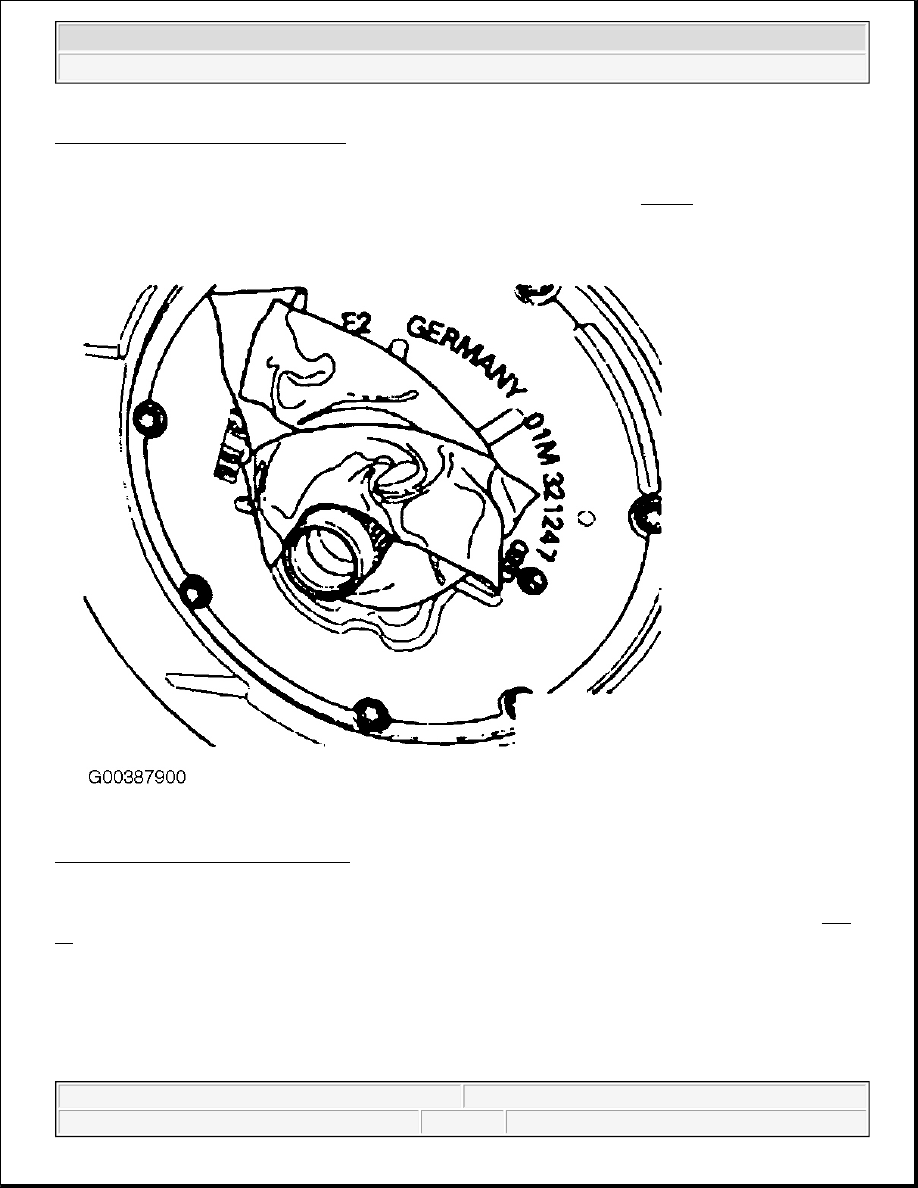

Fig. 35: Taping Around Turbine Shaft
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Saw through sleeve bearing using a saw blade. Do NOT saw at thrust point of sleeve bearing (arrow). See Fig.
36
 .



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

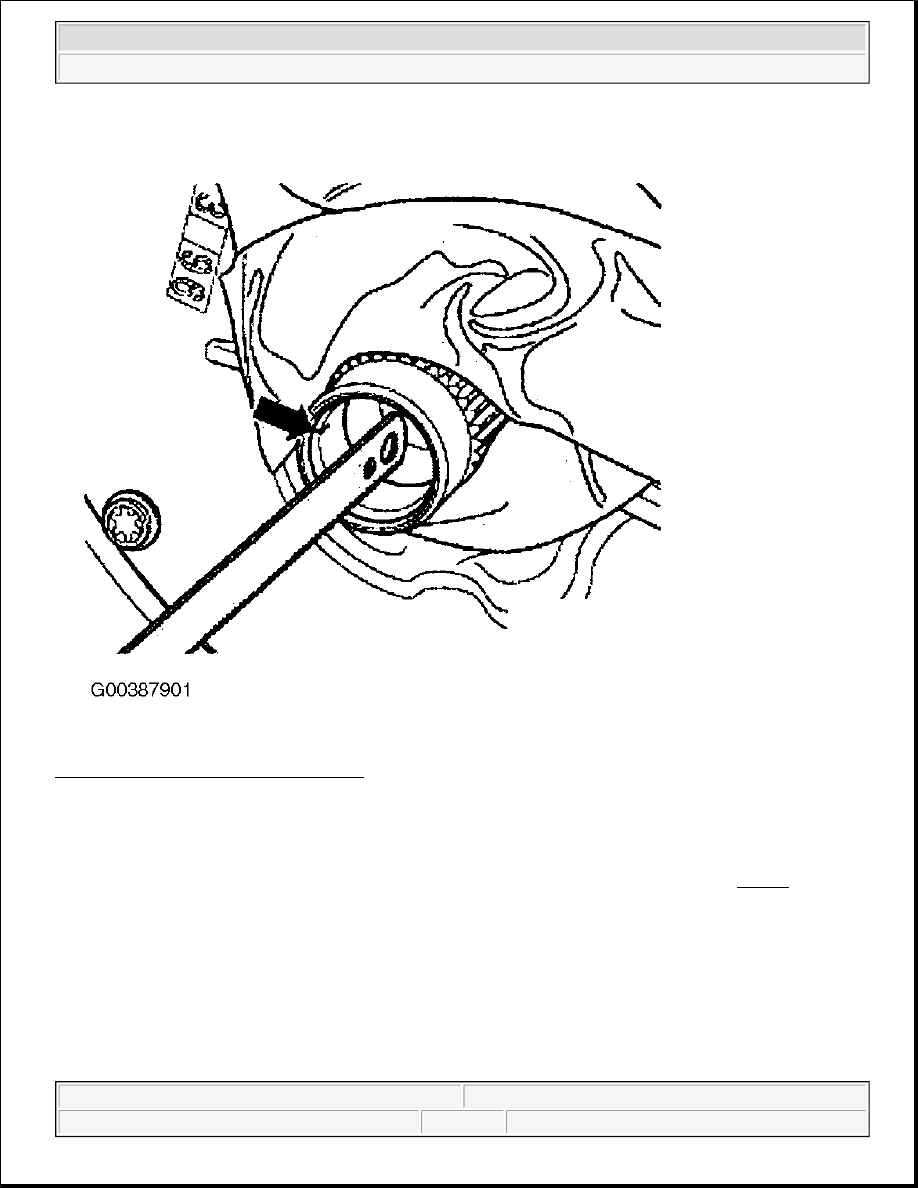

Fig. 36: Sawing Through Sleeve Bearing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Without damaging turbine shaft, carefully pry up split sleeve bearing using a screwdriver. See Fig. 37 .

NOTE:

Make sure that no filings enter the transmission.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M

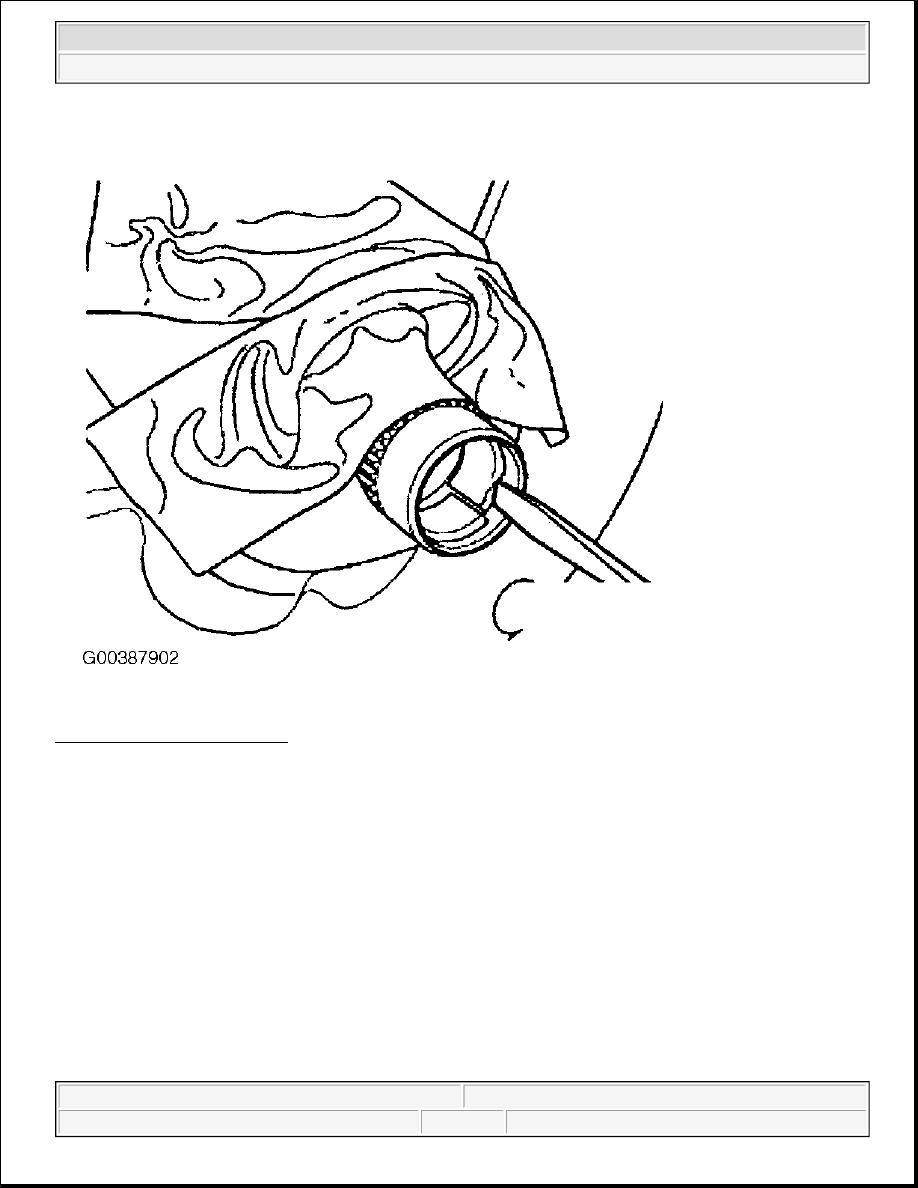

Fig. 37: Prying Sleeve Bearing
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove filings and sticky tape.

Replace torque converter seal.

TORQUE CONVERTER OIL SEAL, REMOVING AND INSTALLING

Special Tools And Equipment

z

VW 681 Extractor lever

z

3158 Drift sleeve

Removing & Installing Torque Converter Oil Seal



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Overhaul - New Beetle, 01M
