Supplementary information

z

Electrical Wiring Diagrams

Test Sequence

Connect VAS 5051 tester and select functions. See VAS 5051 DIAGNOSIS, TESTING AND
INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTION
 .

Indicated on display:

z

Rapid data transfer HELP

z

Select function XX

Press keys 0 and 8 (08 selects function "Read measured value block").

Indicated on display:

z

Rapid data transfer Q

z

08 - Read measured value block

Confirm entry with Q key.

Indicated on display:

z

Read measured value (data) block

z

Input display group number XXX

Enter display group number For list of selectable display group numbers, see List Of Selectable Display
Group Numbers
 .

Confirm entry with Q key.

There are always 4 display zones in the measured value block (arrows) (if necessary in physical quantities).

z

Read measured value block 1 "right arrow"

z

"right arrow"

z

1 "right arrow" 2 "right arrow" 3 "right arrow" 4

To decode the individual values in display zones 1 to 4. See TEST TABLE .

List Of Selectable Display Group Numbers

NOTE:

The following description refers to V.A.G 1551.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

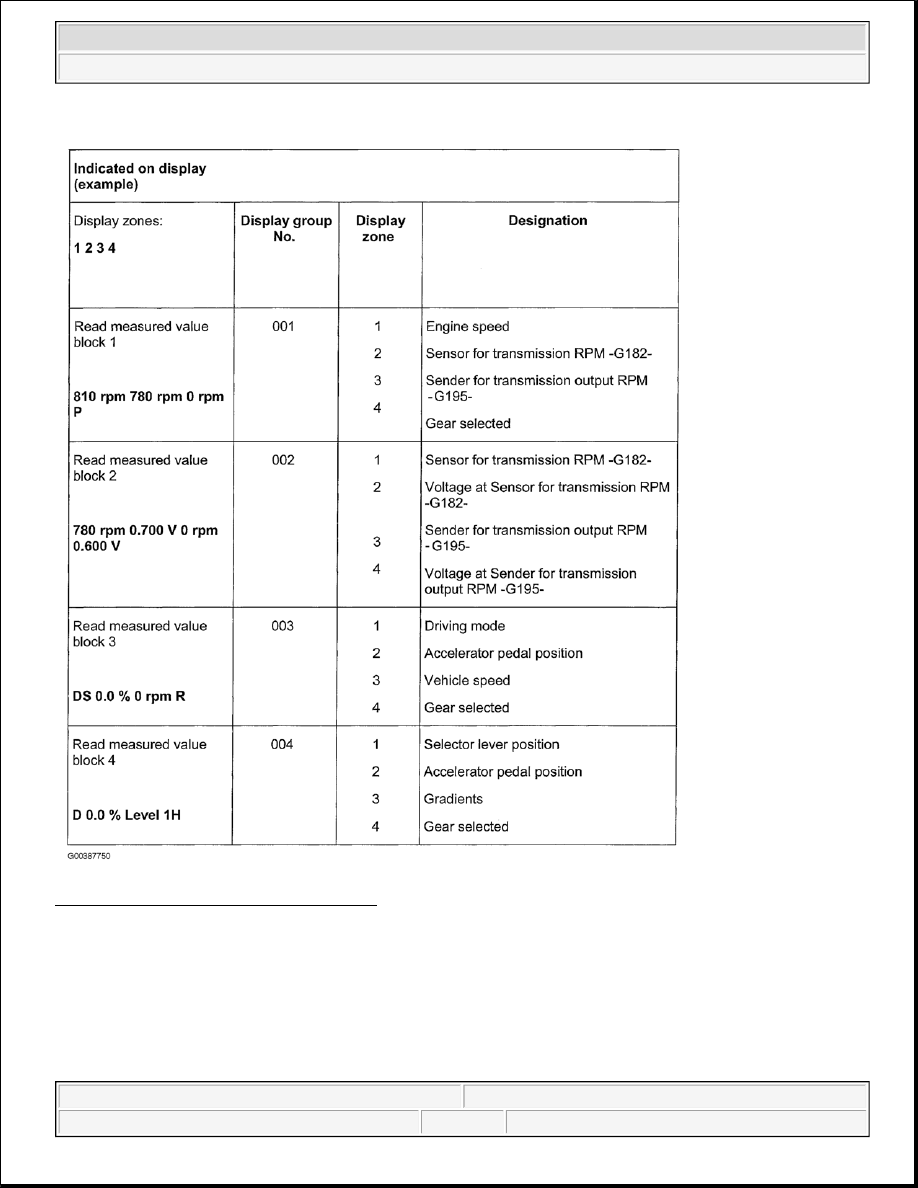

Fig. 83: Selectable Display Group 001-004
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

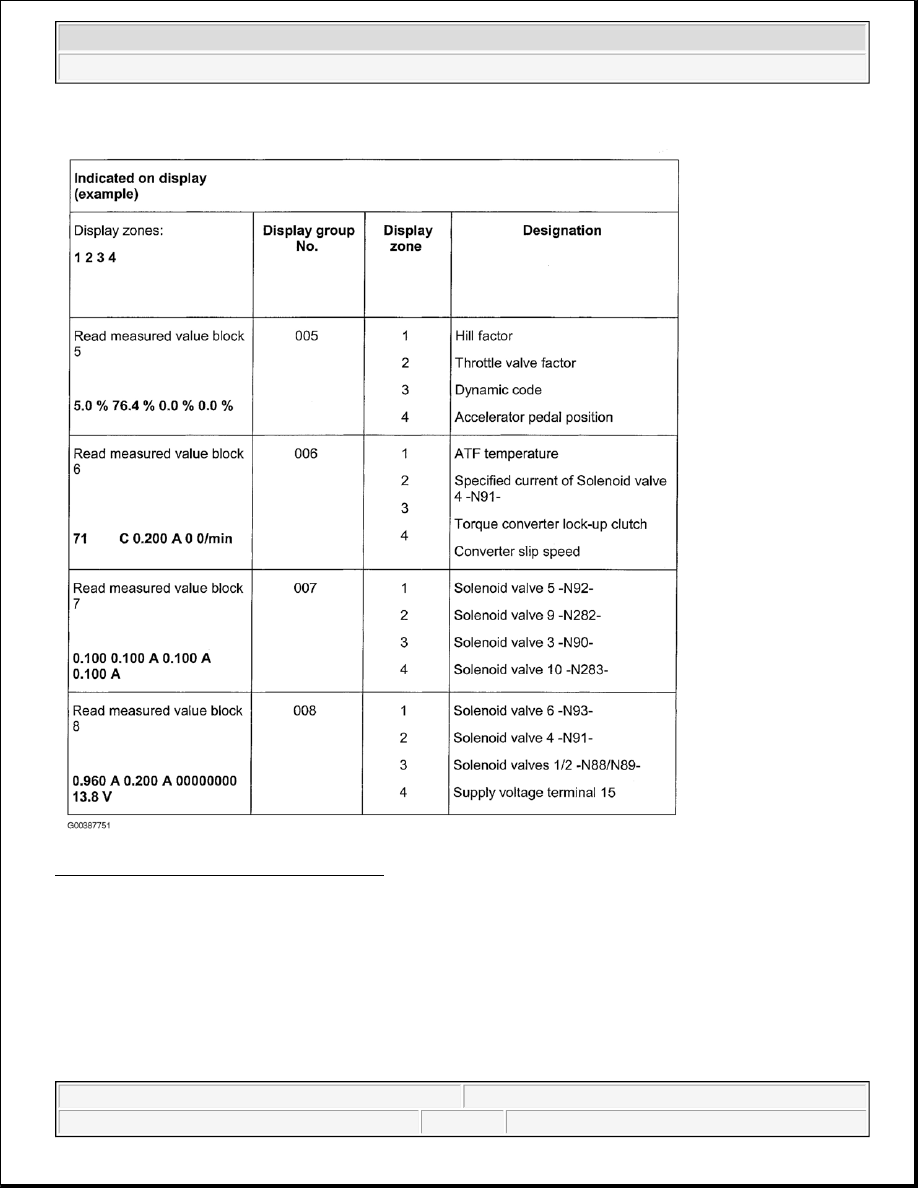

Fig. 84: Selectable Display Groups 005-008
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G

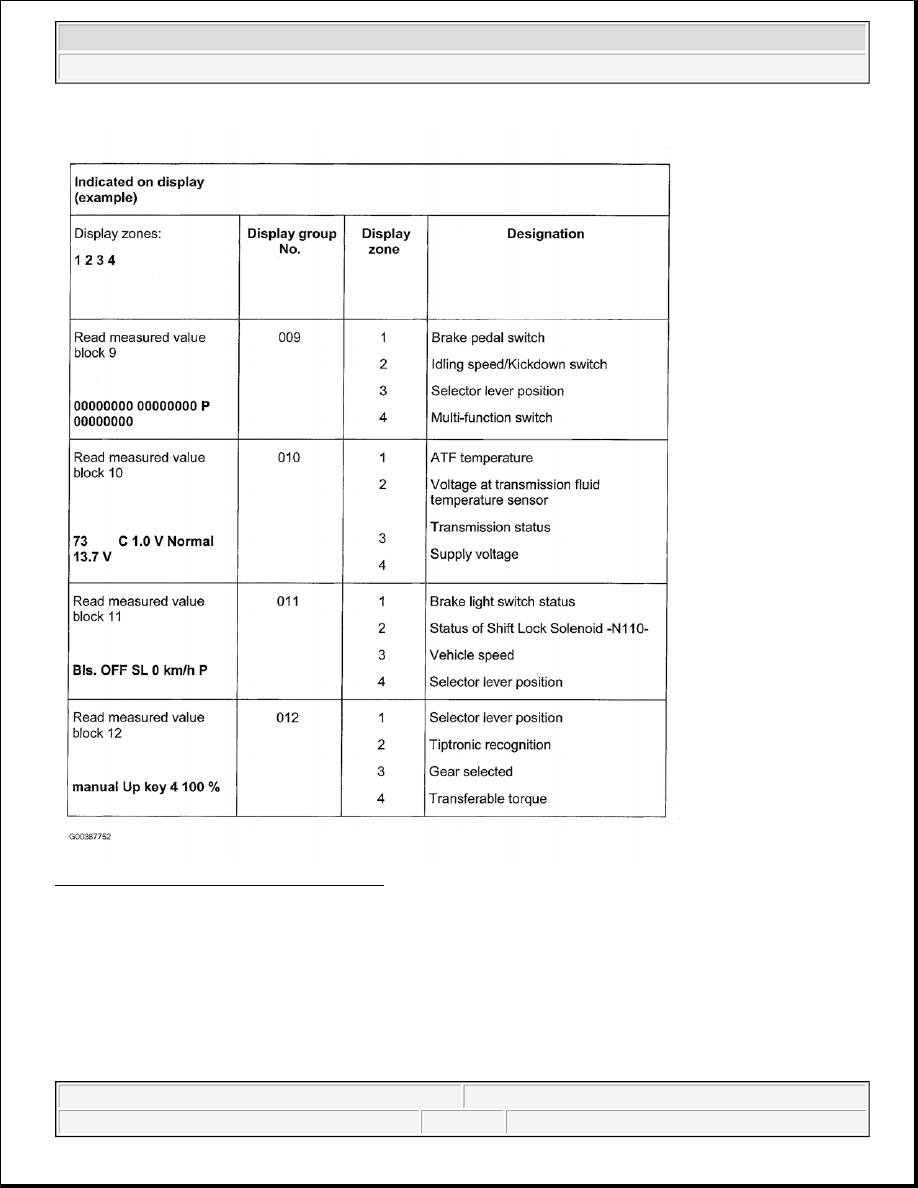

Fig. 85: Selectable Display Groups 009-012
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
