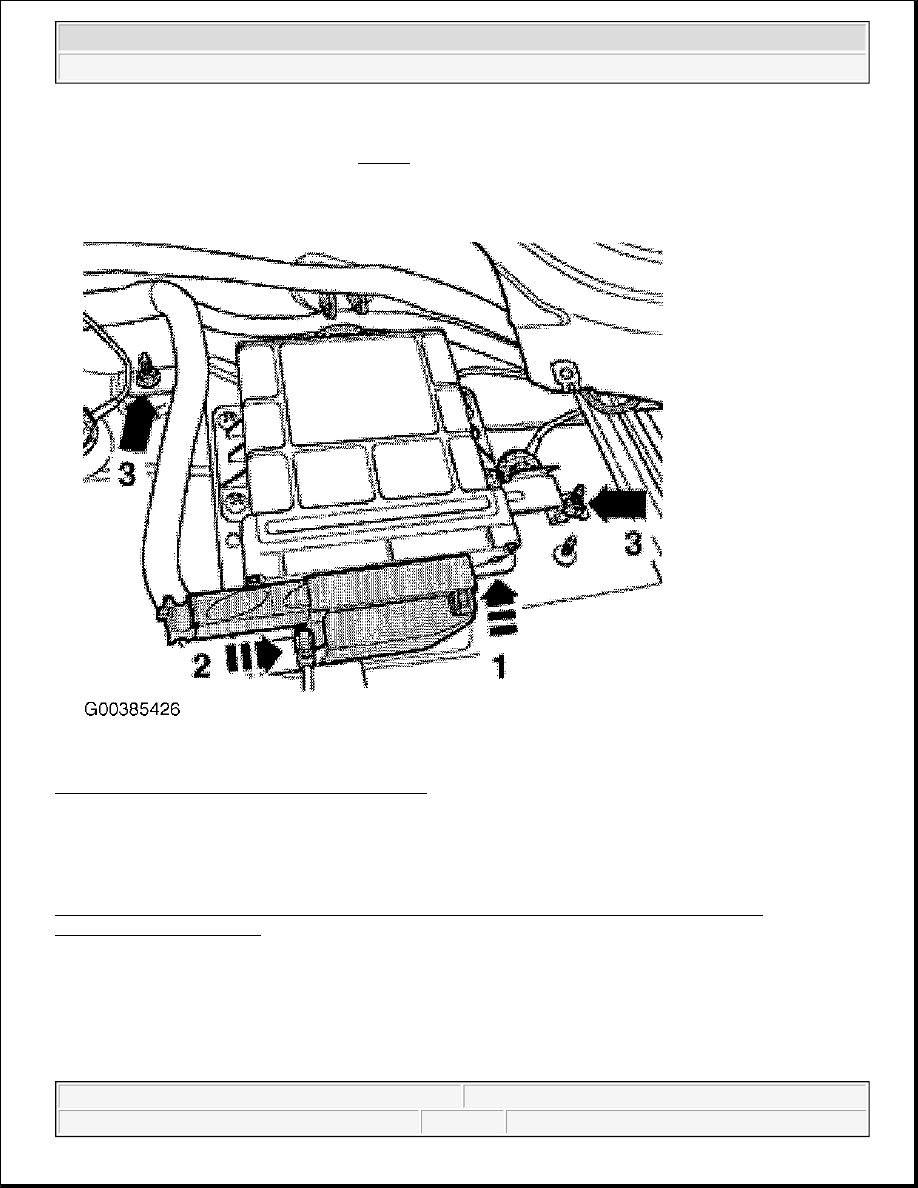

When reinstalling multi-pin connector, fit connector onto pin of TCM -J217- (arrow -1-) and then lock multi- Fig. 24: Installing Transmission Control Module Tighten nuts (arrow -3-) to 10 Nm. Connect VAS 5051 and advance through programs until "Functions/selecting component" is displayed. See z Press "Drive (Repair group. 01;10...26; 28...39)". z Press "6-speed automatic transmission 09G". z Press "01 self-diagnosis". z Press "Functions". z Press "Initiate basic (default) setting".
2003 Volkswagen New Beetle GLS 2002-04 AUTOMATIC Diagnosis - New Beetle, 09G
|
