Volkswagen New Beetle. Manual - part 2148

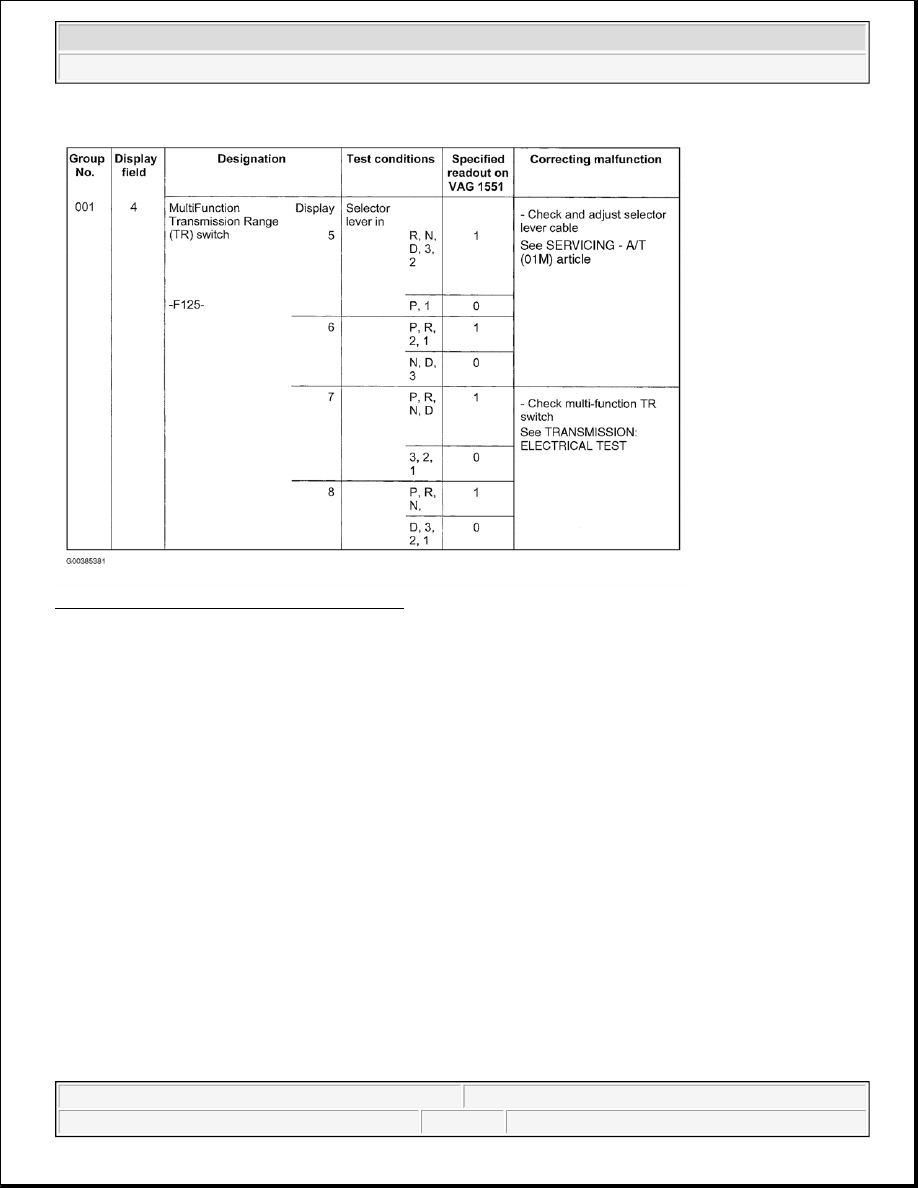

Fig. 66: Test Table (Group 1, Field 4 - 3 Of 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

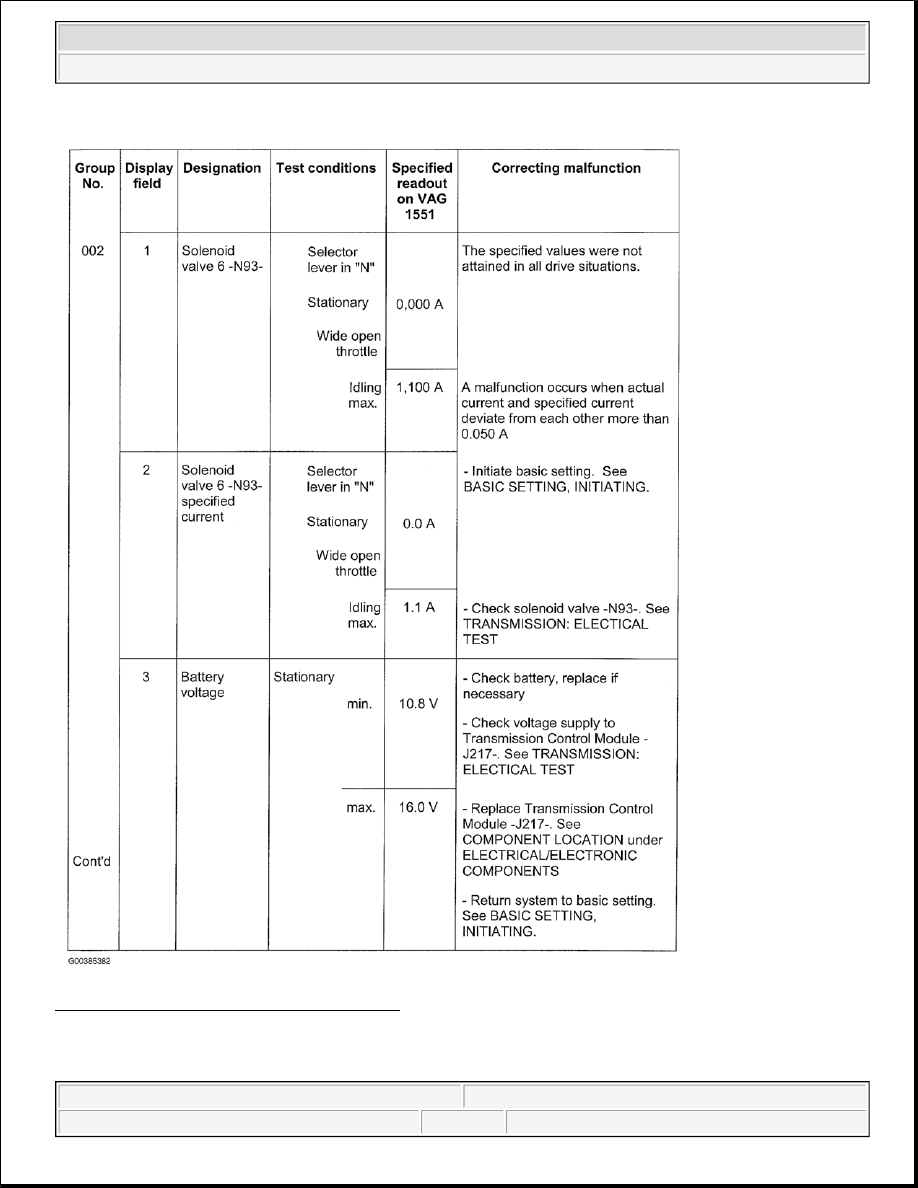

Fig. 67: Test Table (Group 2, Fields 1, 2 & 3)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

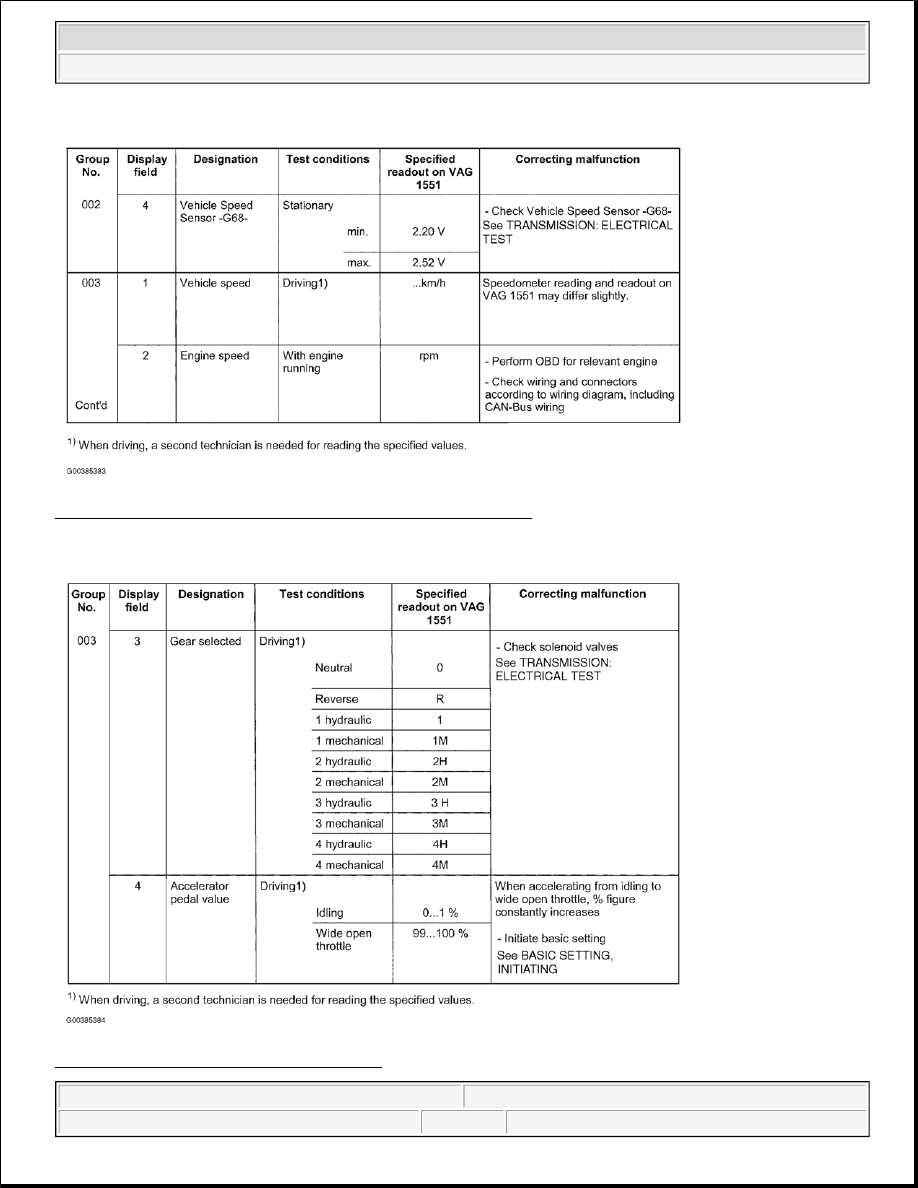

Fig. 68: Test Table (Group 2, Field 4 & Group 3, Fields 1 & 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig. 69: Test Table (Group 3, Fields 3 & 4)



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M



Courtesy of VOLKSWAGEN UNITED STATES, INC.

Reading Measured Value Block; Display Group Number 004; "Checking Solenoid Valves While Driving"

Notes

z

The solenoid valves can be checked while driving via "Read measured value block 08"; display group
number 004.

z

The table shows the solenoid valves -N88-, -N89- and -N90- (displays 1 to 3) as activated in each selector
lever position. These solenoid valves control the shift valves for the relevant gears.

z

The solenoid valve -N91- activates the lock-up clutch modulation valve and is not covered here.

z

The solenoid valves -N92- and -N94- are supplementary valves which affect gear shifts. These valves are
only controlled during gear shifts and are displayed in fields 5 and 6. They can show "0" or "1" depending
on the driving situation.

z

At the start of a test drive the selector lever can be in position "1". During the drive it can be shifted
progressively up to position "D".

z

The mechanical gear "M" is not always engaged. The control module can engage this gear dependent
upon the driving situation. The lock-up clutch can be checked in display group number 005.

z

VAG 1551 display field 1 has 6 characters (0000 00) and is read as follows: See Fig. 70 .

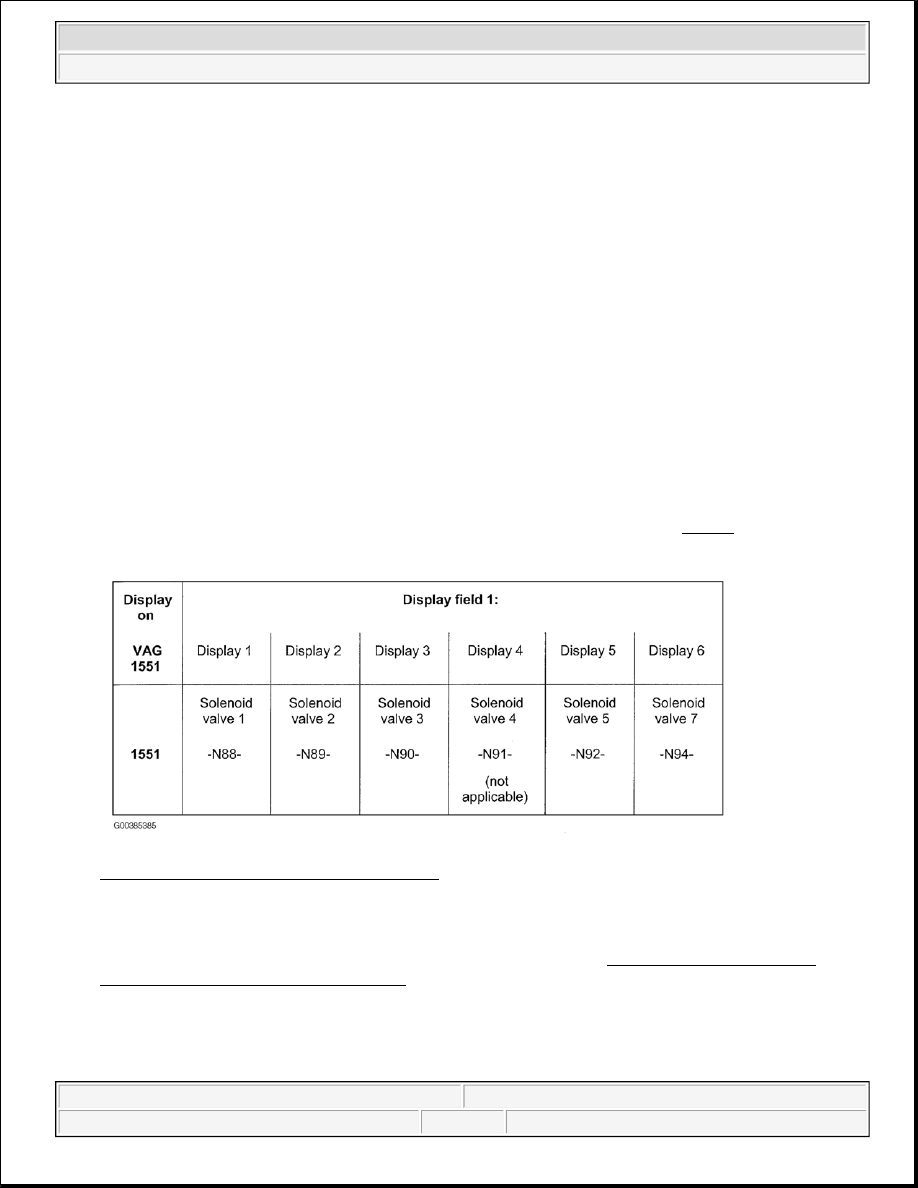

Fig. 70: Identifying VAG 1551 Display Field
Courtesy of VOLKSWAGEN UNITED STATES, INC.

z

Non-activated solenoid valves display "0" and activated solenoid valves display "1".

z

All solenoid valves are checked via On Board Diagnostic (OBD). See DIAGNOSTIC TROUBLE
CODE (DTC) MEMORY, CHECKING
 .

Checking Solenoid Valves While Driving



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M
