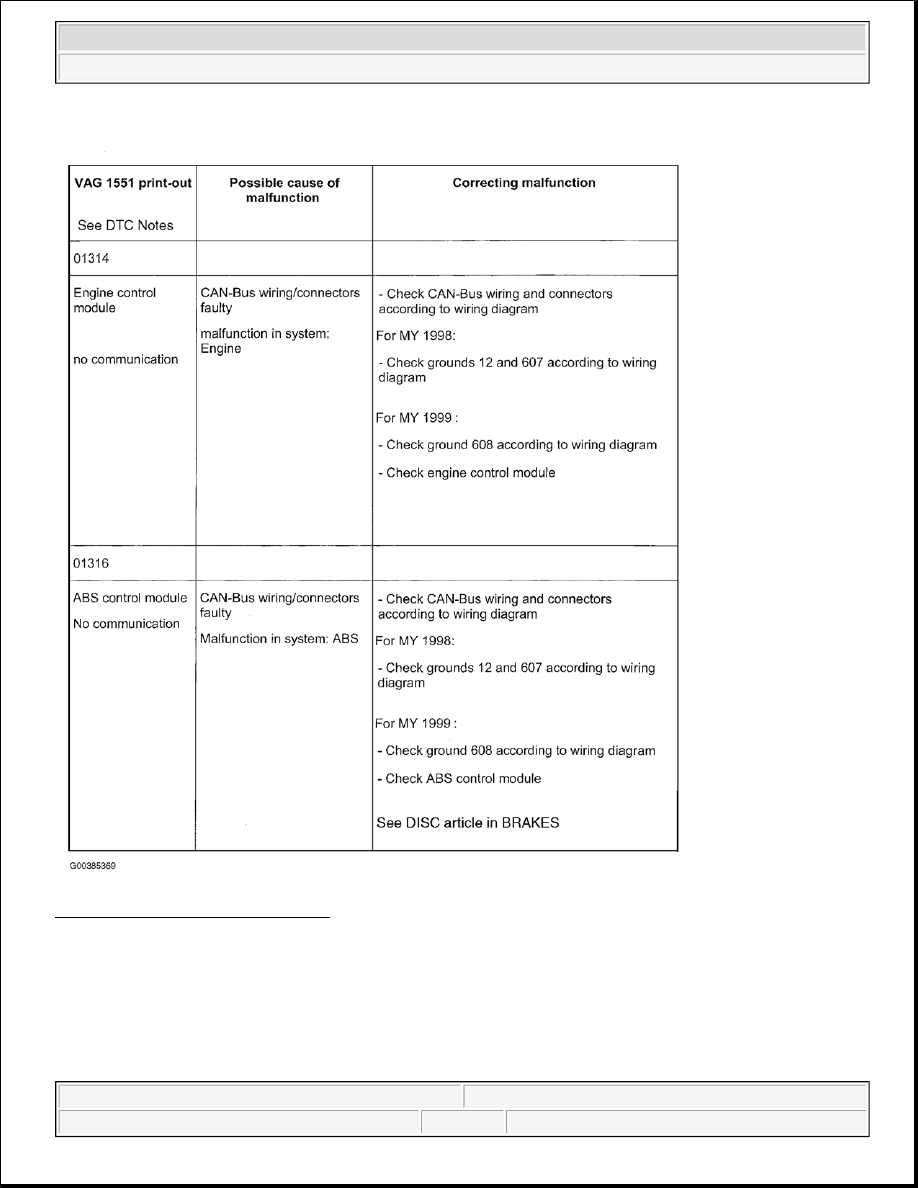

Fig. 54: DTC 01314 & 01316 Tables
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC 65535



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

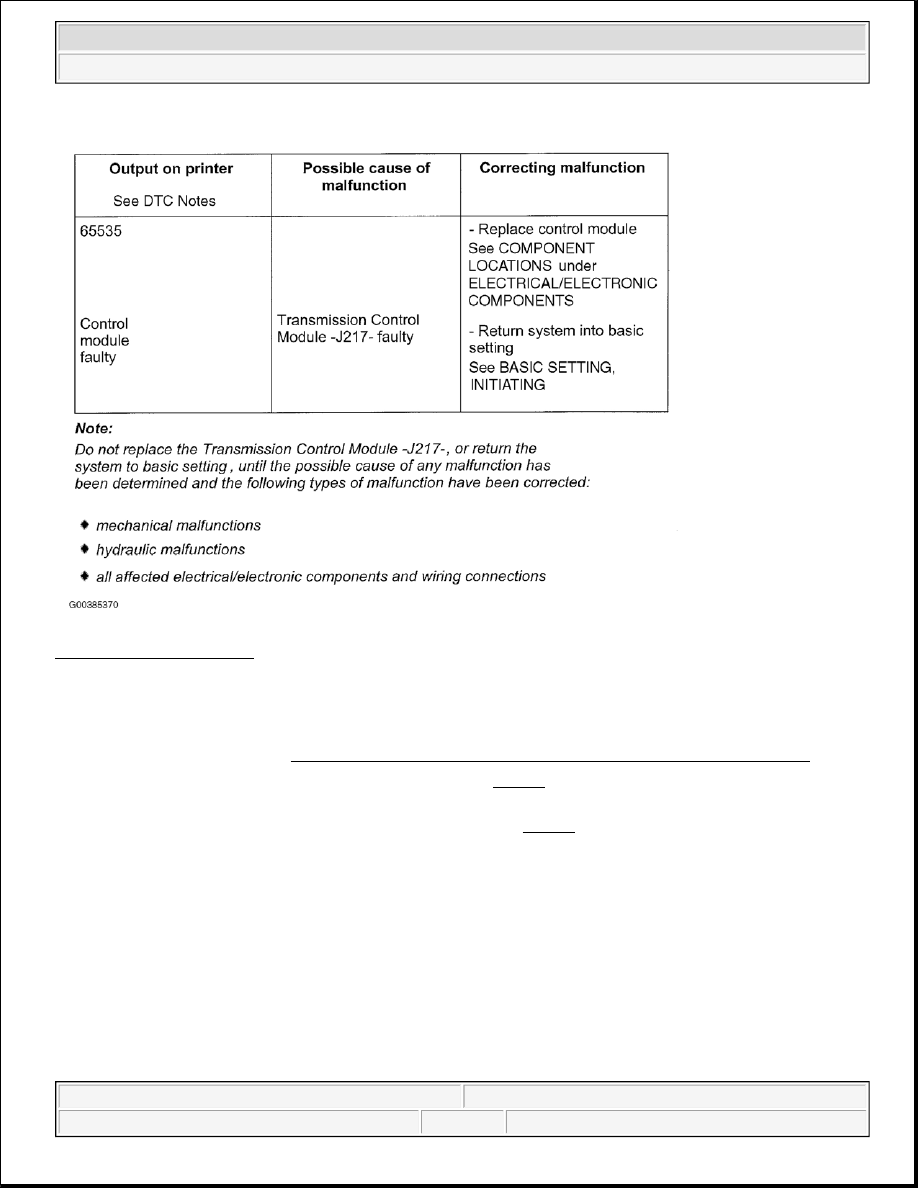

Fig. 55: DTC 65535 Table
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING

1. Check DTC memory. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

2. Scan tool display should be similar to illustration. See Fig. 38 . Press buttons -0- and -5- to select "Erase

DTC memory" function 05.

3. Scan tool display should be similar to illustration (A). See Fig. 56 . Confirm entry with -Q- button.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

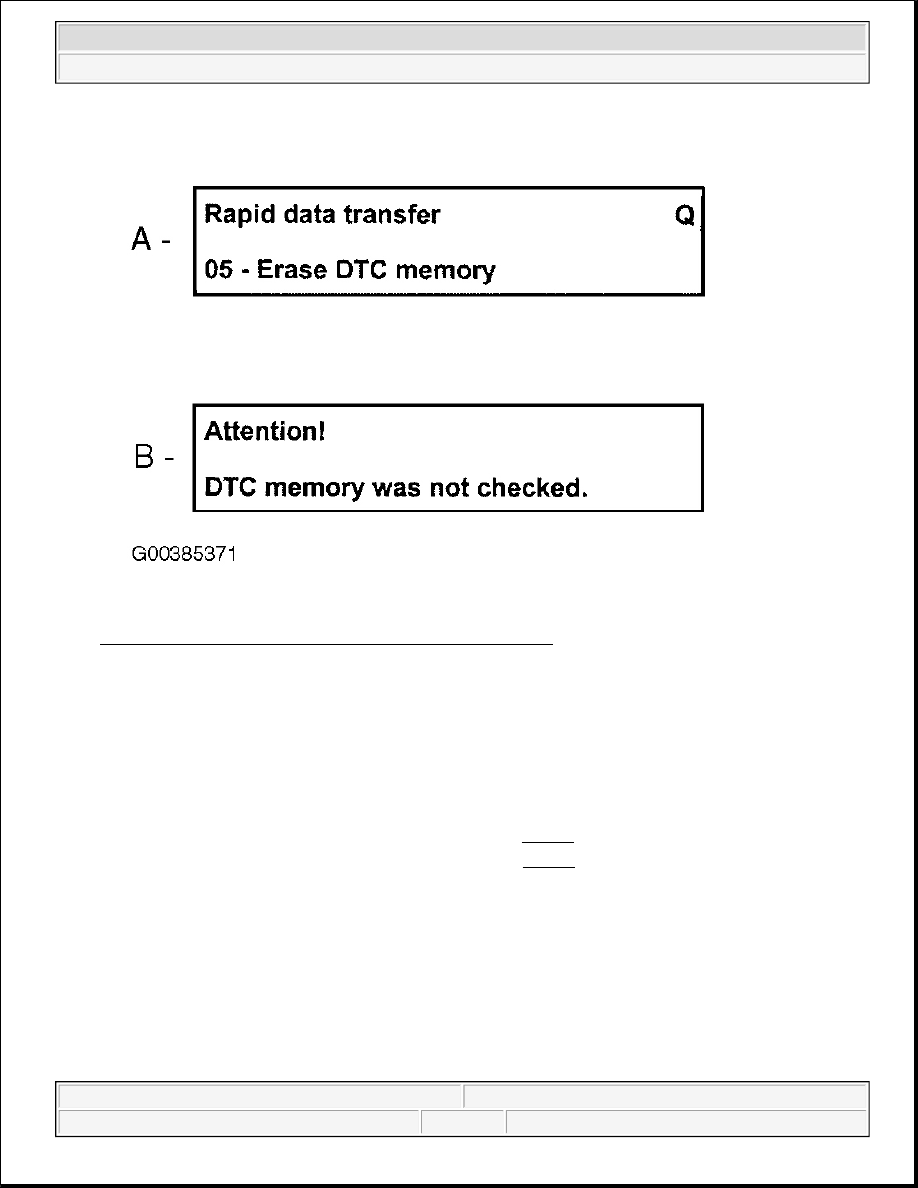

Fig. 56: Scan Tool Display (Erasing DTC Memory - 1 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

4. Scan tool display should be similar to illustration (B). See Fig. 56 .

5. Scan tool display should be similar to illustration (A). See Fig. 57 . The DTC memory will be erased

approx. 5 secs. after the display appears. Wait about 1 minute before checking the DTC memory again.

NOTE:

If the ignition was switched off between checking the DTC memory and
erasing the DTC memory, the DTC memory will not be erased.

NOTE:

Always adhere to the sequence of operations, that is. first check the DTC
memory.



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M

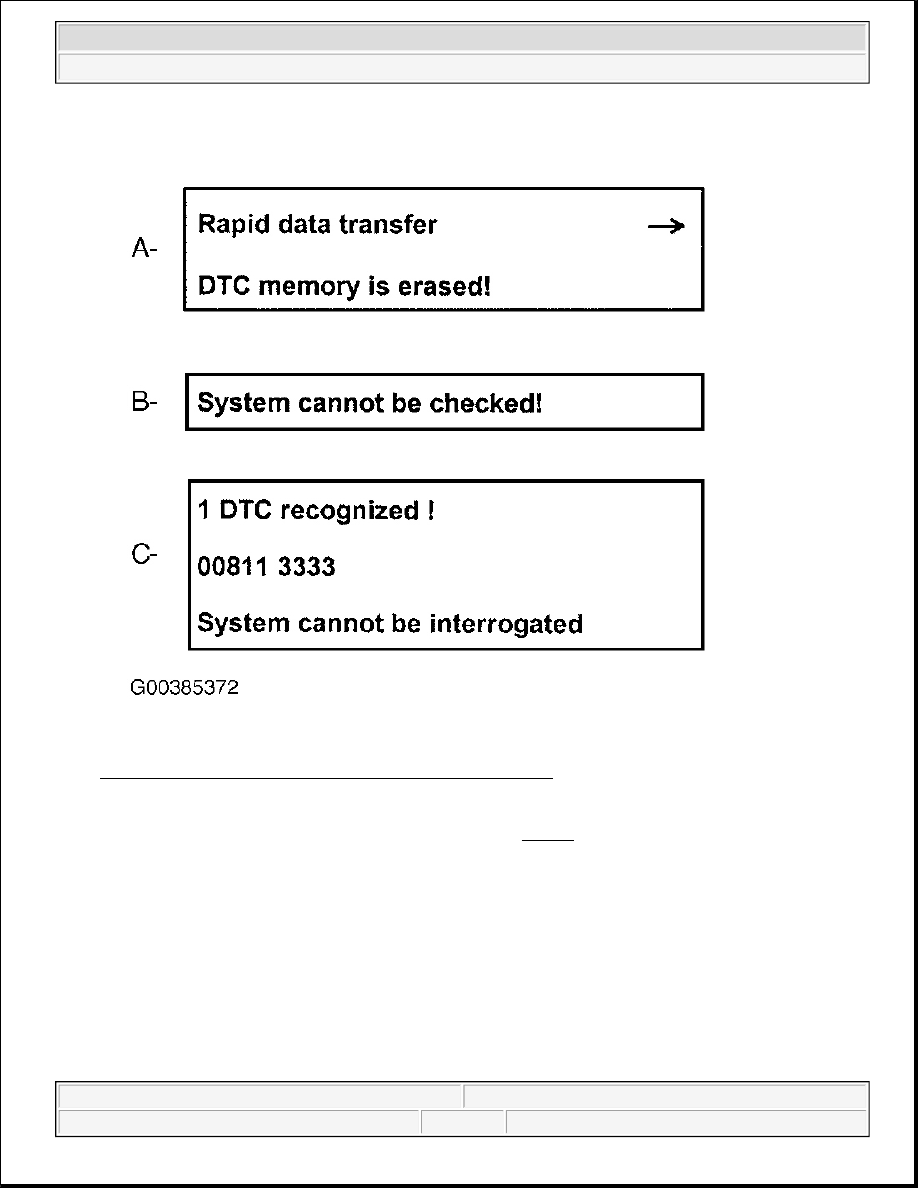

Fig. 57: Scan Tool Display (Erasing DTC Memory - 2 Of 2)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

6. Scan tool display should be similar to illustration (B). See Fig. 57 . Print out with printer switched on (C),

shows Transmission Control Module -J217- was not given sufficient time to recognize malfunctions.
Wait about 1 minute before checking DTC memory again.

7. After checking and erasing DTC memory, test drive vehicle and check DTC memory again.

8. The following display should appear: "No DTC recognized!"

BASIC SETTING, INITIATING

Initiate the basic setting after performing the following repairs:

z

Engine replacement

z

Engine control module replacement



2003 Volkswagen New Beetle GLS

1998-2004 AUTOMATIC TRANSMISSIONS Diagnosis - 01M
