Volkswagen New Beetle. Manual - part 2038





Fig. 9: Coolant Hose Routing Diagram (1.8L - Engine Codes AWP & AWV)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

COOLING SYSTEM SPECIFICATIONS (1.9L TURBO DIESEL - ENGINE CODE ALH)

Application

Specification

Volume

(1)

6.3 Qts. (6.0L)

Thermostat

Starts To Open

187°F (86°C)

Fully Open

221°F (105°C)

Opening Stroke

.28" (7mm)

Thermostatic Fan Switch (In Radiator)

Stage 1

On

198-207°F (92-97°C)

Off

183-196°F (84-91°C)

Stage 2

On

210-221°F (99-105°C)

Off

196-208°F (91-98°C)

Reservoir Cap Opening Pressure

20-23 psi

(1)

Only use coolant additive G12 (according to TL VW 774 D).It is a red color. Do
NOT mix G12 with any other coolant additive! See COOLING SYSTEM
PRECAUTIONS
. Total coolant quantity may vary depending on vehicle
equipment.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.

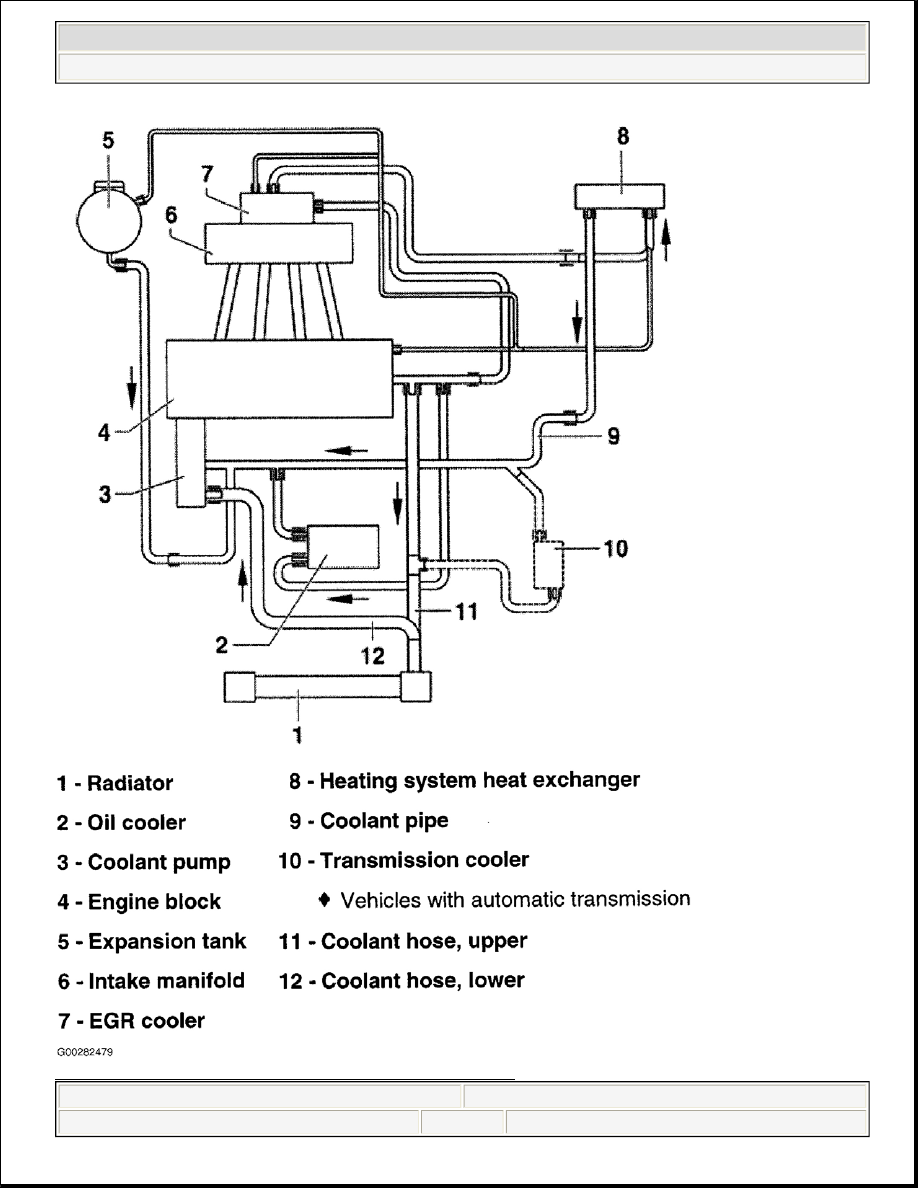

Fig. 10: Coolant Hose Routing Diagram (1.9L Turbo Diesel)



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

COOLING SYSTEM SPECIFICATIONS (2.0L - ENGINE CODES AVH & BDC)

Application

Specification

Volume

(1)

5.3 Qts. (5.0L)

Thermostat

Starts To Open

187°F (86°C)

Fully Open

221°F (105°C)

Opening Stroke

.28" (7mm)

Thermostatic Fan Switch (In Radiator)

Stage 1

On

198-207°F (92-97°C)

Off

183-196°F (84-91°C)

Stage 2

On

210-221°F (99-105°C)

Off

196-208°F (91-98°C)

Reservoir Cap Opening Pressure

20-23 psi (1.4-1.6 Bar)

(1)

Only use coolant additive G12 (according to TL VW 774 D).It is a red color. Do
NOT mix G12 with any other coolant additive! See COOLING SYSTEM
PRECAUTIONS
. Total coolant quantity may vary depending on vehicle
equipment.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 17

© 2004 Mitchell Repair Information Company, LLC.

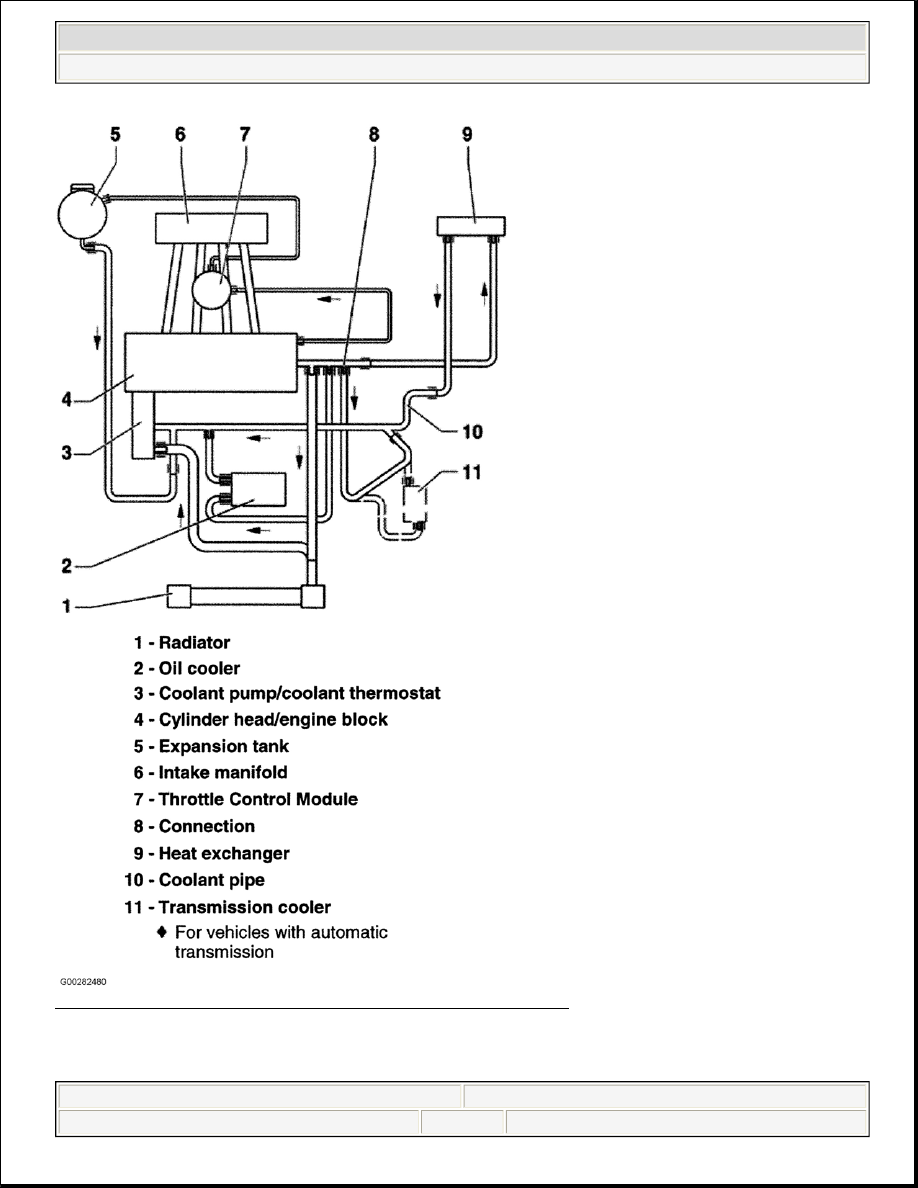

Fig. 11: Coolant Hose Routing Diagram (2.0L - Engine Code AVH)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2003 SPECIFICATIONS New Beetle



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:54:44 AM

Page 18

© 2004 Mitchell Repair Information Company, LLC.
