Volkswagen New Beetle. Manual - part 2033





Passat 1.8L Turbo

(7)

 51 (3.5)

(6)

(4)

29 (2.0)

Passat 2.8L

(7)

 51 (3.5)

(6)

(4)

32 (2.2)

(1)

Volume is dependent upon battery voltage and should be checked with battery fully
charged. Battery voltage must be monitored when checking the volume. Voltage at
fuel pump with engine not running and fuel pump operating is approximately 2 volts
less than battery voltage. Volume should vary with battery voltage. See Fig. 7 -Fig.
9
 .

(2)

With vacuum hose disconnected at fuel pressure regulator 44 psi (3.0 bar).

(3)

See Fig. 7 .

(4)

Residual pressure is measured 10 minutes after engine or fuel pump is shut off.

(5)

See Fig. 8 .

(6)

See Fig. 9 .

(7)

With vacuum hose disconnected at fuel pressure regulator 58 psi (4.0 bar).



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 26

© 2004 Mitchell Repair Information Company, LLC.

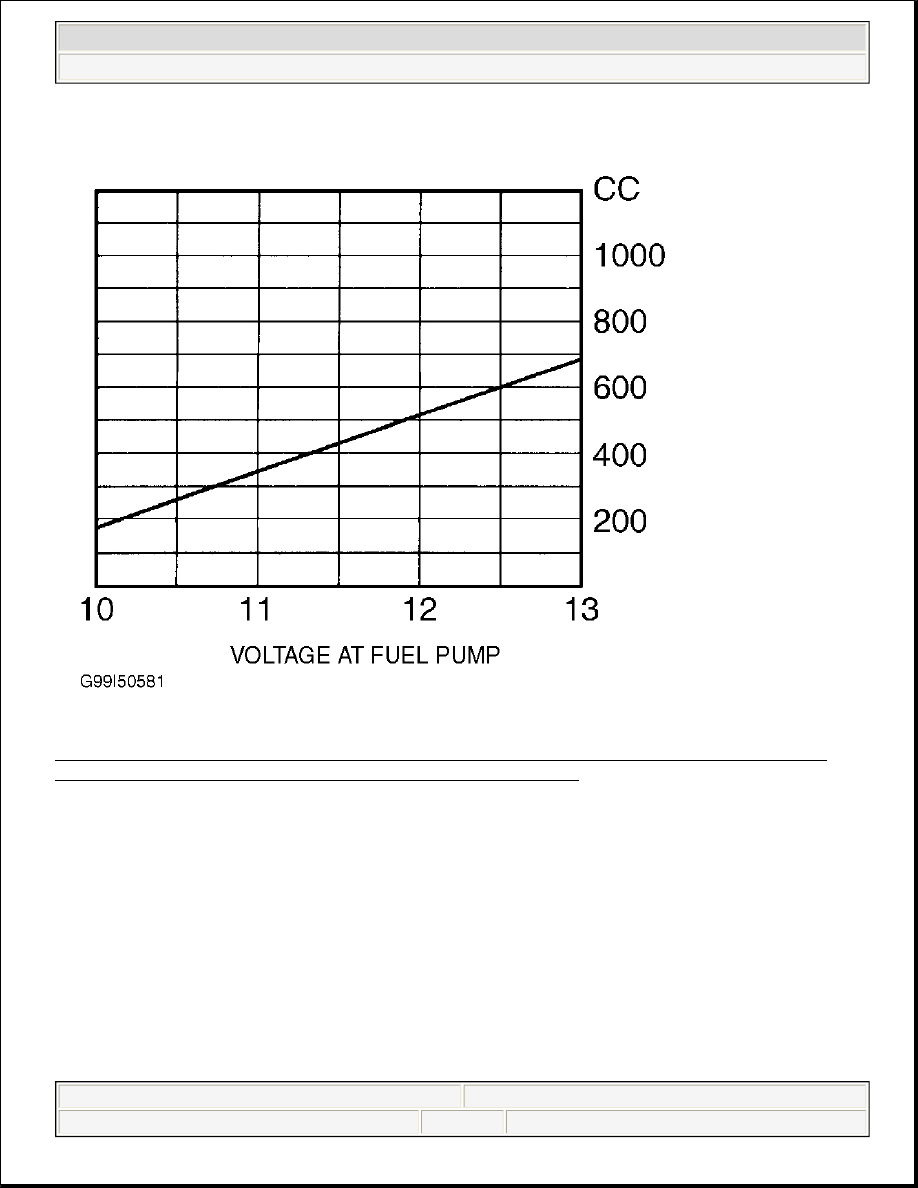

Fig. 7: Determining Fuel Pump Volume (Beetle, Golf, GTI & Jetta - 1.8L Turbo, Beetle, Golf, GTI &
Jetta - 2.0L, EuroVan - 2.8L Engine Code AXK, GTI & Jetta - 2.8L)

Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 27

© 2004 Mitchell Repair Information Company, LLC.

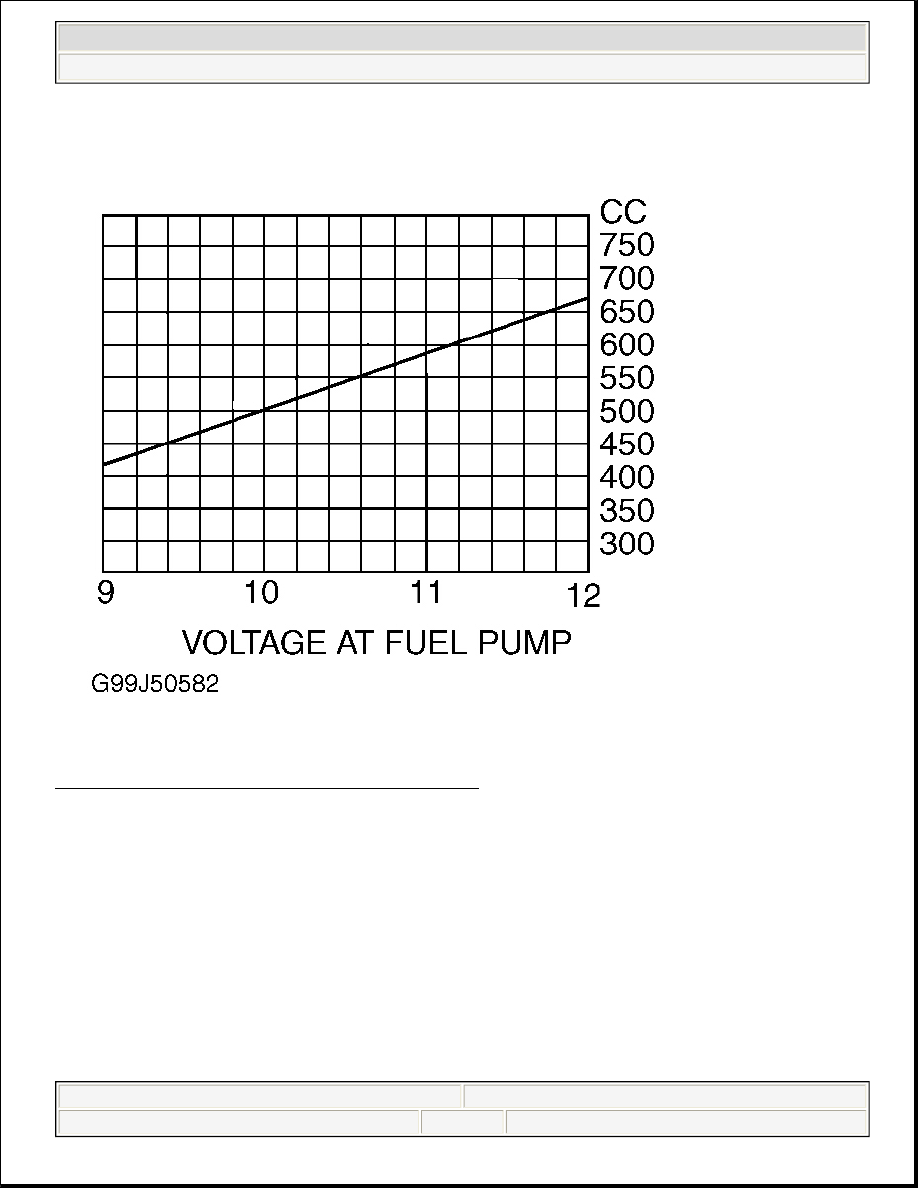

Fig. 8: Determining Fuel Pump Volume (Cabrio - 2.0L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 28

© 2004 Mitchell Repair Information Company, LLC.

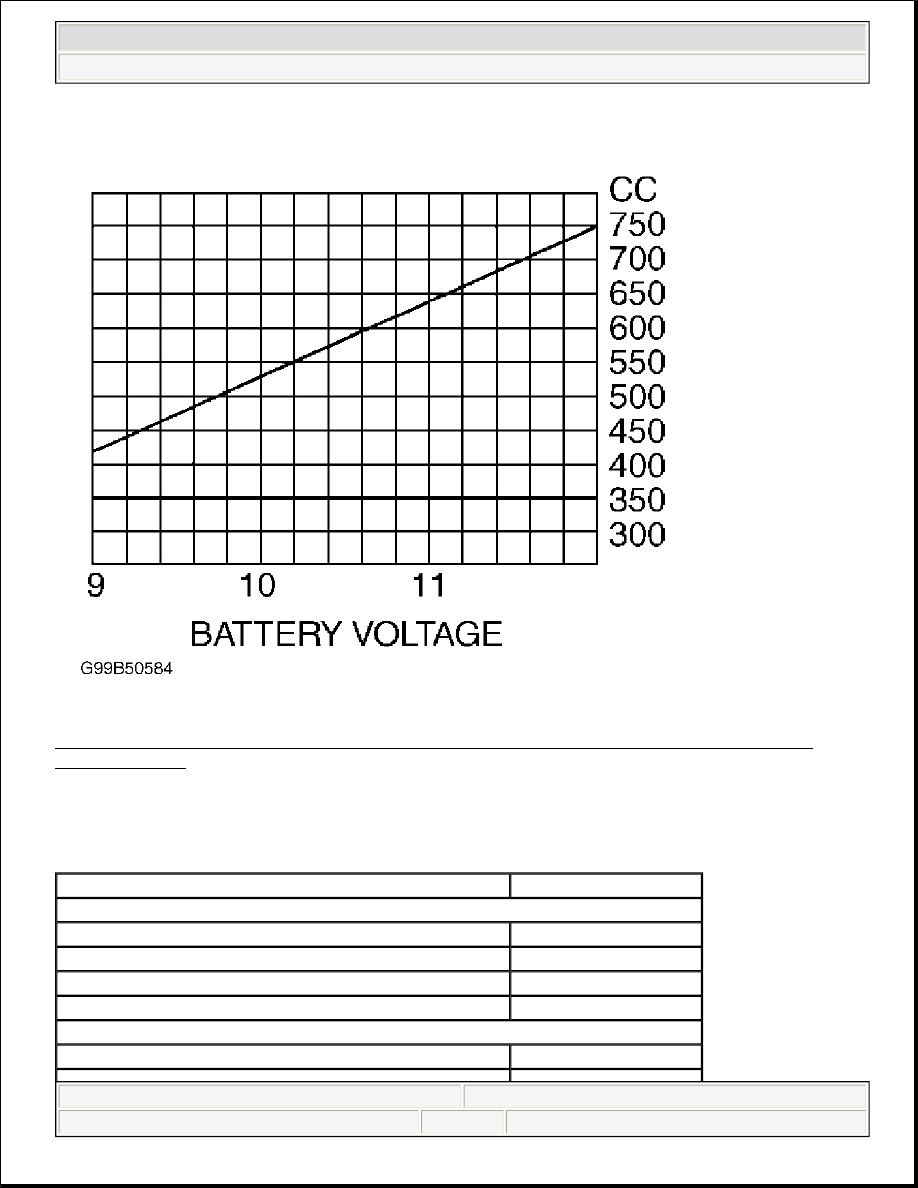

Fig. 9: Determining Fuel Pump Volume (EuroVan - 2.8L Engine Code AES, Passat - 1.8L Turbo &
Passat - 2.8L V6)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

INJECTOR RESISTANCE

INJECTOR RESISTANCE SPECIFICATIONS

Application

Ohms

Beetle

1.8L Turbo

12.0-17.0

2.0L (AEG)

13.5-15.5

2.0L (AVH & AZG)

14.0-18.0

Cabrio 2.0L

14.0-18.0

EuroVan

2.8L (AES)

15.0-21.5



2003 Volkswagen New Beetle GLS

2000-03 ENGINE PERFORMANCE Service & Adjustment Specifications



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:53:44 AM

Page 29

© 2004 Mitchell Repair Information Company, LLC.
