Test Procedure

1. Connect scan tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Turn ignition on, engine

off. Following scan tool manufacturer's instructions, check Transmission Control Module (J217) and
ABS Control Module (J104) for DTCs. If no DTCs are present, go to next step. If DTC(s) are present,
repair as necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

2. Check wiring between Transmission Control Module (J217), ABS Control Module (J104) and ECM

(J220) for open or short circuits. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS
article in ELECTRICAL. See Fig. 43 and Fig. 44 . If wiring is okay, go to next step. If wiring is not okay,
repair as necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

3. Check centralized matching resistor in ECM. Turn ignition off. Connect ECM to test box, leave ECM

harness connector disconnected from test box. Connect Test Box (VAG 1598/31). See CONNECTING
VAG TEST BOX
. Using DVOM, check resistance between test box sockets No. 58 and 60. Resistance
should be 60-72 ohms. If resistance is not okay, replace faulty ECM. See ENGINE CONTROL
MODULE REMOVAL & INSTALLATION
. After repairs, erase DTC memory. Verify repair. Test is
complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE

replaced, Can Data Bus OBD Interface (J533) must be coded. See CAN DATA
BUS OBD INTERFACE (J533) CODING .



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:58 AM

Page 112

© 2004 Mitchell Repair Information Company, LLC.

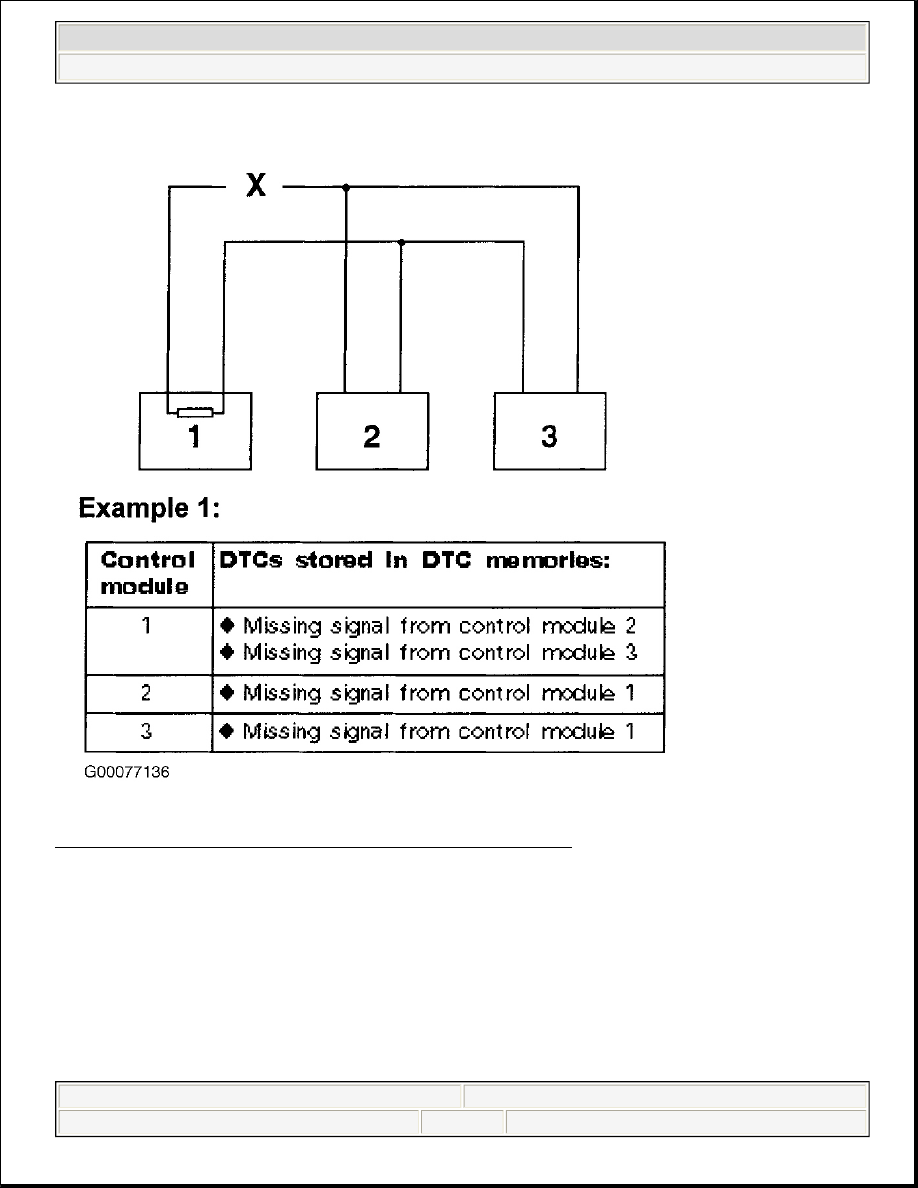

Fig. 42: Example 1: Locating Non-Communicating Control Module
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:58 AM

Page 113

© 2004 Mitchell Repair Information Company, LLC.

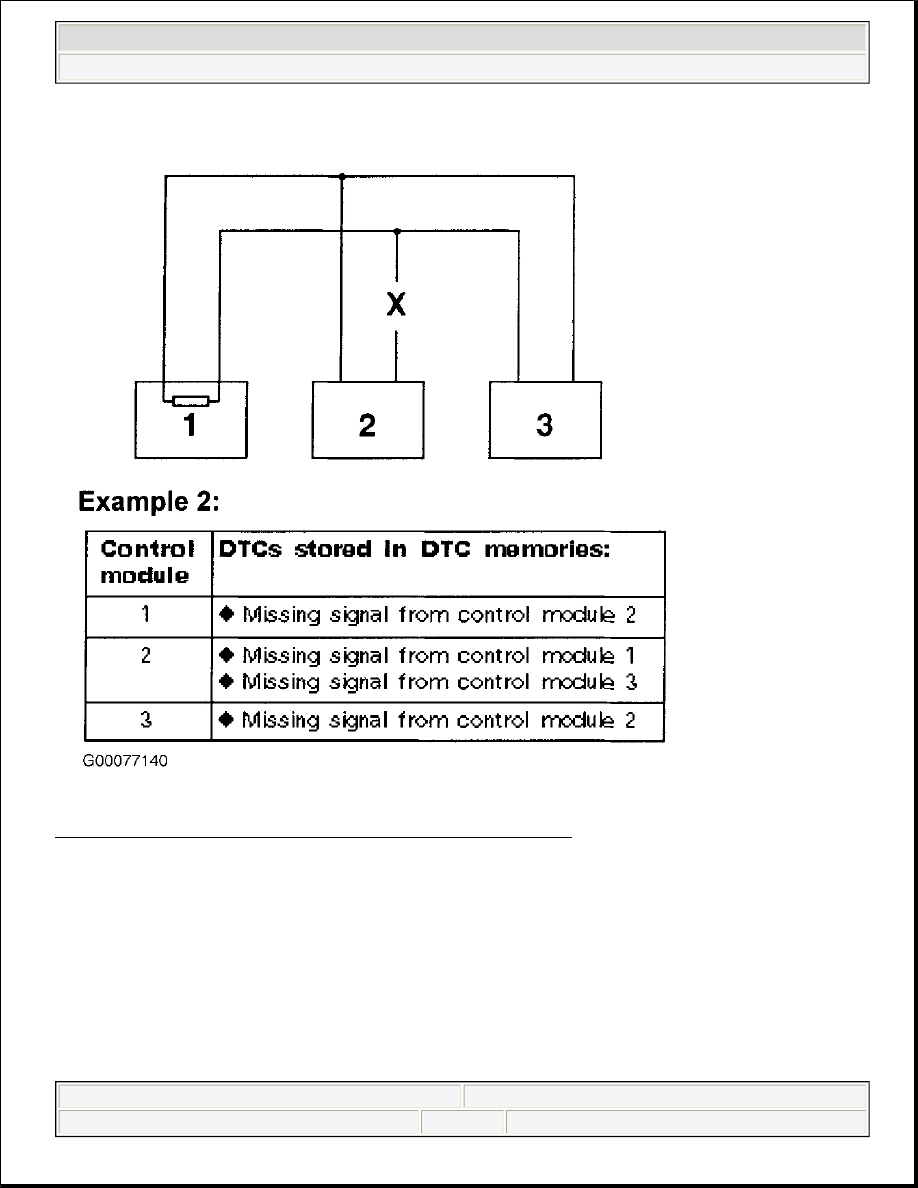

Fig. 43: Example 2: Locating Non-Communicating Control Module
Courtesy of AUDI OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:58 AM

Page 114

© 2004 Mitchell Repair Information Company, LLC.

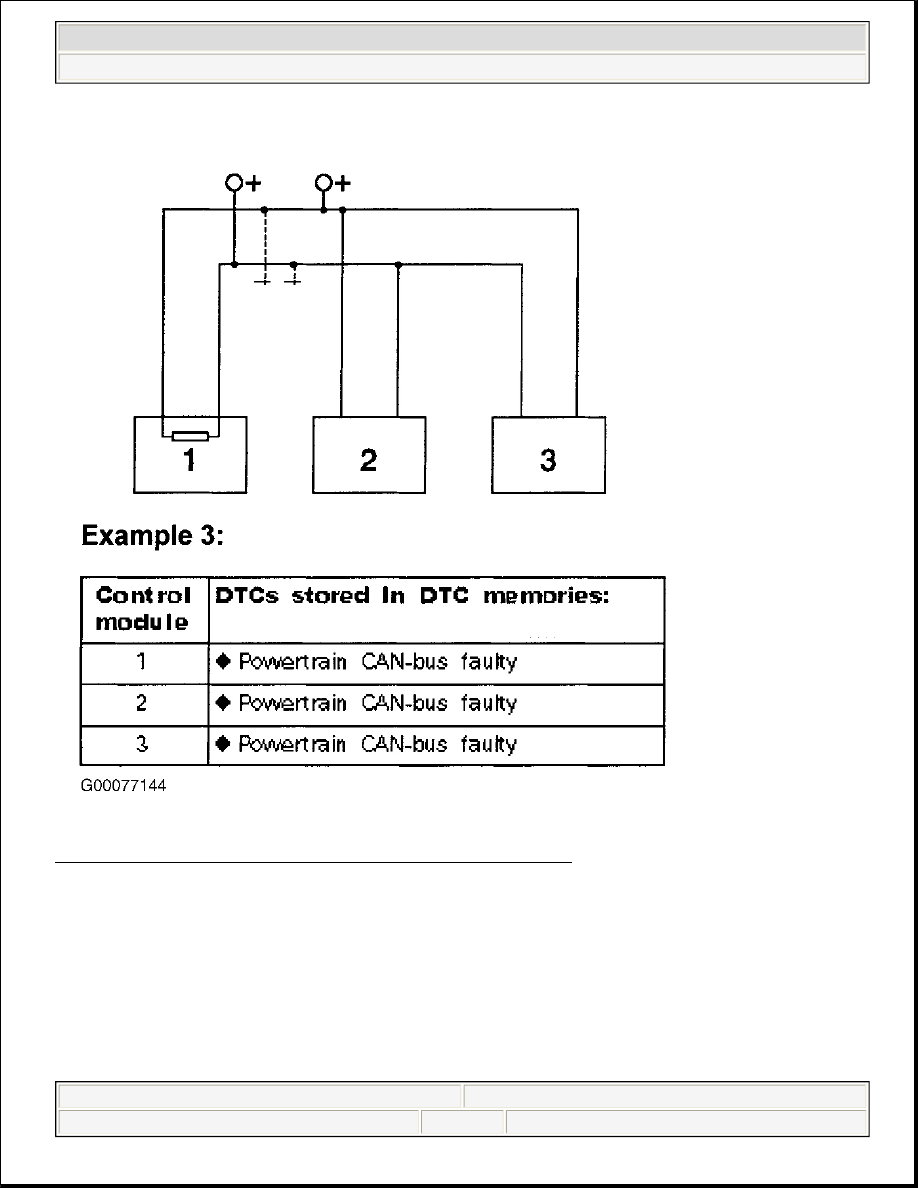

Fig. 44: Example 3: Locating Non-Communicating Control Module
Courtesy of AUDI OF AMERICA, INC.

DTC P0601/16985, P0602/16986, P0604/16988, P0605/16989 & P0606/16990: ECM MALFUNCTION

Code Definition

NOTE:

DTC P0601/16985, DTC P0602/16986, DTC P0604/16988 and DTC P0606/16990
may set if battery voltage (ECM voltage supply) is too low when vehicle is being
started.
