Volkswagen New Beetle. Manual - part 1818





injector harness connector terminals No. 1 and 2. Using ignition switch, operate starter. Test light should
flash. Repeat test at all fuel injector harness connectors. If LED test light does not flash at all fuel injector
harness connectors, go to next step. If LED test light flashes at all fuel injector harness connectors, go to
step 8 .

6. Turn ignition off. Disconnect ECM harness connector, leave ECM disconnected from test box. Connect

Test Box (VAG 1598/31) to ECM harness connector. See CONNECTING VAG TEST BOX . Using
DVOM, check resistance between the following fuel injector harness connector and VAG test box socket.
See FUEL INJECTOR HARNESS CONNECTOR/VAG TEST BOX SOCKET IDENTIFICATION
table. See Fig. 25 .

FUEL INJECTOR HARNESS CONNECTOR/VAG TEST BOX SOCKET IDENTIFICATION

7. Resistance should be a maximum of 1.5 ohms for each reading. Check wiring in fuel injector pin harness

connector for short circuits to one another and for short circuits to ground and B+. If resistance
measurements are okay and no short circuits exist. Replace ECM. See ENGINE CONTROL MODULE
(J220) - ME SFI CONTROL MODULE
. Erase DTC memory. Verify repair. Test is complete. Perform
ECM relearn procedure. See TEST DRIVE RELEARN PROCEDURE . If any resistance measurement
is not okay, or a short circuit exists, repair circuit(s) as necessary. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL. After repairs, erase DTC memory. Verify
repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE RELEARN
PROCEDURE
.

8. Check fuel pressure and fuel pressure regulator. See FUEL SYSTEMS in appropriate SYSTEM &

COMPONENT TESTING article. If fuel pressure is okay, go to next step. If fuel pressure is not okay.
Repair as necessary. After repairs, erase DTC memory. Verify repair. Test is complete. Perform ECM
relearn procedure. See TEST DRIVE RELEARN PROCEDURE .

9. Check fuel injector volume (possible blocked or leaking injector). See FUEL SYSTEMS in appropriate

SYSTEM & COMPONENT TESTING article. If fuel injector volume is okay, and fuel injectors do not
leak more than 2 drops per minute each, go to next step. If fuel injector volume is not okay and /or any
fuel injectors leak more than 2 drops per minute each, repair as necessary. After repairs, erase DTC
memory. Verify repair. Test is complete. Perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

Cylinder

Fuel Injector Harness Connector Terminal

VAG Test Box Socket

96

89

97

88



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:56 AM

Page 72

© 2004 Mitchell Repair Information Company, LLC.

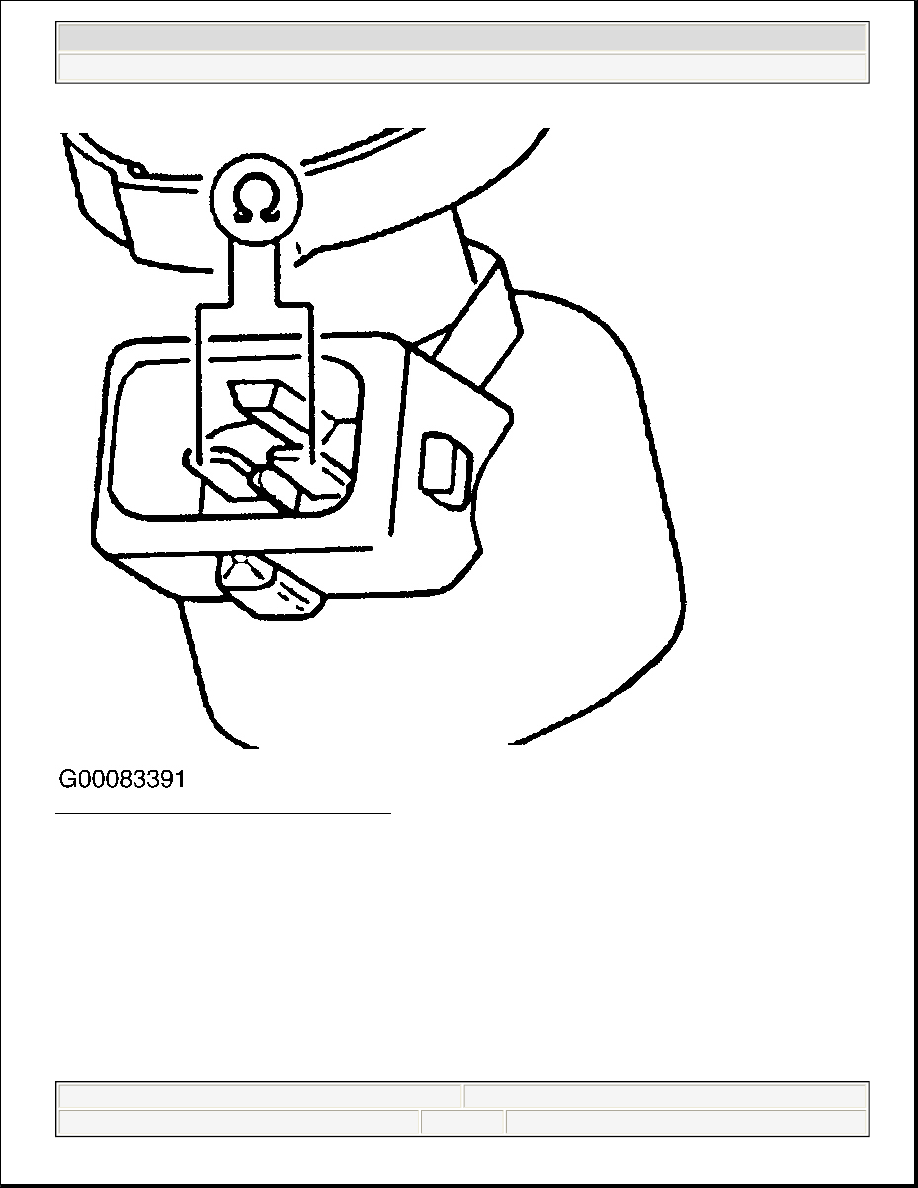

Fig. 24: Identifying Fuel Injector Terminals
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:56 AM

Page 73

© 2004 Mitchell Repair Information Company, LLC.

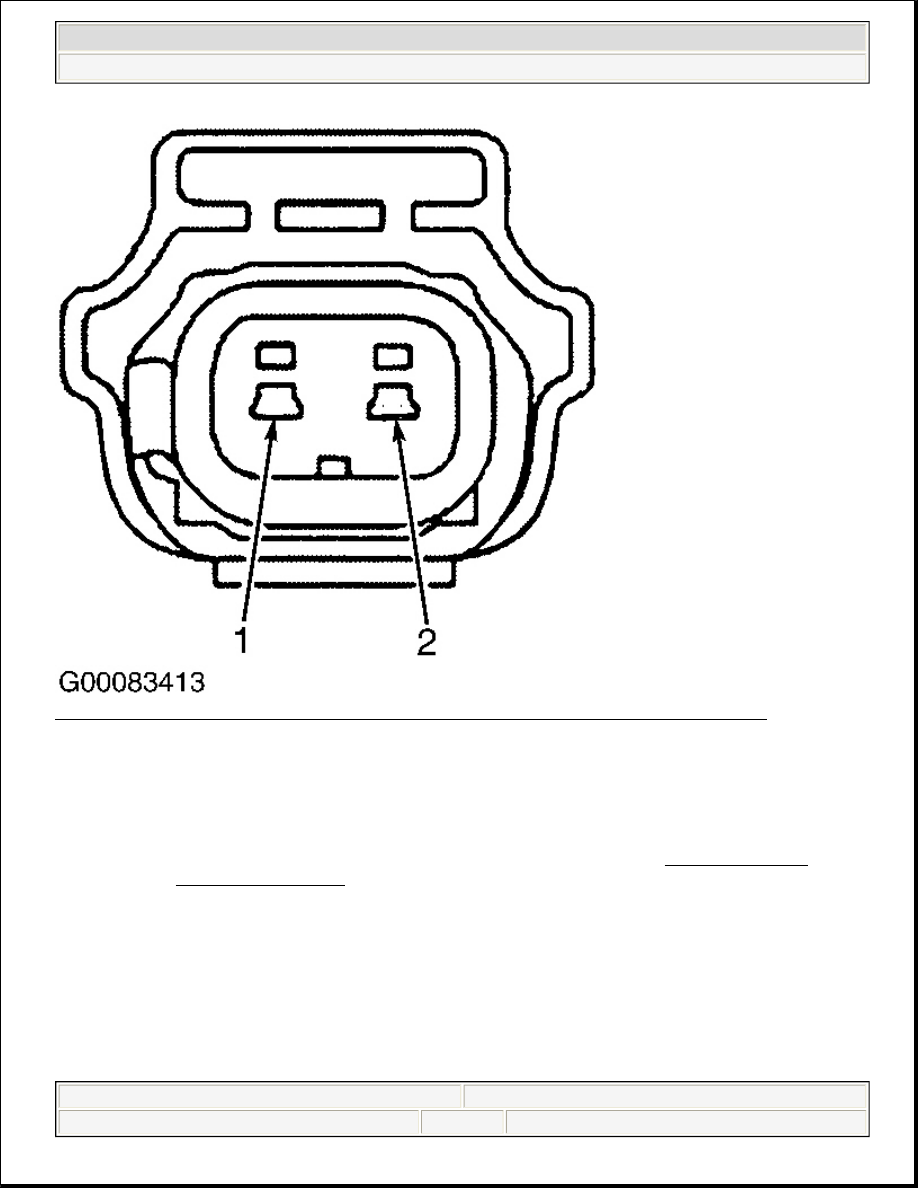

Fig. 25: Identifying Fuel Injector Harness Connector Terminals (Beetle, Golf, & Jetta - 2.0L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

DTC P0221/16605, P0222/16606 & P0223/16607: ANGLE SENSOR 2

Code Definition

DTC P0221/16605
Angle Sensor 2 (G188) For Throttle Valve Drive - Implausible Signal

DTC P0222/16606
Angle Sensor 2 (G188) For Throttle Valve Drive - Signal Too Low

NOTE:

If a test ends with ECM replacement, before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:56 AM

Page 74

© 2004 Mitchell Repair Information Company, LLC.

DTC P0223/16607
Angle Sensor 2 (G188) For Throttle Valve Drive - Signal Too High

Circuit/Component Description

Throttle Valve Control Module (TVCM - J338) is located on throttle body. Throttle valve drive angle sensors
and are located in TVCM (J338). ECM monitors throttle valve drive angle sensors for throttle valve position.
ECM calculates throttle position based on percentage values sent by throttle valve drive angle sensors. Throttle
valve drive angle sensors run in opposite directions of each other.

Throttle Valve Drive Angle sensor No. 1 (G187) displays throttle positions from 3-93 percent. Throttle Valve
Drive Angle sensor No. 2 (G188) displays throttle positions from 97-3 percent. Throttle Valve Drive Angle
sensor No. 1 (G187) ranges from 3-93 percent (0.15-4.65 volts), the larger the throttle opening the higher the
percentage (voltage) reading. Throttle Valve Drive Angle sensor No. 2 (G188) ranges from 97-3 percent (4.90-
0.15 volts), the larger the throttle opening the smaller the percentage (voltage) reading. When the engine is
running (under load) the ECM can operate throttle valve independently of driver input.

Test Requirements

Ensure throttle valve is not damaged or dirty. Ensure all fuses are okay, battery voltage is at least 11.5 volts and
fuel pump relay is okay. Ensure all electrical accessories are off and A/C is off. Ensure engine is mechanically
sound. Ensure no intake or exhaust system leaks exist. Ensure engine coolant temperature is at least 176°F (80°
C). On vehicles with M/T, gear shifter must be in neutral with parking brake set. On vehicles with A/T, selector
lever must be in park or neutral with parking brake set.

Test Procedure

1. Turn ignition off. Disconnect TVCM (J338) 6-pin harness connector. Using DVOM check resistance

between terminals No. 3 and 5 on TVCM. See Fig. 19 . Specification is one to 5 ohms. If resistance is
okay, go to next step. If resistance is not okay, replace faulty TVCM. Erase DTC memory. Verify repair.
Test is complete. Adapt TVCM (J338) to ECM (J220). See THROTTLE VALVE CONTROL
MODULE (J338)
. For vehicles with A/T, adapt TVCM (J338) to Transmission Control Module (J217).
See A/T BASIC SETTING . On all models, perform ECM relearn procedure. See TEST DRIVE
RELEARN PROCEDURE
.

2.

Connect scan tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Turn ignition on, engine
off. Following scan tool manufacturer's instructions, observe percentage reading for Throttle Valve Drive

NOTE:

Test ranges for throttle valve drive angle sensors may not fully display on scan
tool.

NOTE:

If TVCM (J338) is replaced it must be adapted to the ECM and A/T control
module (if equipped).

NOTE:

If TVCM (J338) is replaced it must be adapted to the ECM and A/T control
module (if equipped).



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:56 AM

Page 75

© 2004 Mitchell Repair Information Company, LLC.
