Volkswagen New Beetle. Manual - part 1813





IAT SENSOR RESISTANCE

Temperature °F (°C)

Ohms

86 (30)

1500-2000

104 (40)

1000-1500

122 (50)

800-1000

140 (60)

500-700

158 (70)

375-500

176 (80)

275-375

194 (90)

225-275



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:55 AM

Page 52

© 2004 Mitchell Repair Information Company, LLC.

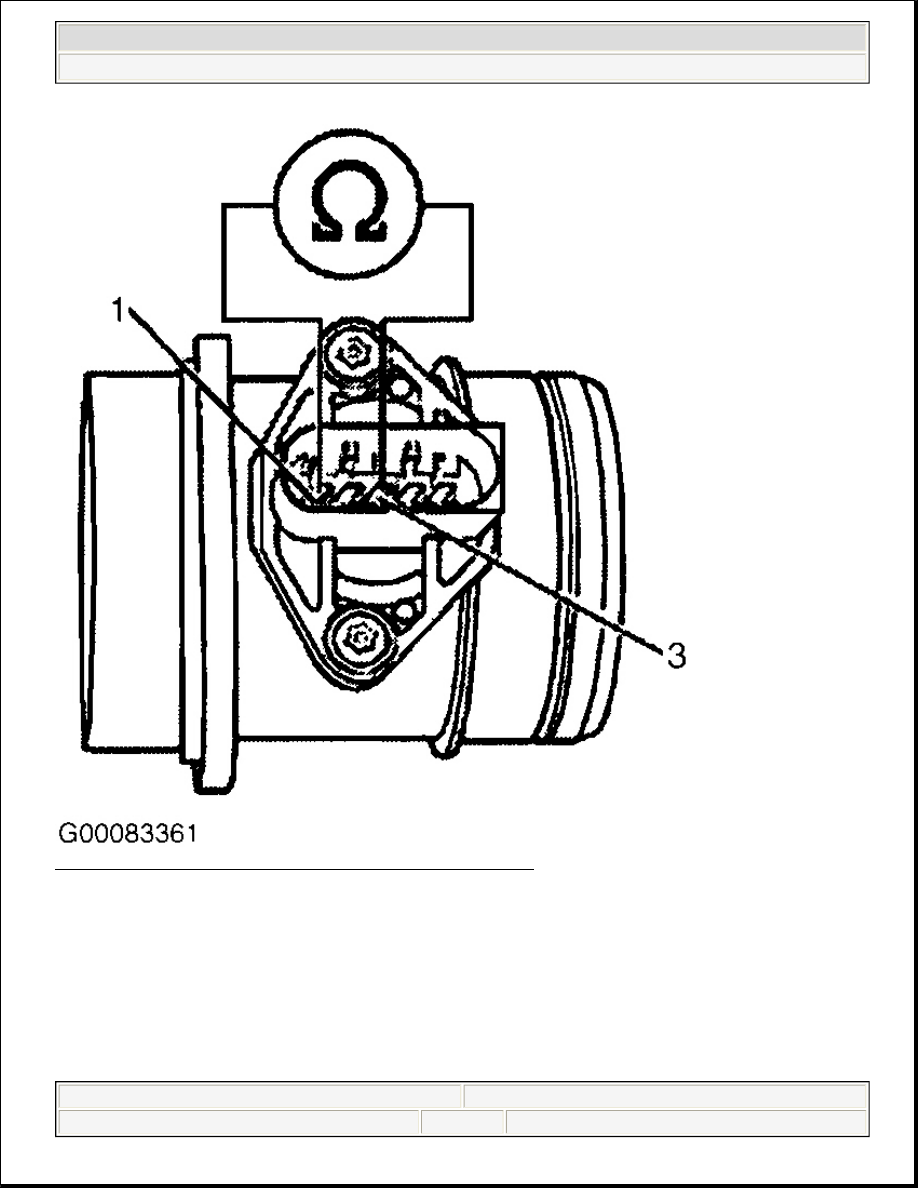

Fig. 17: Testing IAT Sensor (G42) (Beetle, Golf & Jetta - 2.0L)
Courtesy of VOLKSWAGEN UNITED STATES, INC.



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:55 AM

Page 53

© 2004 Mitchell Repair Information Company, LLC.

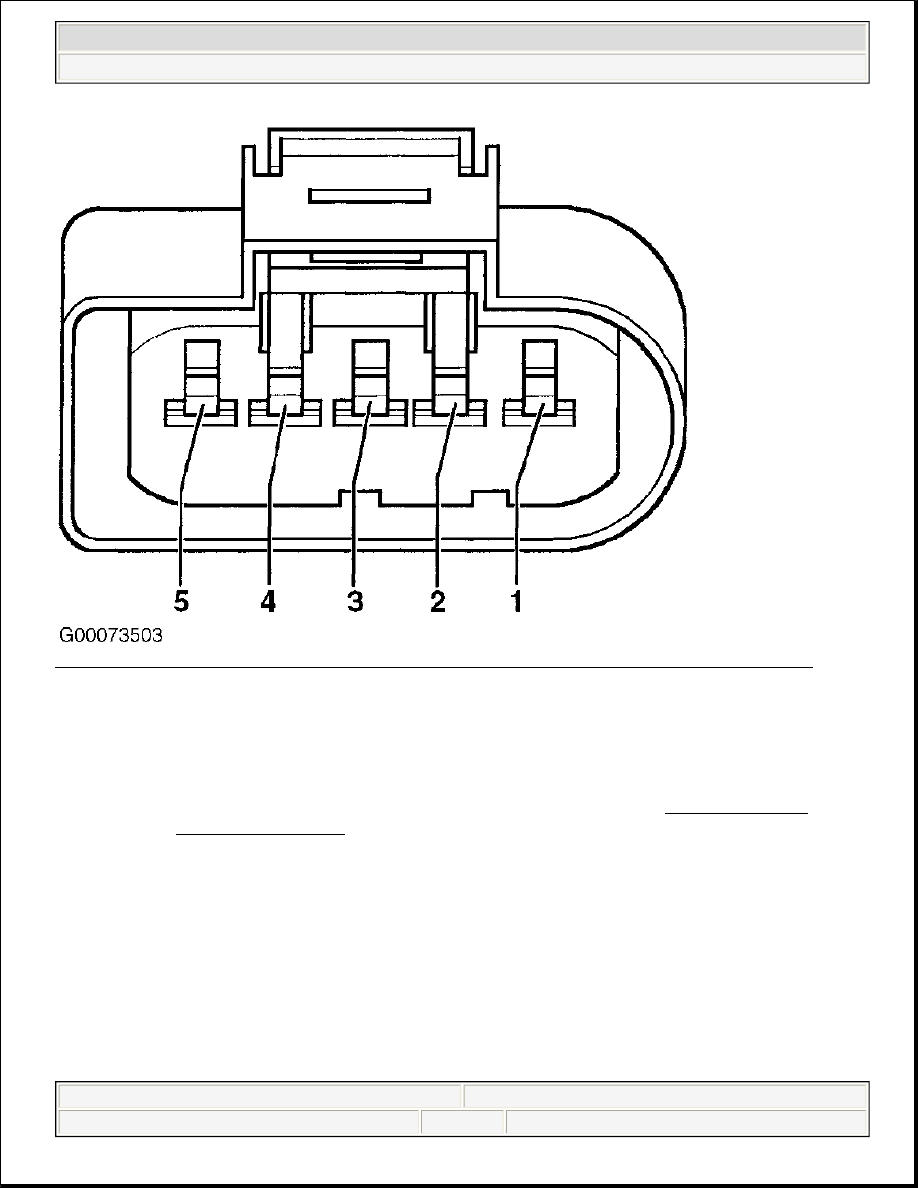

Fig. 18: Identifying Mass Airflow Sensor (G70) & IAT Sensor (G42) Harness Connector Terminals
Courtesy of AUDI OF AMERICA, INC.

DTC P0121/16505, P0122/16506 & P0123/16507: ANGLE SENSOR 2

Code Definition

DTC P0121/16505
Angle Sensor 2 (G188) For Throttle Valve Drive - Implausible Signal

DTC P0122/16506
Angle Sensor 2 (G188) For Throttle Valve Drive - Signal Too Low

DTC P0123/16507
Angle Sensor 2 (G188) For Throttle Valve Drive - Signal Too High

NOTE:

If a test ends with ECM replacement, before replacing ECM be certain that, all
wiring, power and ground supplies are okay. See ENGINE PERFORMANCE in
SYSTEM WIRING DIAGRAMS article in ELECTRICAL and ECM GROUND &
VOLTAGE SUPPLY .



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:55 AM

Page 54

© 2004 Mitchell Repair Information Company, LLC.

Circuit/Component Description

Throttle Valve Control Module (TVCM - J338) is located on throttle body. Throttle valve drive angle sensors
and are located in TVCM (J338). ECM monitors throttle valve drive angle sensors for throttle valve position.
ECM calculates throttle position based on percentage values sent by throttle valve drive angle sensors. Throttle
valve drive angle sensors run in opposite directions of each other. Throttle Valve Drive Angle sensor No. 1
(G187) displays throttle positions from 3-93 percent.

Throttle Valve Drive Angle sensor No. 2 (G188) displays throttle positions from 97-3 percent. Throttle Valve
Drive Angle sensor No. 1 (G187) ranges from 3-93 percent (0.15-4.65 volts), the larger the throttle opening the
higher the percentage (voltage) reading. Throttle Valve Drive Angle sensor No. 2 (G188) ranges from 97-3
percent (4.90-0.15 volts), the larger the throttle opening the smaller the percentage (voltage) reading. When the
engine is running (under load) the ECM can operate throttle valve independently of driver input.

Test Requirements

Ensure throttle valve is not damaged or dirty. Ensure all fuses are okay, battery voltage is at least 11.5 volts and
fuel pump relay is okay. Ensure all electrical accessories are off and A/C is off. Ensure engine is mechanically
sound. Ensure no intake or exhaust system leaks exist. Ensure engine coolant temperature is at least 176°F (80°
C). On vehicles with M/T, gear shifter must be in neutral with parking brake set. On vehicles with A/T, selector
lever must be in park or neutral with parking brake set.

Test Procedure

1. Turn ignition off. Disconnect TVCM (J338) 6-pin harness connector. Using DVOM check resistance

between terminals No. 3 and 5 on TVCM. See Fig. 19 . Specification is one to 5 ohms.

2. If resistance is okay, go to next step. If resistance is not okay, replace faulty TVCM. Erase DTC memory.

Verify repair. Test is complete. Adapt TVCM (J338) to ECM (J220). See THROTTLE VALVE
CONTROL MODULE (J338)
. For vehicles with A/T, adapt TVCM (J338) to Transmission Control
Module (J217). See A/T BASIC SETTING . On all models, perform ECM relearn procedure. See TEST
DRIVE RELEARN PROCEDURE
.

3.

Connect scan tool. See RETRIEVING DIAGNOSTIC TROUBLE CODES . Turn ignition on, engine
off. Following scan tool manufacturer's instructions, observe percentage reading for Throttle Valve Drive
Angle sensor No. 1 (G187) and Throttle Valve Drive Angle sensor No. 2 (G188) at idle stop.
Specification for Throttle Valve Drive Angle sensor No. 1 (G187) is 3 to 16 percent. Specification for
Throttle Valve Drive Angle sensor No. 2 (G188) is 97 to 82 percent.

4. Operate accelerator pedal slowly to Wide Open Throttle and observe percentage (voltage) readings for

Throttle Valve Drive Angle sensor No. 1 (G187) and Throttle Valve Drive Angle sensor No. 2 (G188).
Specification for Throttle Valve Drive Angle sensor No. 1 (G187) is 3 to 93 percent (0.15 to 4.65 volts).

NOTE:

Test ranges for throttle valve drive angle sensors may not fully display on scan
tool.

NOTE:

If TVCM (J338) is replaced it must be adapted to the ECM and A/T control
module (if equipped).



2003 Volkswagen New Beetle GLS

2001-2003 ENGINE PERFORMANCE Self-Diagnostics - 2.0L - Beetle, Golf & Jetta (Engine Codes AVH & AZG)



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:49:55 AM

Page 55

© 2004 Mitchell Repair Information Company, LLC.
