Volkswagen New Beetle. Manual - part 1753





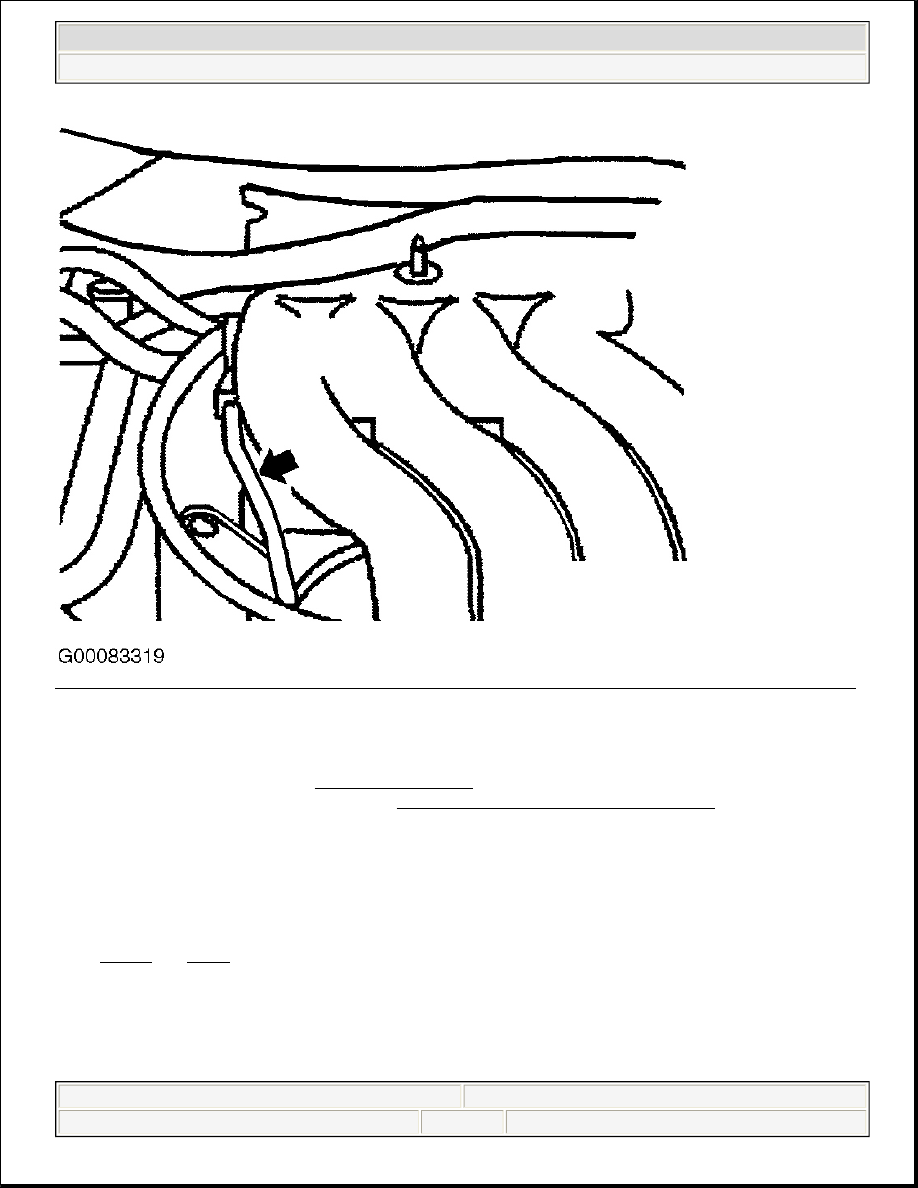

Fig. 11: Disconnecting Fuel Pressure Regulator Vacuum Hose (2.0L - Engine Codes AEG, AVH & AZG)
Courtesy of VOLKSWAGEN UNITED STATES, INC.


Fuel Pressure Test (2.0L - Engine Code BDC)

1. For engine identification, see IDENTIFICATION . Ensure engine is off. Ensure battery voltage is at

least 12 volts. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .

2.

Connect Pressure Gauge (VAG 1318), or equivalent, at fuel supply line/hose in engine compartment. See
Fig. 12 and Fig. 5 . Press locking ring inward to release fuel hose. Open shut-off valve of fuel pressure
gauge; lever points in the direction of flow.

NOTE:

Fuel pressure tester must be installed with the shut-off valve between the
fuel supply line and the gauge for proper evaluation of residual pressure
tests.



2003 Volkswagen New Beetle GLS

1998-2003 ENGINE PEFORMANCE Basic Diagnostic Procedures - Beetle - Gasoline



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:29 AM

Page 14

© 2004 Mitchell Repair Information Company, LLC.

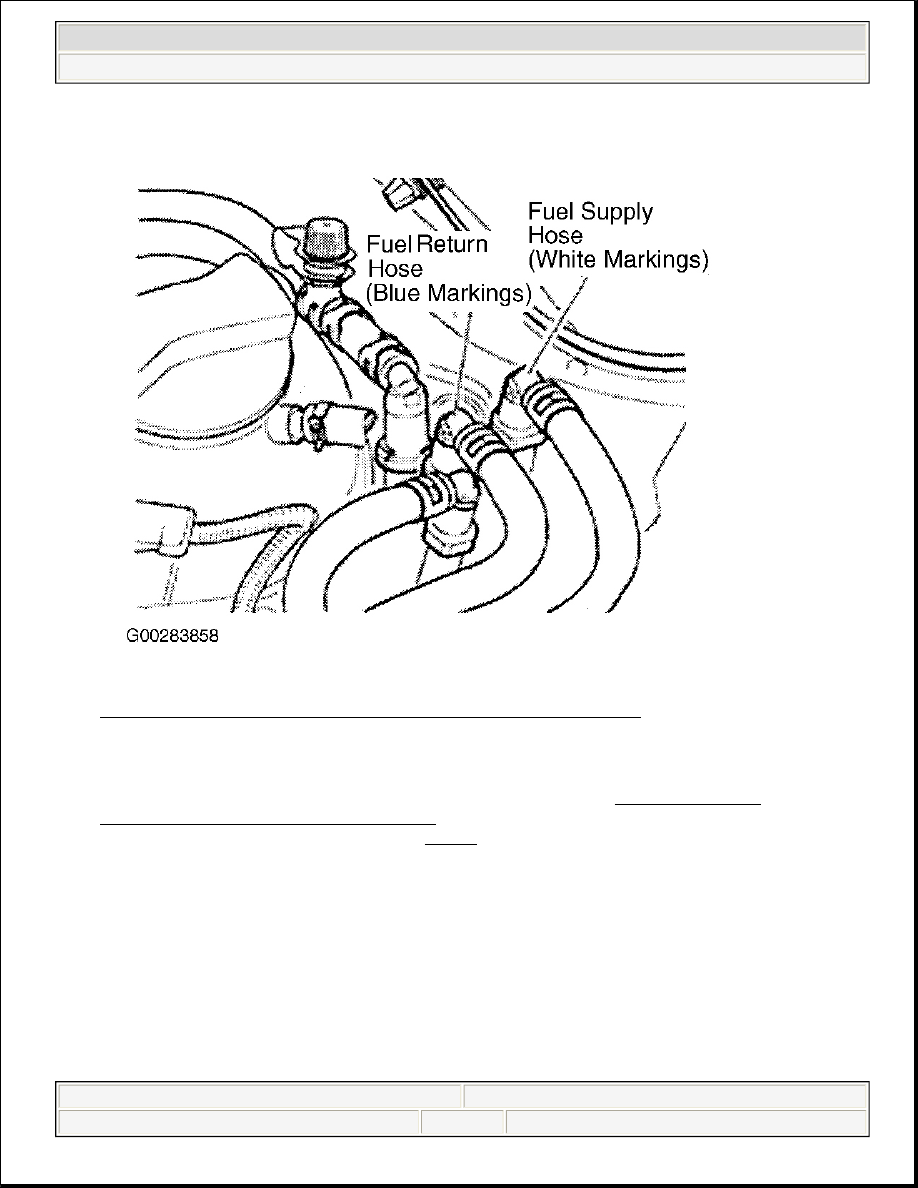

Fig. 12: Locating Fuel Supply/Return Lines (2.0L - Engine Code BDC)
Courtesy of VOLVO CARS OF NORTH AMERICA.

3. Reinstall fuel pump (No. 28) fuse in dash fuse box.

4. Start engine and idle. Fuel pressure should be within specification. See FUEL PRESSURE

SPECIFICATIONS (1.8L TURBO & 2.0L) table. Continue to idle engine. Disconnect vacuum line
from fuel pressure regulator on fuel rail. See Fig. 13 . Fuel pressure should be within specification.



2003 Volkswagen New Beetle GLS

1998-2003 ENGINE PEFORMANCE Basic Diagnostic Procedures - Beetle - Gasoline



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:29 AM

Page 15

© 2004 Mitchell Repair Information Company, LLC.

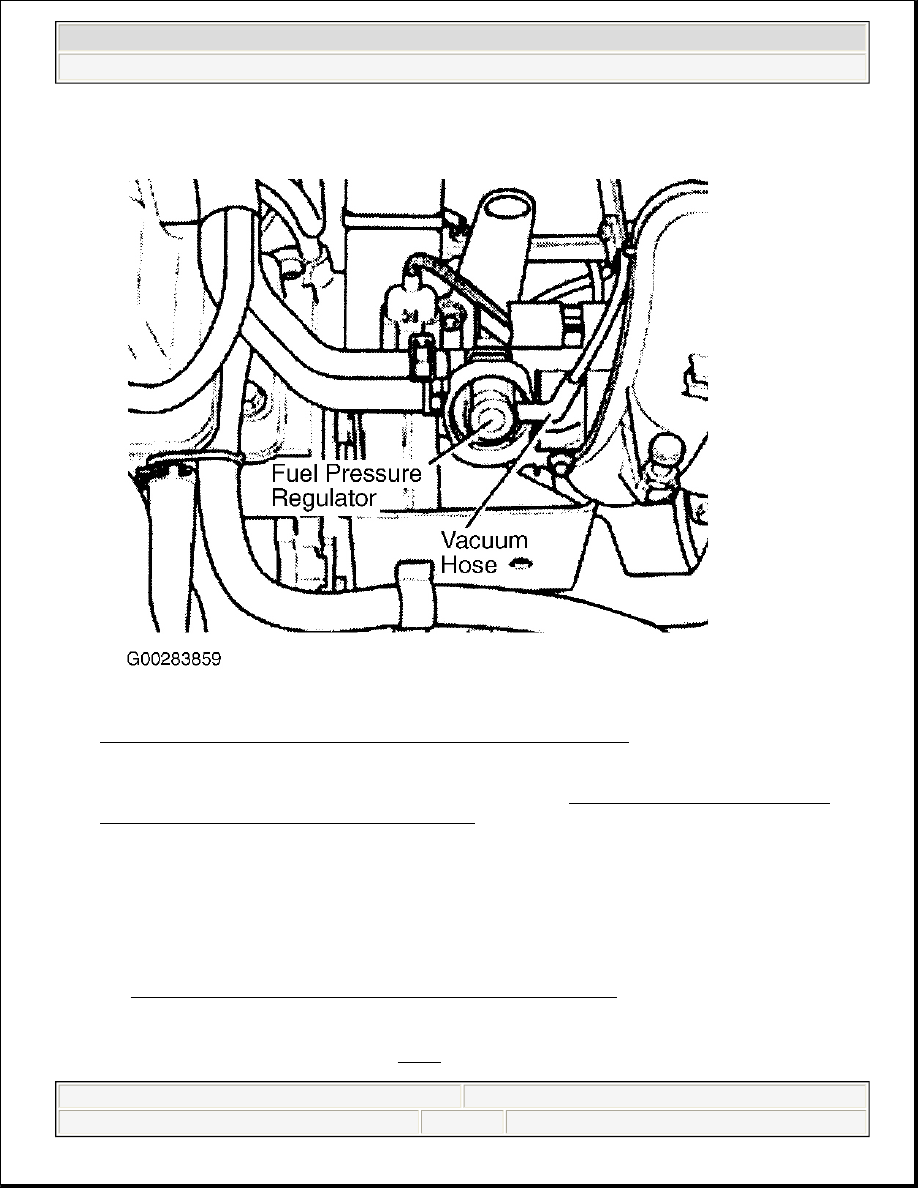

Fig. 13: Locating Fuel Pressure Regulator (2.0L - Engine Code BDC)
Courtesy of VOLKSWAGEN UNITED STATES, INC.

5. If fuel pressure is not as specified, check fuel pump volume. See FUEL PUMP VOLUME CHECK

(EXCEPT 2.0L ENGINE CODES BEV & BGD) . If fuel pressures are okay, go to next step.

6.

Perform fuel system residual pressure test. Reinstall vacuum hose on fuel pressure regulator and continue
to run engine at idle. Turn engine off. Check for fuel leaks. Check residual fuel pressure after 10 minutes.
See FUEL PRESSURE SPECIFICATIONS (1.8L TURBO & 2.0L) table. If residual pressure drops
below specification, start engine and run at idle speed.

7. Switch ignition off after pressure has built up. At same time, close pressure gauge cut-off handle (handle

at 90 degrees to fuel flow direction). See Fig. 8 . Gauge will now read fuel isolated in fuel rail.

NOTE:

Fuel system residual pressure (holding pressure) test checks integrity of
fuel lines, fuel fittings, fuel pressure regulator, fuel injectors and fuel pump
check valve.



2003 Volkswagen New Beetle GLS

1998-2003 ENGINE PEFORMANCE Basic Diagnostic Procedures - Beetle - Gasoline



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:29 AM

Page 16

© 2004 Mitchell Repair Information Company, LLC.

8. If residual fuel pressure does NOT drop, check fuel pump check valve. See FUEL PUMP CHECK

VALVE . If residual pressure drops again, go to next step.

9. Open fuel pressure gauge shut-off handle to allow fuel flow. Start engine and run at idle speed. After fuel

pressure has built up, turn ignition off. At same time pinch/seal fuel return line together. See Fig. 12 .

10. If fuel pressure does NOT drop, replace faulty fuel pressure regulator. If fuel pressure drops again, check

fuel lines, connections and "O" rings for leaks. Check pressure gauge for leaks. Check for leaking fuel
injectors. Perform fuel injector leak test. See appropriate SYSTEM & COMPONENT TESTING article.

Fuel Pressure Test (2.0L - Engine Codes BEV & BGD)

1. For engine identification, see IDENTIFICATION . Ensure engine is off. Ensure battery voltage is at

least 12 volts. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .

2.

Connect Pressure Gauge (VAG 1318), or equivalent, at fuel supply line/hose in engine compartment. See
Fig. 14 and Fig. 15 . To remove fuel supply hose, slide safety ring (2) in the union (1). See Fig. 14 . Open
shut-off valve of fuel pressure gauge; lever points in the direction of flow.

NOTE:

Fuel pressure tester must be installed with the shut-off valve between the
fuel supply line and the gauge for proper evaluation of residual pressure
tests.



2003 Volkswagen New Beetle GLS

1998-2003 ENGINE PEFORMANCE Basic Diagnostic Procedures - Beetle - Gasoline



Helpmelearn Repair Manuals



Wednesday, December 14, 2005 8:43:29 AM

Page 17

© 2004 Mitchell Repair Information Company, LLC.
