Fig. 65: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Disconnect connector -1- from Intake Air Temperature (IAT) sensor -2-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

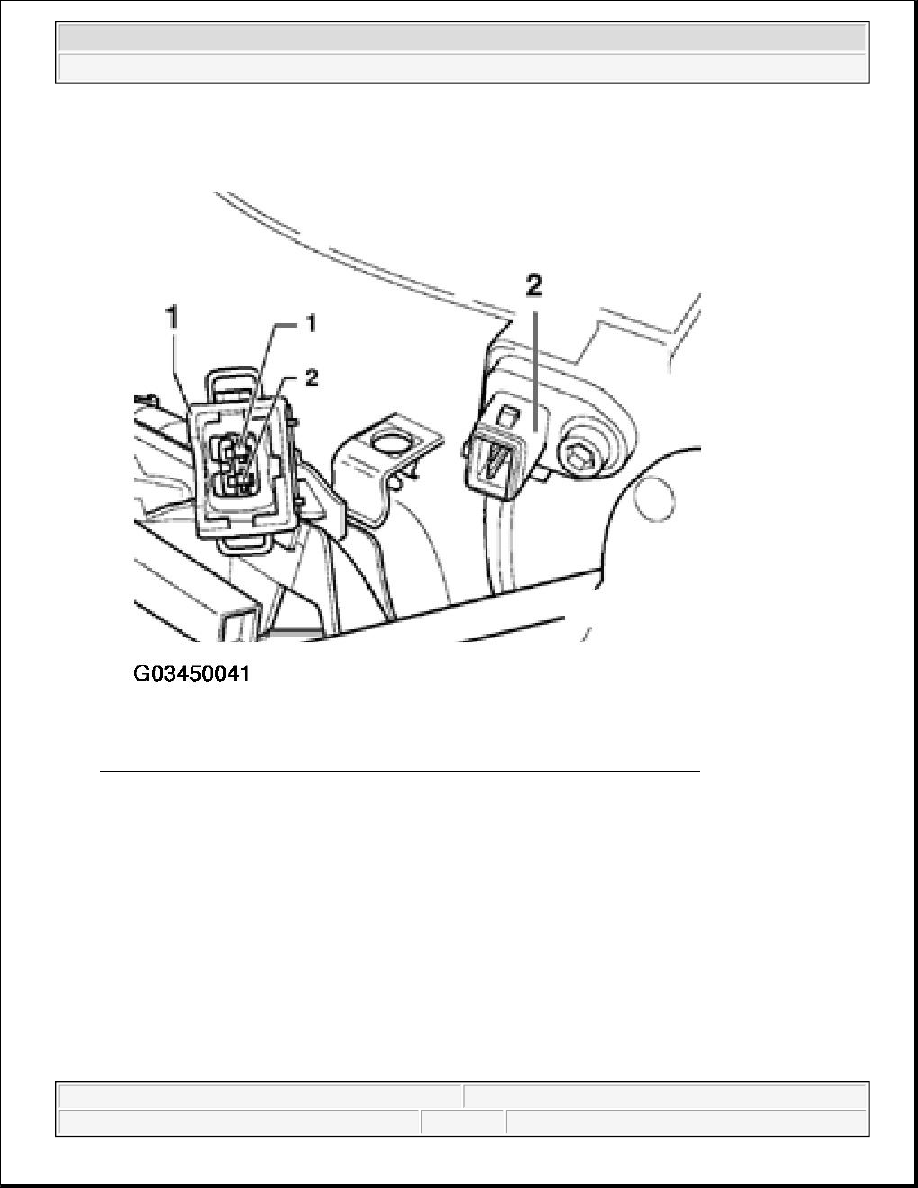

Fig. 66: Disconnecting Connector From Intake Air Temperature (IAT) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and 2 -pin connector -1- for open circuit according to Electrical Wiring
Diagram.

z

Terminal 1 + Socket 85

z

Terminal 2 + Socket 108



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

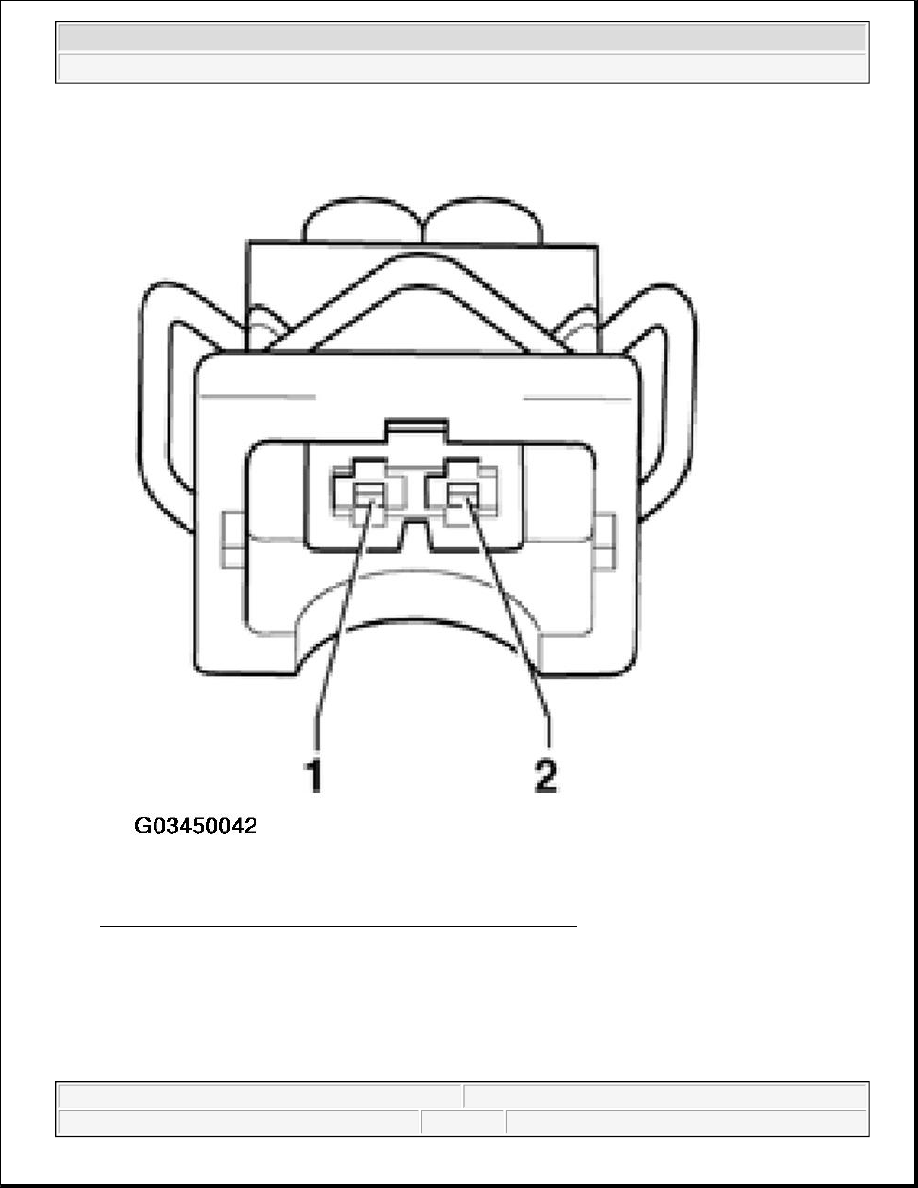

Fig. 67: Identifying IAT Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Wire resistance: max. 1.5

z

Additionally check both wires for short to battery positive.

Specification: INFINITY ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



If no wiring malfunctions are detected:

z

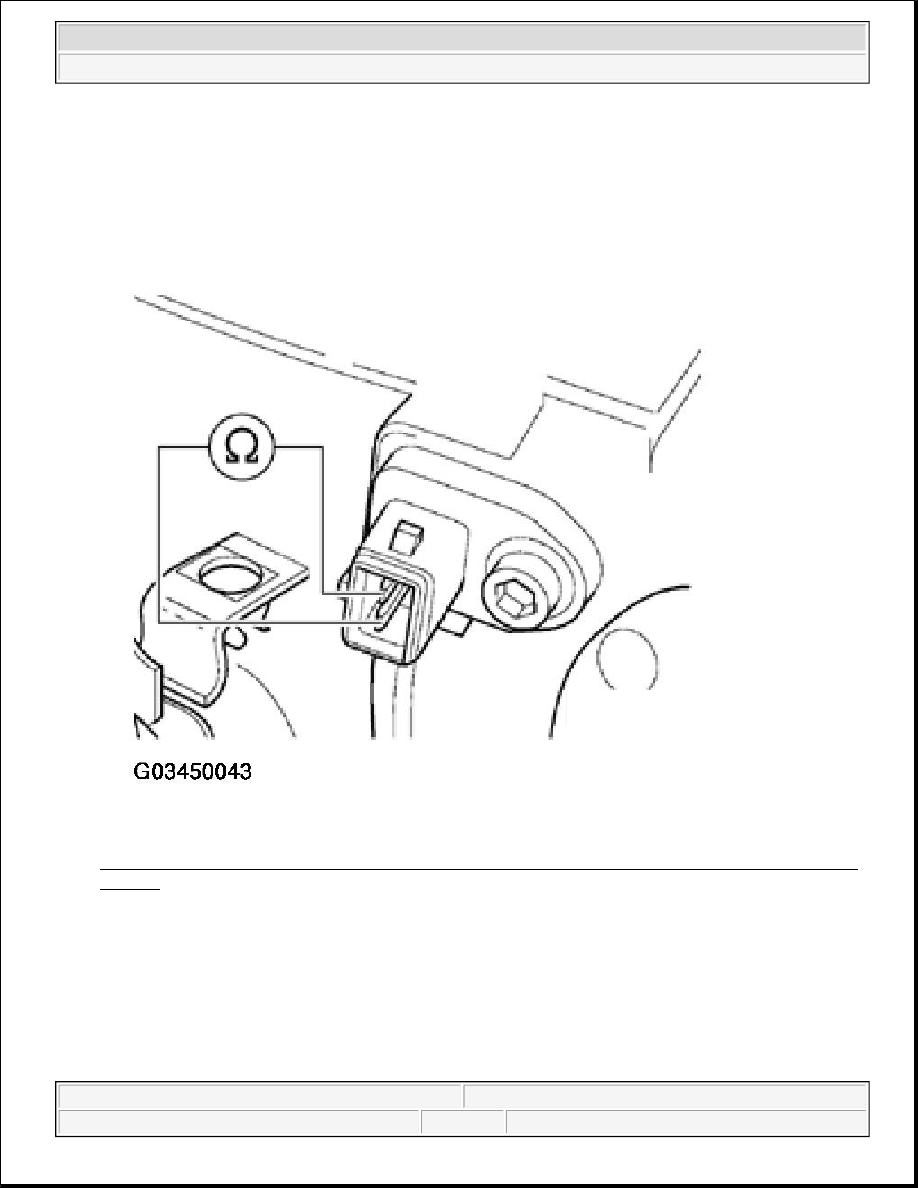

Perform resistance measurement on Intake Air Temperature (IAT) sensor -G42- terminals 1 (signal) and 2
(ground).

Fig. 68: Performing Resistance Measurement On Intake Air Temperature (IAT) Sensor Terminal1
(Signal)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Scale A shows resistance values for temperature range 0 to 50 °C and scale B the values for temperature range
50 to 100 °C.

Examples:

z

30 °C is in range A and corresponds to a resistance of 1.5 to 2.0 kohm

z

80 °C is in range B and corresponds to a resistance of 275 to 375 ohm
