Volkswagen New Beetle. Manual - part 1672

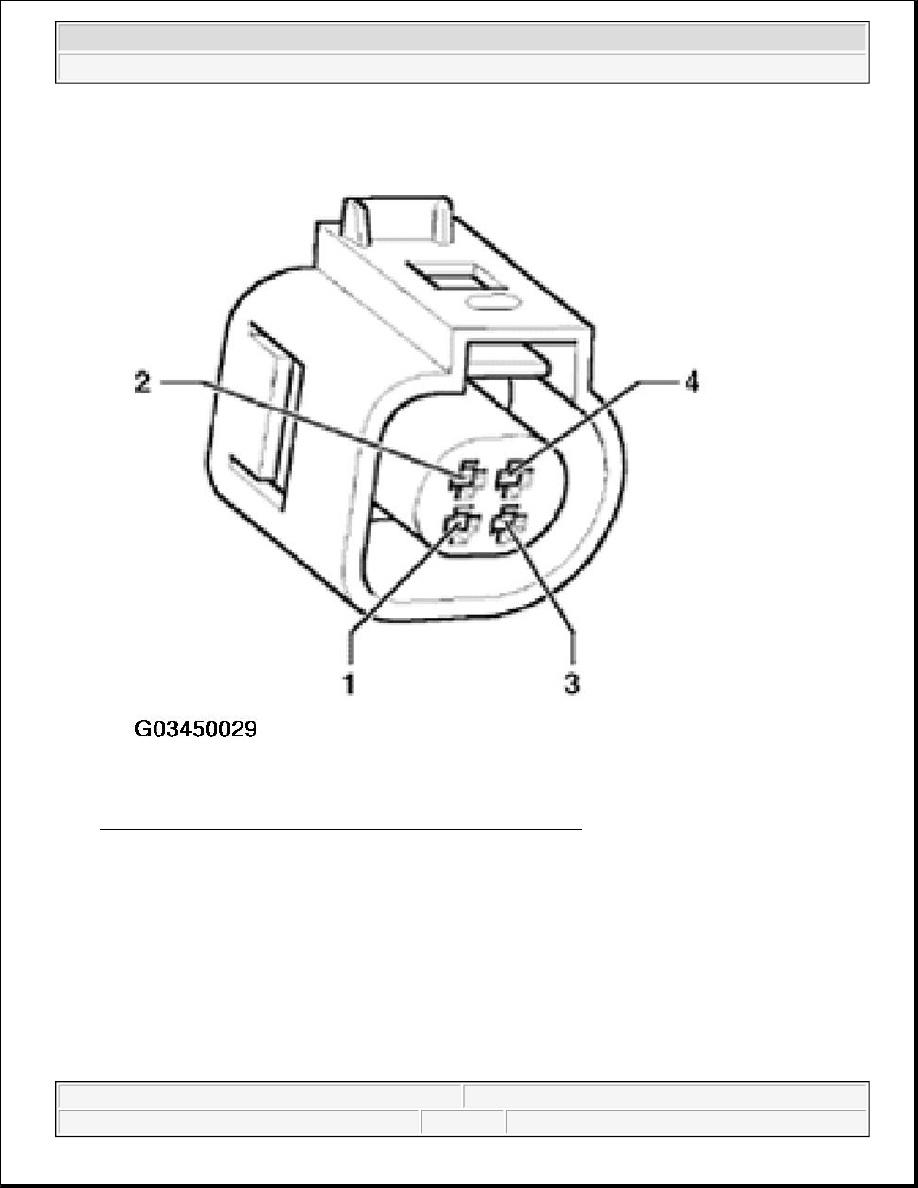

Fig. 54: Identifying ECT Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and 4 -pin connector terminal 3 for short circuit to wire terminal 4 and to
vehicle Ground (GND) using Electrical Wiring Diagram.

z

terminal 3 + socket 108

z

terminal 3 + vehicle Ground (GND)

Specification: INFINITY ohm

z

Additionally check both wires for short to battery positive.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification:

If no wiring malfunctions are detected:

z

Perform resistance measurement on Engine Coolant Temperature (ECT) sensor -G62- terminal C (signal)
and D (Ground).

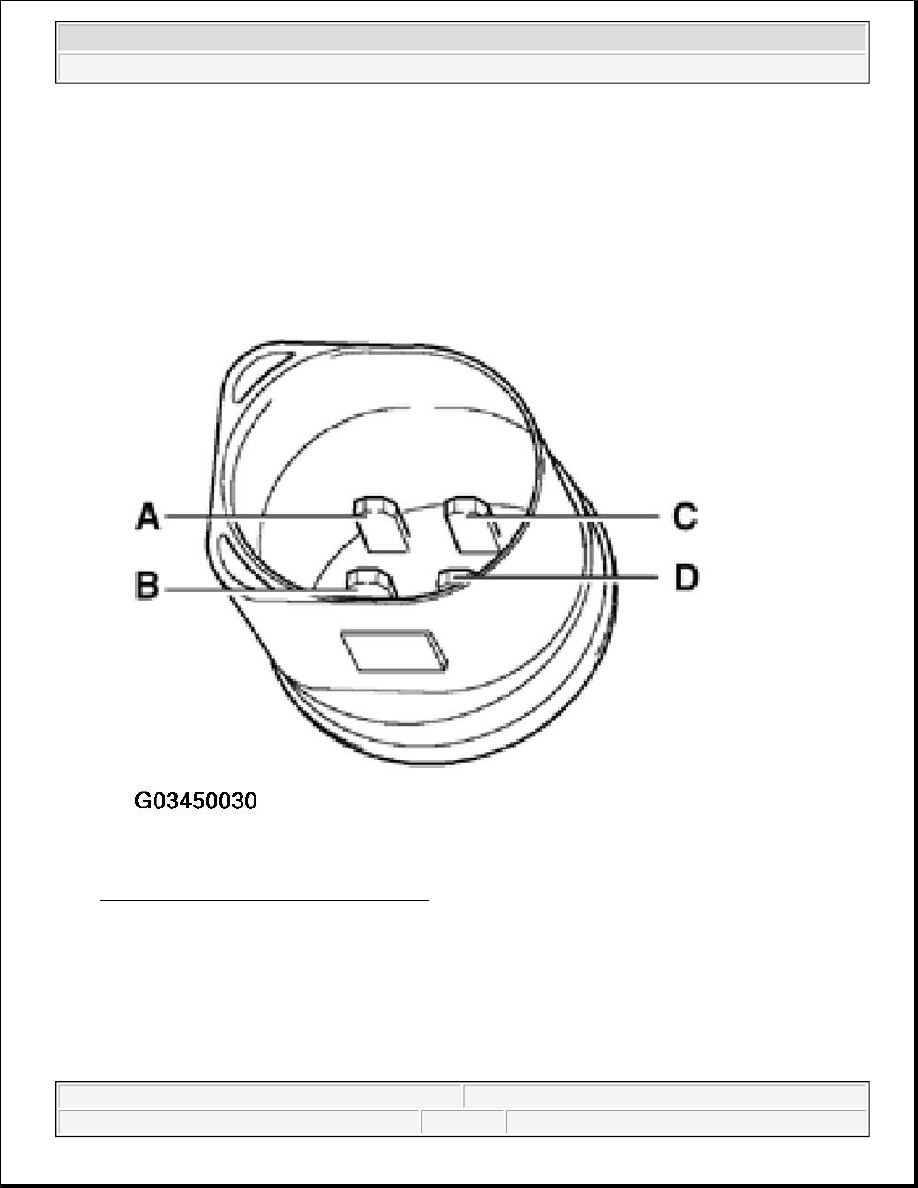

Fig. 55: Identifying ECT Sensor Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Scale A shows resistance values for temperature range 0 to 50 °C and scale B the values for temperature range
50 to 100 °C.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

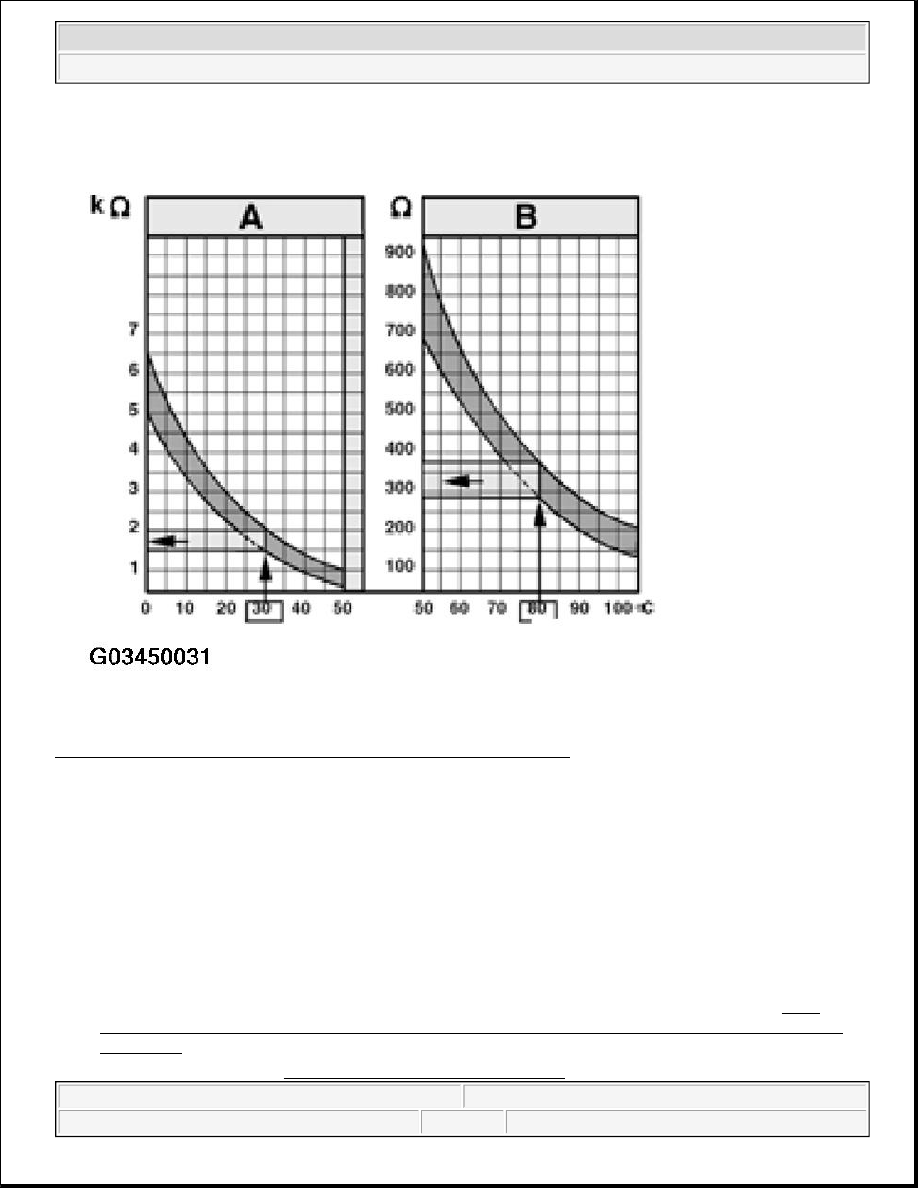

Fig. 56: ECT Sensor Resistance Versus Temperature Range Graph
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Examples:

z

30 °C is in range A and corresponds to a resistance of 1.5 to 2.0 kohm

z

80 °C is in range B and corresponds to a resistance of 275 to 375 ohm

If the specification is not obtained:

z

Replace Engine Coolant Temperature (ECT) sensor -G62- with Engine Coolant Temperature (ECT)
sensor -G2 -, see item 28 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If there is no malfunction in the wiring and the resistance measurement values are OK:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING
 .

Intake Air Temperature (IAT) sensor, checking

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

z

VAG 1921 pliers for spring type clips

z

Chilling spray (commercially available)

Test sequence

z

Connect VAG 1551 scan tool ((VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 .

Indicated on display

NOTE:

Only gold-plated terminals must be used to repair the terminals in the Intake Air
Temperature (IAT) sensor.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
