Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If oxygen sensor heating has continuity:

Checking voltage supply

z

Set multimeter to measure voltage and connect to terminal 3 (connector to Motronic Engine Control
Module (ECM) -J220-) and Ground (GND).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

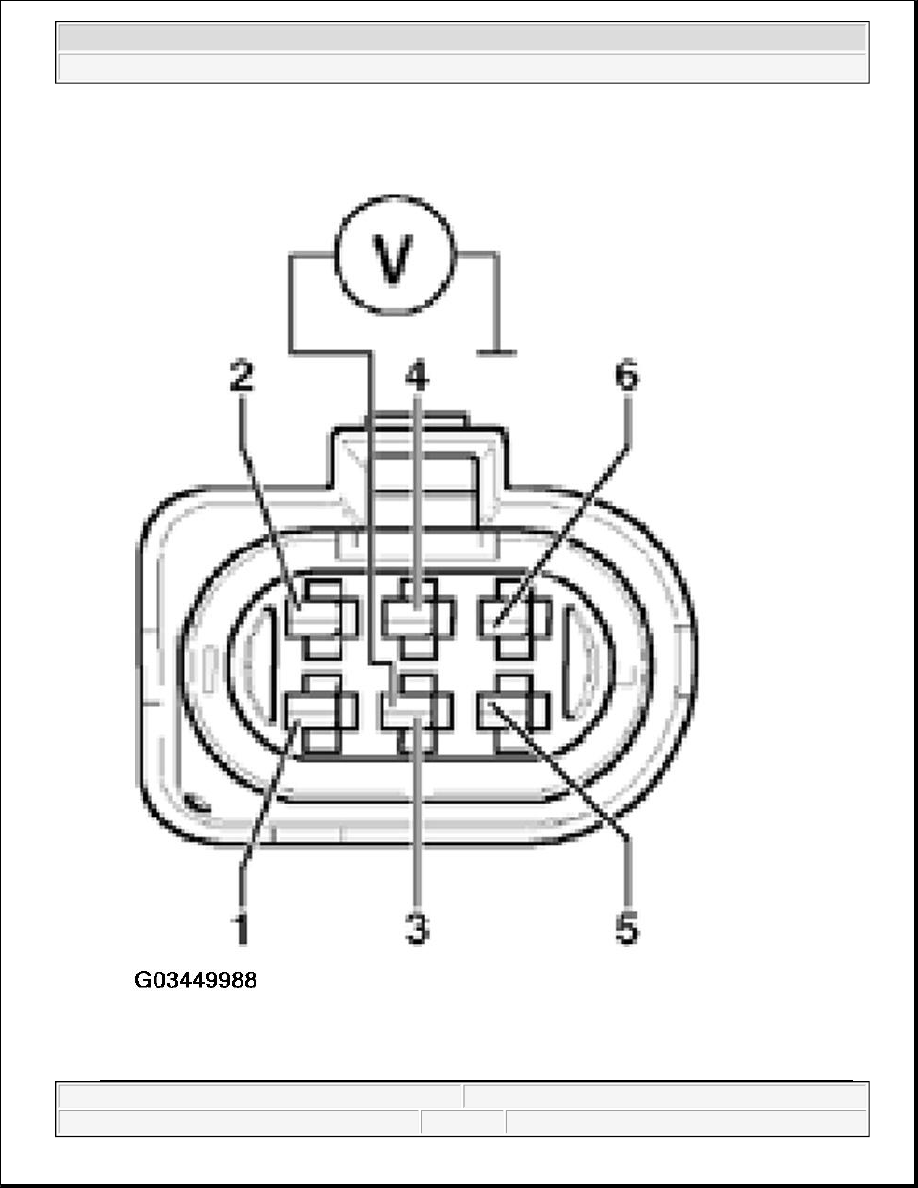

Fig. 13: Measuring Voltage Between Terminal 3 And Ground On HO2S -G39- Harness Connector



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Start engine and run at idling speed.

z

Measure voltage supply:

Specification: 11.0 to 14.5 V

If the specification is not obtained:

z

Check wiring from terminal 3 to Fuel Pump (FP) Relay -J17- using Electrical Wiring Diagram.

If the specification is obtained:

z

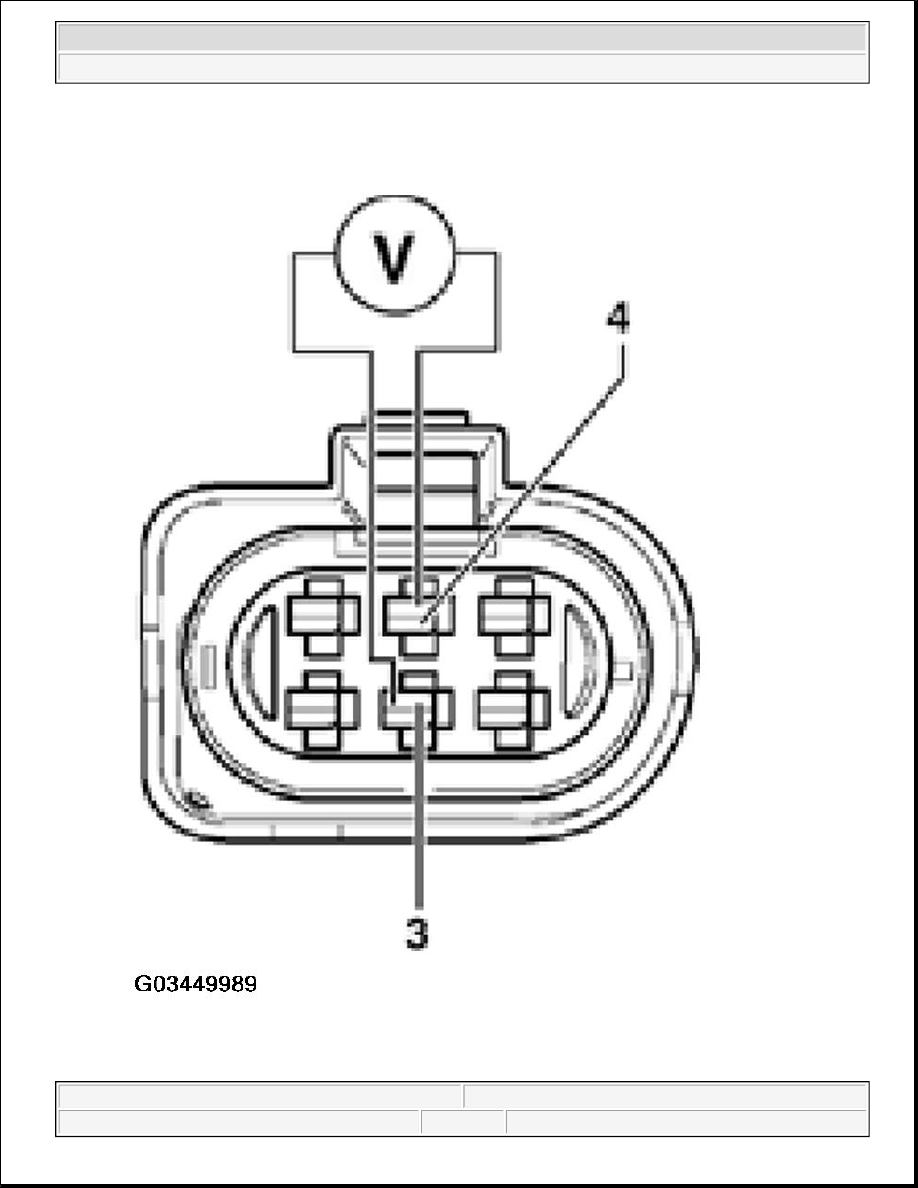

Connect multimeter using aux. cables from VAG 1594 to measure voltage at terminals 3 and 4 (connector
to Motronic Engine Control Module (ECM) -J220-).
