Volkswagen New Beetle. Manual - part 1648





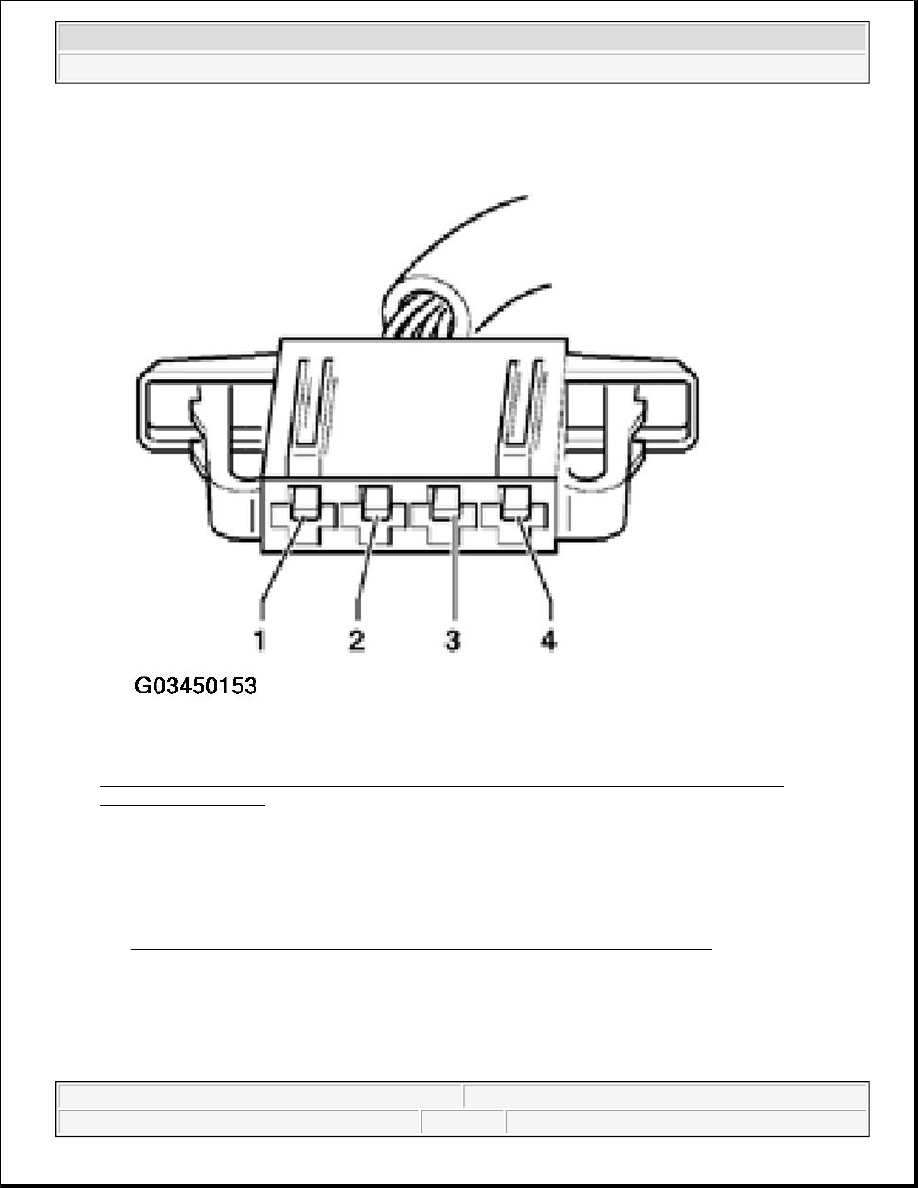

Fig. 178: Identifying Brake Light Switch And Brake Vacuum Vent Valve Switch Harness
Connector Terminals

Courtesy of VOLKSWAGEN OF AMERICA, INC.

If the specifications are obtained:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Fig. 179: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and 4 -pin connector using Electrical Wiring Diagram.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



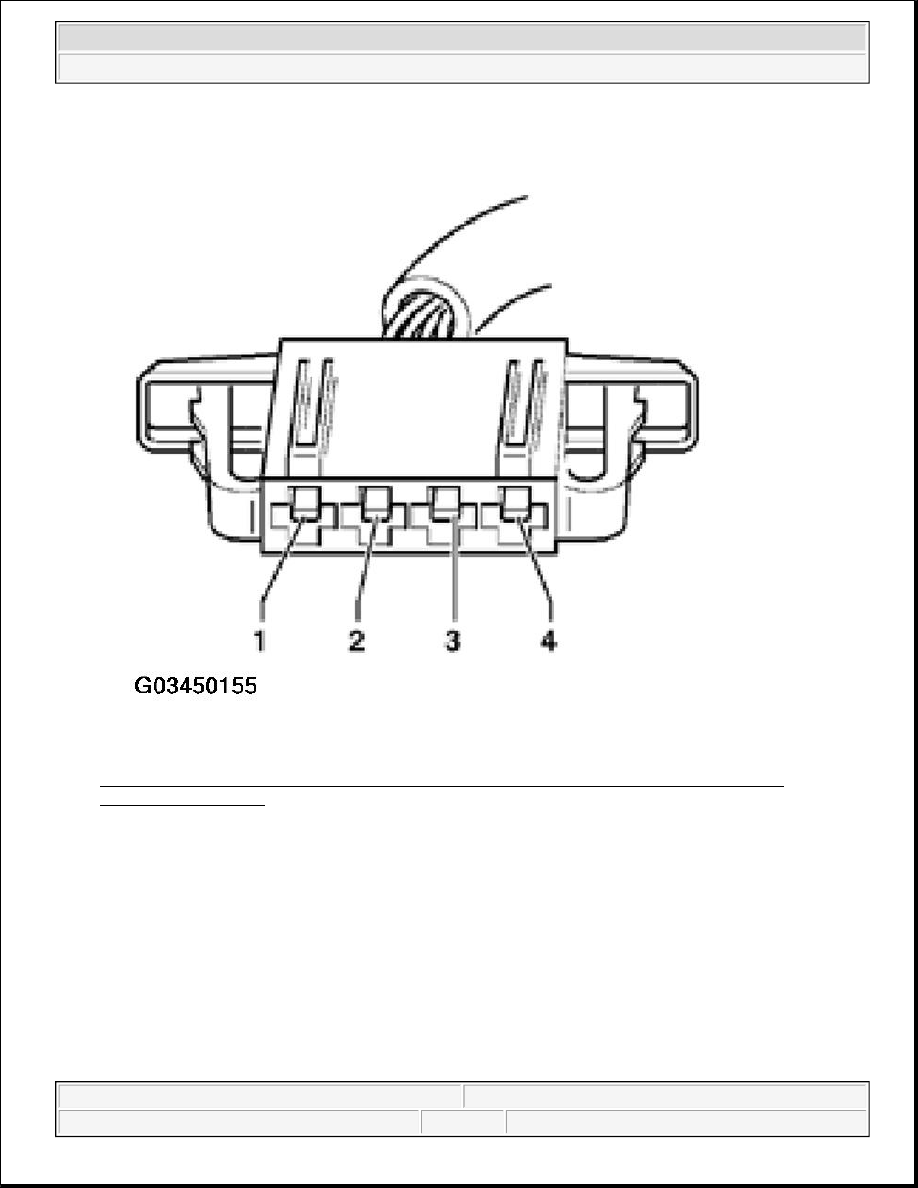

Fig. 180: Identifying Brake Light Switch And Brake Vacuum Vent Valve Switch Harness
Connector Terminals

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

terminal 3 + socket 55

z

terminal 4 + socket 56

Wire resistance: Max. 1.5 ohm

z

Also check wires for short to one another.

z

Also check wiring for short to battery positive or Ground (GND).

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



MODULE (ECM) - J220-, REPLACING

Driving range signal, checking

Vehicles with automatic transmission only

Motronic Engine Control Module (ECM) -J220- receives the following information from transmission control
module:

z

Driving range selected (selector lever in 1/2/3/R/D) or

z

No driving range selected (selector lever in P or N)

Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool (or VAG 1552 mobile scan tool) with VAG 1551/3B cable

z

VAG 1598/31 test box

z

VAG 1526 A or Fluke 83 multimeter

z

VAG 1594 adapter set

z

Electrical Wiring Diagram

Test conditions

z

Selector lever of the automatic transmission must be in "P" or "N" position

z

Air conditioning must be turned off

z

All electrical accessories, e.g. lights and rear window defroster must be switched off

Test sequence

z

Connect VAG 1551 scan tool (or VAG 1552). Switch ignition on and select Motronic Engine Control
Module (ECM) -J220- with "Address word" 01. Connecting scan tool and selecting Motronic Engine
Control Module (ECM) -J220-, see VAG 1551, CONNECTING AND SELECTING MOTRONIC
ENGINE CONTROL MODULE (ECM) -J220-
 .

Indicated on display



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
