Volkswagen New Beetle. Manual - part 1645

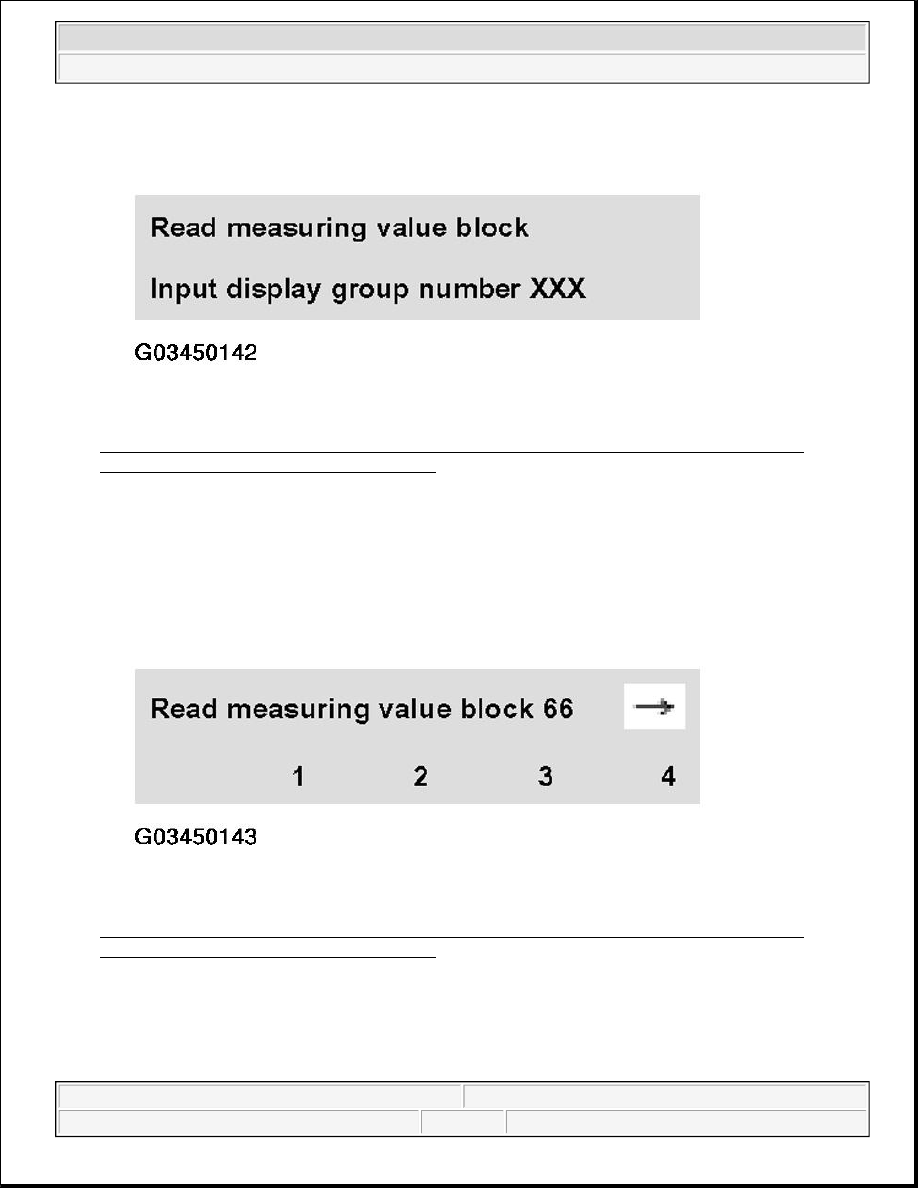

Fig. 167: Identifying Scan Tool Display - Checking Signal From Clutch Vacuum Vent Valve
Switch, Vehicles Through MY 2000 (2 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -6- and -6- for "display group 66" and confirm with -Q- button.

Indicated on display (1 to 4 - Display zones)

Fig. 168: Identifying Scan Tool Display - Checking Signal From Clutch Vacuum Vent Valve
Switch, Vehicles Through MY 2000 (3 Of 3)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Observe values displayed in display zone 2 (2nd digit from left).

Clutch pedal not depressed.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Specification: x 0 x x

z

Depress clutch pedal fully and observe display in display zone 2.

Specification: x 1 x x

z

Press --> button.

z

Press buttons -0- and -6- for "End output" function and confirm input with -Q- button.

z

Switch off ignition.

If the display does not change:

z

Remove driver's side footwell cover.

See STORAGE, COVERS AND TRIMS

z

Disconnect 2-pin connector from Clutch Vacuum Vent Valve Switch -F36-.

z

Measure resistance between switch terminals 1 and 2.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

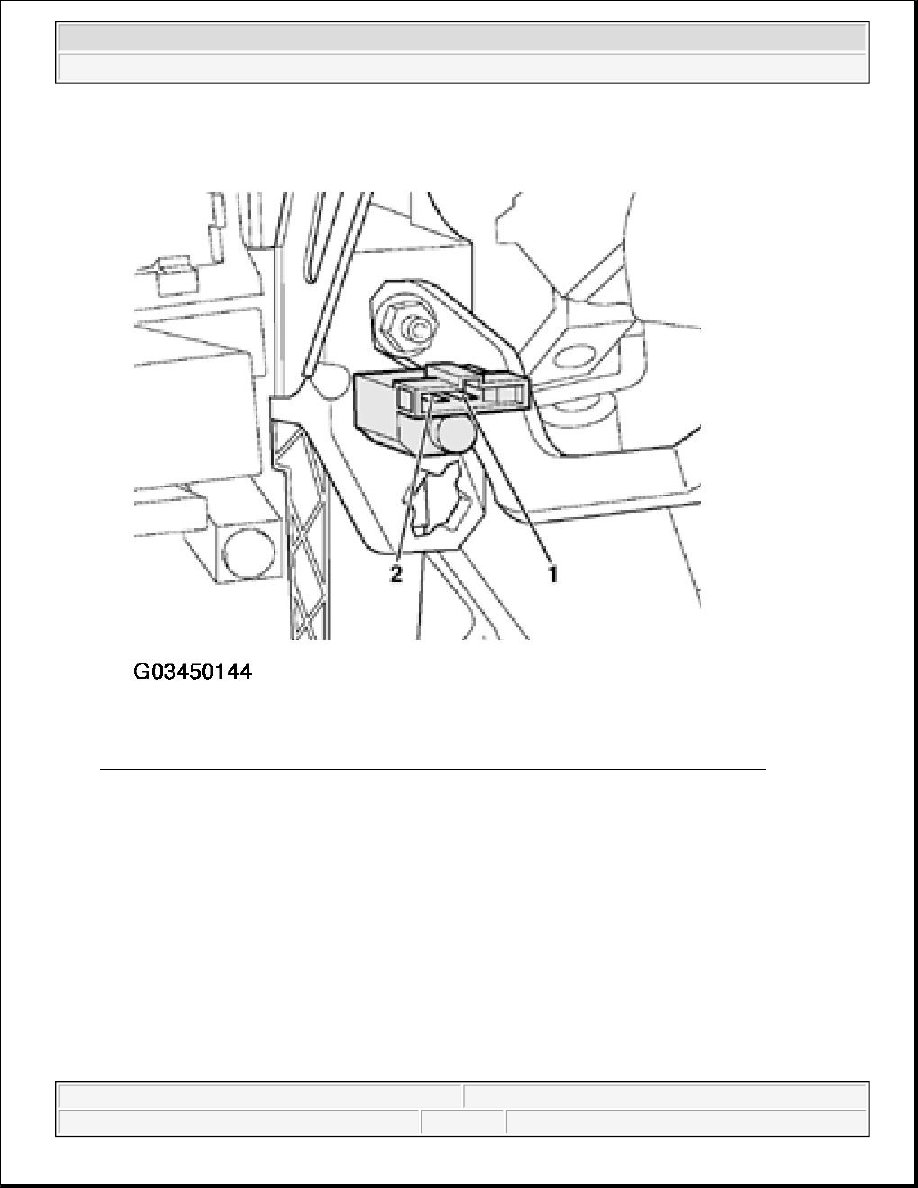

Fig. 169: Measuring Resistance Between Clutch Vacuum Vent Valve Switch Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification:

z

Clutch not depressed: max. 1.5

z

Clutch depressed: (no continuity)

If the specifications are not obtained:

z

Replace Clutch Vacuum Vent Valve Switch -F36-.

NOTE:

Observe installation position of Clutch Vacuum Vent Valve Switch - F36- in
bearing bracket upper assembly hole.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Motronic Engine Control Module (ECM) -J220- was disconnected from battery positive, readiness code
must be generated again, see READINESS CODE, GENERATING .

If the specifications are obtained:

z

Connect multimeter using auxiliary cables from VAG 1594 to measure voltage between terminal 1 and
Ground (GND).

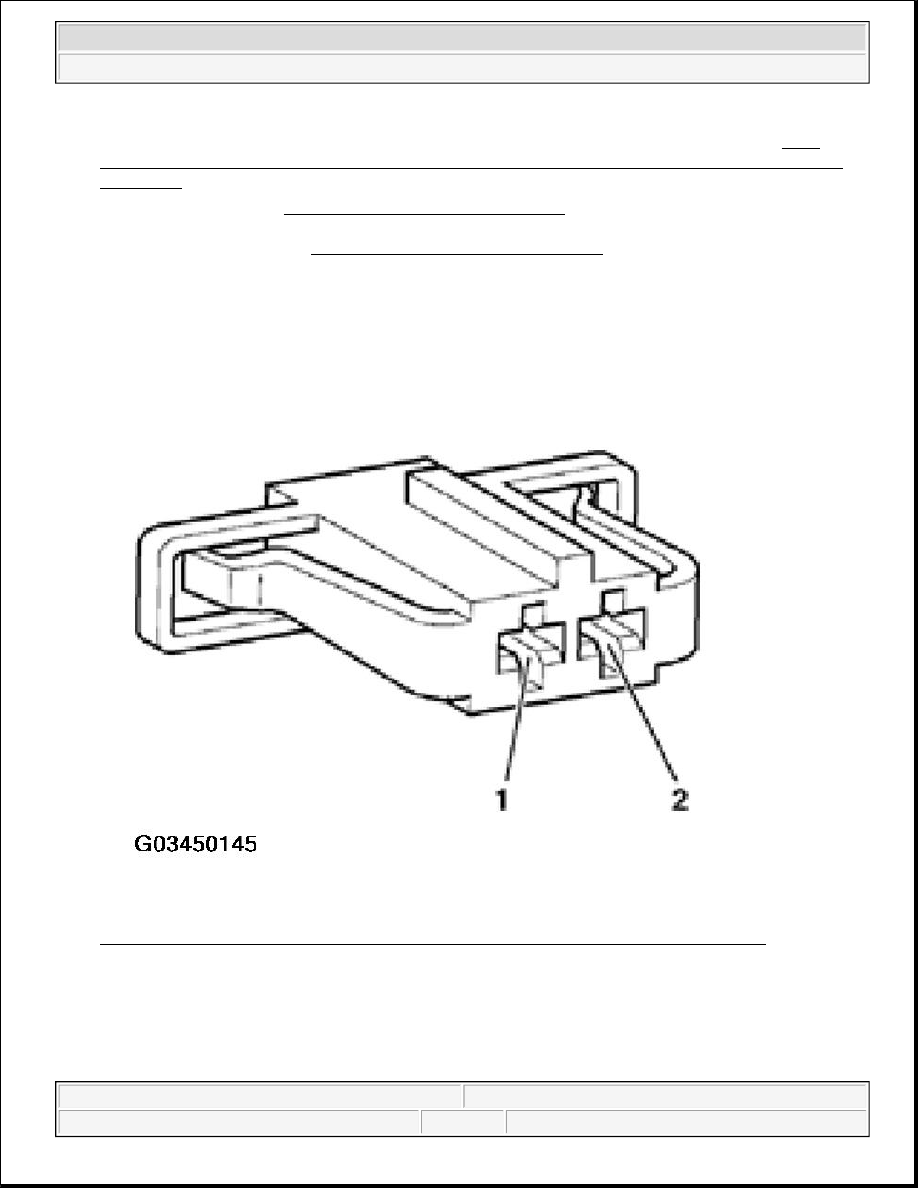

Fig. 170: Identifying Clutch Vacuum Vent Valve Switch Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition.

Specification: min. 11.5 V



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
