Volkswagen New Beetle. Manual - part 1632





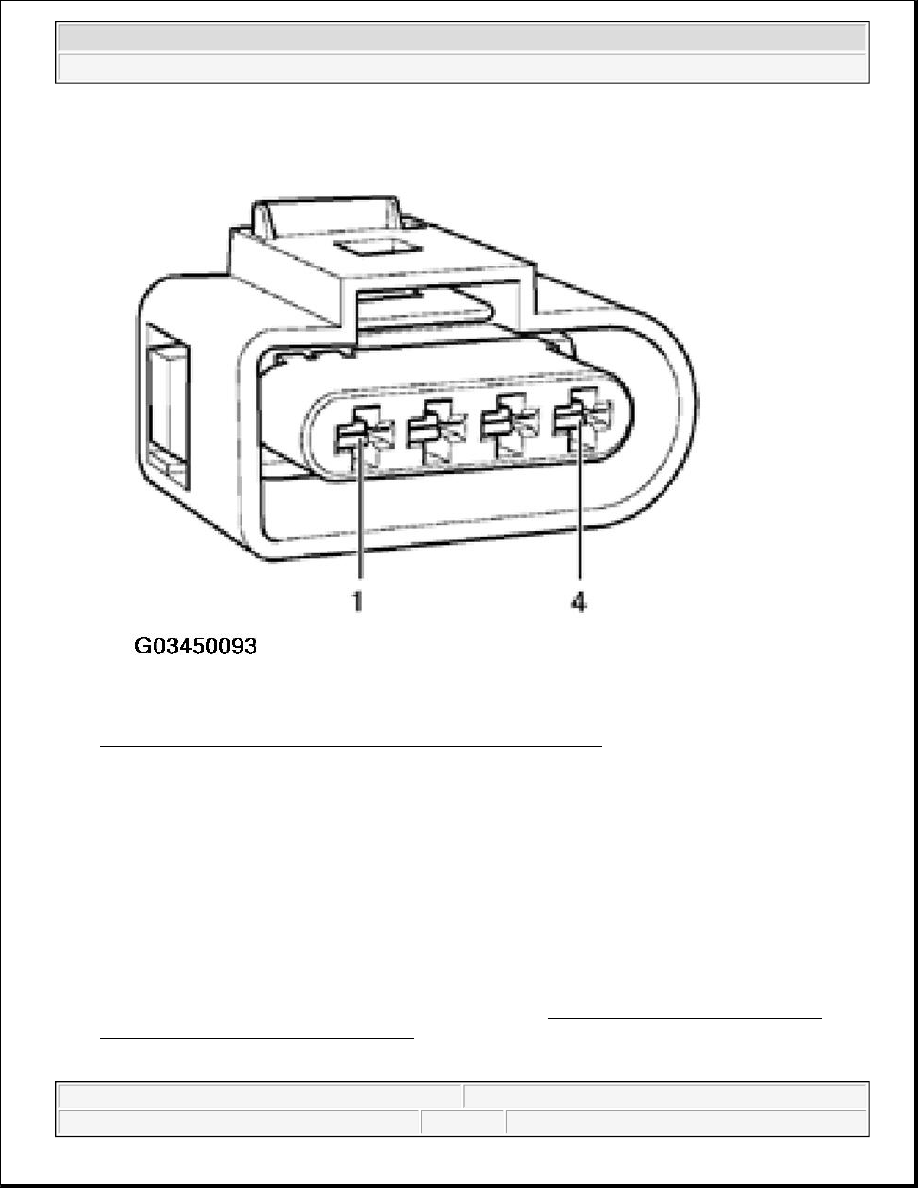

Fig. 118: Identifying HO2S -G130- Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Wire resistance: Max. 1.5 ohm

z

Check wiring at connector terminals 3 + 4 for short circuit to terminals 1 + 2 using Electrical Wiring
Diagram.

z

terminal 4 and socket 68

Specification: INFINITY ohm

If no wiring malfunction is found:

z

Replace Motronic Engine Control Module (ECM) -J220-, see MOTRONIC ENGINE CONTROL
MODULE (ECM) - J220-, REPLACING
 .

Oxygen sensor aging, oxygen sensor before Three Way Catalytic Converter (TWC), checking



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Special tools, test equipment and auxiliary items

z

VAG 1551 scan tool or VAG 1552 mobile scan tool with VAG 1551/3B cable

z

VAG 1788/10 RPM adjuster

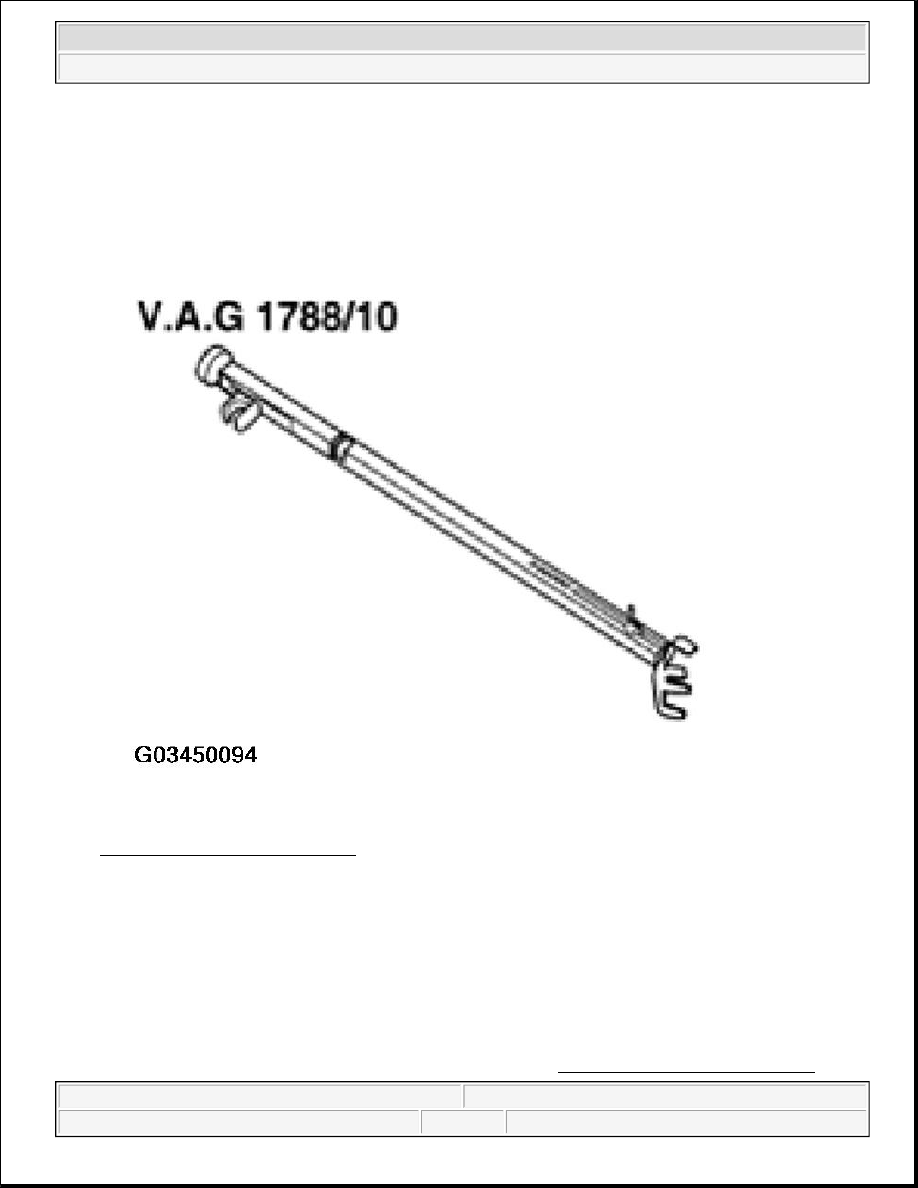

Fig. 119: Identifying Special Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test conditions

z

Engine Coolant Temperature (ECT) must be at least 80 °C, see display group 04, display zone 3

Functional check

z

Connect VAG 1551 scan tool (or VAG 1552). Start engine and select "Address word" 01 of Motronic
Engine Control Module (ECM) -J220-. Engine must be running at idle speed. Connecting scan tool and
selecting Motronic Engine Control Module (ECM) - J220-, see VAG 1551, CONNECTING AND



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



SELECTING MOTRONIC ENGINE CONTROL MODULE (ECM) -J220- .

Indicated on display

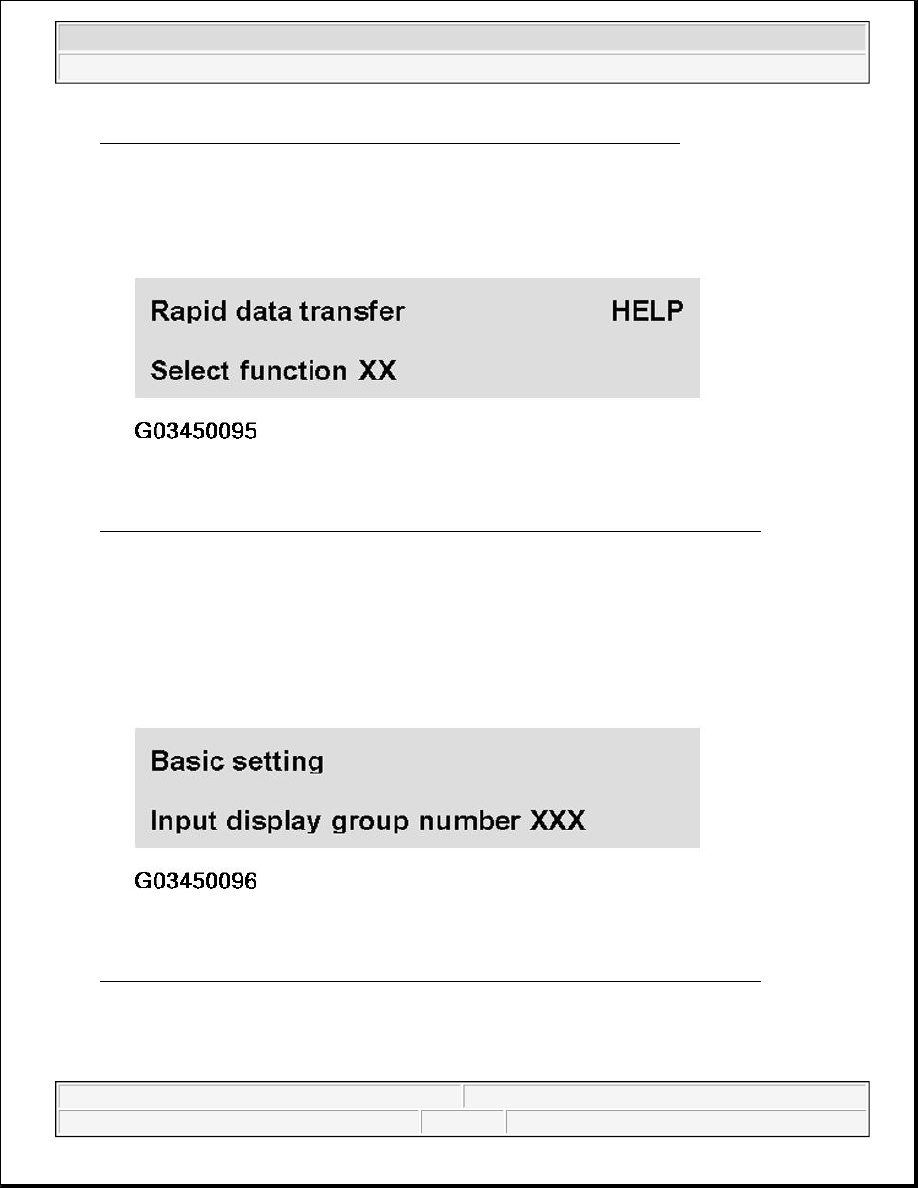

Fig. 120: Identifying Scan Tool Display - Checking Aging, HO2S Before TWC (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0- and -4- for function "Basic Setting" and confirm entry with -Q- button.

Indicated on display

Fig. 121: Identifying Scan Tool Display - Checking Aging, HO2S Before TWC (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -3- and -4- for "Display group number 34" and confirm entry with -Q- button.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle



Indicated on display (1 to 4 - Display zones)

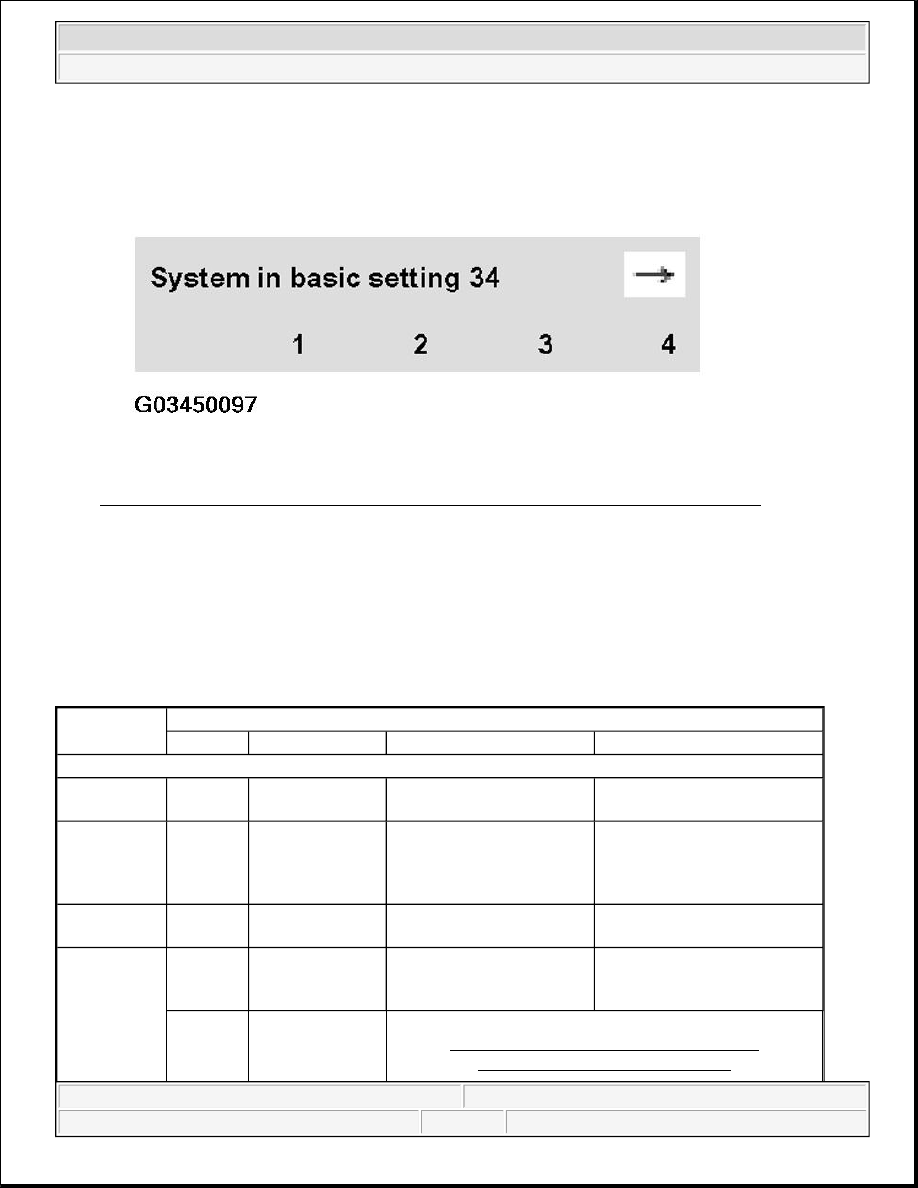

Fig. 122: Identifying Scan Tool Display - Checking Aging, HO2S Before TWC (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Adjust RPMs with VAG1788/10 RPM adjuster to 1800 to 2200RPM.

z

Check specifications in display zones 1 to 4.

z

Maintain engine speed at 1800...2200 rpm until display in display zone 4 jumps from "Test OFF" to "Test
ON". Three Way Catalytic Converter (TWC) temperature in display zone 2 must be 350 to 500 °C

z

Continue to maintain speed at 1800...2200 rpm until specification "B1-S1 OK" appears in display zone 4.

OXYGEN SENSOR CONTROL SPECIFICATION



Display zones

1

2

3

4

Display group 34: Oxygen sensor aging diagnostic Bank 1 (sensor dynamics)
Display

xxxx

RPM

xxx.x °C

xx.xx

Test OFF/Test ON B1-S1

OK/B1-S1 n.OK

Indicated

Engine

speed (in

steps of

40)

Three Way

Catalytic

Converter (TWC)

temperature

Sensor dynamics Bank 1

oxygen sensor 1

Diagnostic condition and

diagnostic result

Working
range

0 to 6800

RPM

-

0.00 to 1.99

-

Specifications

1800 to

2200

RPM

350 to 500 °C

> 0.50

B1-S1 OK.

-

-

If the specifications are not obtained, see

OXYGEN SENSOR AGING, OXYGEN

SENSOR AFTER THREE WAY



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
