Volkswagen New Beetle. Manual - part 1608







2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

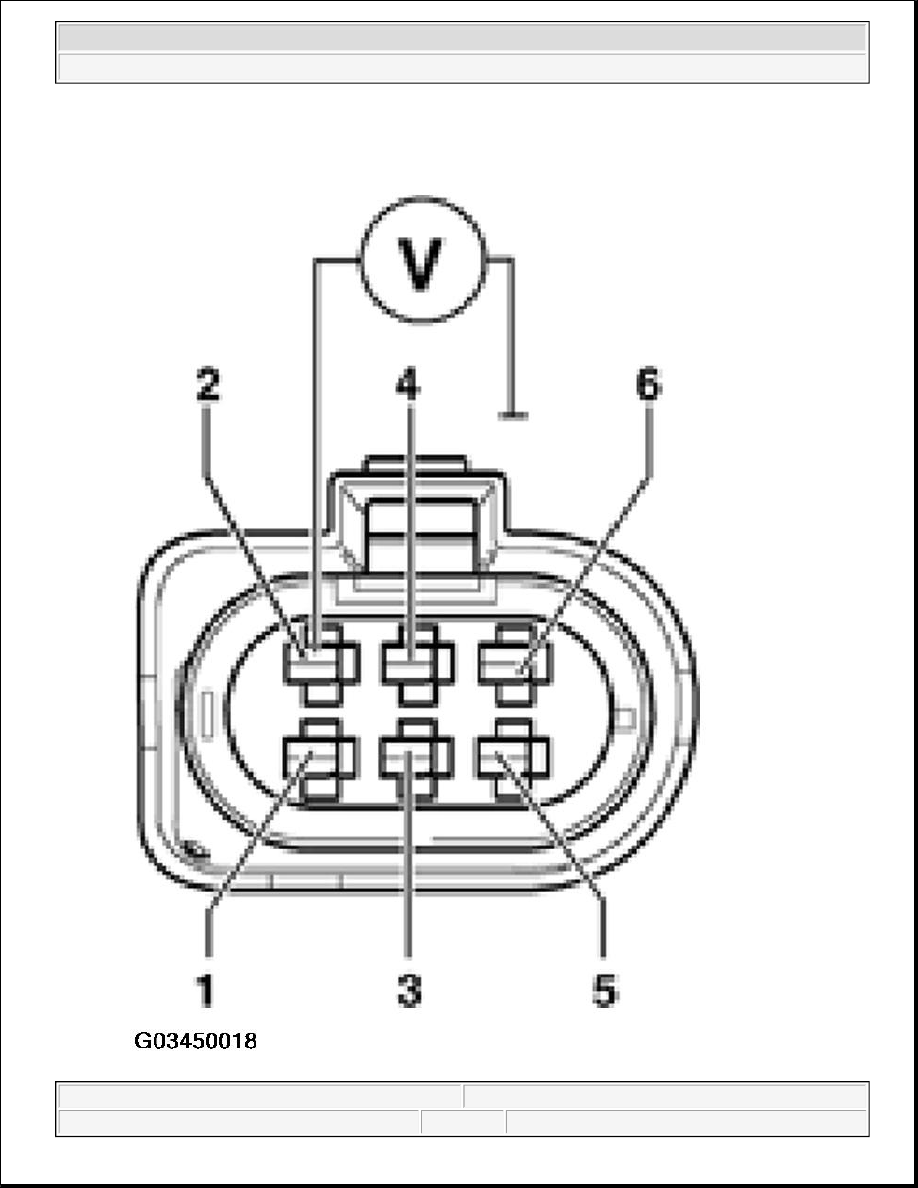

Fig. 43: Measuring Voltage Between Terminals 2 And Ground Of Throttle Valve Control Module
Harness Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch off ignition.

If the specifications are not obtained:

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect VAG 1598/31 test box to control module wiring harness. Motronic Engine Control Module
(ECM) -J220- is not connected by this action.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

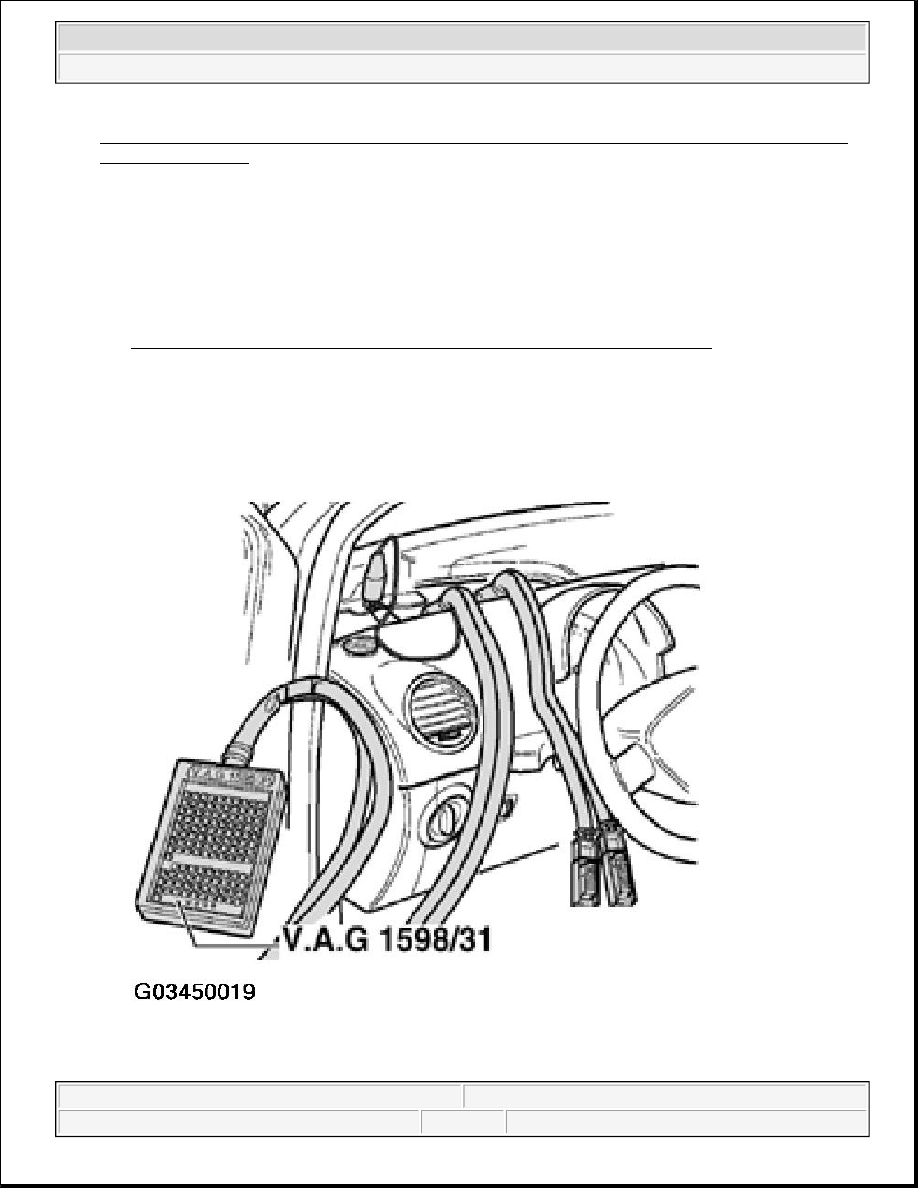

Fig. 44: Connecting VAG 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and connector terminals for open circuit using Electrical Wiring Diagram:

z

terminal 1 + Socket 92

z

terminal 2 + Socket 83

z

terminal 3 + Socket 117

z

terminal 4 + Socket 84

z

terminal 5 + Socket 118

z

terminal 6 + Socket 91

Wire resistance: max. 1.5

{

Additionally check wires for short to one another.

Specification: INFINITY ohm

{

Check wiring additionally for short circuit to battery positive or Ground (GND).

Specification: INFINITY ohm

If no wiring malfunction is found:

z

Check Motronic Engine Control Module (ECM) -J220- voltage supply, see MOTRONIC ENGINE
CONTROL MODULE (ECM)
 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle

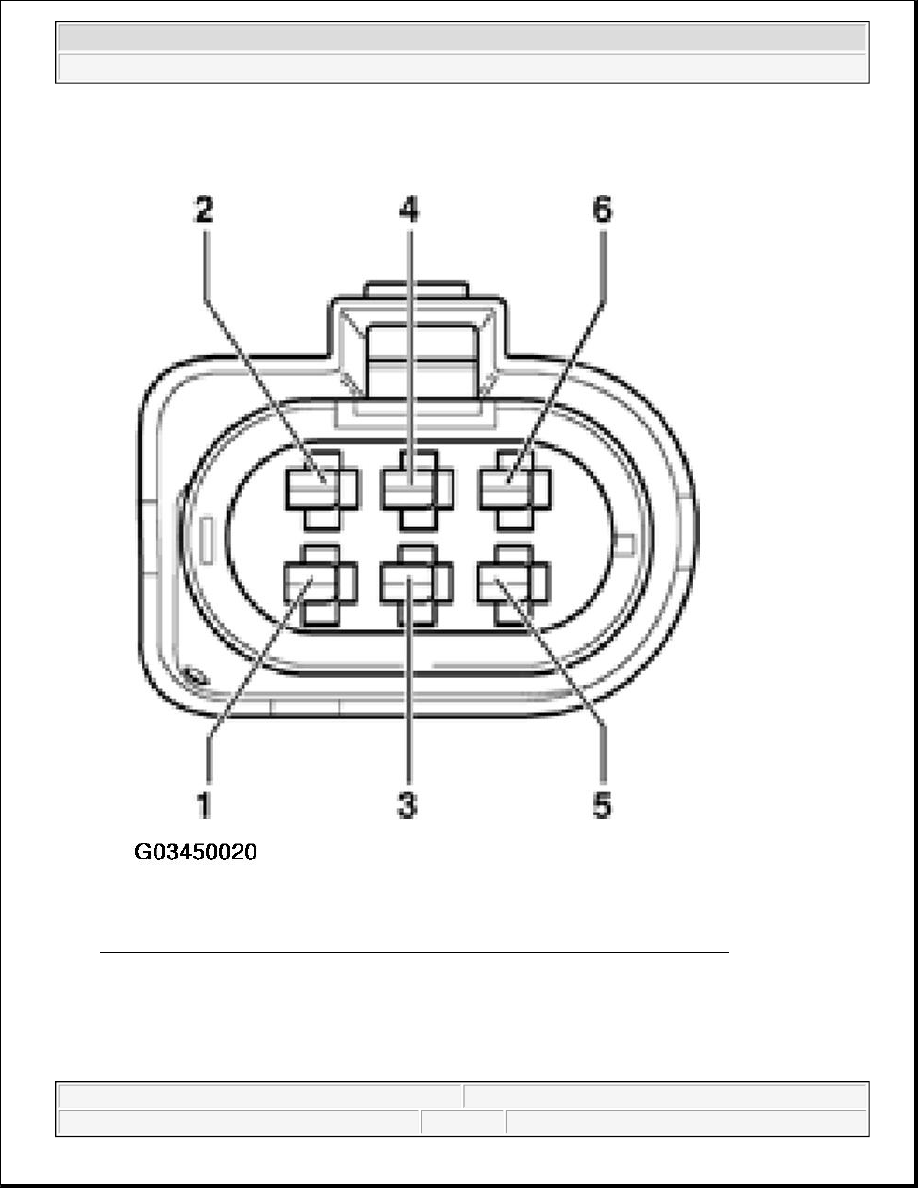

Fig. 45: Identifying Throttle Valve Control Module Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engine Coolant Temperature (ECT) sensor -G62-, checking

NOTE:

The Motronic Engine Control Module (ECM) - J220- will use a replacement
temperature value for an engine start as soon as there is a DTC stored in the



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Multiport Fuel Injection (MFI) , 1.8L AWP, AWV - New Beetle
