Volkswagen New Beetle. Manual - part 1554





Test data, spark plugs

TEST DATA, SPARK PLUGS

See MAINTENANCE

Camshaft Position (CMP) sensor -G40-, checking

Special tools, test equipment and auxiliary items

z

V.A.G 1598/31 test box

z

V.A.G 1526 A or Fluke 83 multimeter

z

V.A.G 1594 C adapter set

z

Electrical Wiring Diagrams

Test conditions

z

Camshaft Position (CMP) sensor -G40- installed tightly

z

Battery voltage must be at least 11.5 V

Test sequence

z

Disconnect 3-pin connector from Camshaft Position (CMP) sensor -arrow-.

must always be fastened to and operated from the rear seat by a
second technician.

Engine code

AWP

AWV

Firing order

1-3-4-2

1-3-4-2

Spark plugs

(1)

 ,

(2)

VW/Audi

101 000 063 AA

101 000 063 AA

Manufacturer ID

NGK PFR 6 Q

NGK PFR 6 Q

Electrode gap

max. 0.8 mm

max. 0.8 mm

Tightening torque

30 Nm

30 Nm

(1)

The up-to -date figures and the spark plug change intervals:

(2)

Remove and install spark plugs with 3122B and appropriate extension.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle



Fig. 4: Disconnecting 3-Pin Connector From Camshaft Position (CMP) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Connect multimeter to measure voltage with adapter cables from V.A.G 1594 C to terminals 1 (positive)
and 3 (Ground) on Camshaft Position (CMP) sensor connector.

Fig. 5: Connecting Multimeter To Terminals 1 And 3 Of CMP Sensor Harness Connector
Terminals

Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch on ignition.

Specification: min. 4.5 V

z

Switch off ignition.

If no voltage is present:

z

Remove inner plenum chamber cover, left:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle



See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING

z

Connect V.A.G 1598/31 test box to control module wiring harness. Engine Control Module is not
connected by this action.

Fig. 6: Connecting V.A.G 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between test box and connector using Electrical Wiring Diagrams.

Fig. 7: Identifying CMP Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Contact 1 + socket 98

z

Contact 2 + socket 86

z

Contact 3 + socket 108

Wire resistance: Max. 1.5 ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle



z

Additionally check wires for short to one another.

Specification: ohm

If no malfunctions in wiring are detected and voltage was present between terminals 1 + 3:

z

Replace Camshaft Position (CMP) sensor -G40-, see item 7 .

z

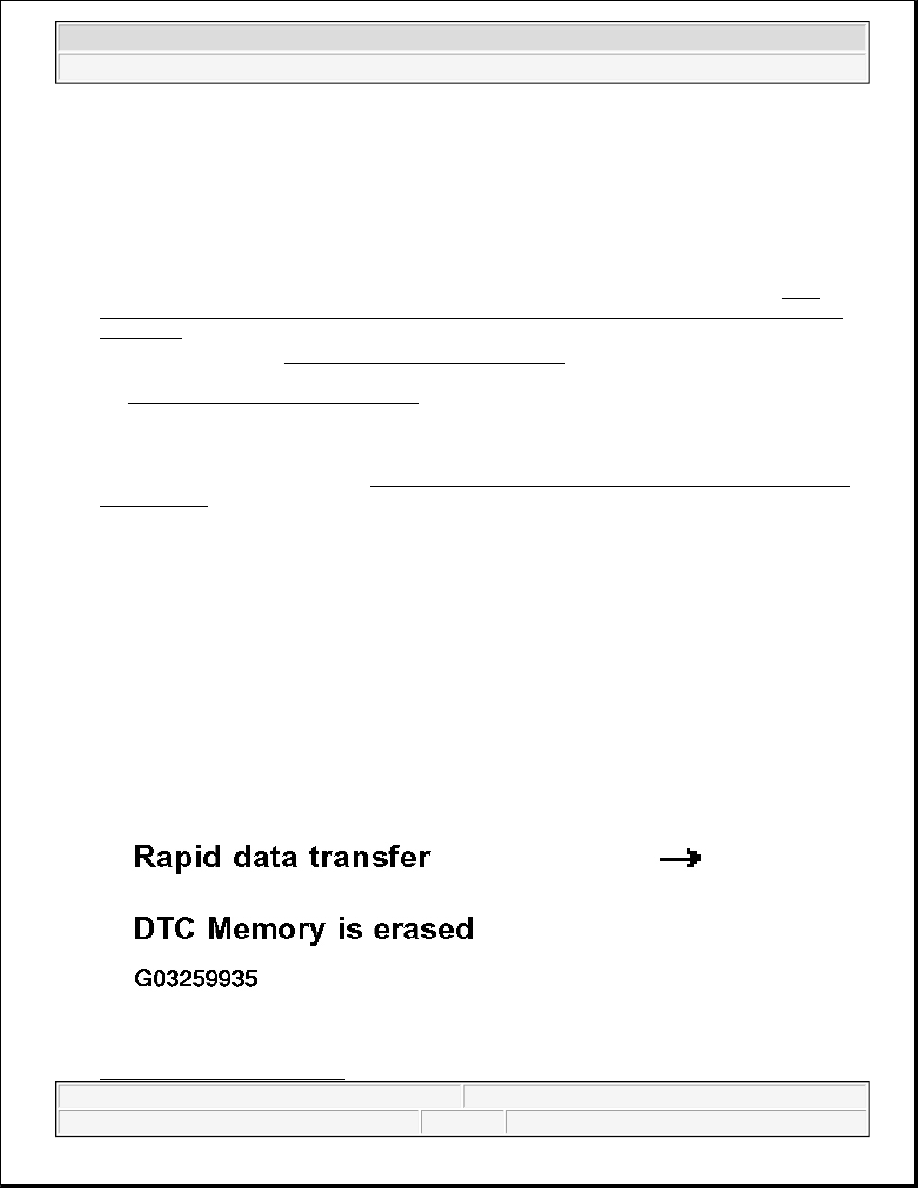

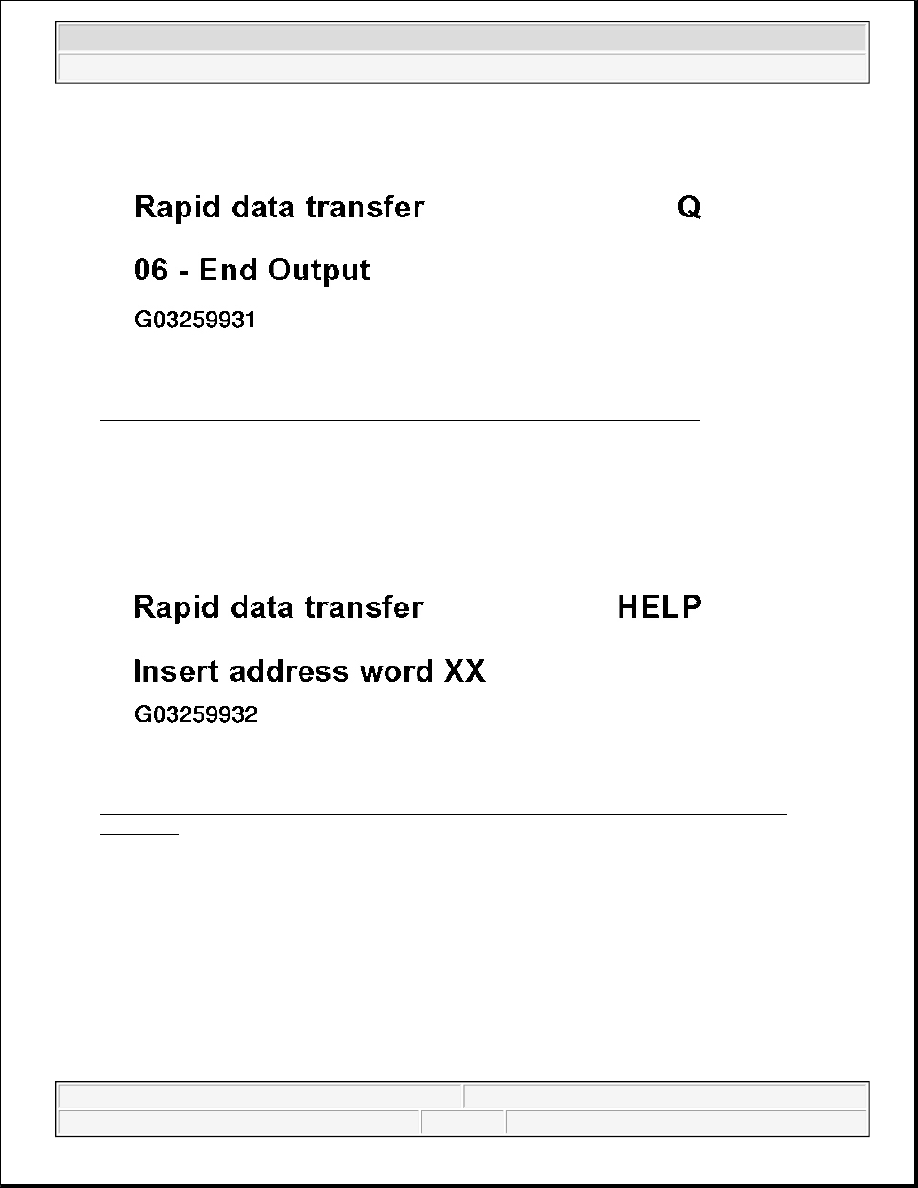

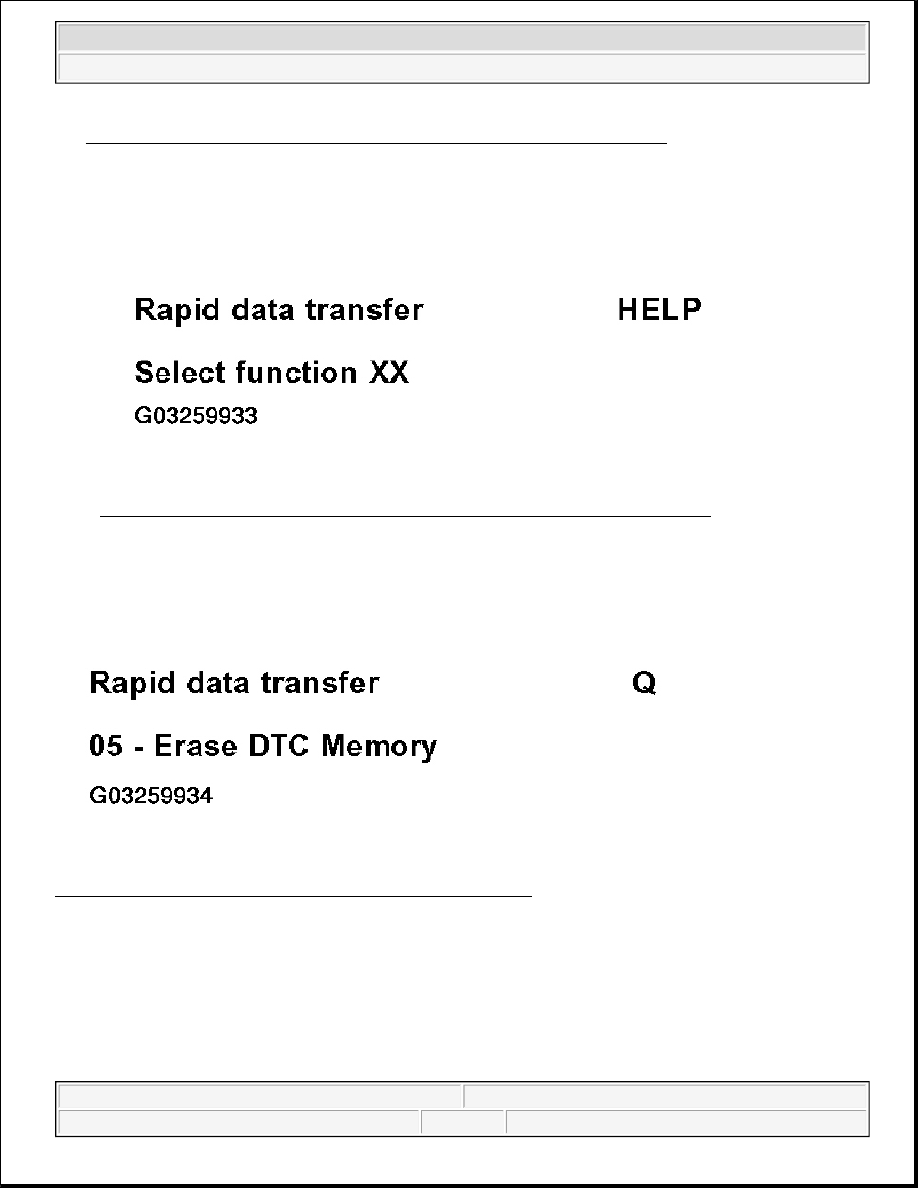

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Engine Control Module was disconnected from battery positive, readiness code must be generated again,
see READINESS CODE, GENERATING .

If no malfunction in wiring is detected and no voltage was present between terminals 1 + 3:

z

Replace Engine Control Module, see MOTRONIC ENGINE CONTROL MODULE (ECM) - J220-,
REPLACING
 .

Ignition coils with power output stage, checking

Special tools, test equipment and auxiliary items

z

V.A.G 1598/31 test box

z

V.A.G 1526 A or Fluke 83 multimeter

z

V.A.G 1527 B voltage tester

z

V.A.G 1594 C adapter set

z

Removal tool T40039

z

Electrical Wiring Diagrams

Fig. 8: Identifying Special Tools



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle
