z

Knock Sensor (KS) 2 -G66-, see item 17 .

z

Erase DTC memory of Engine Control Module (ECM), see DIAGNOSTIC MODE 4: RESET/ERASE
DIAGNOSTIC DATA
 .

z

generate readiness code, see READINESS CODE, GENERATING .

Vehicles with engine code AWP, AWV

z

Disconnect 2-pin harness connector to Knock Sensor (KS) 1 -G61-(-1-) and/or 2 -pin harness connector
to Knock Sensor (KS) 2 -G66-(-2-).



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle

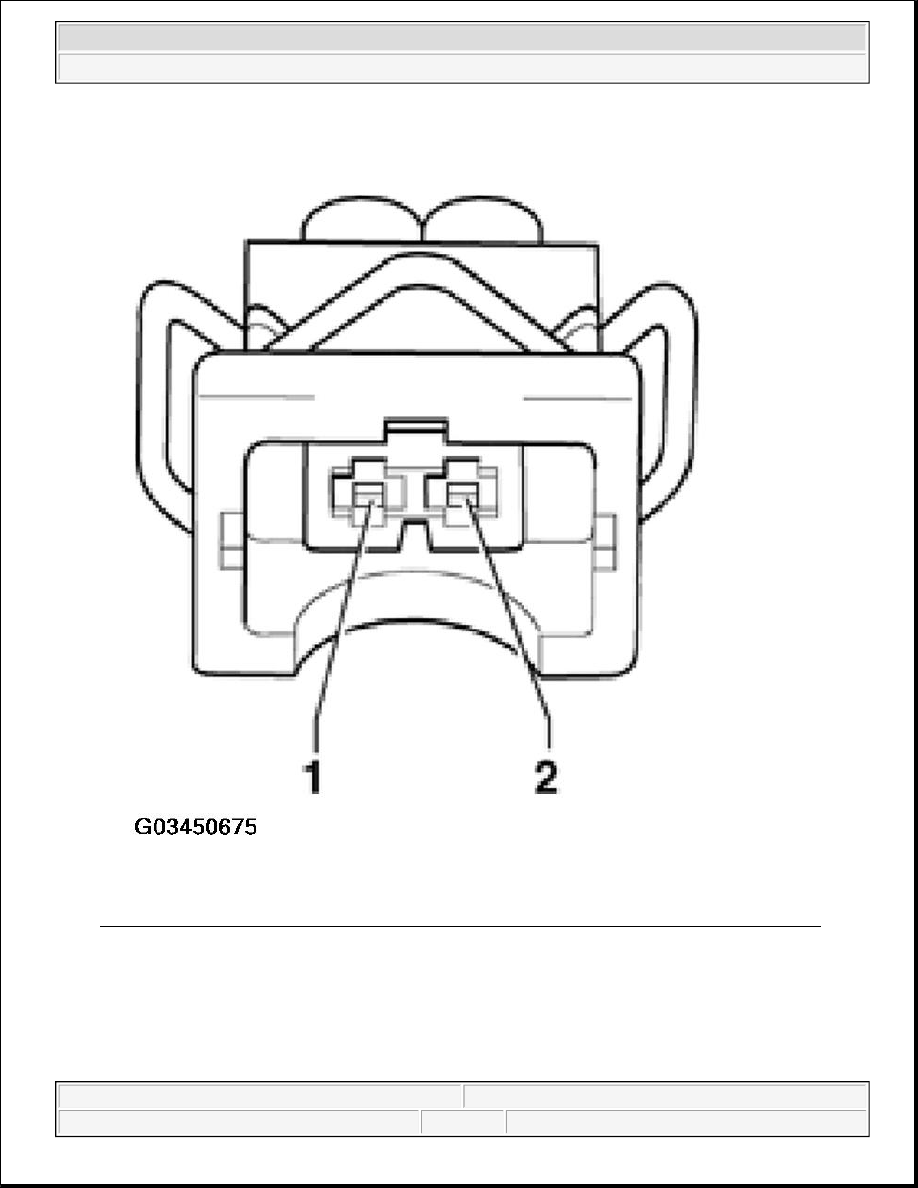

Fig. 22: Disconnecting 2-Pin Harness Connector To Knock Sensor (Engine Code AWP, AWV)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance between terminals 1 + 2 at connectors to knock sensors.

Specified value: ohm



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle

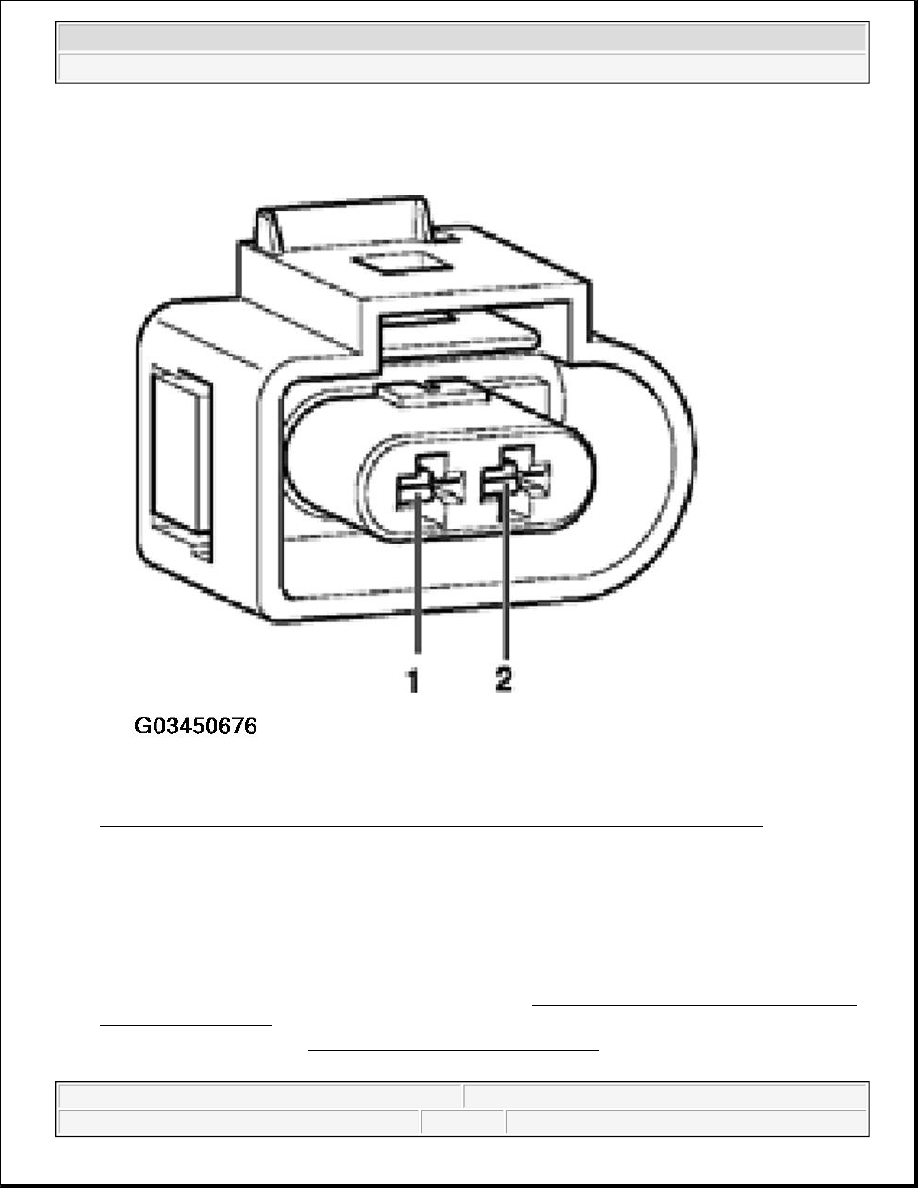

Fig. 23: Measuring Resistance Between Terminals 1 And 2 (Engine Code AWP, AWV)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If specified value is not obtained:

z

Replace the respective knock sensor:

z

Knock Sensor (KS) 1 -G61-, see item 12 .

z

Knock Sensor (KS) 2 -G66-, see item 13 .

z

Erase DTC memory of Engine Control Module (ECM), see DIAGNOSTIC MODE 4: RESET/ERASE
DIAGNOSTIC DATA
 .

z

generate readiness code, see READINESS CODE, GENERATING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



Continuation for all vehicles

If specified value is obtained:

z

Check wires, see CHECKING WIRING .

Checking wiring

z

Connect test box to control module wiring harness, see CONNECT TEST BOX FOR WIRING TEST

Vehicles with engine code APH

z

Check wiring between test box and 3 -pin connector for open circuit according to wiring diagram.

Terminal 1 + socket

106 (Knock Sensor (KS) 1 -G61-)

107 (Knock Sensor (KS) 2 -G66-)

Terminal 2 + socket

99 (Knock Sensor (KS) 1 -G61-)

99 (Knock Sensor (KS) 2 -G66-)



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle
