Volkswagen New Beetle. Manual - part 1540

Vehicles with engine code AWP, AWV

z

Disconnect 4-pin connector -2- from ignition coil -1- to be checked.

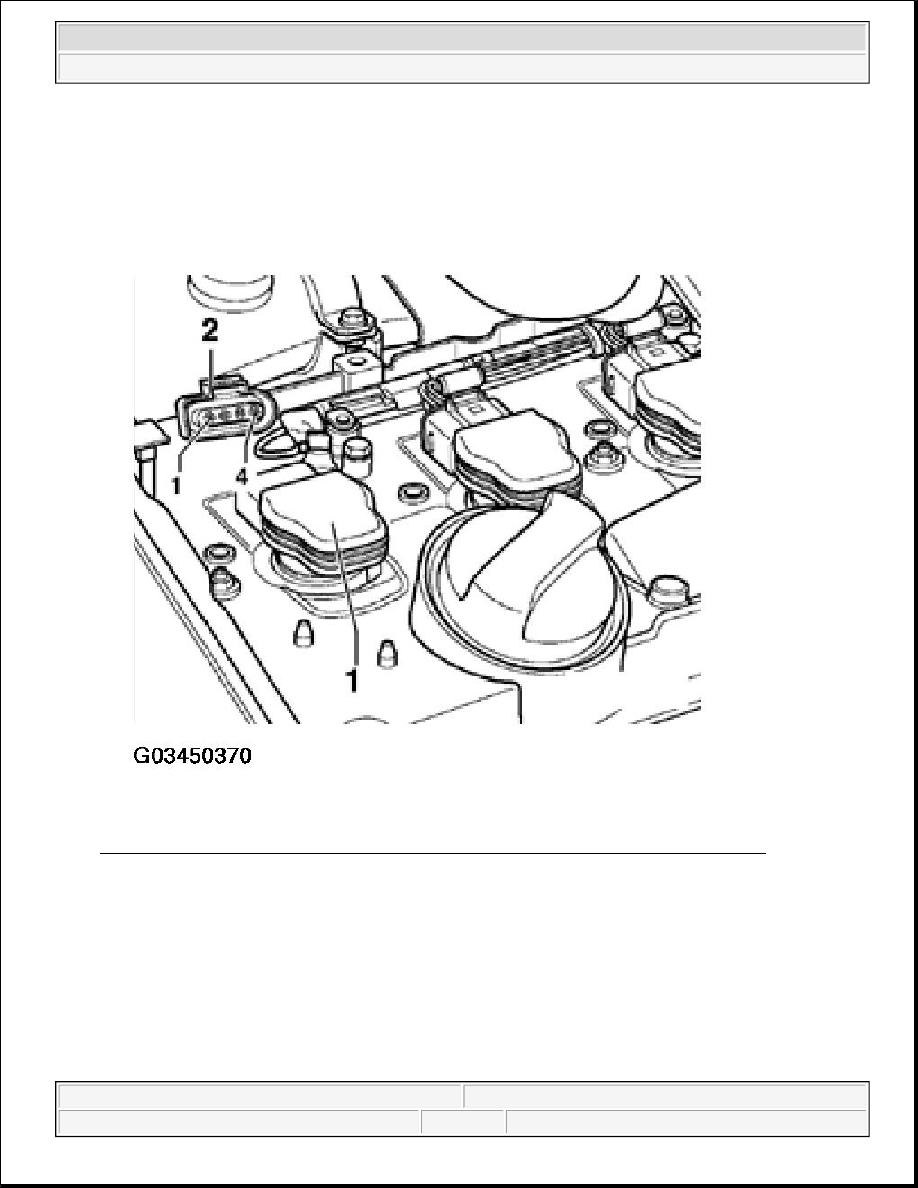

Fig. 13: Disconnecting 4-Pin Connector From Ignition Coil (Engine Code AWP, AWV)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure supply voltage between terminals 1 + 2 and 1 + 4 of disconnected connector using the
multimeter.

z

Switch on ignition.

Specified value: at least 11.5 V

z

Switch ignition off.

If there is no voltage:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



z

Check wire between 4 -pin connector terminal 1 and Motronic Engine Control Module (ECM) Power
Supply Relay (main relay) for open circuit according to wiring diagram.

Wire resistance: max. 1.5 ohm

z

Check wires between 4 -pin connector and Ground (GND) for open circuit according to wiring diagram.

Terminal 2 and Ground (GND)

Terminal 4 and Ground (GND)

Wire resistance: max. 1.5 ohm

Fig. 14: Identifying 4-Pin Harness Connector Terminals (Engine Code AWP, AWV)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Continuation for all vehicles



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



If there is no malfunction in voltage supply:

z

Check activation, see CHECKING ACTIVATION

Checking activation

z

Remove fuse 32

NOTE:

By removing fuse 32, voltage supply to the fuel injectors is interrupted.
Fuse box is located behind access panel at far left end of dash.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle



Fig. 15: Locating Fuse 32
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Vehicles with engine code APH



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Ignition-Glow Plug System, 1.8L Generic Scan Tool - New Beetle
