If the specification is obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Continuation:

If the specifications are not obtained:

z

Press --> button.

z

Press buttons -0- and -6- for function "End output" and confirm entry with -Q- button.

z

Switch off ignition.

Checking resistance of Knock Sensors (KS)

z

Disconnect 2-pin harness connector to Knock Sensor (KS) 1 - G61- (item no. 1 ) and/or 2-pin harness
connector to Knock Sensor (KS) 2 -G66- (item no. 7 ).

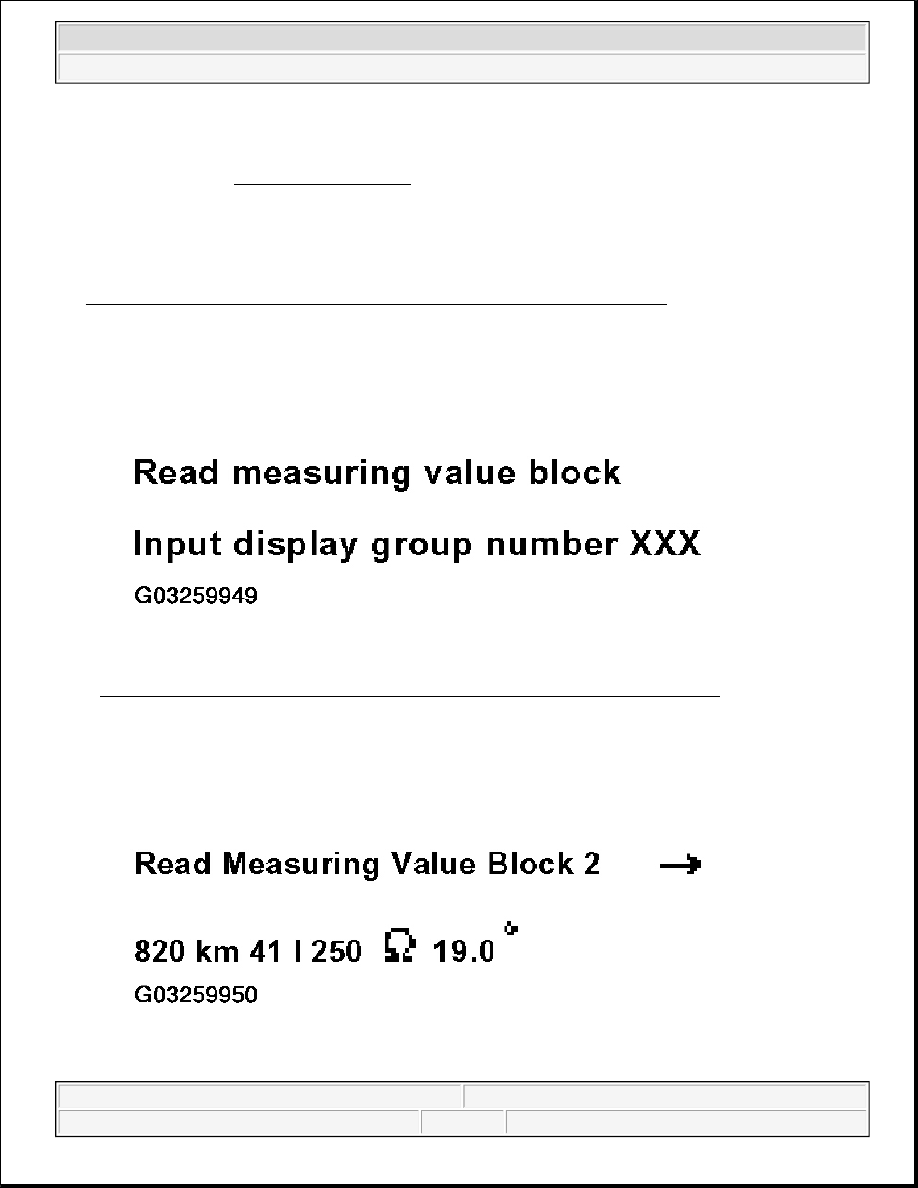

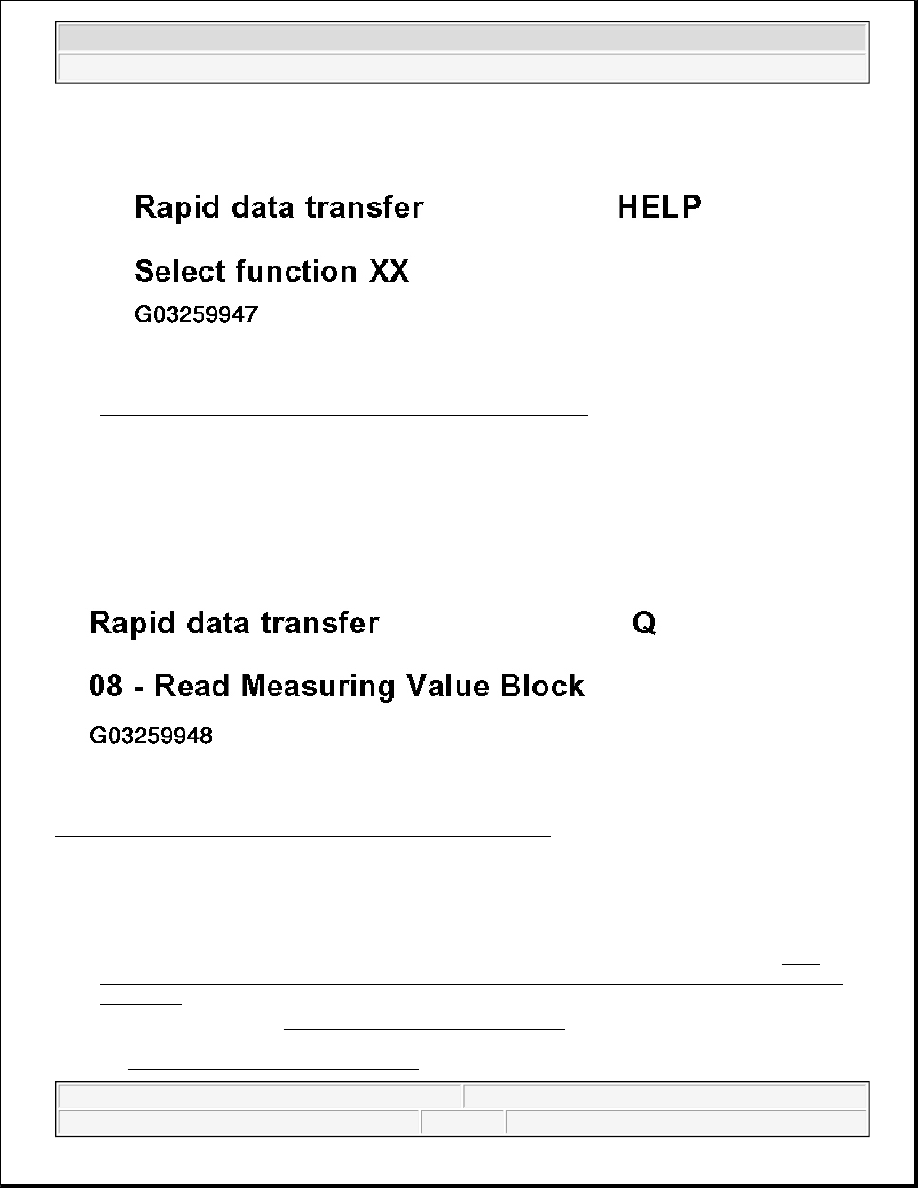

Display zones
1

2

3

4

Display group 28: ignition, knock control
Display

xxxx RPM

xxx.x %

xxx.x °C

Test OFF/Test ON

Syst. OK.

Syst. n. OK.

Indicated

Engine

speed

(in steps of

40)

Engine

load

Engine

Coolant

Temperature

OBD condition

and

OBD result

Working
range

0 to 6800

RPM

0.0 to

175.0%

-40.0 to 115.0

° C

-

Specification

at least

2200 RPM

> 40.0%

85.0 to 115.0 °

C

Syst. OK.

-

-

-

If the specifications are not achieved, see

CHECKING WIRING , Continuation



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle



Fig. 20: Disconnecting 2-Pin Knock Sensor Harness Connectors
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Measure resistance between the terminals 1 + 2 at connections to Knock Sensors (KS).

Specification: ohm

Fig. 21: Measuring Resistance Between Knock Sensor Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If the specification is not obtained:

z

Replace Knock Sensors (KS) -G61- or -G66-, see item 12 or item 13 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Engine Control Module was disconnected from battery positive, readiness code must be generated again,
see READINESS CODE, GENERATING



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle



If the specification is obtained:

z

Check wiring, see CHECKING WIRING .

Checking wiring

z

Remove inner plenum chamber cover, left:

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING .

z

Connect V.A.G 1598/31 test box to control module wiring harness. Engine Control Module is not
connected by this action.

Fig. 22: Connecting V.A.G 1598/31 Test Box To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring between test box and 2 -pin connector for open circuit using Electrical Wiring Diagrams.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle



Fig. 23: Identifying Knock Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.


Knock Sensor -G61-: -G66-:

Contact 1 + socket 106 107

Contact 2 + socket 99 99

Wire resistance: Max. 1.5 ohm

z

Additionally check wires at socket 99 for short to sockets 106 and 107.

Specification: ohm

If no malfunctions in wiring are detected:

z

Loosen Knock Sensor (KS) and tighten again to 20 Nm.

z

Perform a road test again and check knock control specifications on display.

Observe the valid safety precautions when road testing, see SAFETY PRECAUTIONS .

During the road test Engine Coolant Temperature must exceed 85 ° C

When the temperature is reached, these operating conditions must be obtained several times:

z

Idle

z

Part throttle

z

Full throttle

z

Overrun

z

At full throttle the engine speed must exceed 3500 RPM.

z

Again check control module DTC memory.

If the malfunction is still present:

z

Replace Knock Sensors (KS) -G61- or -G66-, see item 12 or item 13 .

z

Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC
MEMORY OF MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, CHECKING AND
ERASING
 .

z

Read readiness code, see READINESS CODE, DISPLAYING . If DTC memory has been erased or
Engine Control Module was disconnected from battery positive, readiness code must be generated again,
see READINESS CODE, GENERATING .

Misfiring recognition, checking



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Ignition/Glow plug system, 1.8L AWP, AWV - New Beetle
