Volkswagen New Beetle. Manual - part 1436





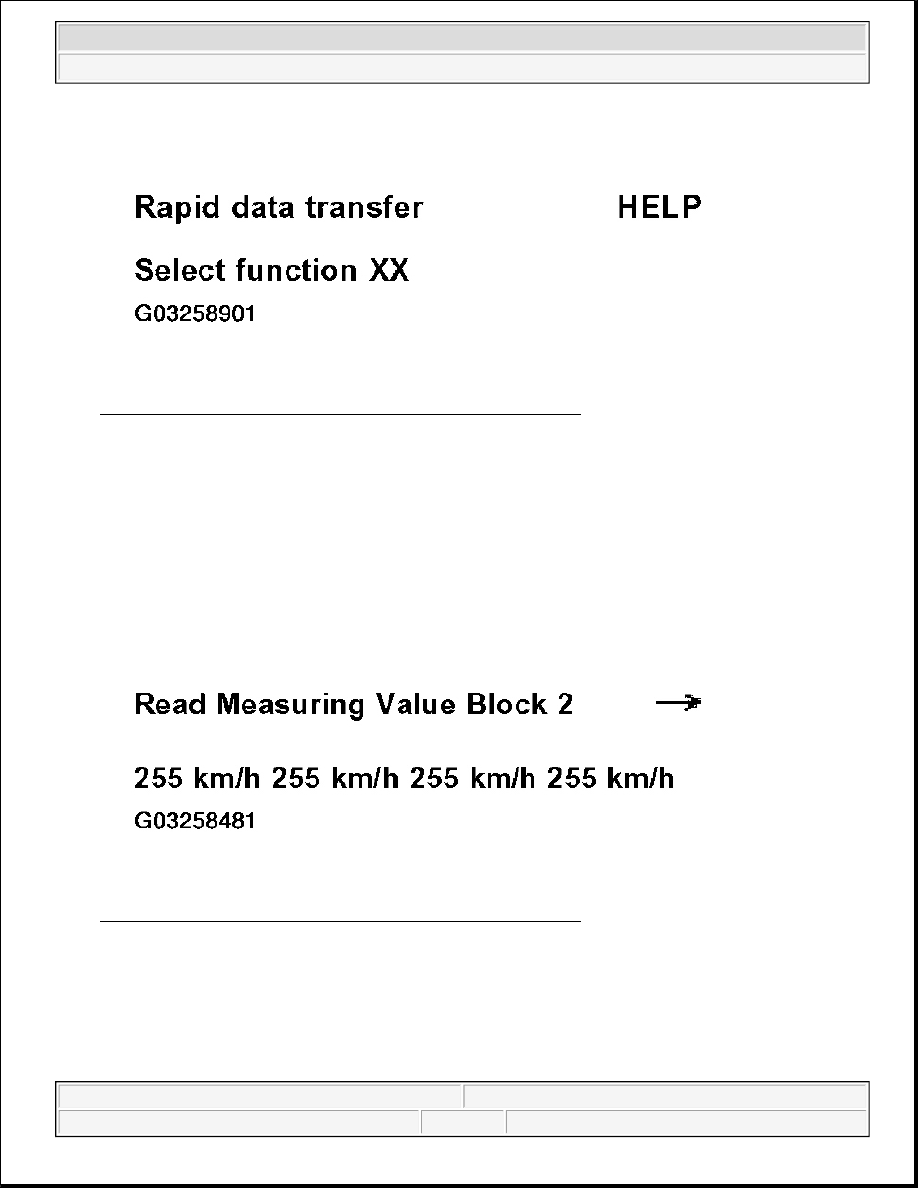

Fig. 11: Identifying VAG 1551/1552 Scan Tool Display (1 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press 0 and 8 buttons to select Function 08: "Read measuring value block".

z

Press Q button to enter input

Display will appear as shown

Fig. 12: Identifying VAG 1551/1552 Scan Tool Display (2 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press 0, 0 and 2 buttons to select "Display group 2".

z

Press Q button to enter input

z

Check throttle position in display zone 2. Do NOT depress accelerator pedal.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 13: Identifying VAG 1551/1552 Scan Tool Display (3 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: 0.0%

z

Also check Closed Throttle Position switch display in display zone 3. Center position must show a "1".

Display must appear as shown: 010

z

Slowly depress accelerator pedal (until fully depressed), and observe display zones 2 and 3.

Fig. 14: Identifying VAG 1551/1552 Scan Tool Display (4 Of 4)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Display zone 2:

Throttle Position value must increase continuously.

Specification at Wide Open Throttle position: 100%



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - 1.9L 4-Cyl. - ALH, New Beetle



Display zone 3:

Center digit must change to a 0

Display must appear as: 000

If End specification value not achieved:

z

Press --> button.

z

Press 0 and 6 buttons to select Function 06: "End transfer".

z

Press Q button to enter input.

z

Switch ignition off.

z

Adjust Throttle Position sensor. See THROTTLE POSITION SENSOR, ADJUSTING .

If display does not change or is erratic:

Check Throttle Position sensor as follows:

z

Press --> button.

z

Press 0 and 6 buttons to select Function 06: "End transfer"

z

Press Q button to enter input.

z

Switch ignition off.

z

Disconnect Throttle Position sensor 6-pin harness connector.

z

Measure sensor resistance between connector terminals 1 + 3.

Specification, Closed Throttle position: 0.8 to 1.4 k ohms

z

Measure sensor resistance between connector terminals 2 + 3.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 15: Identifying Throttle Position Sensor 6-Pin Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification, Closed Throttle position: 0.8 to 1.4 k ohms

z

Check Closed Throttle Position (CTP) switch -F60- in Throttle Position sensor by measuring resistance
between connector terminals 4 + 6.

Specification, Closed Throttle position: 0.8 to 1.2 k ohms maximum

Specification, Throttle depressed: "INFINITE" ohms

Vehicles with automatic transmission

z

Measure sensor resistance between connector terminals 5 + 6.

Specification, Closed Throttle position: "INFINITE" ohms

Specification, Throttle depressed: 0.8 to 1.2 k ohms maximum

All vehicles

If specifications not obtained:

z

Replace Throttle Position (TP) sensor -G79-. See ACCELERATOR MECHANISM, SERVICING
(item - 2 -).

If specifications obtained:

z

Connect VAG 1598/22 Test Box to Engine Control Module harness connector.

Fig. 16: Connecting VAG 1598/22 Test Box To Engine Control Module Harness Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Fuel System - 1.9L 4-Cyl. - ALH, New Beetle
