Volkswagen New Beetle. Manual - part 1293





Display will appear as shown in Fig. 5 .

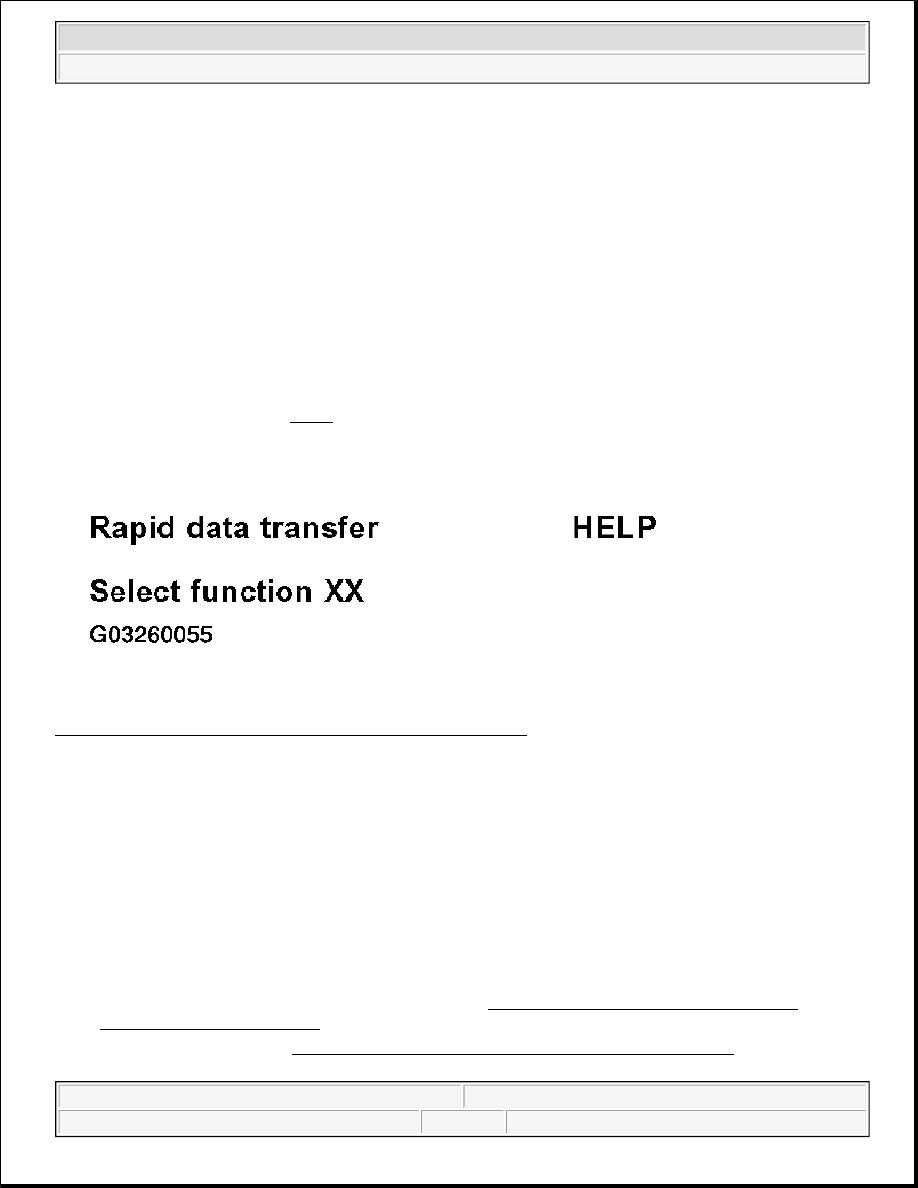

Fig. 5: Identifying VAG 1551/1552 Scan Tool Display (1 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press 0 and 8 buttons to select Function 08: "Read measuring value block"

z

Press Q button to enter input

Display will appear as shown in Fig. 6 .

Fig. 6: Identifying VAG 1551/1552 Scan Tool Display (2 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press 0, 1 and 1 buttons to select Display Group 11

z

Press Q button to enter input

Read measuring value block 11 --> 840 RPM 938 mbar 978 mbar 92 %

Display will appear as shown



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



z

Accelerate vehicle in 3rd gear from about 1500 RPM under Wide Open Throttle.

z

Press VAG 1551 PRINT button at approx. 3000 RPM.

Read measuring value block 11 --> 3090 RPM 1866 mbar 1917 mbar 62%

Specification: 1700 to 2200 mbar (in display zone 3)

If specification not obtained:

z

Perform Output Diagnostic Test Mode to activate Wastegate Bypass Regulator valve:

See Function 03: Output Diagnostic Test Mode, Performing .

Display will appear as shown in Fig. 7 .

Fig. 7: Identifying VAG 1551/1552 Scan Tool Display (3 Of 3)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If rod moves but pressure specifications are not obtained

z

Replace turbocharger.

If rod does not move because solenoid valve is not working:

z

Check Wastegate Bypass Regulator valve -N75-. See WASTEGATE BYPASS REGULATOR
VALVE -N75-, CHECKING
 .

z

Check vacuum hoses. See TURBOCHARGER, HOSE AND PIPE CONNECTIONS .

NOTE:

The valve must function and the charge air pressure control rod must move
back and forth (at least 3 to 4 times), as long as there is a vacuum in the
vacuum reservoir.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



If rod does not move but solenoid operates:

z

Connect VAG 1390 vacuum pump to Wastegate Bypass Regulator valve and check rod for ease of
movement.

Fig. 8: Connecting Turbocharger To VAG 1390 Vacuum Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If rod does not move easily:

z

Replace turbocharger assembly.

Wastegate Bypass Regulator valve -N75-, checking

z

Switch ignition off.

z

Disconnect Wastegate Bypass Regulator valve.

z

Measure resistance between valve terminals.

Engine code ALH



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle



Fig. 9: Measuring Resistance Between Wastegate Bypass Regulator Valve Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specification: 14 to 20 ohms

If specification not obtained:

z

Replace Wastegate Bypass Regulator valve -N75-.

If specification obtained:

z

Switch ignition on.

z

Measure supply voltage at valve connector terminal 1 and at engine Ground.

Fig. 10: Measuring Supply Voltage At Wastegate Bypass Regulator Valve Connector Terminal



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - 1.9L 4-Cyl. - ALH, New Beetle
