Volkswagen New Beetle. Manual - part 1048





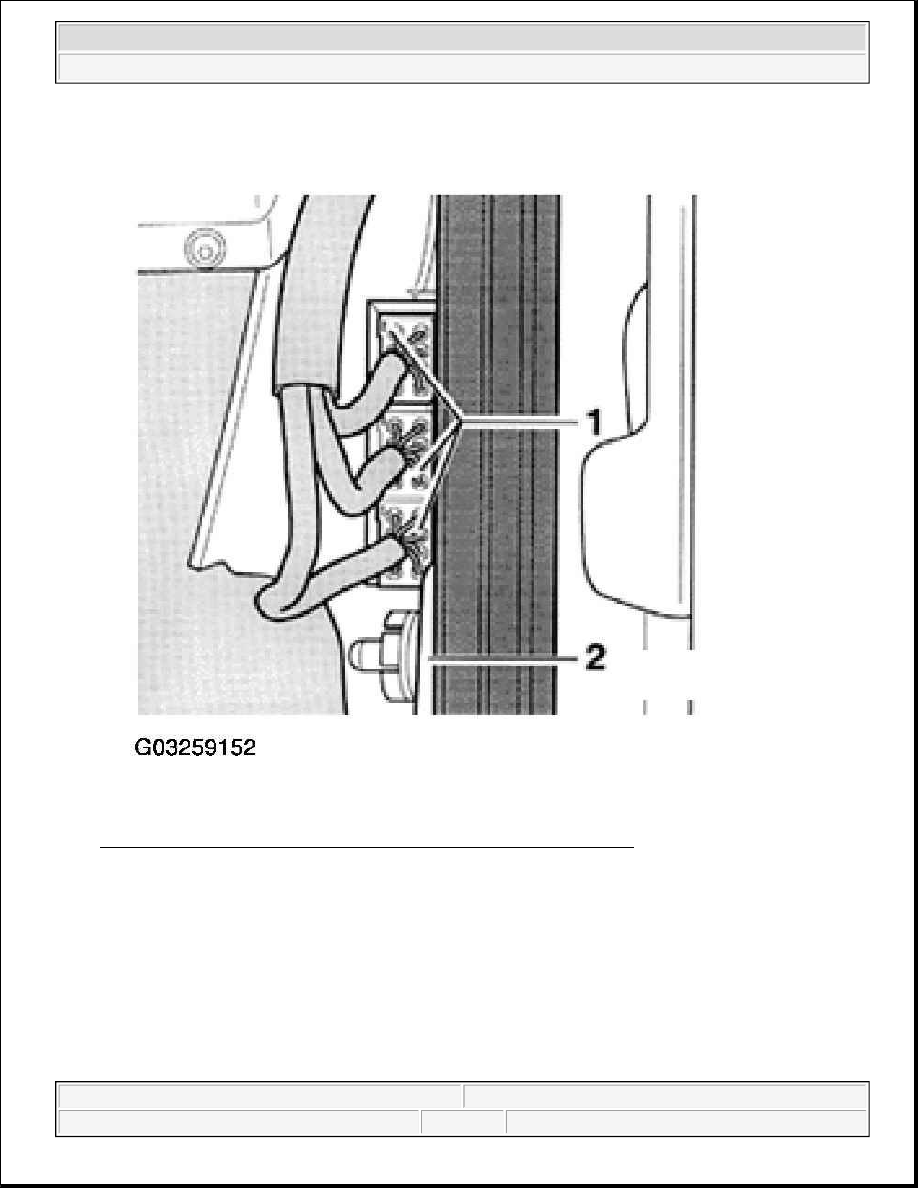

z

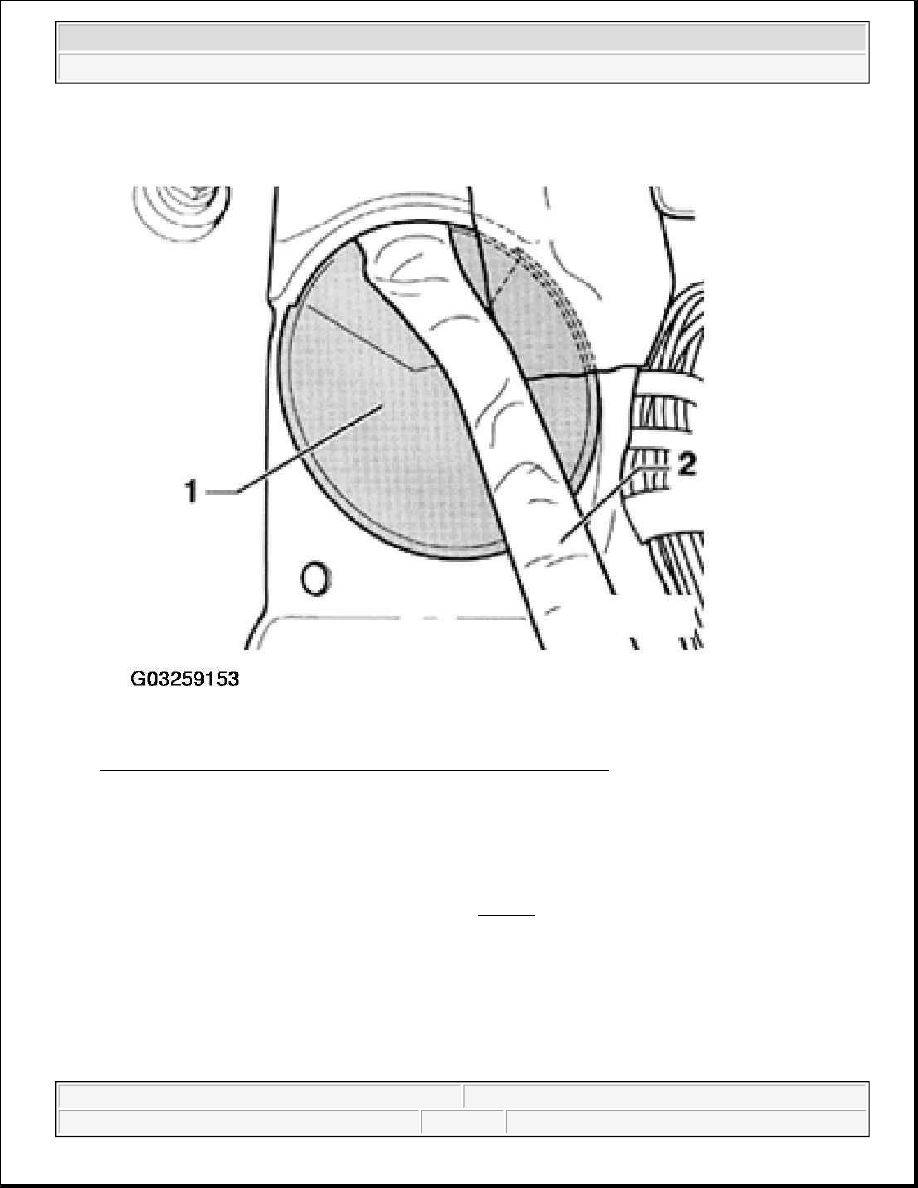

Remove ribbed belt.

Installing

z

Install in reverse order.

After completing repairs always:

z

Start engine and check belt running.

Belt drive without air conditioning compressor

NOTE:

z

Ensure, before installing ribbed belt, that all ancillaries (Generator,
air conditioning compressor, power steering pump) are secured
tightly.

z

When installing the ribbed belt observe belt direction of rotation and
that the belt is seated correctly in the belt pulleys.

z

On models which do not have an air conditioning system place the
ribbed belt over the Generator pulley last.

z

For models with an air conditioning system place the ribbed belt over
the air conditioning compressor last.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD



Fig. 27: Identifying Belt Drive Without Air Conditioning Compressor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Belt drive with air conditioning compressor



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD



Fig. 28: Identifying Belt Drive With Air Conditioning Compressor
Courtesy of VOLKSWAGEN OF AMERICA, INC.

SEALING FLANGES AND FLYWHEEL/DRIVE PLATE, REMOVING AND INSTALLING

Engine codes AEG, AVH, AZG, BEV

1. 90 N.m + 1/4 turn (90°) further

z

Replace

z

Threads and shoulder must be free of oil and grease

z

Use counterhold tool 3415 to loosen and tighten

2. Crankshaft toothed belt sprocket

NOTE:

The following list refers to items in Fig. 29 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD



3. 15 N.m

4. Seal

PTFE sealing rings:

z

Do not additionally oil or grease oil seal sealing lip

Coil spring seals:

z

Oil or grease lightly oil seal sealing lip

z

Replace. See CRANKSHAFT OIL SEAL - PULLEY END, REPLACING .

5. Sealing flange

z

Remove oil sump to remove and install

z

Must be located on dowel sleeves

z

Insert with silicone sealant D 176 404 A2. See FRONT SEALING FLANGE, REMOVING
AND INSTALLING
 .

z

Removing and installing. See FRONT SEALING FLANGE, REMOVING AND
INSTALLING
 .

6. Cylinder block

z

Removing and installing crankshaft. See CRANKSHAFT, REMOVING AND INSTALLING .

z

Disassembling and assembling piston and connecting rod. See PISTON AND CONNECTING
ROD, DISASSEMBLING AND ASSEMBLING
 .

7. 60 N.m + 1/4 turn (90°) further

z

Replace

8. Flywheel/drive plate

z

To remove and install flywheel counter-hold with 3067

z

Removing and installing drive plate. See DRIVE PLATE, REMOVING AND INSTALLING .

9. Intermediate plate

z

Must be located on dowel sleeves. See Fig. 32 .

z

Do not damage/bend when assembling

10. Sealing flange with oil seal

z

Only replace complete

z

Use protective sleeve supplied when installing

z

Remove oil sump to remove and install

z

Before installing, remove oil remains from crankshaft journal with a clean cloth.

z

Remove protective sleeve first after sealing flange has been slid onto crankshaft journal

NOTE:

Differences between PTFE sealing ring and coil spring seals. See Fig.
31 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Engine Mechanical - New Beetle, 2.0L 4-Cyl. - AEG, AVH, AZG, BDC, BEV, BGD
