Timing chains will stretch during operation. Limits are placed upon amount of stretch before replacement is
required. Timing chain stretch will alter ignition timing and valve timing.

To check timing chain stretch, rotate crankshaft to eliminate slack from one side of timing chain. Mark
reference point on cylinder block. Rotate crankshaft in opposite direction to eliminate slack from remaining side
of timing chain. Force other side of chain outward and measure distance between reference point and timing
chain. See Fig. 23 . Replace timing chain and gears if not within specification.

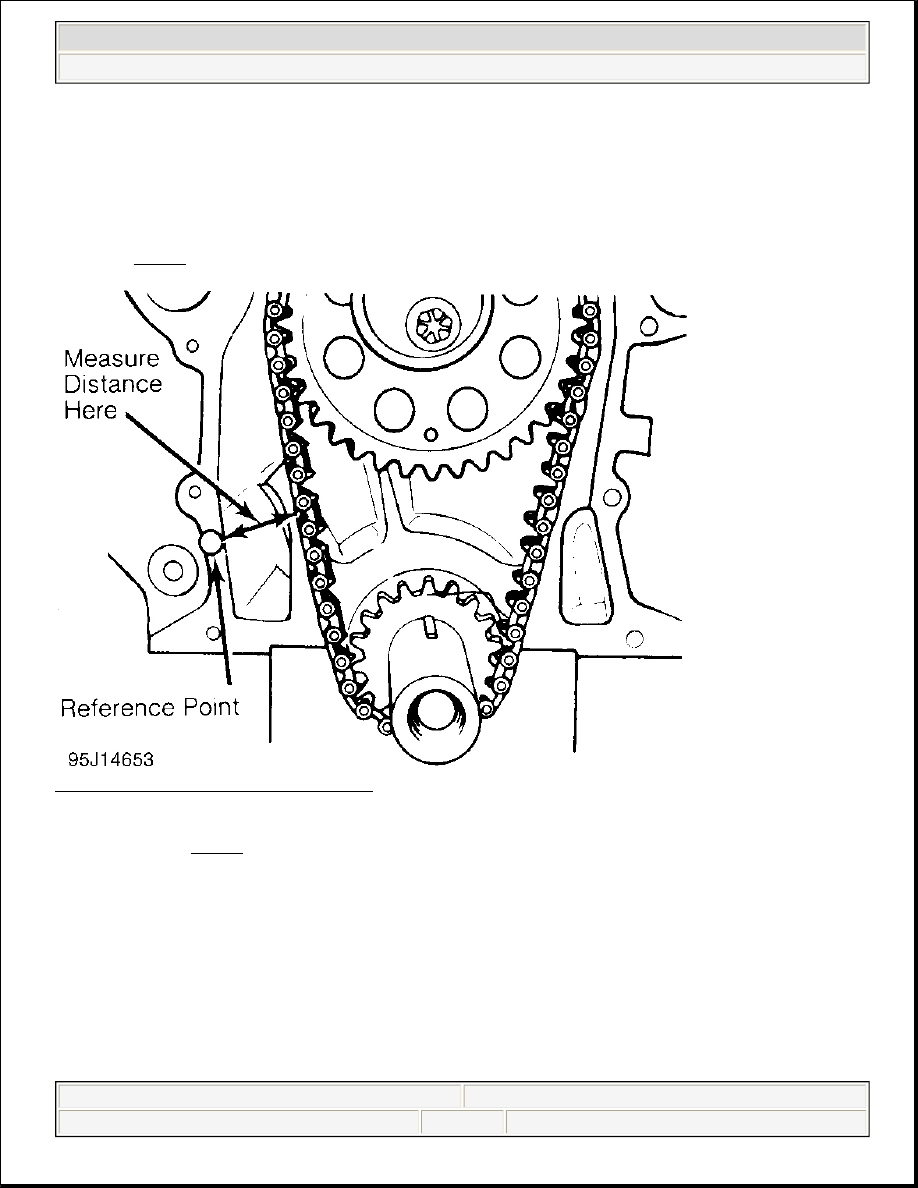

Fig. 23: Measuring Timing Chain Stretch

Timing chains must be installed so timing marks on camshaft gear and crankshaft gear are aligned according to
manufacturer. See Fig. 24 .



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

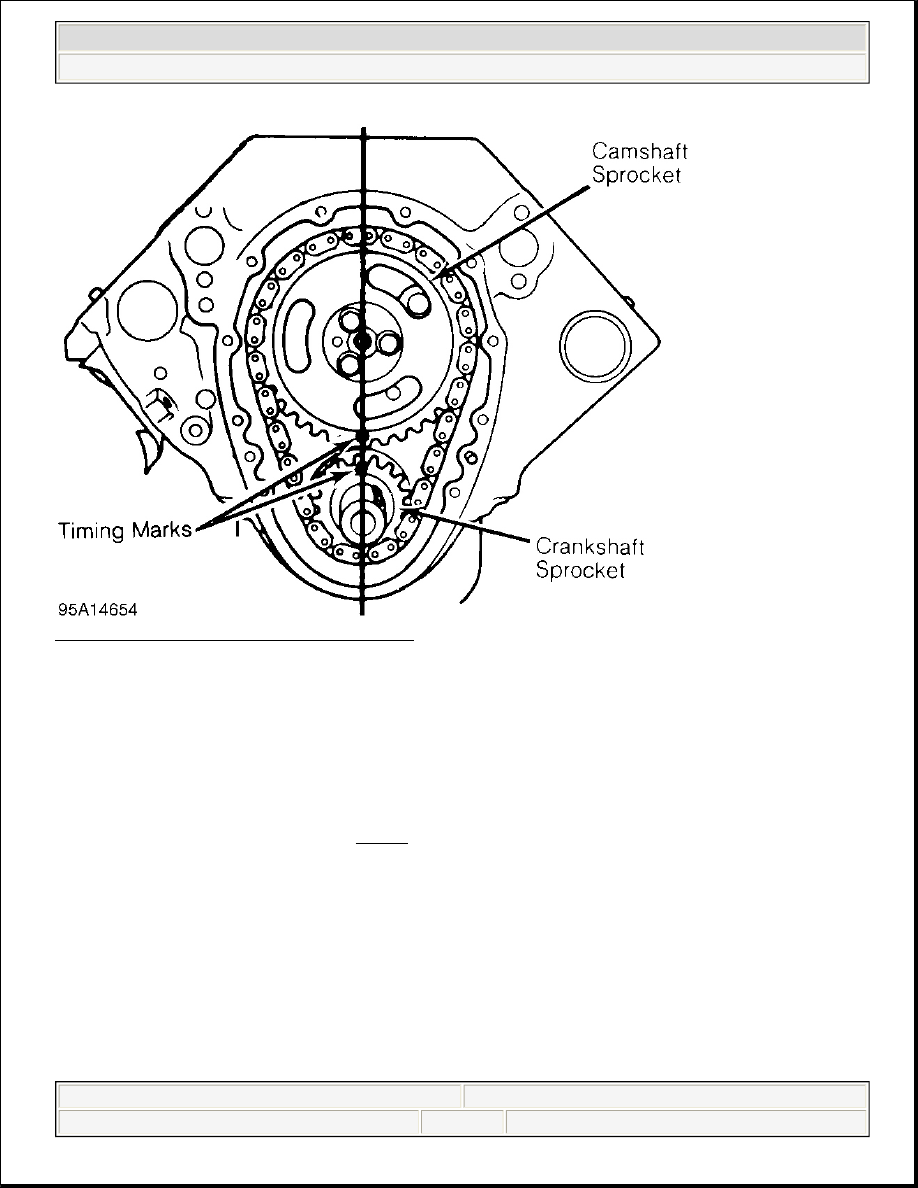

Fig. 24: Typical Gear Timing Mark Alignment

TIMING BELTS

Cogged tooth belts are commonly used on overhead cam engines. Inspect belt teeth for rounded corners or
cracking. Replace belt if it is cracked, damaged, missing teeth or oil soaked.

Used timing belt must be installed in original direction of rotation. Inspect all sprocket teeth for wear. Replace
all worn sprockets. Sprockets are marked for timing purposes. Engine is positioned so that crankshaft sprocket
mark will be upward. Camshaft sprocket is aligned with reference mark on cylinder head or timing belt cover
and then timing belt can be installed. See Fig. 25



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

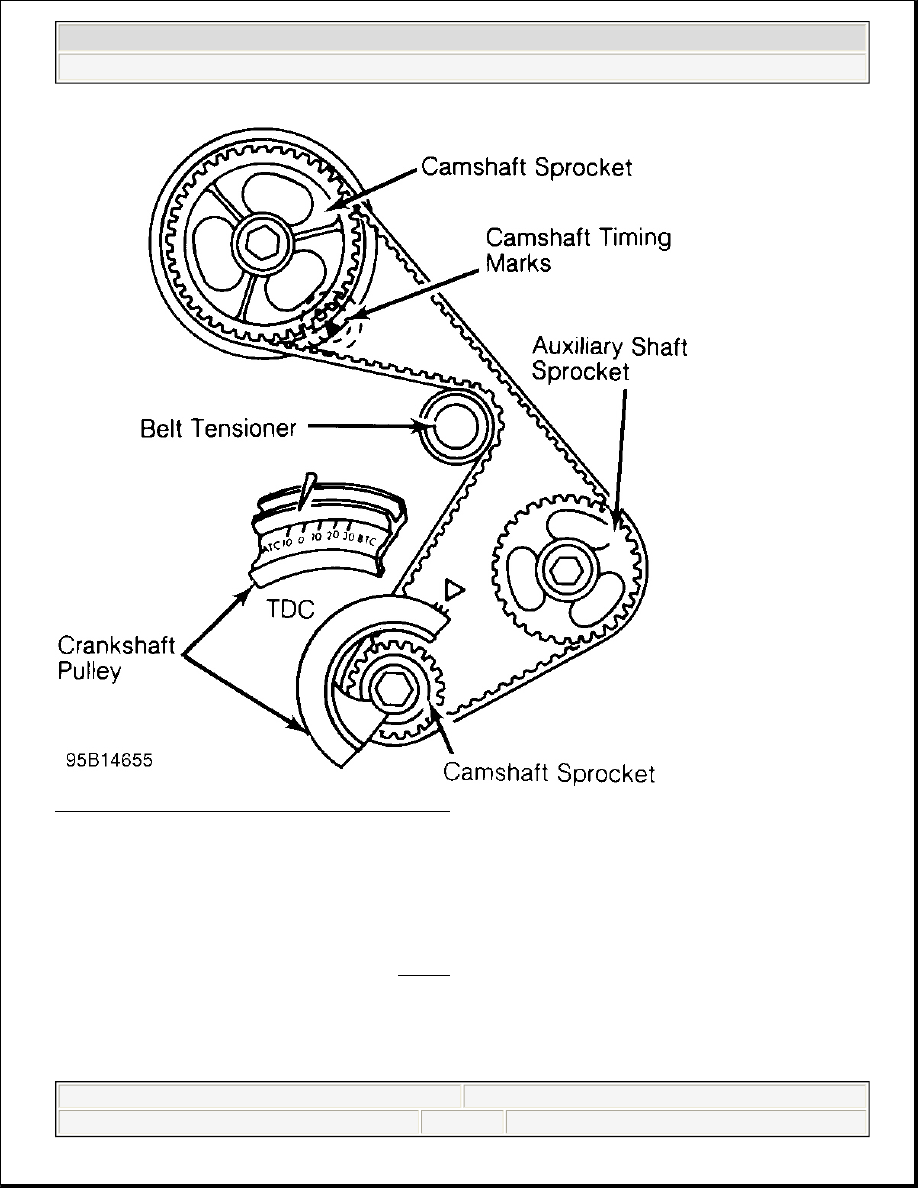

Fig. 25: Typical Camshaft Belt Sprocket Alignment

TENSION ADJUSTMENT

If guide rails are used with spring loaded tensioners, ensure at least half of original rail thickness remains.
Spring loaded tensioner should be inspected for damage.

Ensure all timing marks are aligned. Adjust belt tension using manufacturer's recommendations. Belt tension
may require checking using tension gauge. See Fig. 26



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

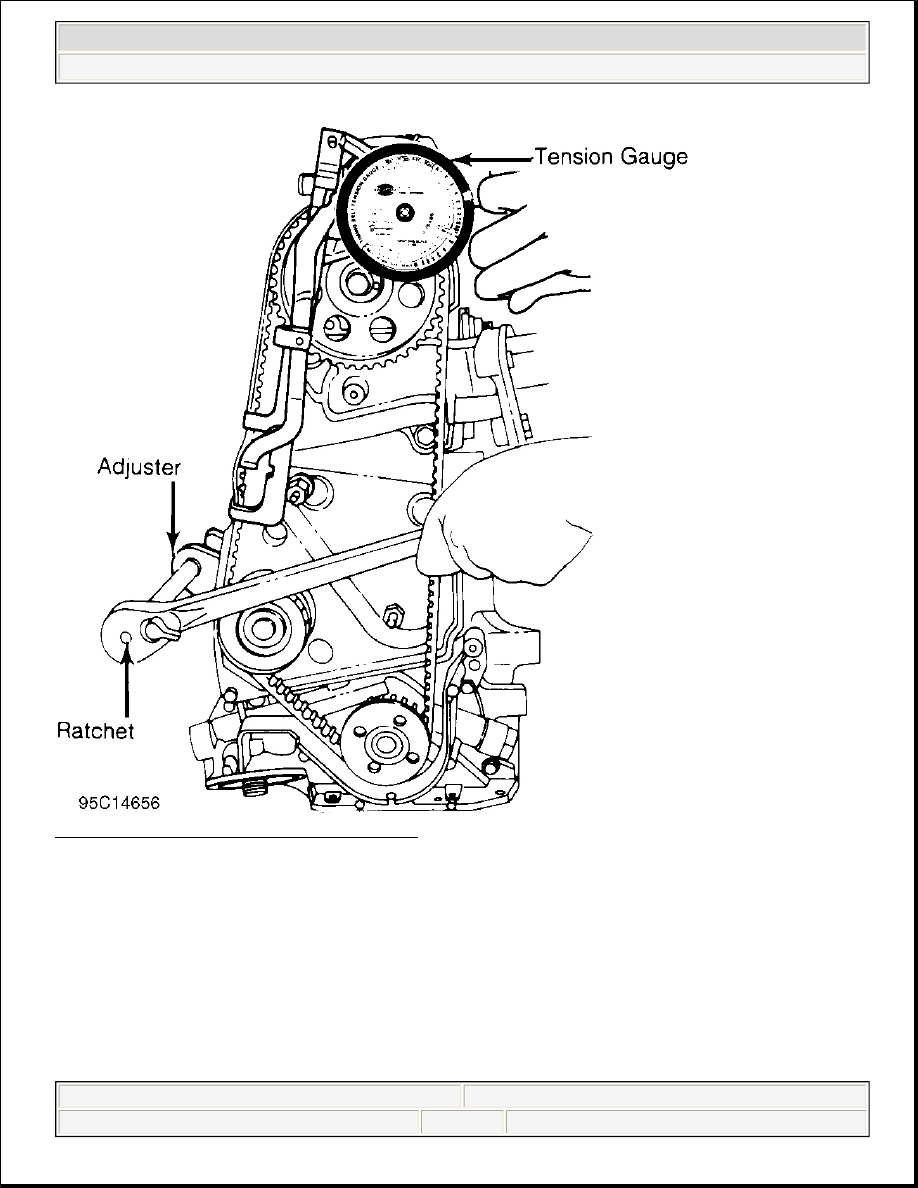

Fig. 26: Adjusting Typical Timing Belt Tension

TIMING GEARS

TIMING GEAR BACKLASH & RUNOUT

On engines where camshaft gear operates directly on crankshaft gear, gear backlash and runout must be
checked. To check backlash, install dial indicator with tip resting on tooth of camshaft gear. Rotate camshaft
gear as far as possible. Adjust indicator to zero. Rotate camshaft gear in opposite direction as far as possible and
note reading.

To determine timing gear runout, mount dial indicator with tip resting on face edge of camshaft gear. Adjust



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures
