Check push rod for straightness. Roll push rod on a flat surface. Using feeler gauge, check clearance at center.
Replace push rod if bent. The push rod can also be supported at each end and rotated. A dial indicator is used to
detect a bent area in the push rod.

Lubricate ends of push rod and install push rod in original location. Ensure push rod is properly seated in lifter.
Install rocker arm. Tighten bolts to specification. Adjust valves if required. See VALVE ADJUSTMENT .

LIFTERS

Hydraulic Lifters

Before replacing a hydraulic lifter for noisy operation, ensure noise is not caused by worn rocker arms or valve
tips. Also ensure sufficient oil pressure exists. Hydraulic lifters must be installed in original location. Remove
rocker arm assembly and push rod. Mark components for location. Some applications require intake manifold,
cylinder head or lifter cover removal. Remove lifter retainer plate (if used). To remove lifters, use a hydraulic
lifter remover or magnet. Different type lifters are used. See Fig. 13 .

On sticking lifters, disassemble and clean lifter. DO NOT mix lifter components or positions. Parts are select-
fitted and are not interchangeable. Inspect all components for wear. Note amount of wear in lifter body-to-
camshaft contact area. Surface must have smooth and convex contact face. If wear is apparent, carefully inspect
cam lobe.

Inspect push rod contact area and lifter body for scoring or signs of wear. If body is scored, inspect lifter bore
for damage and lack of lubrication. On roller type lifters, inspect roller for flaking, pitting, loss of needle
bearings and roughness during rotation.

Measure lifter body O.D. in several areas. Measure lifter bore I.D. Ensure components or oil clearance is within
specification. Some models offer oversize lifters. Replace lifter if damaged.

If lifter check valve is not operating, obstructions may be preventing it from closing or valve spring may be
broken. Clean or replace components as necessary.

Check plunger operation. Plunger should drop to bottom of the body by its own weight when assembled dry. If
plunger is not free, soak lifter in solvent to dissolve deposits.

Lifter leak-down test can be performed on lifter. Lifter must be filled with special test oil. New lifters contain
special test oil. Using lifter leak-down tester, perform leak-down test following manufacturer's instructions. If
leak-down time is not within specifications, replace lifter assembly.

Lifters should be soaked in clean engine oil several hours prior to installation. Coat lifter base, roller (if
equipped) and lifter body with ample amount of Molykote or camshaft lubricant. See Fig. 13 . Install lifter in
original location. Install remaining components. Valve lash adjustment is not required on most hydraulic lifters.
Preload of hydraulic lifter is automatic. Some models may require adjustment.

NOTE:

Some manufacturers require that a crankcase conditioner be added to engine
oil and engine operated for specified amount of time to aid in lifter break-in
procedure if new lifters or camshaft are installed.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

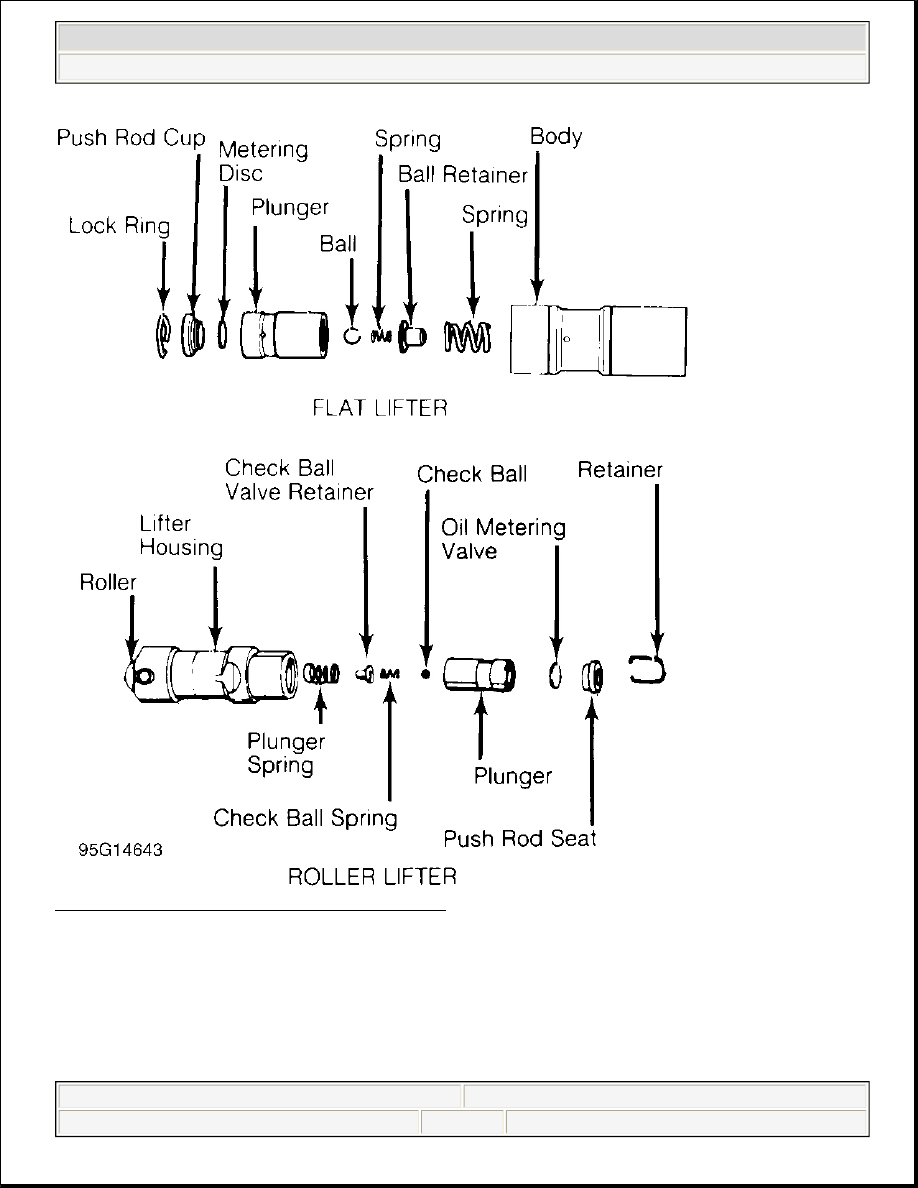

Fig. 13: Typical Hydraulic Valve Lifter Assemblies

Mechanical Lifters

Lifter assemblies must be installed in original locations. Remove rocker arm assembly and push rod. Mark
components for location. Some applications require intake manifold or lifter cover removal. Remove lifter
retainer plate (if used). To remove lifters, use lifter remover or magnet.

Inspect push rod contact area and lifter body for scoring or signs of wear. If body is scored, inspect lifter bore



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures



for damage and lack of lubrication. Note amount of wear in lifter body-to-camshaft contact area. Surface must
have smooth and convex contact face. If wear is apparent, carefully inspect cam lobe.

Coat lifter base, roller (if equipped) and lifter body with ample amount of Molykote or camshaft lubricant.
Install lifter in original location. Install remaining components. Tighten bolts to specification. Adjust valves.
See VALVE ADJUSTMENT .

PISTONS, CONNECTING RODS & BEARINGS

RIDGE REMOVAL

Ridge in cylinder wall must be removed prior to piston removal. Failure to remove ridge prior to removing
pistons will cause piston damage in piston ring lands or grooves.

With piston at bottom dead center, place rag in bore to trap metal chips. Install ridge reamer in cylinder bore.
Adjust ridge reamer using manufacturer's instructions. Remove ridge using ridge reamer. DO NOT remove an
excessive amount of material. Ensure ridge is completely removed.

PISTON & CONNECTING ROD REMOVAL

Note top of piston. Some pistons may contain a notch, arrow or be marked FRONT. Piston must be installed in
proper direction to prevent damage with valve operation.

Check that connecting rod and cap are numbered for cylinder location and which side of cylinder block the
number faces. Proper cap and connecting rod must be installed together. Connecting rod cap must be installed
on connecting rod in proper direction to ensure bearing lock procedure. Mark connecting rod and cap if
necessary. Pistons must be installed in original location.

Remove cap retaining nuts or bolts. Remove bearing cap. Install tubing protectors on connecting rod bolts. This
protects cylinder walls from scoring during removal. Ensure proper removal of ridge. Push piston and
connecting rod from cylinder. Connecting rod boss can be tapped with a wooden dowel or hammer handle to
aid in removal.

PISTON & CONNECTING ROD

Disassembly

Using ring expander, remove piston rings. Remove piston pin retaining rings (if equipped). Note direction of
piston installation on connecting rod. On pressed type piston pins, special fixtures and procedures according to
manufacturer must be used to remove piston pins. Follow manufacturer's recommendations to avoid piston
distortion or breakage.

Cleaning

Remove all carbon and varnish from piston. Pistons and connecting rods may be cleaned in cold type chemical
tank. Using ring groove cleaner, clean all deposits from ring grooves. Ensure all deposits are cleaned from ring
grooves to prevent ring breakage or sticking. DO NOT attempt to clean pistons with wire brush.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures



Inspection

Inspect pistons for nicks, scoring, cracks or damage in ring areas. Connecting rod should be checked for cracks
using Magnaflux procedure. Piston diameter must be measured in manufacturer's specified area.

Using telescopic gauge and micrometer, measure piston pin bore of piston in 2 areas, 90 degrees apart. This is
done to check diameter and out-of-round.

Install proper bearing cap on connecting rod. Ensure bearing cap is installed in proper location. Tighten bolts or
nuts to specification. Using inside micrometer, measure inside diameter in 2 areas, 90 degrees apart.

Connecting rod I.D. and out-of-round must be within specification. Measure piston pin bore I.D. and piston pin
O.D. All components must be within specification. Subtract piston pin diameter from piston pin bore in piston
and connecting rod to determine proper fit.

Connecting rod length must be measured from center of crankshaft journal inside diameter to center of piston
pin bushing using proper caliper. Connecting rods must be the same length. Connecting rods should be checked
on an alignment fixture for bent or twisted condition. Replace all components which are damaged or not within
specification.

PISTON & CYLINDER BORE FIT

Ensure cylinder is checked for taper, out-of-round and properly honed prior to checking piston and cylinder
bore fit. See CYLINDER BLOCK . Using dial bore gauge, measure cylinder bore.

Measure piston skirt diameter at 90 degree angle to piston pin at specified area by manufacturer. Subtract piston
diameter from cylinder bore diameter to determine piston-to-cylinder clearance. Clearance must be within
specification. Mark piston for proper cylinder location.

ASSEMBLING PISTON & CONNECTING ROD

Install piston on connecting rod for corresponding cylinder. Ensure reference marking on top of piston
corresponds with connecting rod and cap number. See Fig. 14 .

Lubricate piston pin and install in connecting rod. Ensure piston pin retainers are fully seated (if equipped). On
pressed type piston pins, follow manufacturer's recommended procedure to avoid distortion or breakage.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures
