upon completion is required on both procedures. Magnetic particle inspection applies to ferrous materials only.

PENETRANT INSPECTION

Zyglo

The Zyglo process coats material with a fluorescent dye penetrant. Component is often warmed to expand
cracks that will be penetrated by the dye. Using darkened room and Black light, component is inspected for
cracks. Crack will glow brightly.

Developing solution is often used to enhance results. Parts made of any material, such as aluminum cylinder
heads or plastics, may be tested using this process.

Dye Check

Penetrating dye is sprayed on the previously cleaned component. Dye is left on component for 5-45 minutes,
depending upon material density. Component is then wiped clean and sprayed with a developing solution.
Surface cracks will show up as a bright line.

ULTRASONIC INSPECTION

If an expensive part is suspected of internal cracking, ultrasonic testing is used. Sound waves are used for
component inspection.

X-RAY INSPECTION

This form of inspection is used on highly stressed components. X-ray inspection may be used to detect internal
and external flaws in any material.

PRESSURE TESTING

Cylinder heads can be tested for cracks using a pressure tester. Pressure testing is performed by plugging all but
one of the holes of cylinder head and injecting air or water into the open passage.

Leaks are indicated by the appearance of wet or damp areas when using water. When air is used, it is necessary
to spray the head surface with a soap solution. Bubbles will indicate a leak. Cylinder head may also be
submerged in water heated to specified temperature to check for cracks created during heat expansion.

CLEANING PROCEDURES

All components of an engine do not have the same cleaning requirements. Physical methods include bead
blasting and manual removal. Chemical methods include solvent blast, solvent tank, hot tank, cold tank and
steam cleaning of components.

BEAD BLASTING



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures



Manual removal of deposits may be required prior to bead blasting, followed by some other cleaning method.
Carbon, paint and rust may be removed using bead blasting method. Components must be free of oil and grease
prior to bead blasting. Beads will stick to grease or oil soaked areas causing area not to be cleaned.

Use air pressure to remove all trapped residual beads from component after cleaning. After cleaning internal
engine parts made of aluminum, wash thoroughly with hot soapy water. Component must be thoroughly cleaned
as glass beads will enter engine oil resulting in bearing damage.

CHEMICAL CLEANING

Solvent tank is used for cleaning oily residue from components. Solvent blasting sprays solvent through a
siphon gun using compressed air.

The hot tank, using heated caustic solvents, is used for cleaning ferrous materials only. DO NOT clean
aluminum parts such as cylinder heads, bearings or other soft metals using the hot tank. After cleaning, flush
parts with hot water.

A non-ferrous part will be ruined and caustic solution will be diluted if placed in the hot tank. Always use eye
protection and gloves when using the hot tank.

Use of a cold tank is for cleaning aluminum cylinder heads, carburetors and other soft metals. A less caustic and
unheated solution is used. Parts may be left in the tank for several hours without damage. After cleaning, flush
parts with hot water.

Steam cleaning, with boiling hot water sprayed at high pressure, is recommended as the final cleaning process
when using either hot or cold tank cleaning.

COMPONENT CLEANING

SHEET METAL PARTS

Examples of sheet metal parts are rocker covers, front and side covers, oil pan and bellhousing dust cover. Glass
bead blasting or hot tank may be used for cleaning.

Ensure all mating surfaces are flat. Deformed surfaces should be straightened. Check all sheet metal parts for
cracks and dents.

INTAKE & EXHAUST MANIFOLDS

Using solvent cleaning or bead blasting, clean manifolds for inspection. If intake manifold has an exhaust
crossover, all carbon deposits must be removed. Inspect manifolds for cracks, burned or eroded areas, corrosion
and damage to fasteners.

Exhaust heat and products of combustion cause threads of fasteners to corrode. Replace studs and bolts as
necessary. On "V" type intake manifolds, sheet metal oil shield must be removed for proper cleaning and
inspection. Ensure all manifold parting surfaces are flat and free of burrs.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures



CYLINDER HEAD REPLACEMENT

REMOVAL

Remove intake and exhaust manifolds and valve cover. Cylinder head and camshaft carrier bolts (if equipped)
should be removed only when engine is cold. On many aluminum cylinder heads, removal while hot will cause
cylinder head warpage. Mark rocker arm or overhead cam components for location.

Remove rocker arm components or overhead cam components. Components must be installed in original
location. Individual design rocker arms may utilize shafts, ball-type pedestal mounts or no rocker arms. For all
design types, wire components together and identify according to corresponding valve. Remove cylinder head
bolts. Note length and location. Some applications require cylinder head bolts be removed in proper sequence to
prevent cylinder head damage. See Fig. 1 . Remove cylinder head.

INSTALLATION

Ensure all surfaces and head bolts are clean. Check that head bolt holes of cylinder block are clean and dry to
prevent block damage when bolts are tightened. Clean threads with tap to ensure accurate bolt torque.

Install head gasket on cylinder block. Some manufacturers may recommend sealant be applied to head gasket
prior to installation. Note that all holes are aligned. Some gasket applications may be marked so that certain area
faces upward. Install cylinder head using care not to damage head gasket. Ensure cylinder head is fully seated
on cylinder block.

Some applications require head bolts be coated with sealant prior to installation. This is done if head bolts are
exposed to coolant passages. Some applications require head bolts be coated with light coat of engine oil.

Install head bolts. Head bolts should be tightened in proper steps and sequence to specification. See Fig. 1 .
Install remaining components. Tighten all bolts to specification. Adjust valves if required. See VALVE
ADJUSTMENT.

NOTE:

Some manufacturers require that head bolts be retightened after specified
amount of operation. This must be done to prevent head gasket failure.



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures

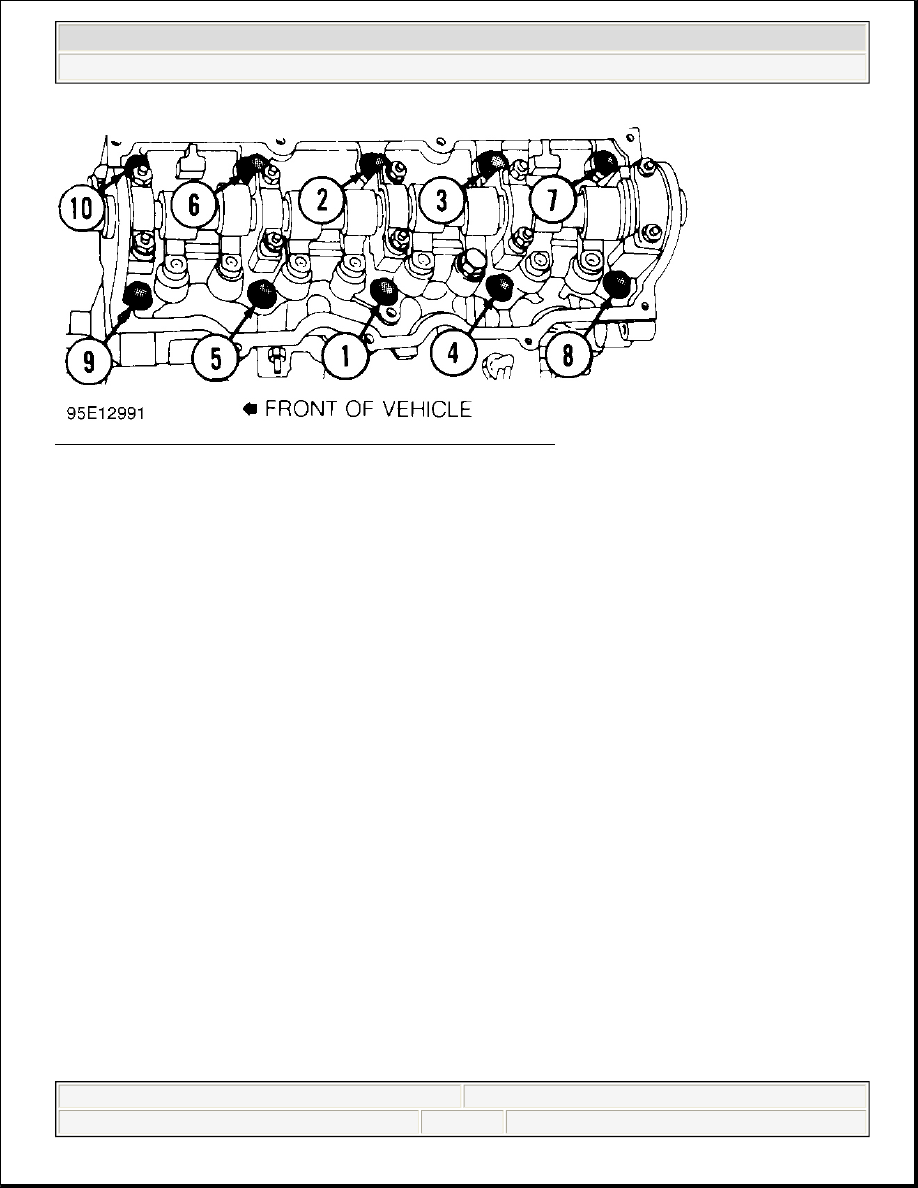

Fig. 1: Typical Cylinder Head Tightening or Loosening Sequence

VALVE ADJUSTMENT

Engine specifications will indicate valve train clearance and temperature at which adjustment is to be made on
most models. In most cases, adjustment will be made with a cold engine. In some cases, both a cold and a hot
clearance will be given for maintenance convenience.

On some models, adjustment is not required. Rocker arms are tightened to specification and valve lash is
automatically set. On some models with push rod actuated valve train, adjustment is made at push rod end of
rocker arm while other models do not require adjustment.

Clearance will be checked between tip of rocker arm and tip of valve stem in proper sequence using a feeler
gauge. Adjustment is made by rotating adjusting screw until proper clearance is obtained. Lock nut is then
tightened. Engine will be rotated to obtain all valve adjustments to manufacturer's specifications.

Some models require hydraulic lifter to be bled down and clearance measured. Push rods of different length can
be used to obtain proper clearance. Clearance will be checked between tip of rocker arm and tip of valve stem in
proper sequence using a feeler gauge.

Overhead cam engines designed without rocker arms actuate valves directly on a cam follower. A hardened,
removable disc is installed between the cam lobe and lifter. Clearance will be checked between cam heel and
adjusting disc in proper sequence using a feeler gauge. Engine will be rotated to obtain all valve adjustments.

On overhead cam engines designed with rocker arms, adjustment is made at valve end of rocker arm. Ensure
valve to be adjusted is riding on heel of cam on all engines. Clearance will be checked between tip of rocker
arm and tip of valve stem in proper sequence using a feeler gauge. Adjustment is made by rotating adjusting
screw until proper clearance is obtained. Lock nut is then tightened. Engine will be rotated to obtain all valve
adjustments to manufacturer's specifications.

CYLINDER HEAD OVERHAUL



1998 Chevrolet Pickup C1500

GENERAL INFORMATION Engine Overhaul Procedures
