COLOR ABBREVIATIONS

WIRING DIAGRAM SYMBOLS

Color

Normal

Optional

Black

BLK

BK

Blue

BLU

BU

Brown

BRN

BN

Clear

CLR

CR

Dark Blue

DK BLU

DK BU

Dark Green

DK GRN

DK GN

Green

GRN

GN

Gray

GRY

GY

Light Blue

LT BLU

LT BU

Light Green

LT GRN

LT GN

Orange

ORG

OG

Pink

PNK

PK

Purple

PPL

PL

Red

RED

RD

Tan

TAN

TN

Violet

VIO

VI

White

WHT

WT

Yellow

YEL

YL



2005 Cadillac Escalade EXT

GENERAL INFORMATION Using Mitchell1's Wiring Diagrams

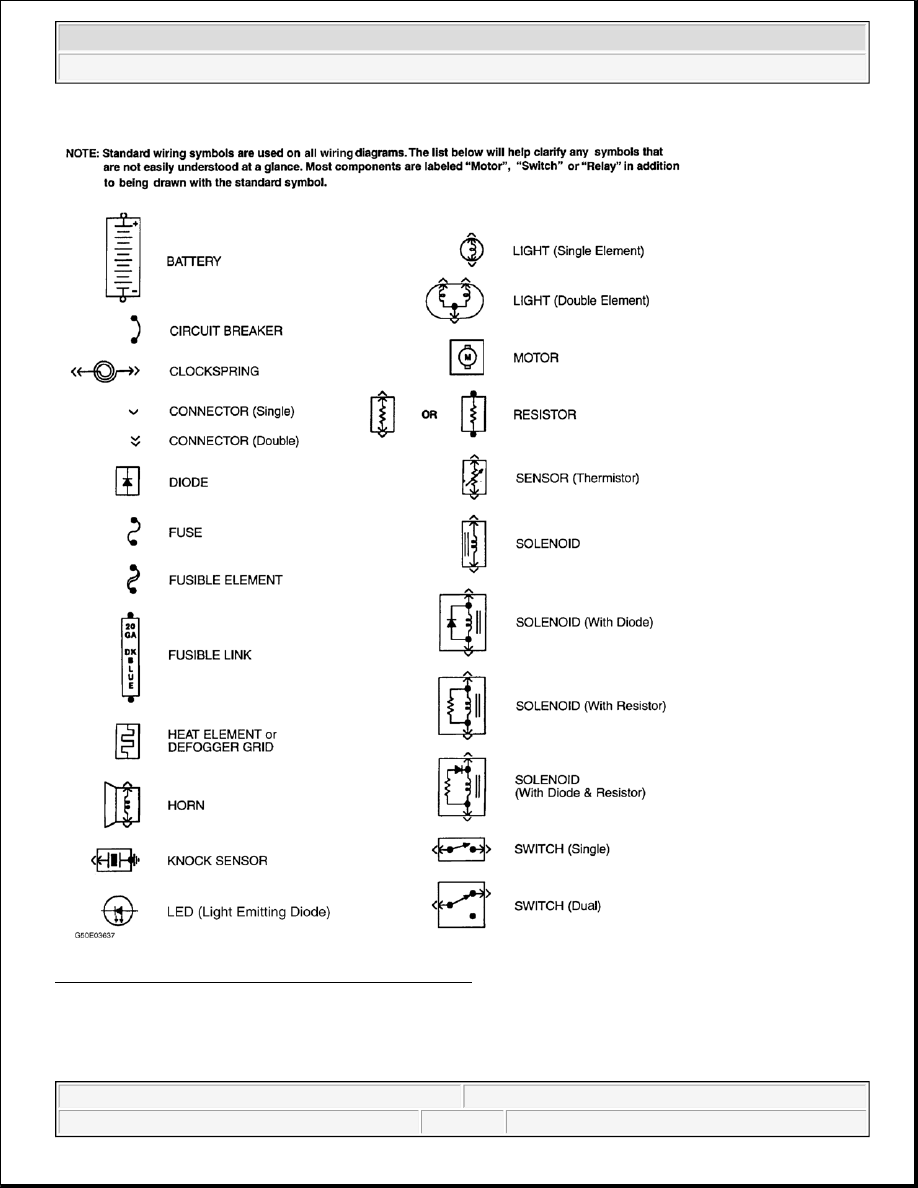

Fig. 1: Identifying Standard Wiring Diagram Symbols

WIRING DIAGRAM GROUND NUMBER LOCATIONS

NOTE:

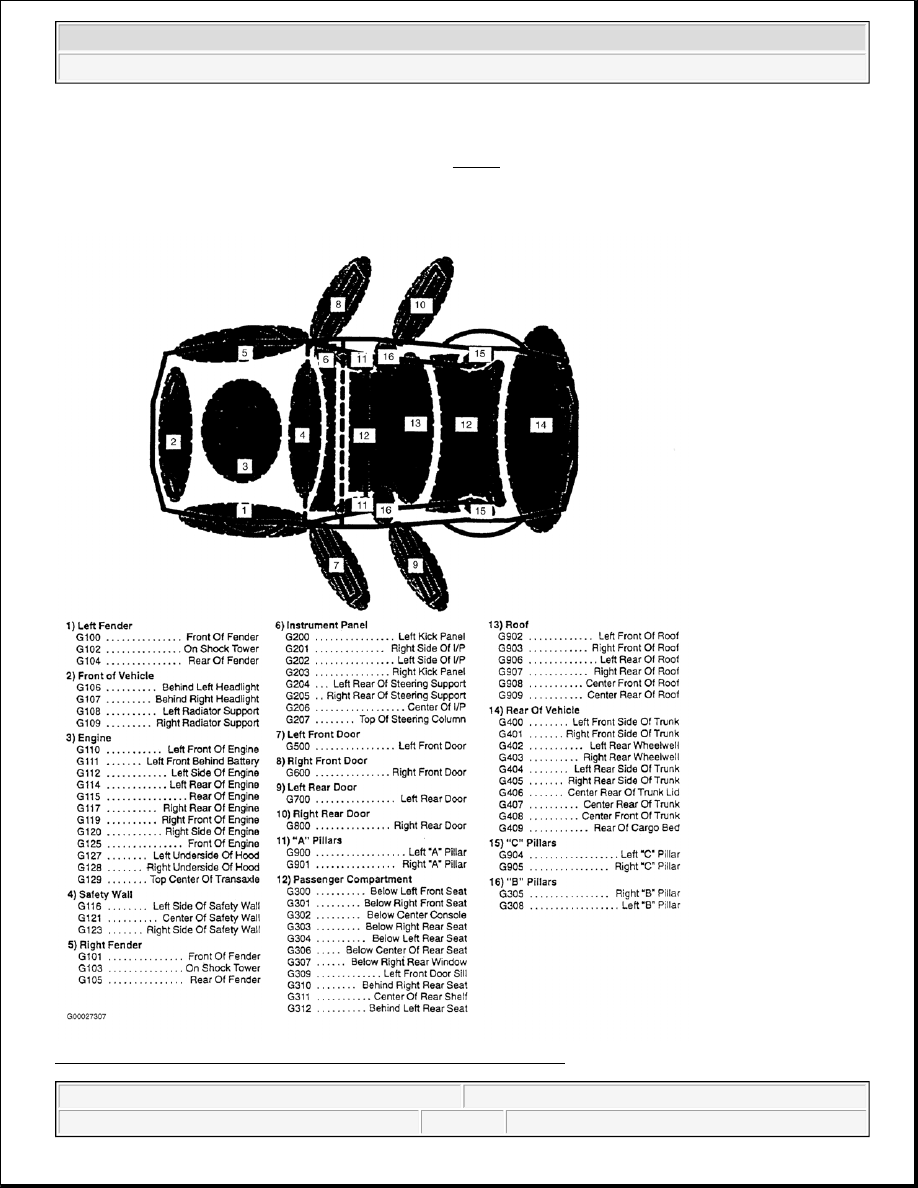

The following illustration depicts standardized ground numbers and locations



2005 Cadillac Escalade EXT

GENERAL INFORMATION Using Mitchell1's Wiring Diagrams



Fig. 2: Ground Numbers & Locations (2001 & Prior Model Years)

to be used in conjunction with Mitchell1's (R) wiring diagrams applying to 2001
and prior model years only. See Fig. 2 . Wiring diagrams applying to newer
model years depict manufacturer-specified ground numbers and locations. Do
not utilize the illustration with 2002 and newer model year wiring diagrams.



2005 Cadillac Escalade EXT

GENERAL INFORMATION Using Mitchell1's Wiring Diagrams



WIRING DIAGRAM COMPONENT LOCATIONS

When trying to locate a component in a wiring diagram and you don't know the specific system where it is
located, use this handy component locator to find the system wiring diagram in which the component is located.
Then, go to that system and locate the component within the wiring diagram.

For example, if you don't know the specific system in which the ignition switch is located, look up ignition
switch in the wiring diagram component location tables and go to the appropriate wiring diagram(s) which
contain either full or partial views of the ignition switch. The full view of the ignition switch is located in Power
Distribution.

The first listing for the component will be the full or most complete view of the component. Additional listings
will be partial views of the component. Not all components are used on all models.

All components will have a partial view in Ground Distribution and Power Distribution. Data Link Connectors
show connecting circuits between modules. Alternate names for components may be listed in wiring diagram
component locations tables.

WIRING DIAGRAM COMPONENT LOCATIONS

Component

Wiring Diagram

ABS Electronic Control Unit

Anti-Lock Brakes; Data Link Connectors

ABS Hydraulic Unit

Anti-Lock Brakes

Acceleration Sensor

Anti-Lock Brakes

Accessory Delay Relay

Power Windows

A/C Compressor Clutch Relay

Engine Performance

A/C Sensor

Engine Performance

A/C Pressure Switch

Engine Performance

Adaptive Lamp Control Module

Exterior Lights

Air Bag(s)

Air Bag Restraint System

Air Bag Module

Air Bag Restraint System

Air Bag Sensor(s)

Air Bag Restraint System

Air Injection Pump Relay

Engine Performance

Air Temperature Sensor

Overhead Console

Alternator (Generator)

Generators & Regulators

Anti-Theft Control Module

Anti-Theft System; Starters

Autolamp Control Relay

Headlight Systems; Daytime Running Lights

Automatic Shutdown (ASD) Relay

Engine Performance; Generators & Regulators

Autostick Switch

Engine Performance

Auxiliary Battery Relay

Generators & Regulators

Back-Up Lights

Back-Up Lights; Exterior Lights

Barometric (BARO) Pressure
Sensor

Engine Performance

Battery

Power Distribution
