For drive cycle test procedures, see appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE.

LEXUS

NISSAN

DRIVE CYCLES (1996 & 1997 MODELS)

Introduction

To identify the correct drive pattern, the following information is need:

z

Vehicle Model

z

Year

z

Engine Type

z

Transmission Type

z

Emissions Certification (California Or Federal)

z

Powertrain (Trucks: 2WD Or 4WD)

z

ECM Part Number

The following tables should be used to identify which Drive Pattern(s) to be used on specified models. See Fig.
6
 and Fig. 7 . To identify SRT drive pattern layout, see Fig. 8 .

For more information on 1996 and 1997 SRT drive patterns, see Technical Service Bulletin No. NTB98-01C,
dated January 3, 2003. See SYSTEM READINESS TEST (SRT) DRIVE PATTERNS .

NOTE:

Drive cycles for Honda models are also known as "System Readiness Codes".

NOTE:

Drive cycles for Lexus models are also known as "Test Drive Confirmation"
tests. These Test Drive Confirmation tests are included in the appropriate
Diagnostic Trouble Code tests. For drive cycle test procedures, see appropriate
SELF-DIAGNOSTICS article in ENGINE PERFORMANCE.

NOTE:

Drive cycles are referred to as System Readiness Test (SRT) drive patterns.



1998 Chevrolet Pickup C1500

DRIVE CYCLES OBD-II Vehicles - OBD-II Readiness Monitors

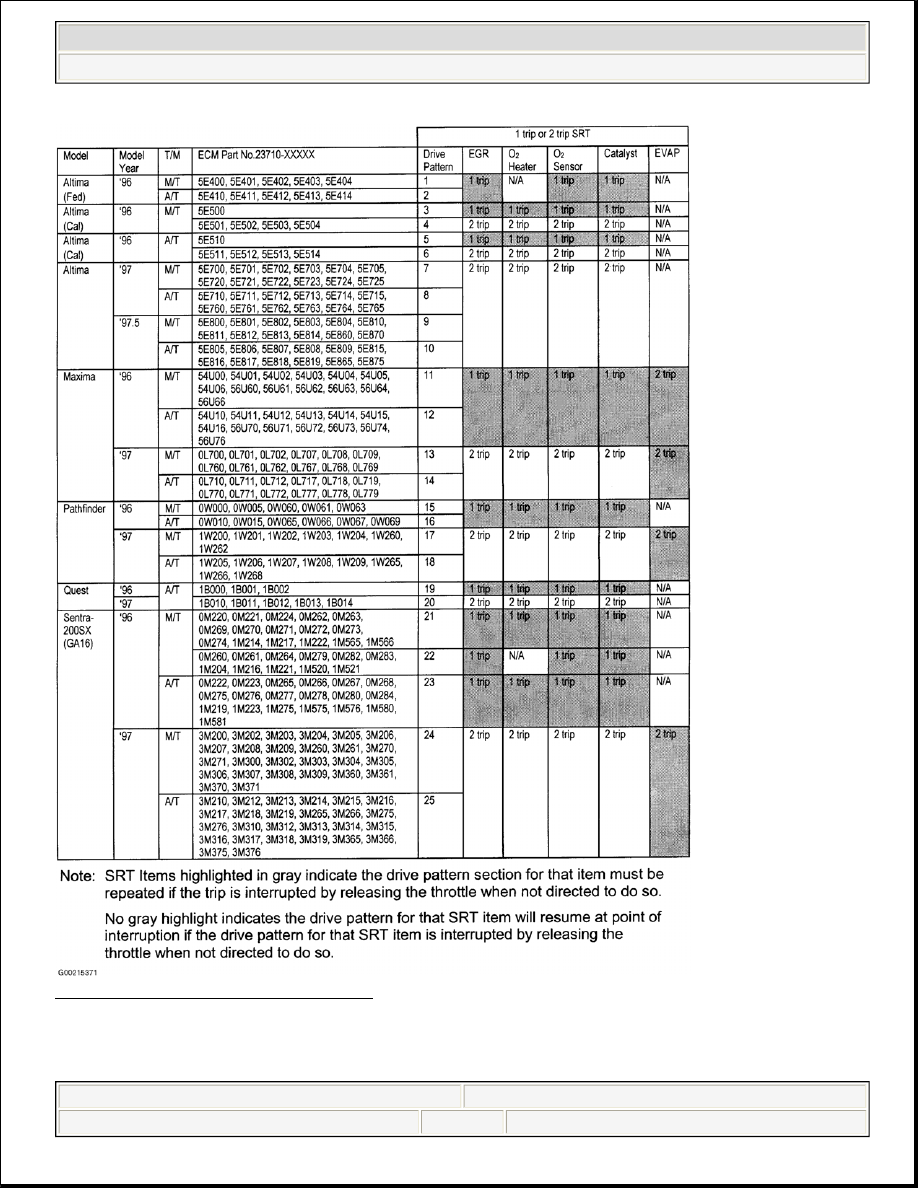

Fig. 6: Nissan SRT System Chart (Part 1)



1998 Chevrolet Pickup C1500

DRIVE CYCLES OBD-II Vehicles - OBD-II Readiness Monitors

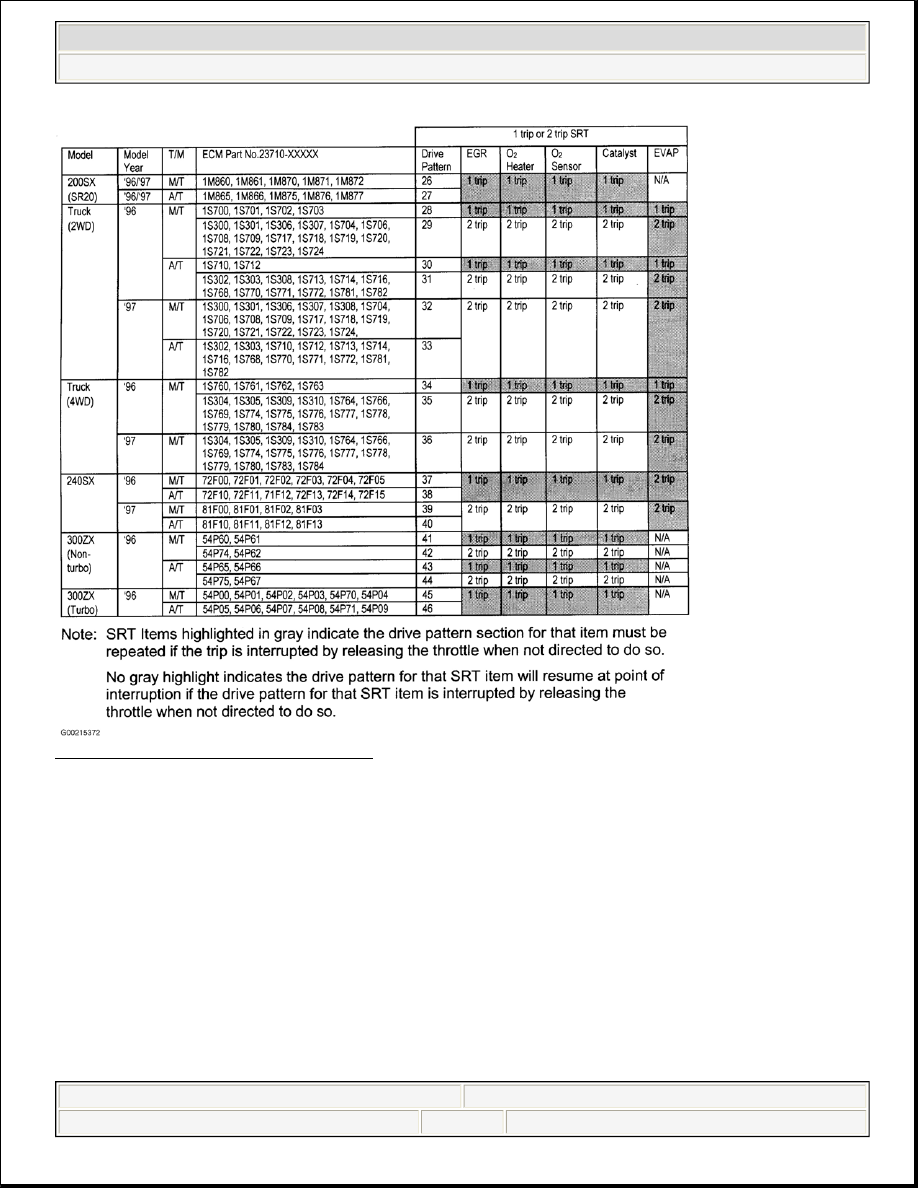

Fig. 7: Nissan SRT System Chart (Part 2)



1998 Chevrolet Pickup C1500

DRIVE CYCLES OBD-II Vehicles - OBD-II Readiness Monitors

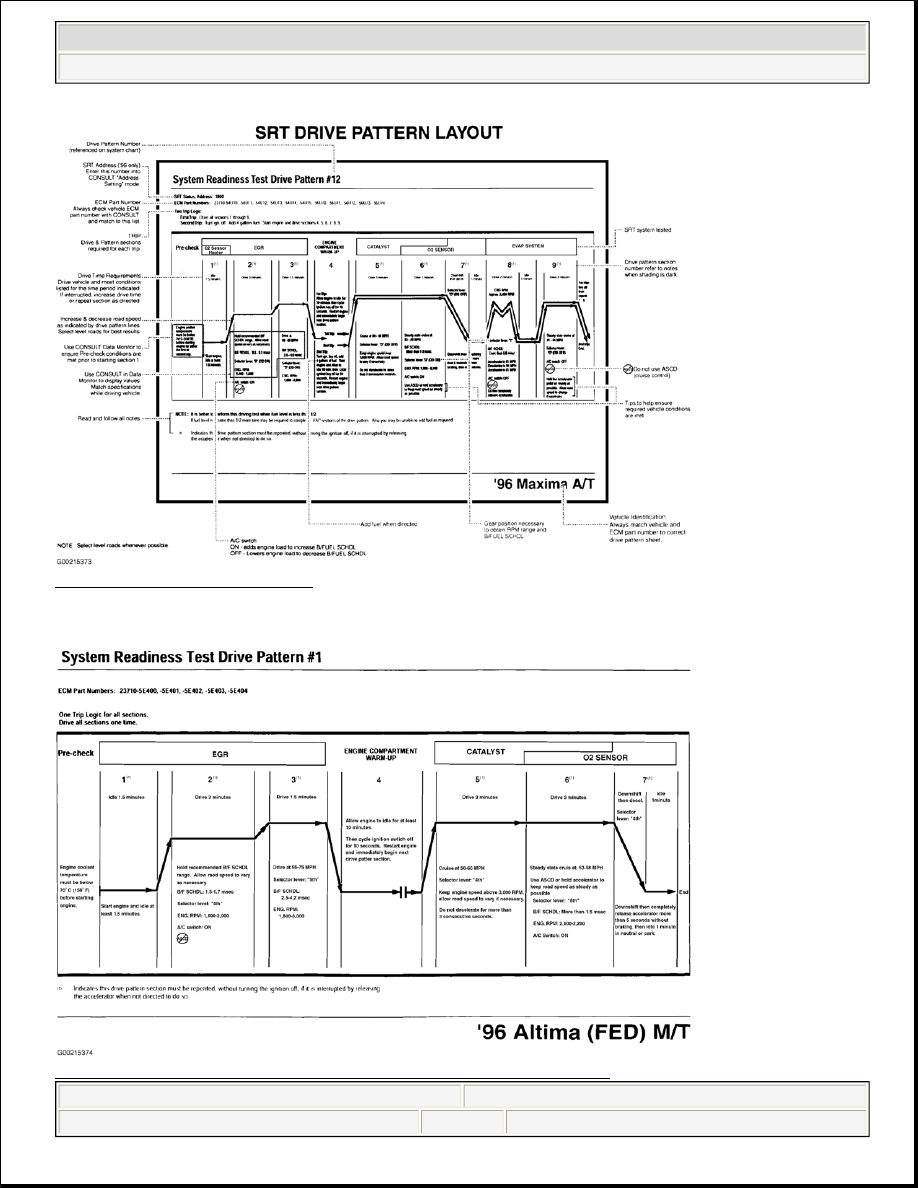

Fig. 8: SRT Drive Pattern Layout

Nissan SRT Drive Patterns

Fig. 9: System Readiness Test Drive Pattern #1: 1996 Altima (FED) M/T



1998 Chevrolet Pickup C1500

DRIVE CYCLES OBD-II Vehicles - OBD-II Readiness Monitors
