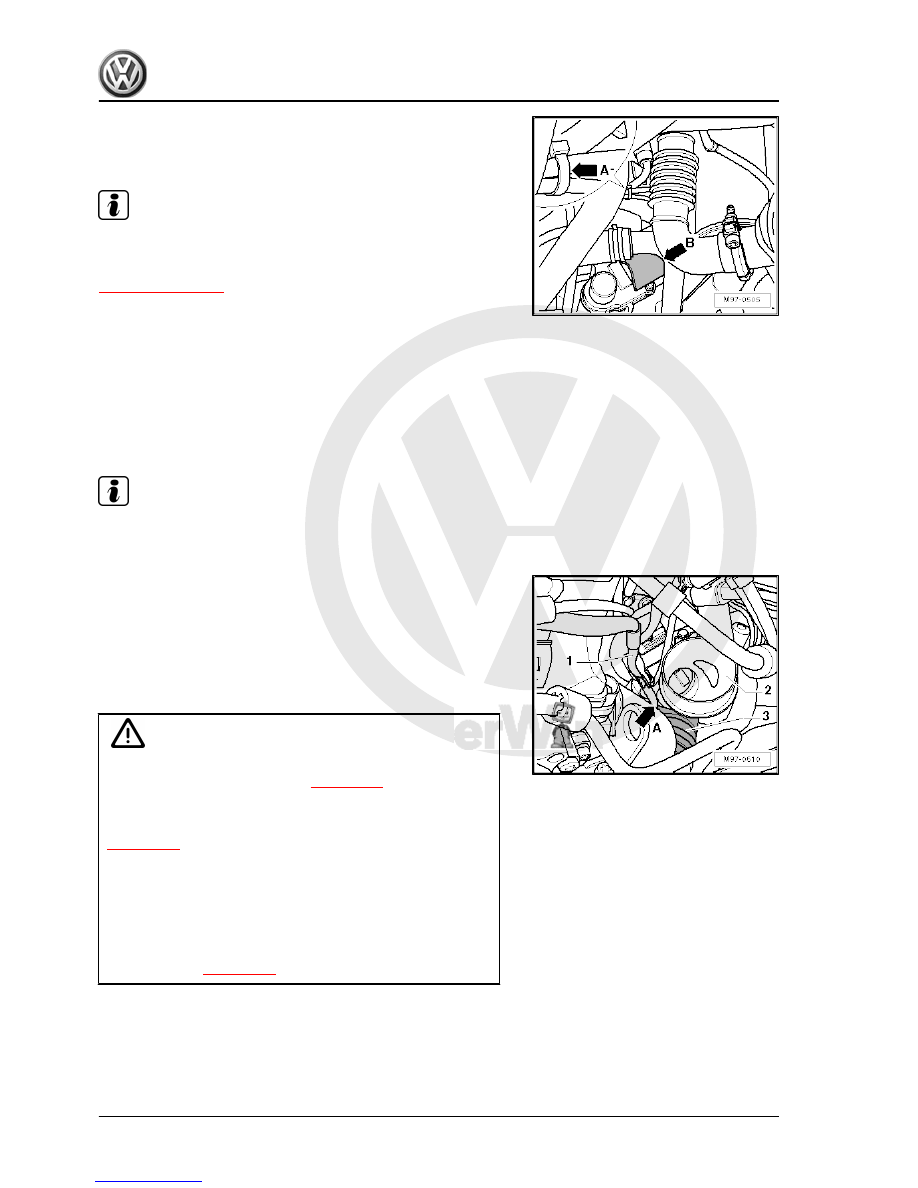

• Installation view shows vehicle from underneath: Note Note installation position of cable routing and heat insulation! Installation position exhaust gas recirculation valve 2 -N213- ⇒ Item 4 (page 495) – Clip on heat insulation -arrow B- and push heat insulation off connector. – Pull off connector from exhaust gas recirculation valve 2 - N213- . – Separate cable tie -arrow A-. common rail); Rep. gr. 23 . Note Note installation position of cable routing before you slide out ca‐ ble! – Slide cable -1- out carefully between induction hood of turbo‐ charger -2- and preheating hose -3- -arrow A-. – Carefully remove entire wiring harness for engine from engine compartment. Installing ing: Caution It is essential to comply with working sequence »Removing and installing glow plug connectors« ⇒ page 492 ! Ensure all connectors are fitted securely. ⇒ page 491 . Always renew self-locking nuts, seals and securing clips. using spring-type clip pliers -VAS 6362- or hose clamp pliers - VAS 6340- . ⇒ page 490 . 506
|
