Volkswagen Golf Variant / Jetta. Manual - part 775





⇒ page 4

 .

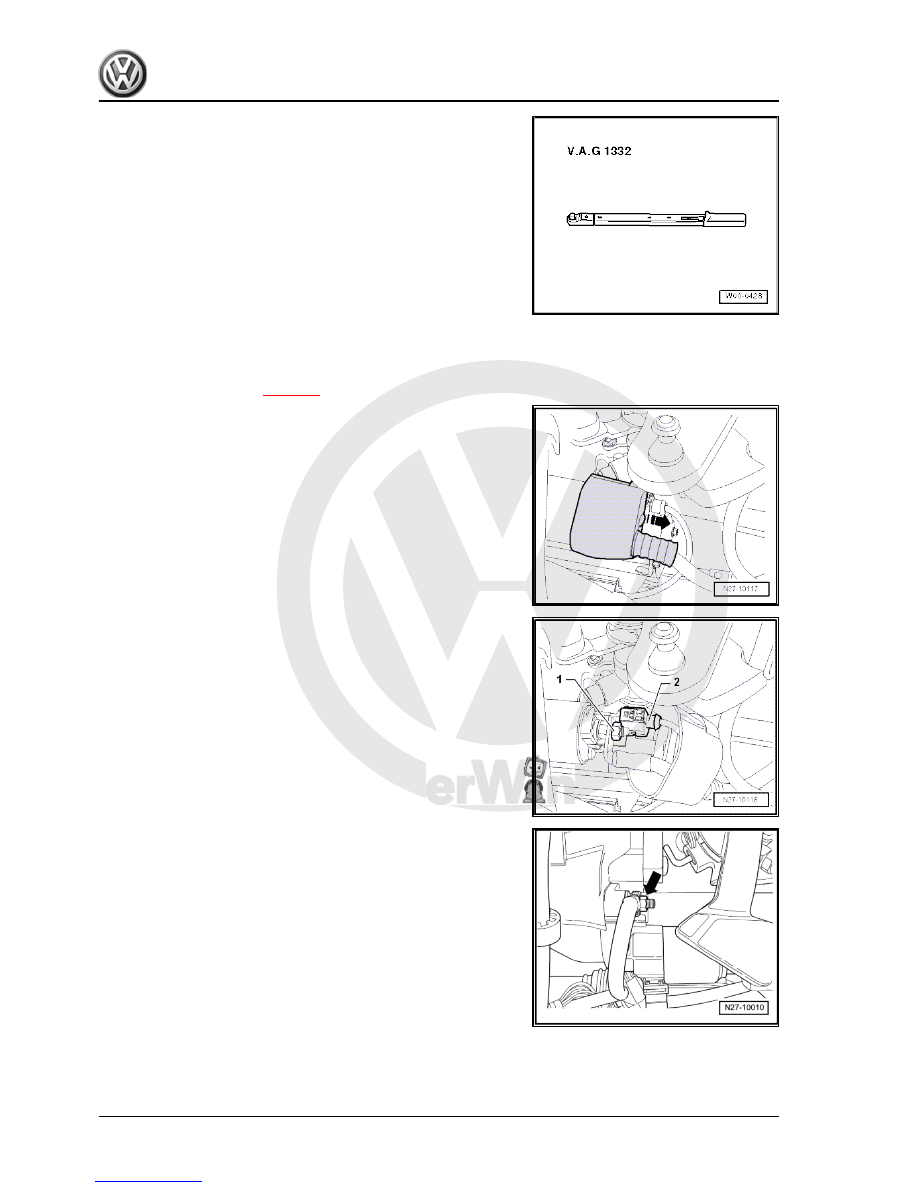

– Push down protective cap in direction of -arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unscrew earth wire from starter bolt -arrow-.

66

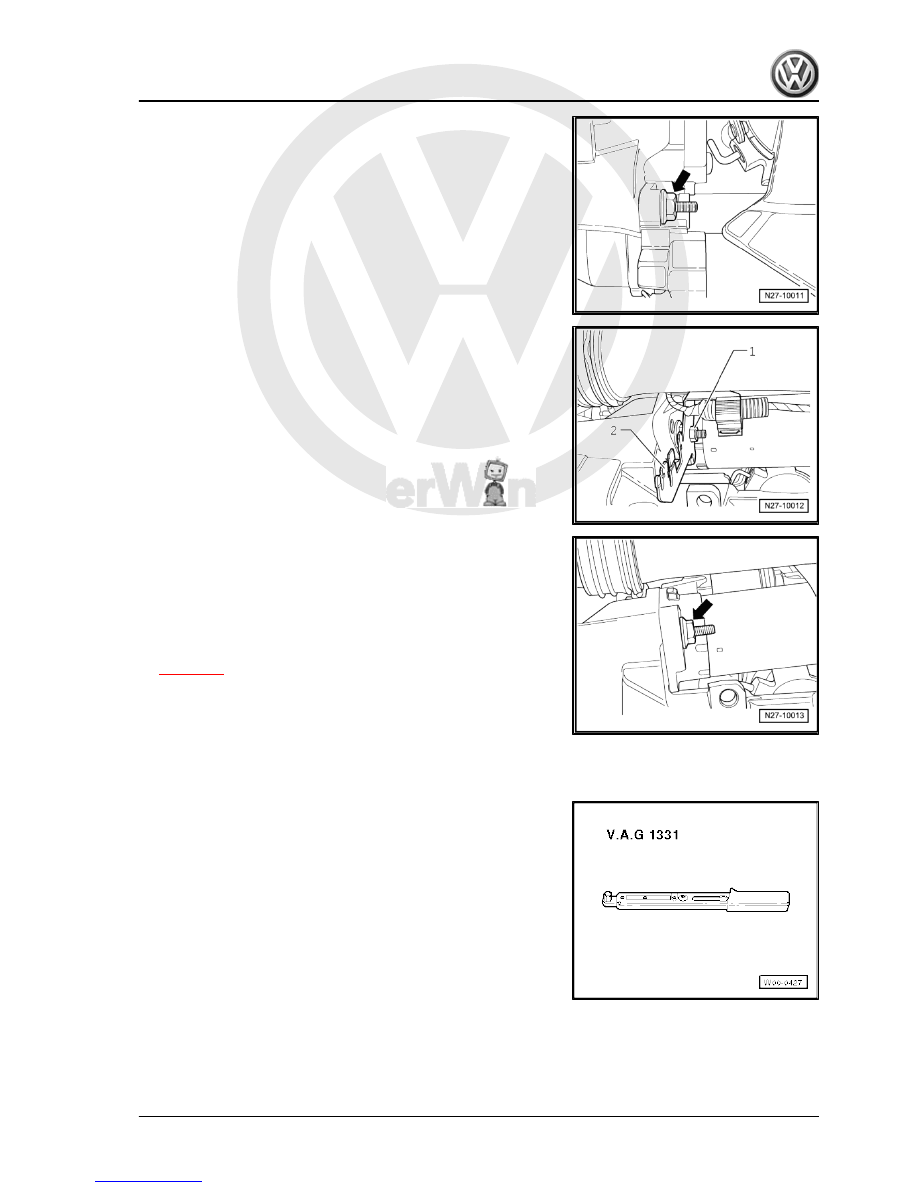

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Remove starter -B- .
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.5

Vehicles with 2.0l FSI engine

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

6. Starter B

67



Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Disconnect connector -arrow-.

– Unclip vacuum hose out of retainer -arrow-.

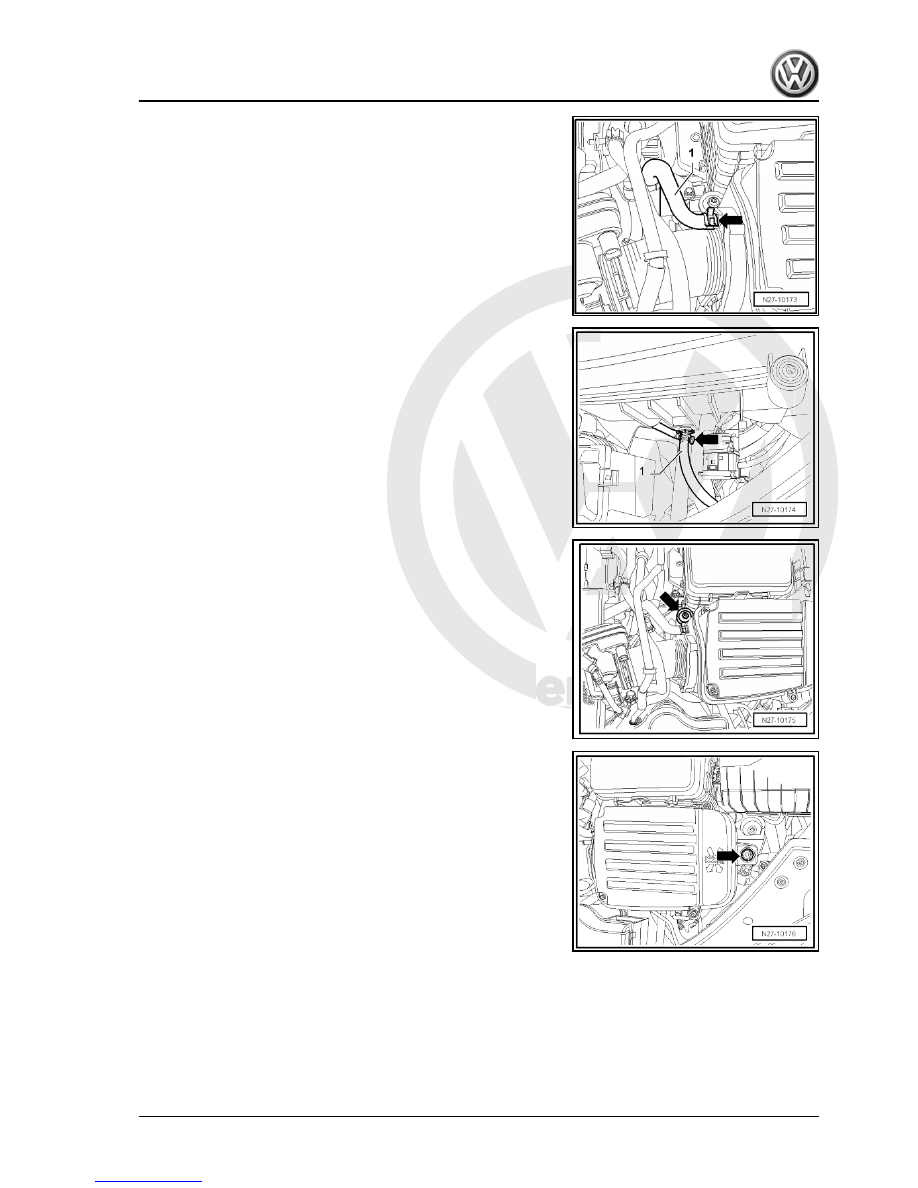

68



– Pull hose -1- off air filter housing.

– Open retainer -arrow- on front of air filter housing and remove

line -1-.

– Remove bolt of air filter housing -arrow-.

– Pull air filter housing upwards on right-hand side out of rubber

mounting -arrow-.

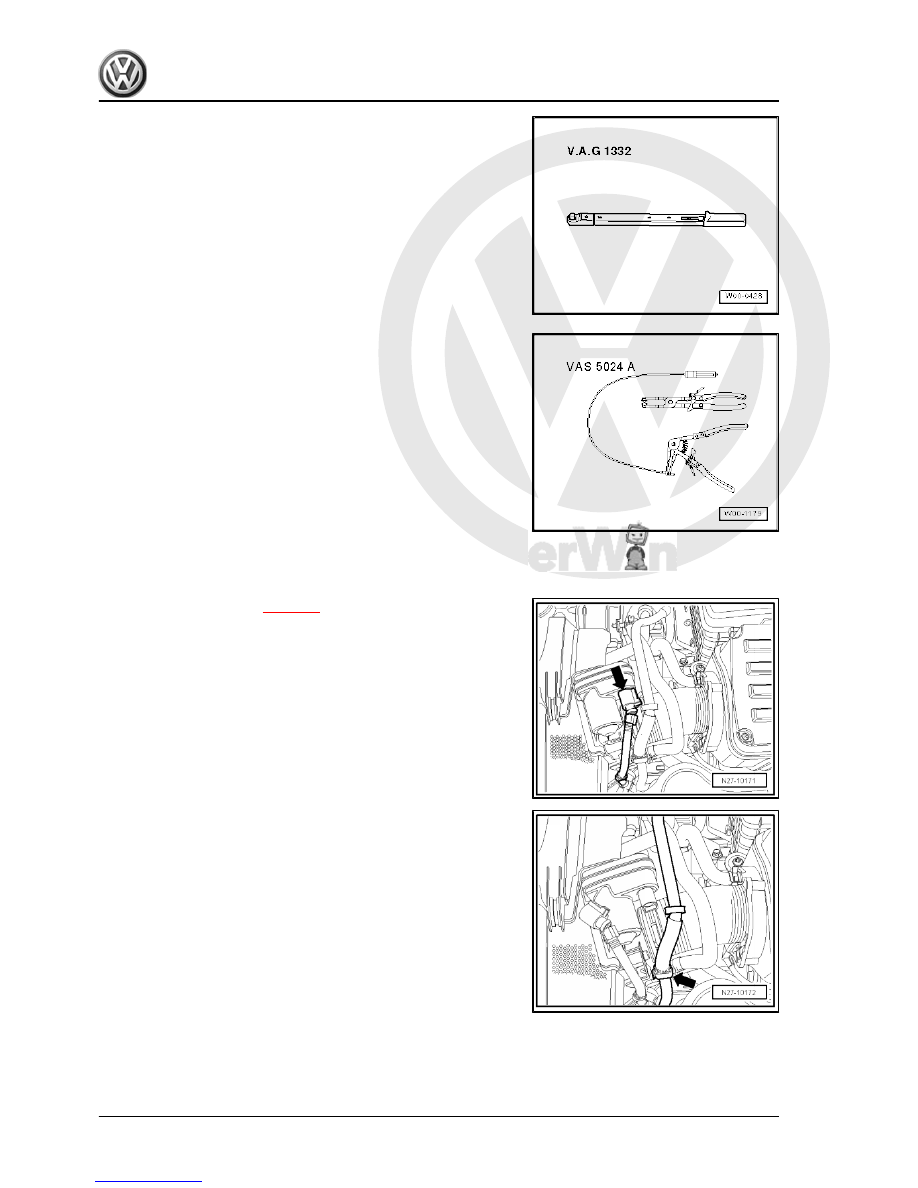

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- .

6. Starter B

69
