Volkswagen Golf Variant / Jetta. Manual - part 770





Rep. gr.  50 .

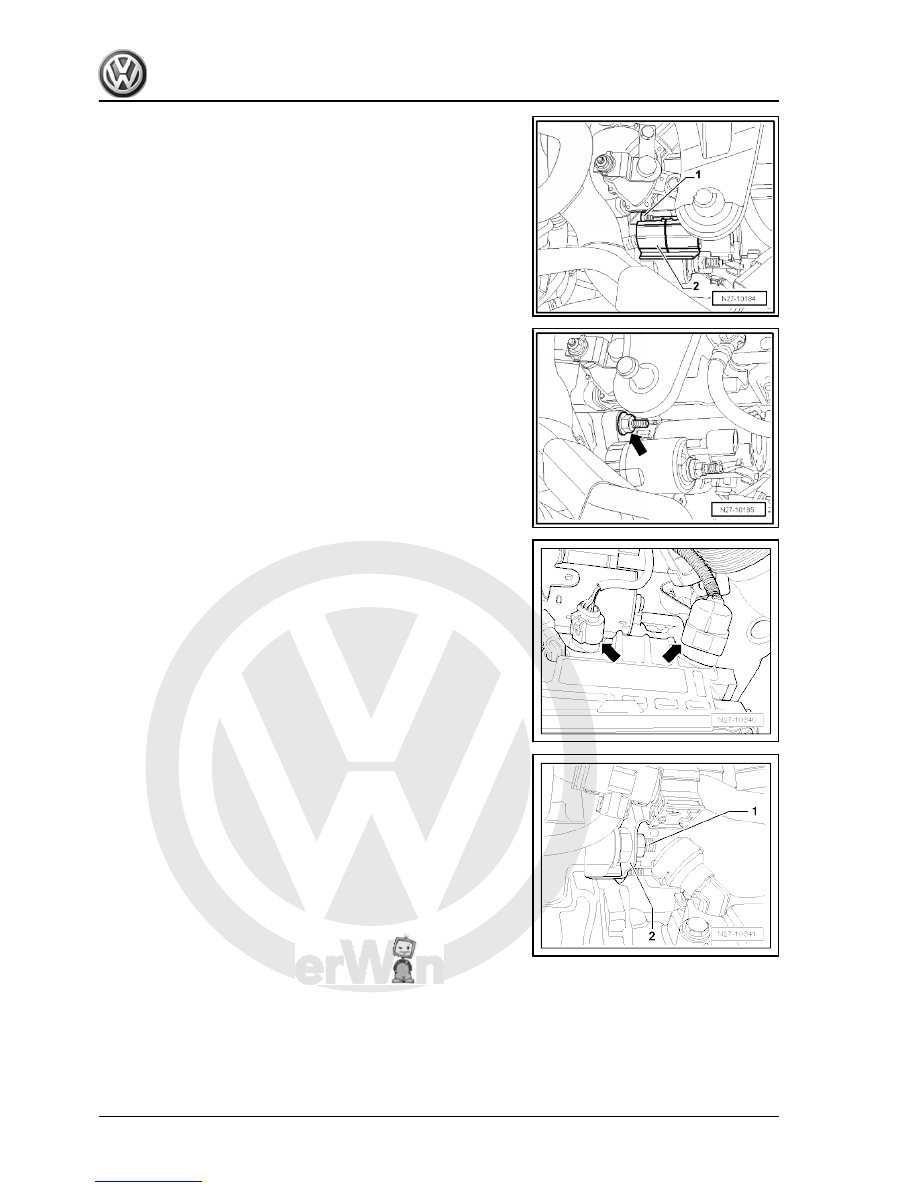

– Disconnect connectors -arrows-.

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

46



⇒ page 35

 .

6.3.6

Vehicles with 2.0l TFSI engine

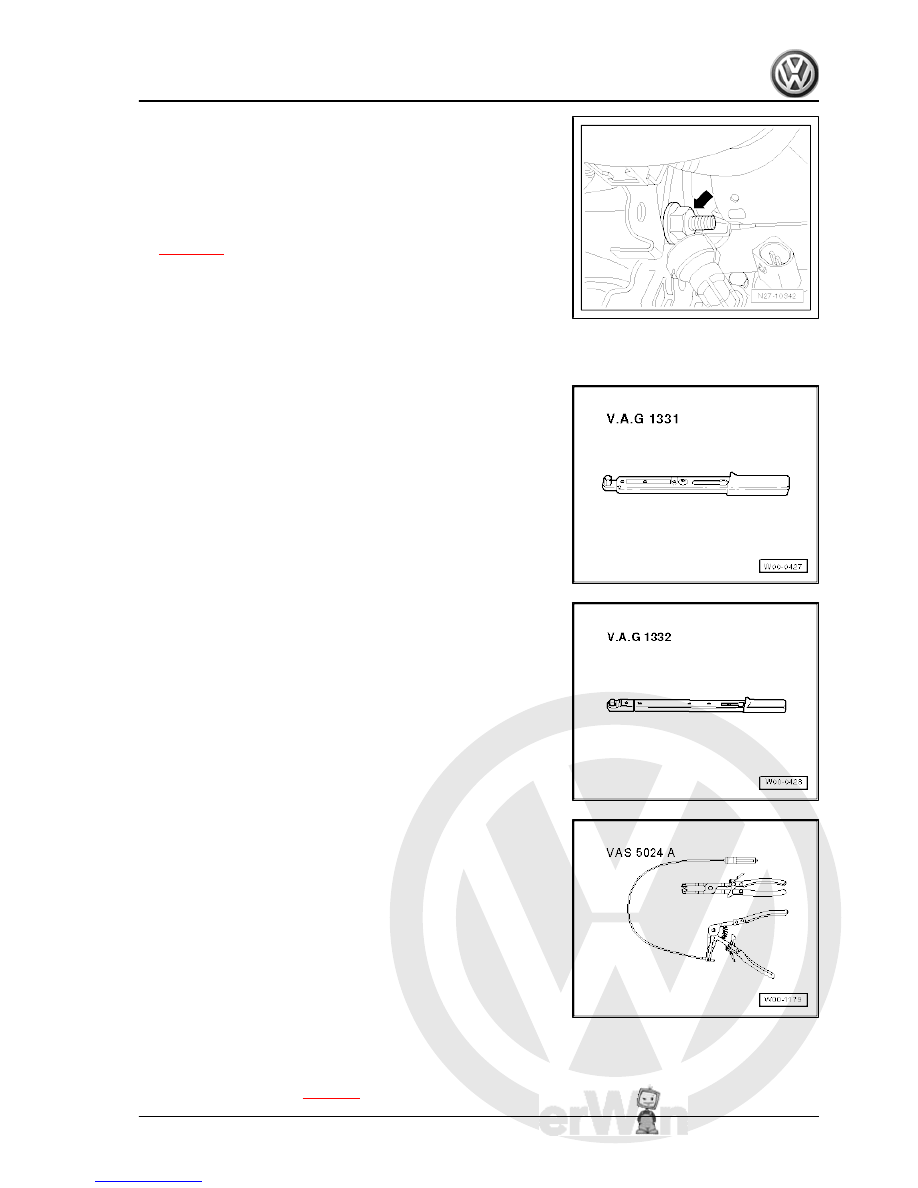

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

6. Starter B

47



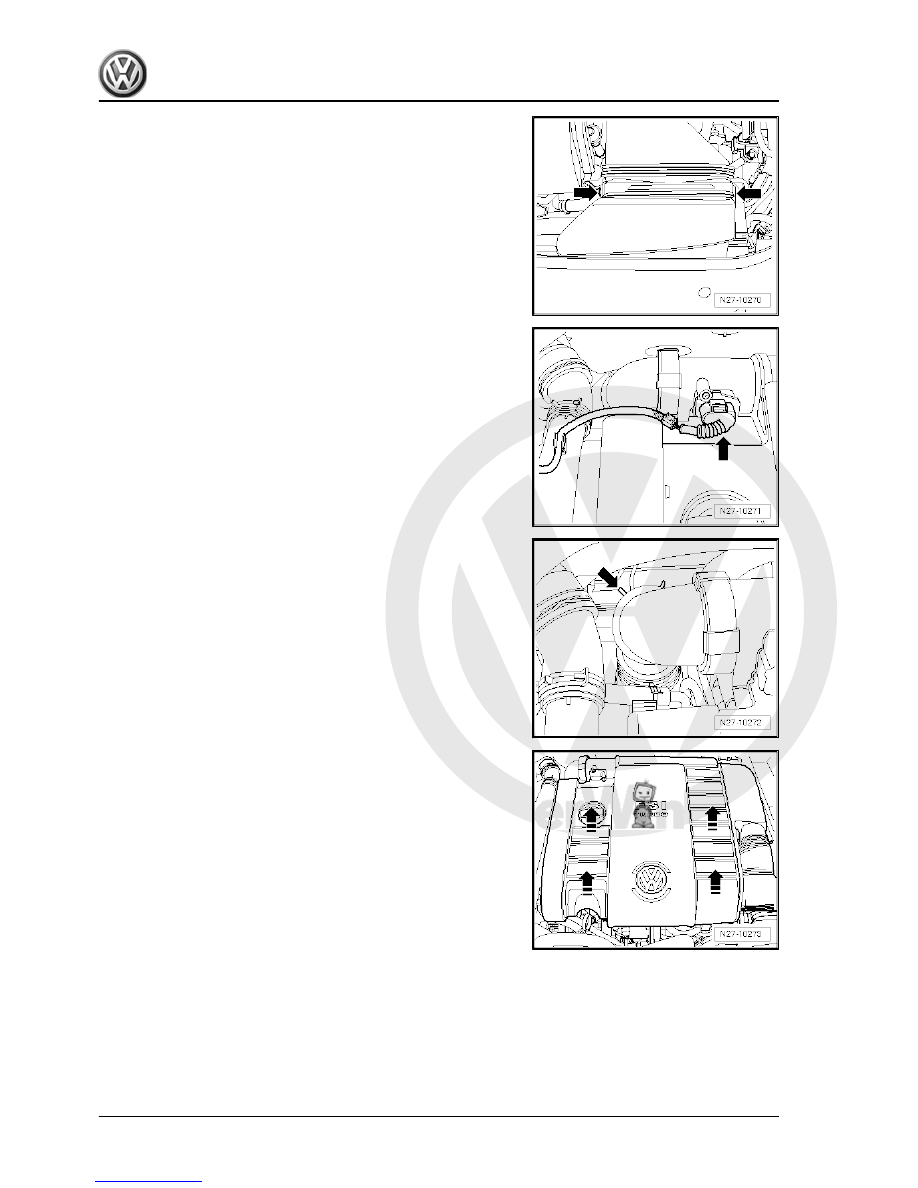

– Loosen spring-type clips -arrow- using spring-type clip pliers -

VAS 5024A- .

– Pull engine cover panel upwards -arrows-.

48



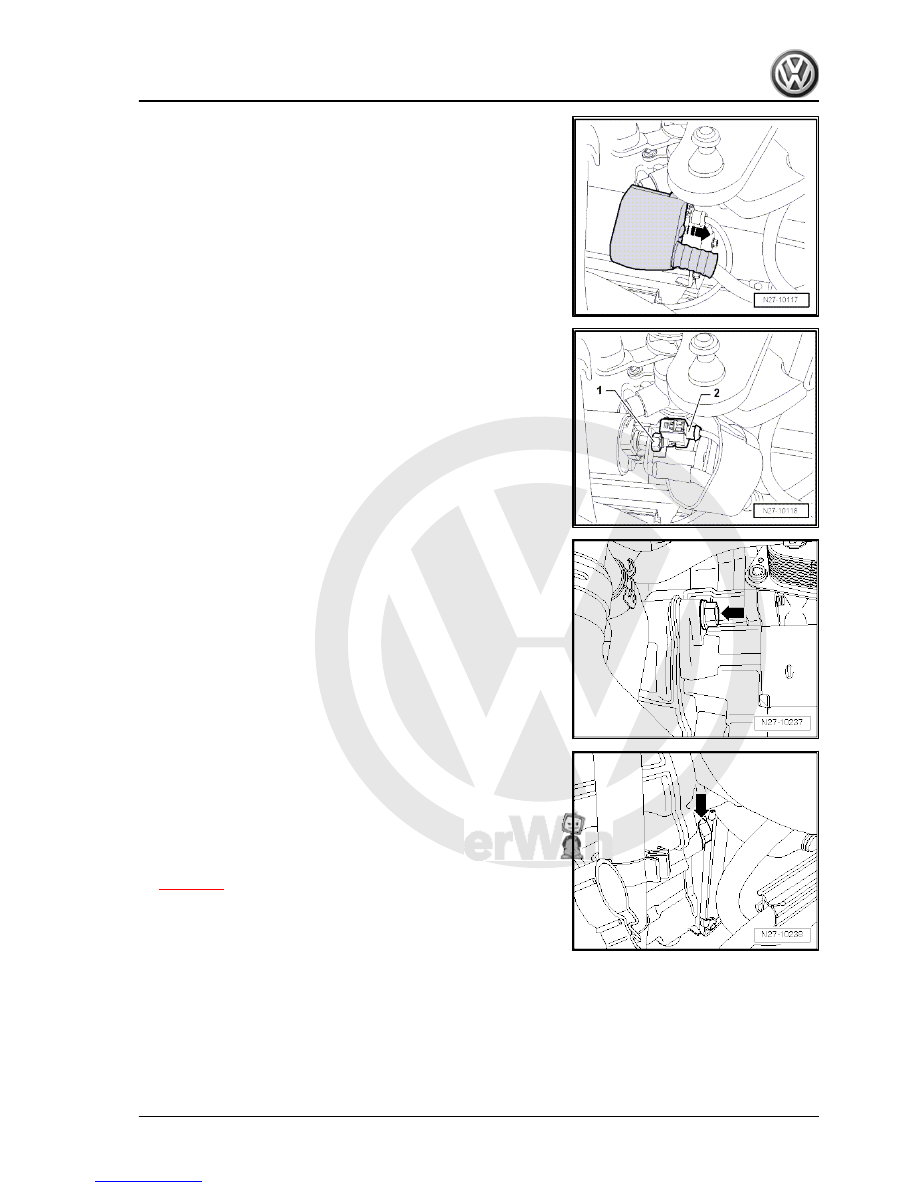

minal 50 -2-.

– Remove upper bolt -arrow- from starter.

– Remove lower bolt -arrow- from starter.
– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 35

 .

6.3.7

Vehicles with 1.9l diesel engine

Special tools and workshop equipment required

6. Starter B

49
