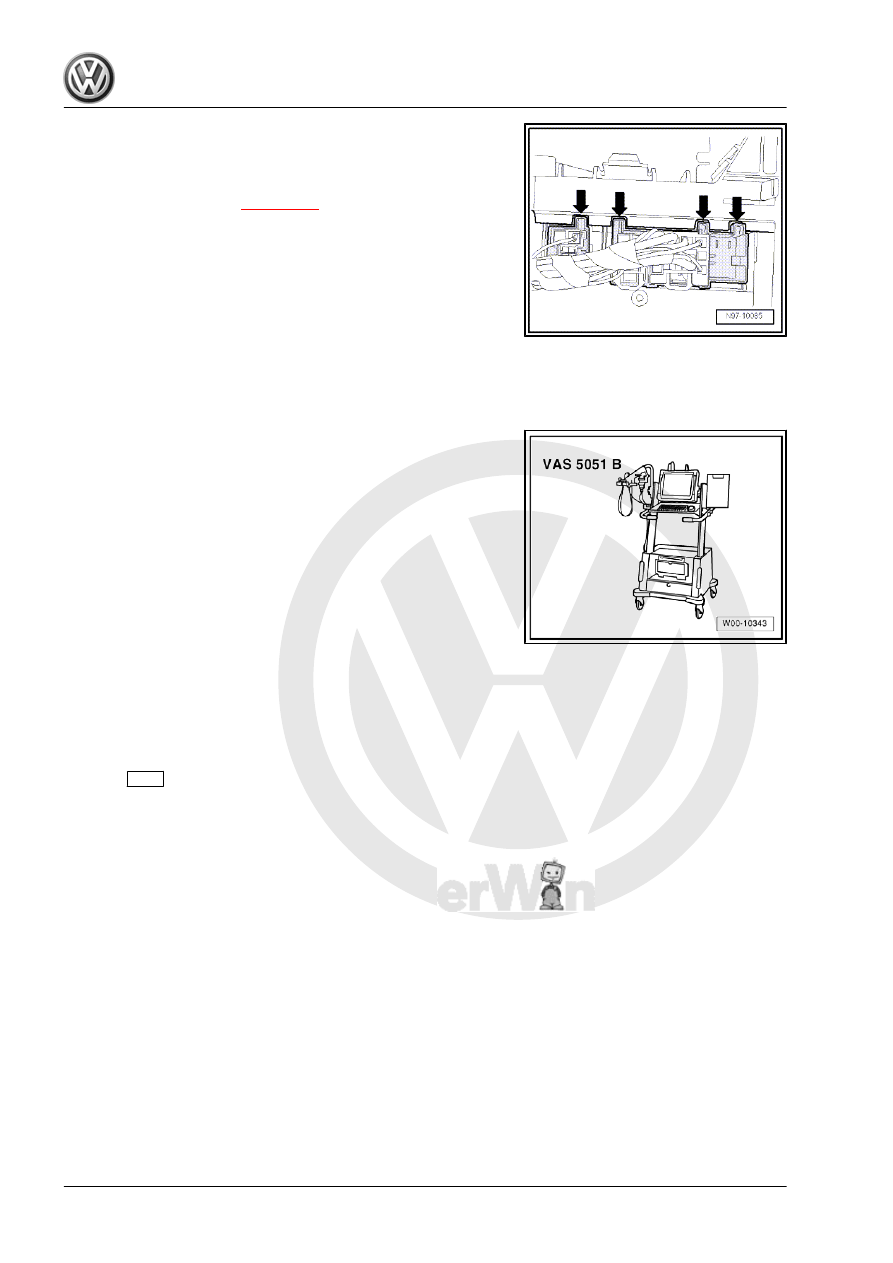

cesses -arrows- of the connector and bracket are aligned with

each other precisely.
If a new convenience system central control unit -J393- has been

installed, it must be coded

⇒ page 474

 .

5.3.2

Coding convenience system central

control unit -J393- (up to MY2009)

Special tools and workshop equipment required

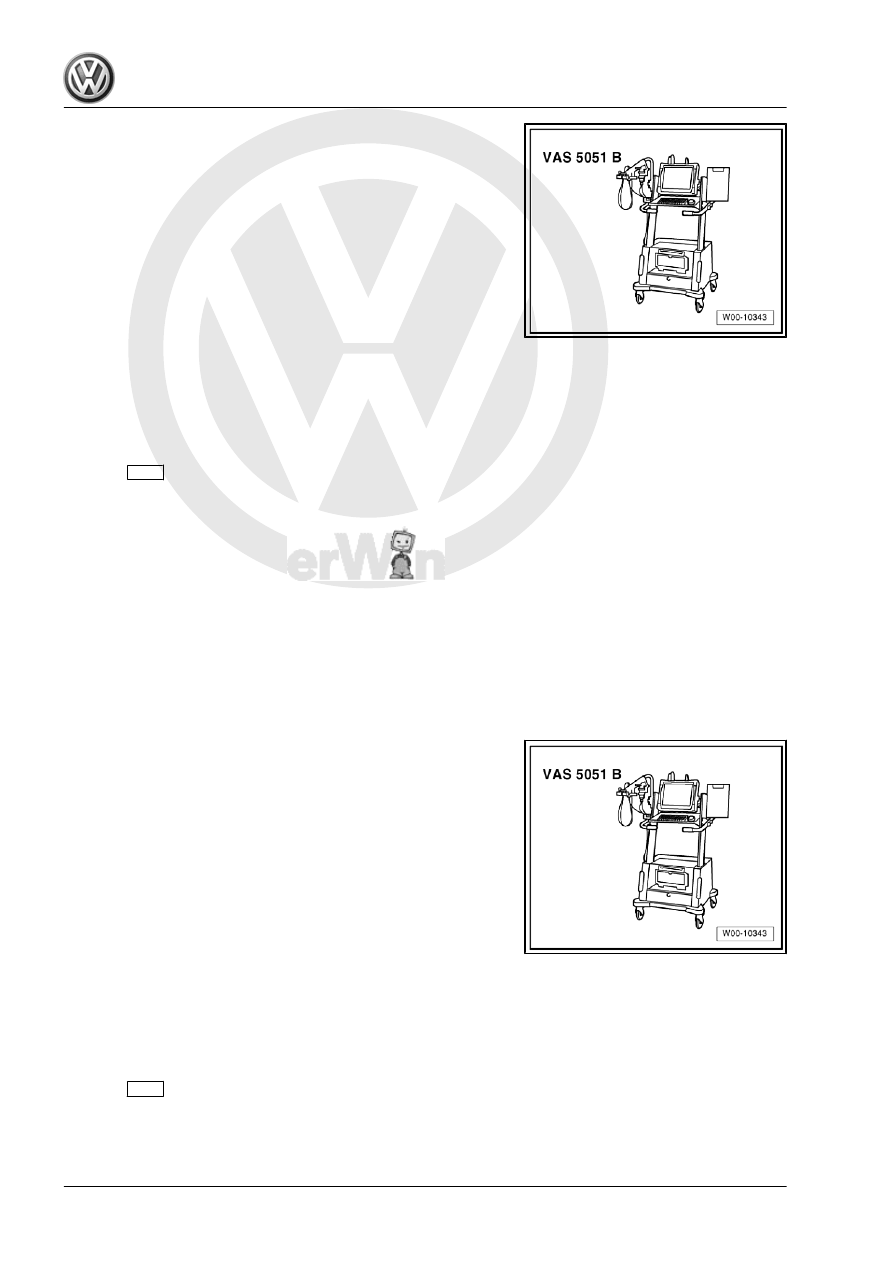

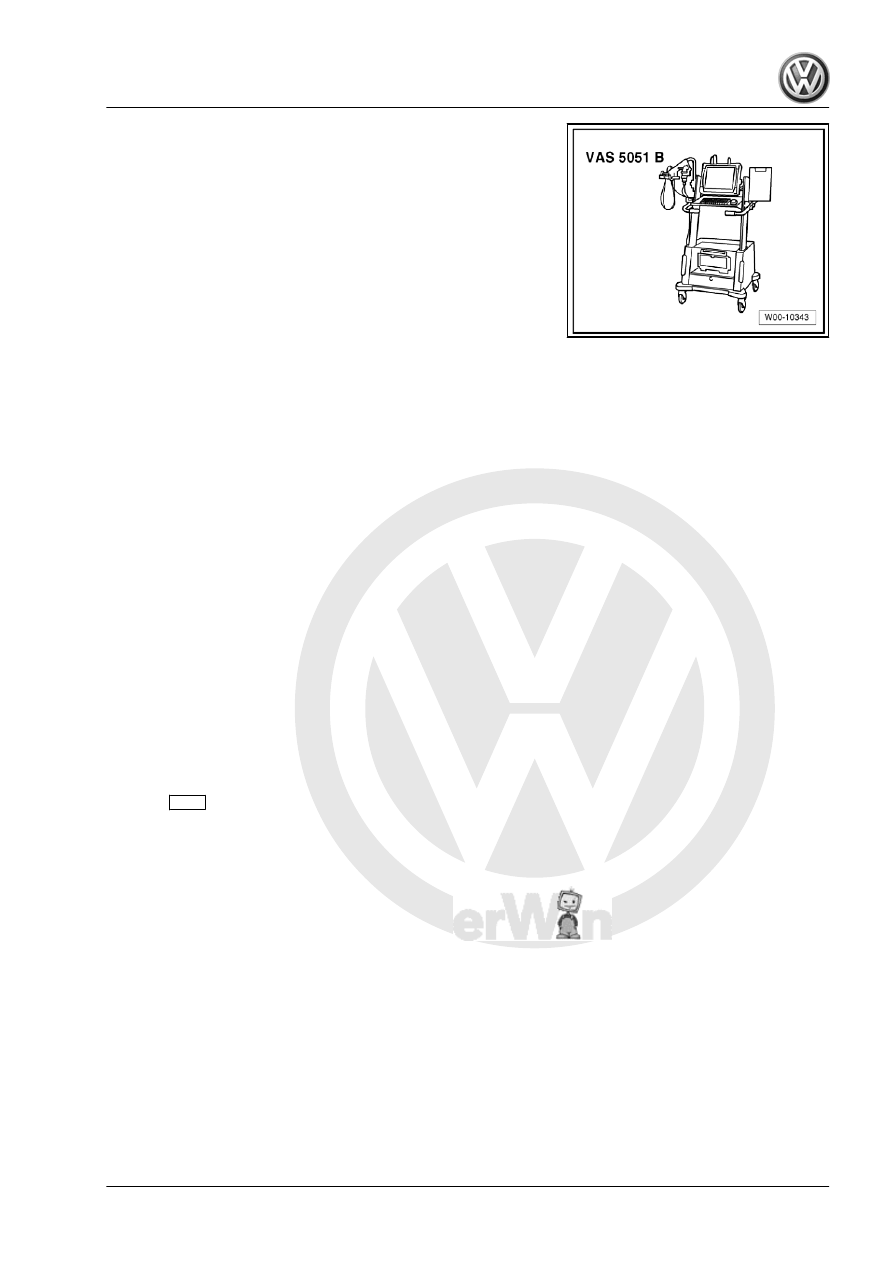

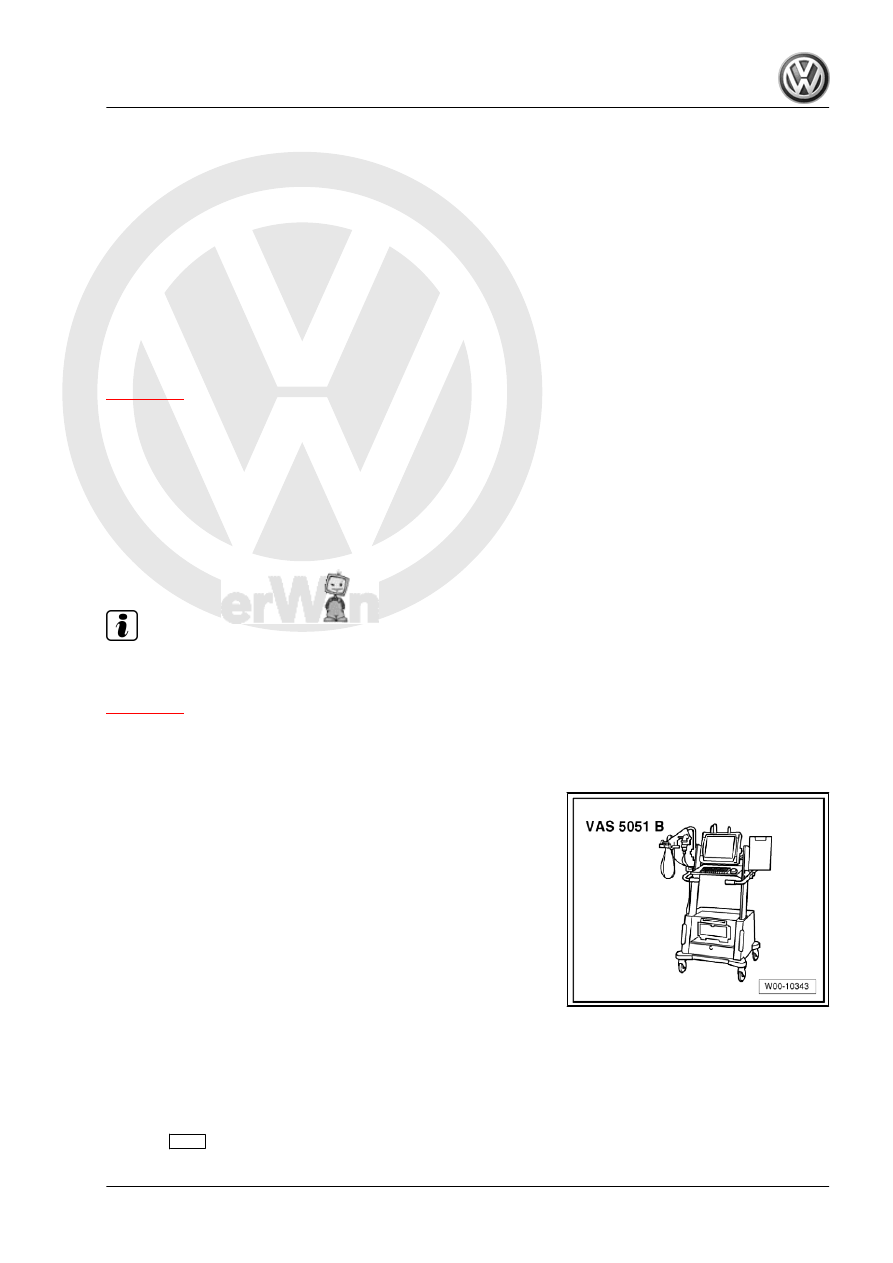

♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs
♦ 01 - On Board Diagnosis capable systems
♦ Convenience system
♦ Functions of convenience system central control unit
♦ Code convenience system central control unit

5.3.3

Adapting components - convenience

system central control unit -J393- (up to

MY2009)

Special tools and workshop equipment required

474

5051B-

The following functions can be adapted:
♦ Activating/deactivating „single door opening“
♦ Activating/deactivating „automatic locking at speeds greater

than 15 km/h“

♦ Activating/deactivating „automatic unlocking when ignition key

is removed“

♦ Activating/deactivating „country settings for intelligent alarm

horn“

♦ Activating/deactivating „battery monitoring system (sounder)“
♦ Activating/deactivating „convenience actuation via radio re‐

mote control unit“

♦ Activating/deactivating „anti-theft alarm system - alarm delay

when driver's door is opened“

♦ „Sensitivity of tilt angle sensor“
♦ „Sensitivity of interior monitoring system“
Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs
♦ 01 - On Board Diagnosis capable systems
♦ Convenience system
♦ Functions of convenience system central control unit

5.3.4

Final control diagnosis - convenience

system central control unit -J393- (up to

MY2009)

Special tools and workshop equipment required

5. Control units

475

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs
♦ 01 - On Board Diagnosis capable systems
♦ Convenience system
♦ Functions of convenience system central control unit
♦ Final control diagnosis

5.3.5

Reading alarm sources of anti-theft

alarm (up to MY2009)

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs

476

5.4

Driver door control unit -J386-

General description
The driver door control unit -J386- and the driver side window

regulator motor -V147- are contained in one unit and cannot be

replaced individually.
If the driver door control unit -J386- or the driver side window reg‐

ulator motor -V147- are replaced, then the work procedure „Cod‐

ing driver door control unit“ must be subsequently performed

⇒ page 477

 .

Additional information:
⇒ Current flow diagrams, Electrical fault finding and Fitting loca‐

tions
⇒  Operating manual

5.4.1

Removing and installing driver door con‐

trol unit -J386-

Removing and installing driver door control unit -J386- ⇒  General

body repairs, exterior; Rep. gr.  64 .

Note

If the driver door control unit -J386- or the driver side window reg‐

ulator motor -V147- are replaced, then the work procedure „Cod‐

ing driver door control unit“ must be subsequently performed

⇒ page 477

 .

5.4.2

Coding driver door control unit -J386-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

5. Control units

477
