Carry out following procedures:
Removing

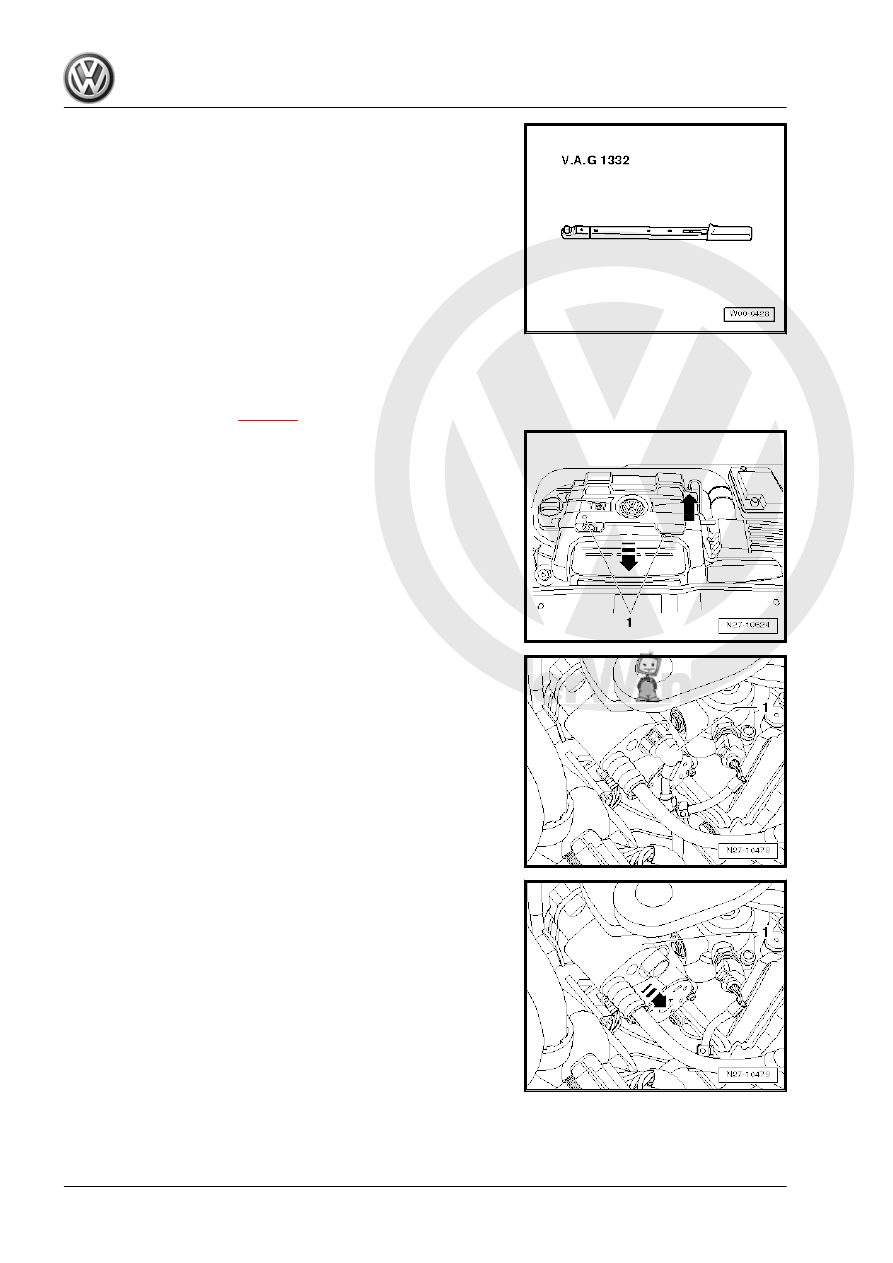

– Disconnect battery -A-

⇒ page 4

 .

– Pull off vacuum hose at engine cover panel -arrow-.
– Pull off engine cover upwards from its rubber mountings -1-

and remove it forwards in -direction of arrow-.

– Remove air filter housing ⇒  Engine; Rep. gr.  24 .

– Release and disconnect connector -1-.

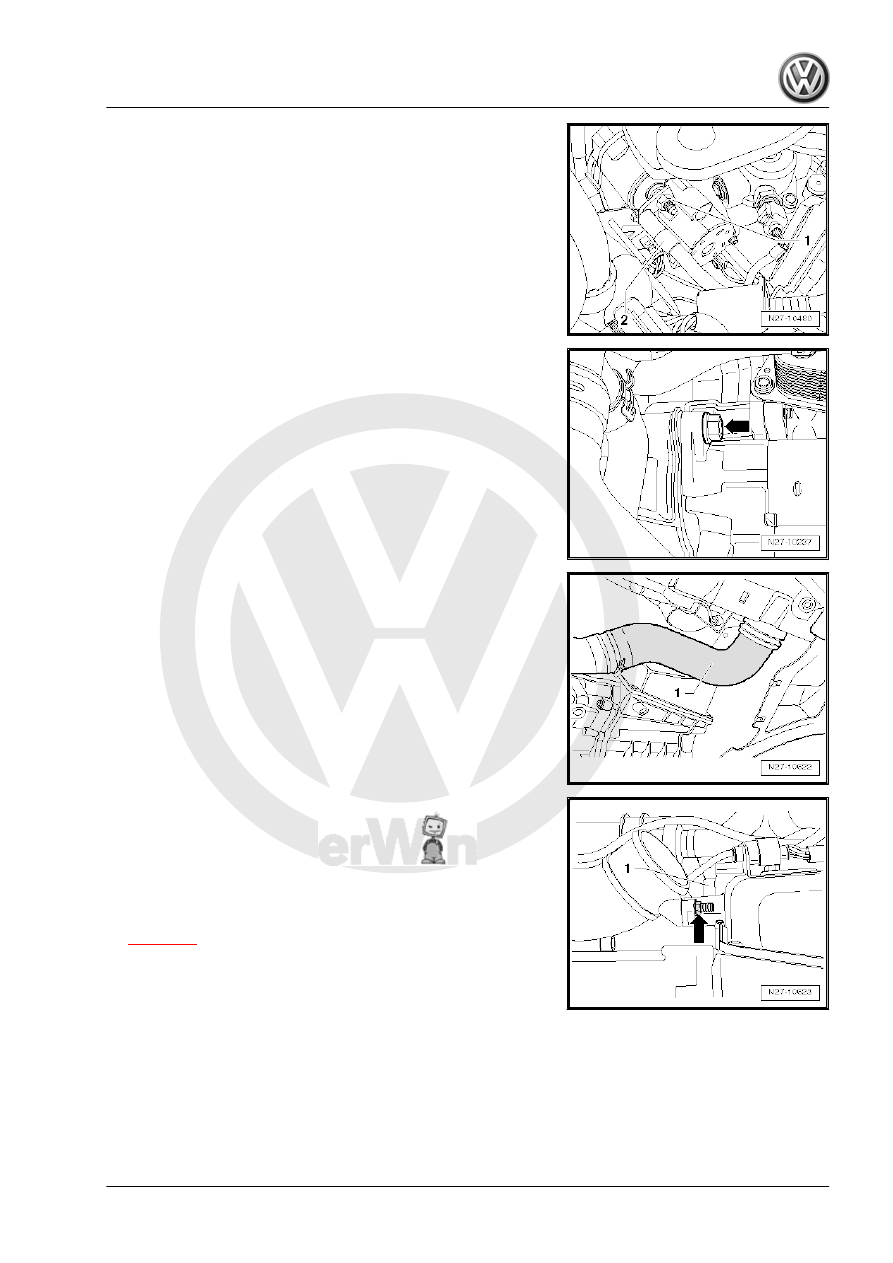

– Slide protective cap -1- off solenoid switch in direction of

-arrow-.

38

thread of solenoid switch.

– Remove upper bolt -arrow- from starter.
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Remove charge air hose -1-.

– Remove lower bolt -arrow- from starter.
– Lift starter -B- -1- upwards out of vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 35

 .

6.3.4

Vehicles with 1.6l petrol engine

Special tools and workshop equipment required

6. Starter B

39

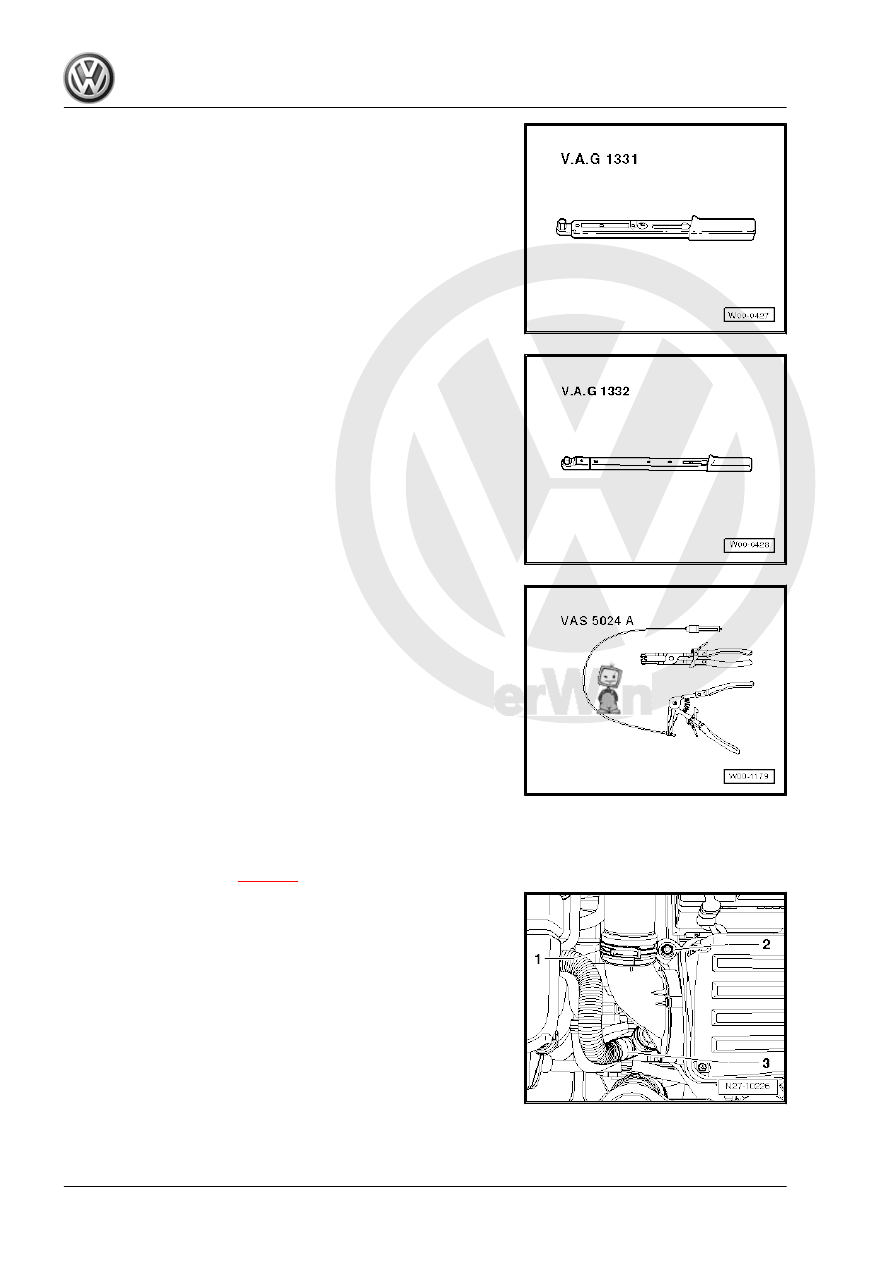

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- and remove bolt -2-.

– Release hose -3- and pull it off the air filter housing.

40

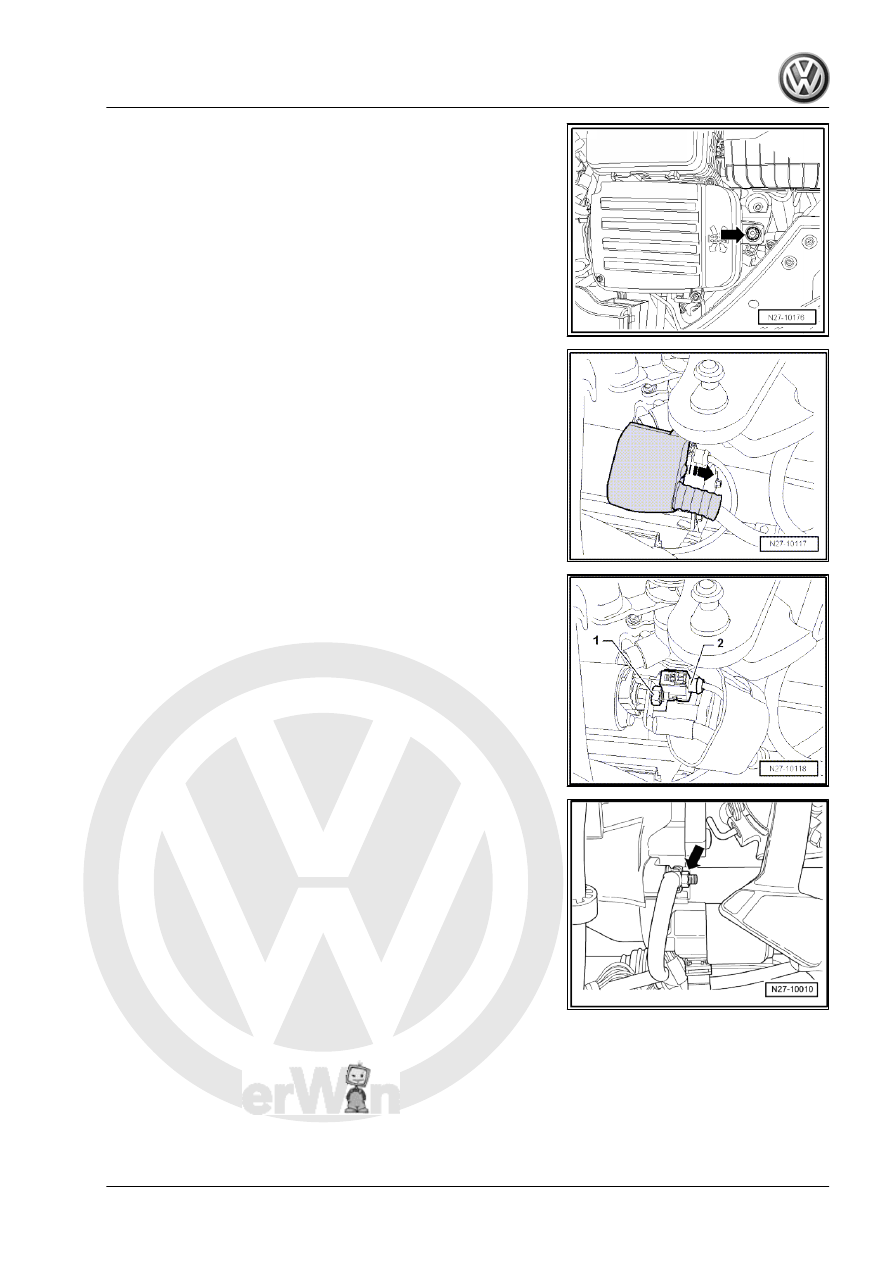

mounting -arrow-.

– Take air filter housing out of vehicle.

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unscrew earth wire from starter bolt -arrow-.

6. Starter B

41
