Volkswagen Golf Variant / Jetta. Manual - part 639





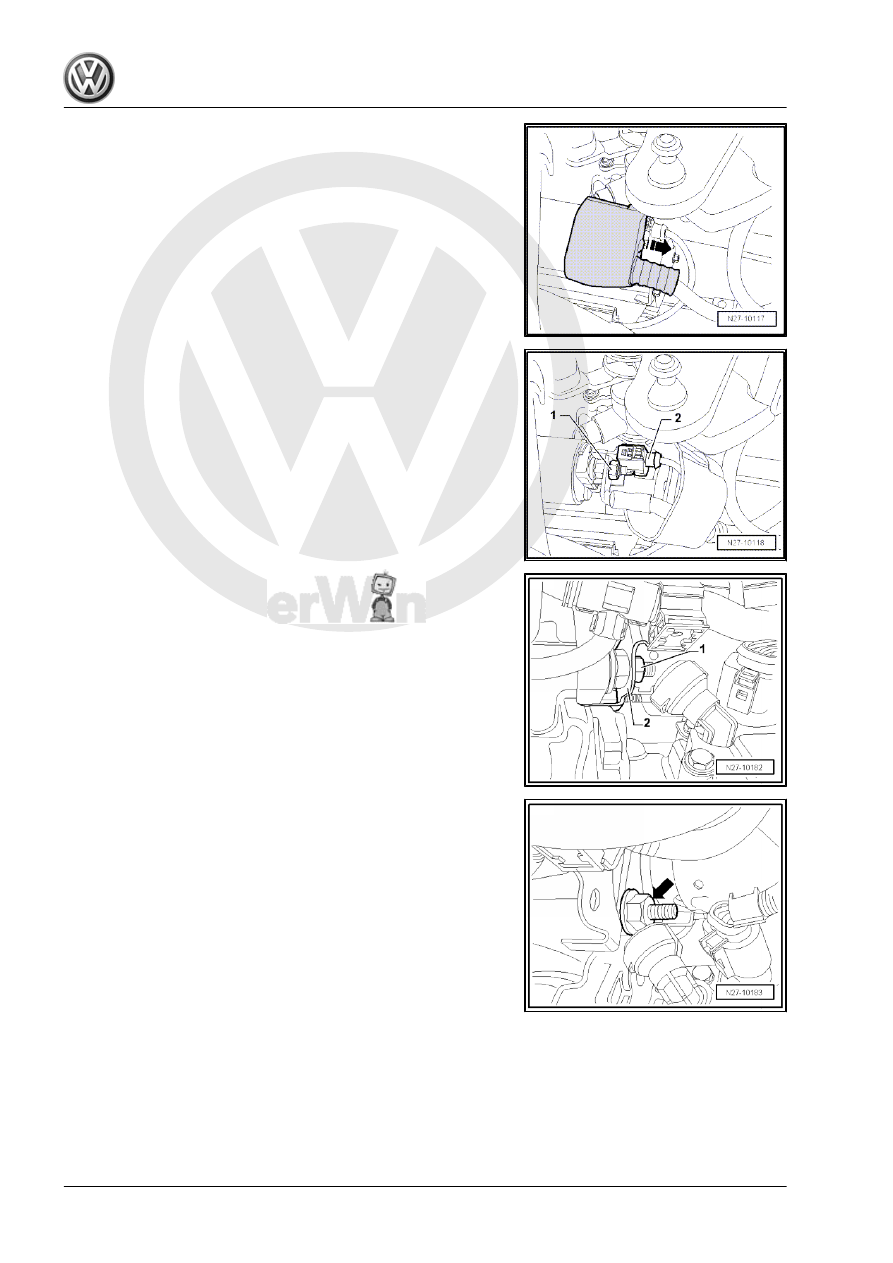

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

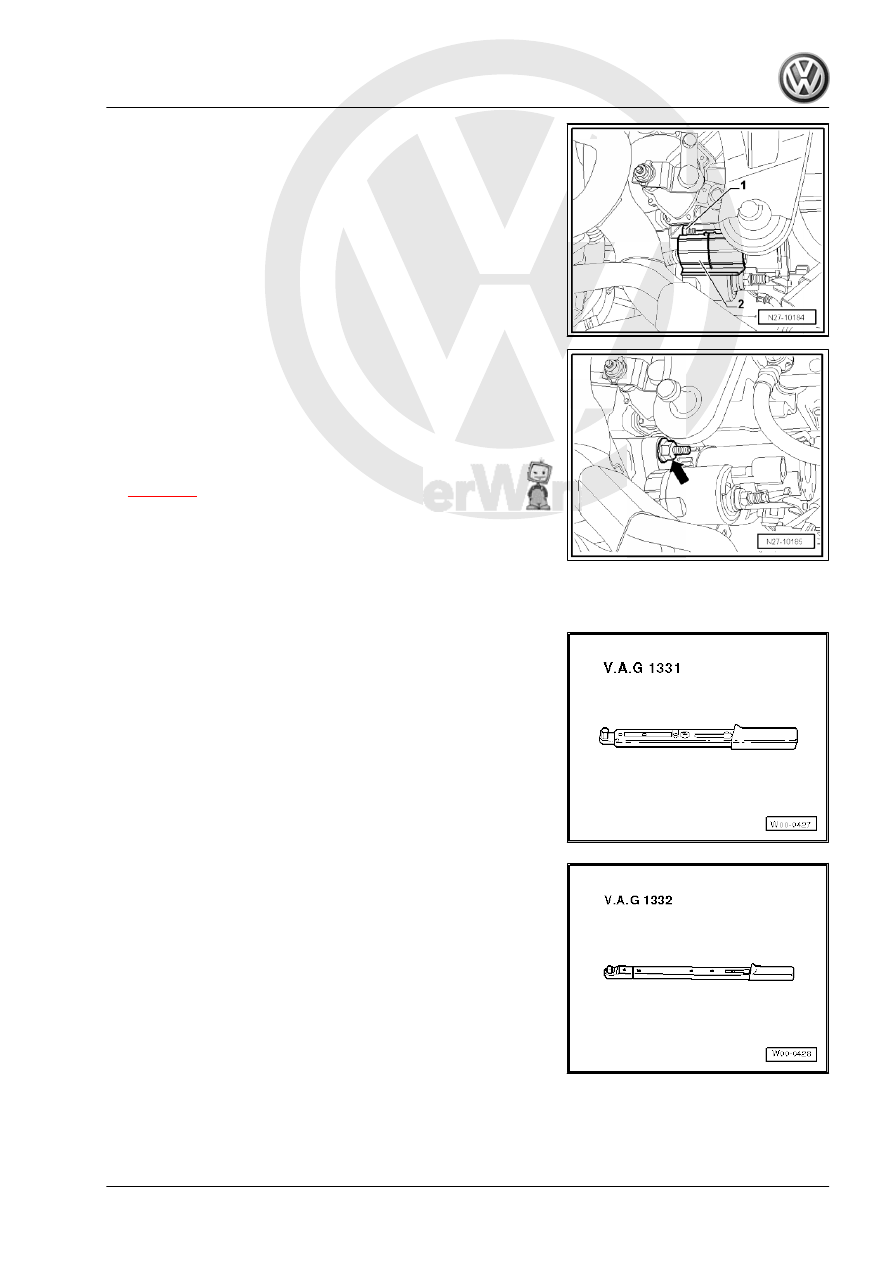

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Remove lower bolt -arrow- from starter.

26

– Remove upper bolt -arrow- from starter.
– Lower starter -B- out of vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 14

 .

6.2.6

Vehicles with 1.9l diesel engine

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Torque wrench -V.A.G 1332-

6. Starter B

27

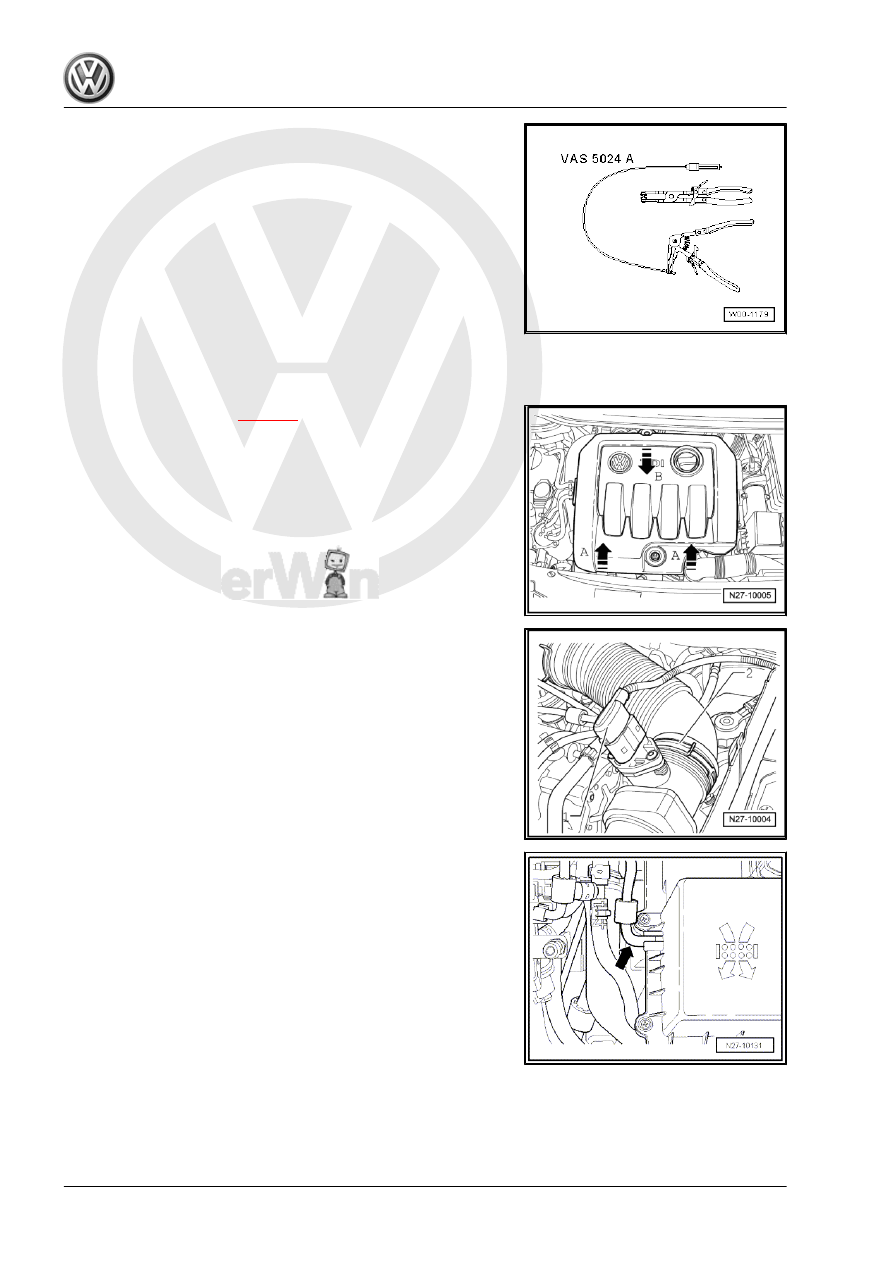

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

– Disconnect connector -1- and release spring-type clip -2- us‐

ing spring type clip pliers -VAS 5024A- .

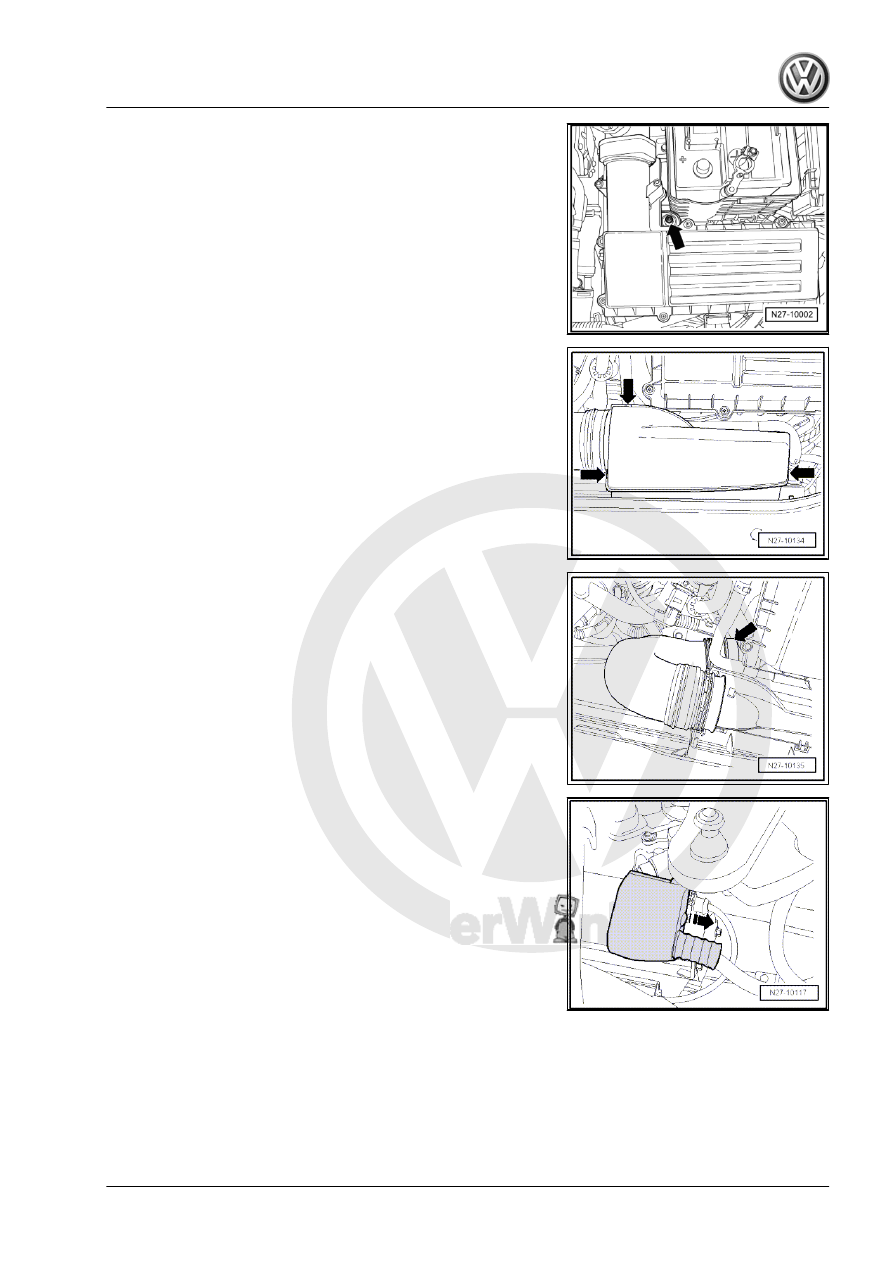

– Pull vacuum hose -arrow- off air filter housing.

28

– Release locking lugs -arrows- and take off cover.

– Pull hose -arrow- off air filter housing and remove.
– Pull air filter housing upwards out of brackets and remove.

– Push down protective cap in direction of -arrow- from solenoid

switch.

6. Starter B

29
