0.35 mm

Shim thickness S2 =

1.85 mm

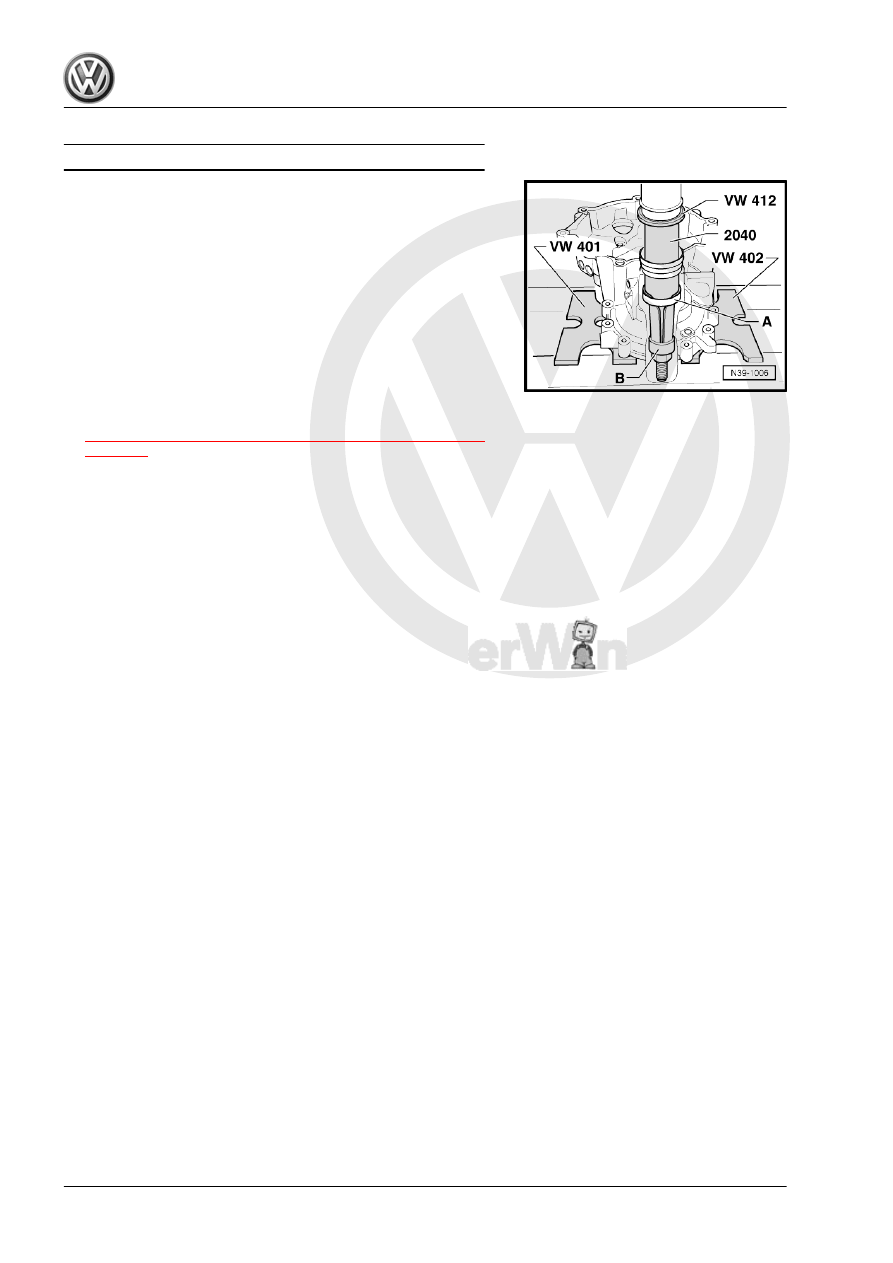

– Remove clutch housing and press out tapered roller bearing

inner race -A-.

B - for example Puller - Kukko Internal - 46-56mm - 21/7-
– Allocate adjustment shim(s) using the Parts Catalog.
Tolerance variations make it possible to find the exact shim thick‐

ness required.
If the measured washer thickness is greater than that listed in

Parts Catalog, two washers that correspond to the measured val‐

ue can be installed.
– Insert the shim S2 (1.85 mm in example) and press tapered

roller bearing inner race into clutch housing again.

– Position clutch housing and tighten bolts to torque. Refer to

⇒ “6.4 Overview - Clutch Housing, Removing and Installing”,

page 115

 .

180

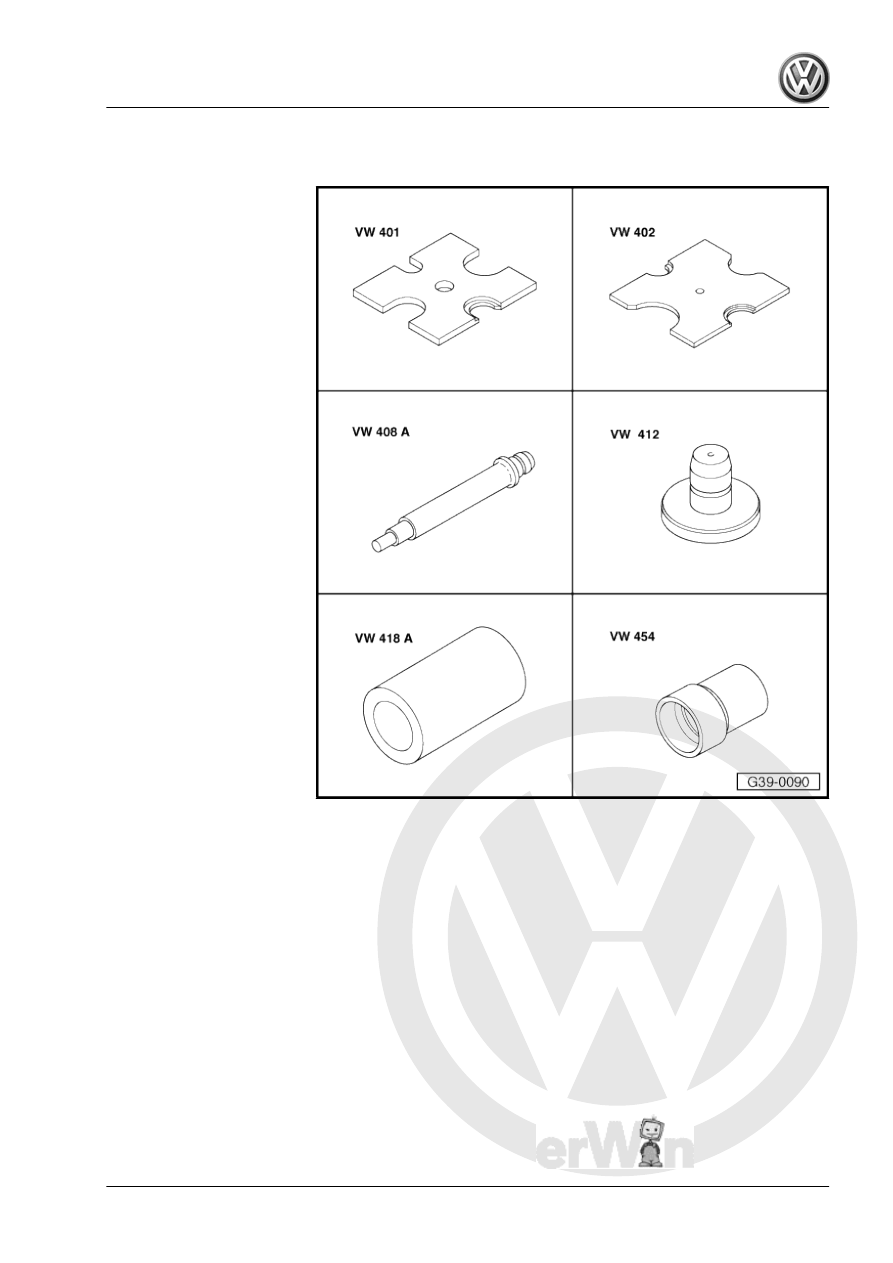

Special Tools

♦ Press Plate - VW401-
♦ Press Plate - VW402-
♦ Punch - VW408A-
♦ Punch - VW412-
♦ Press Piece - 60mm -

VW418A-

♦ Seal Installer - One-Piece

Seal - VW454-

3. Special Tools

181

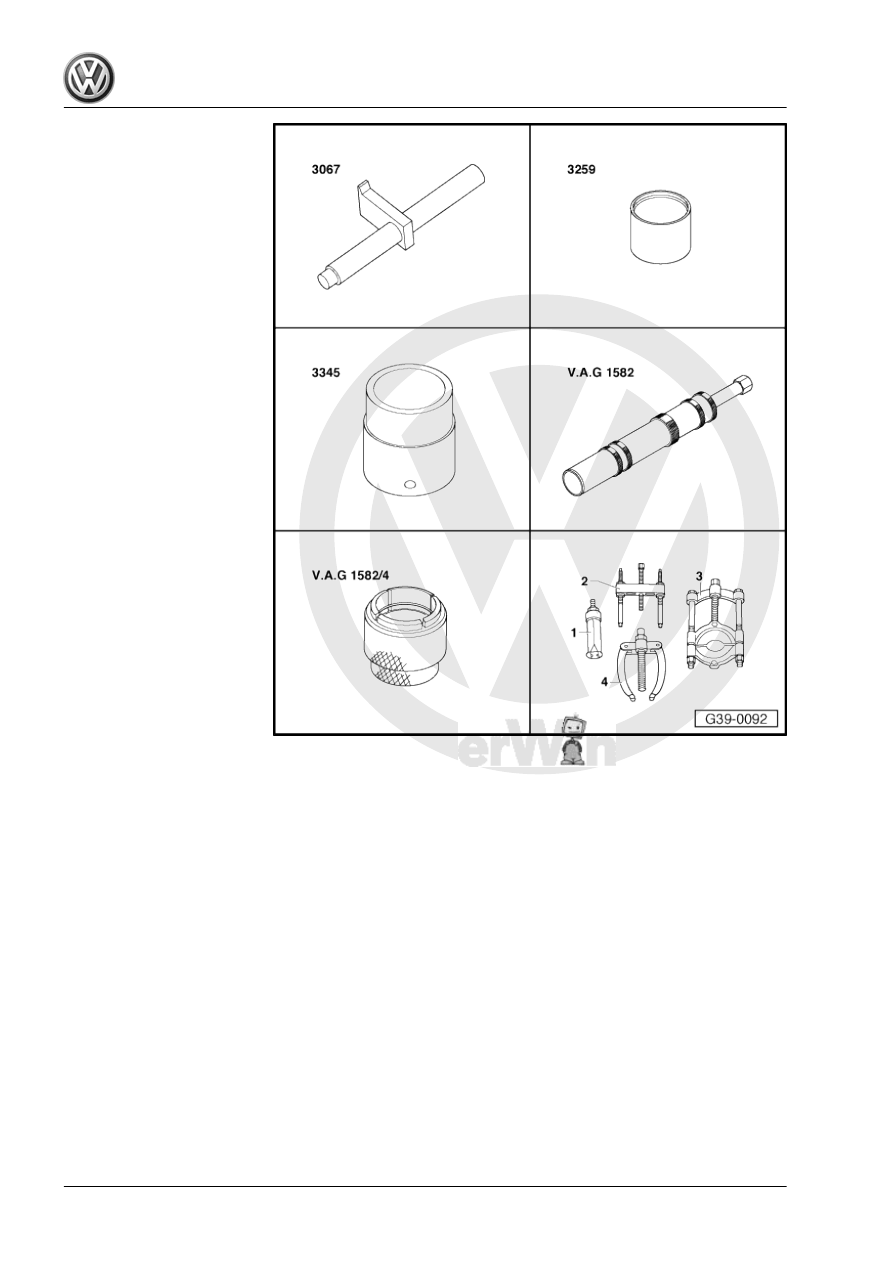

- VAG1582-

♦ Puller - Taper Roller Bear‐

ing - Adapter 4 -

VAG1582/4-

♦ Puller - Kukko Internal -

46-56mm - 21/7-

♦ Puller - Kukko Counterstay

- 22/2-

182

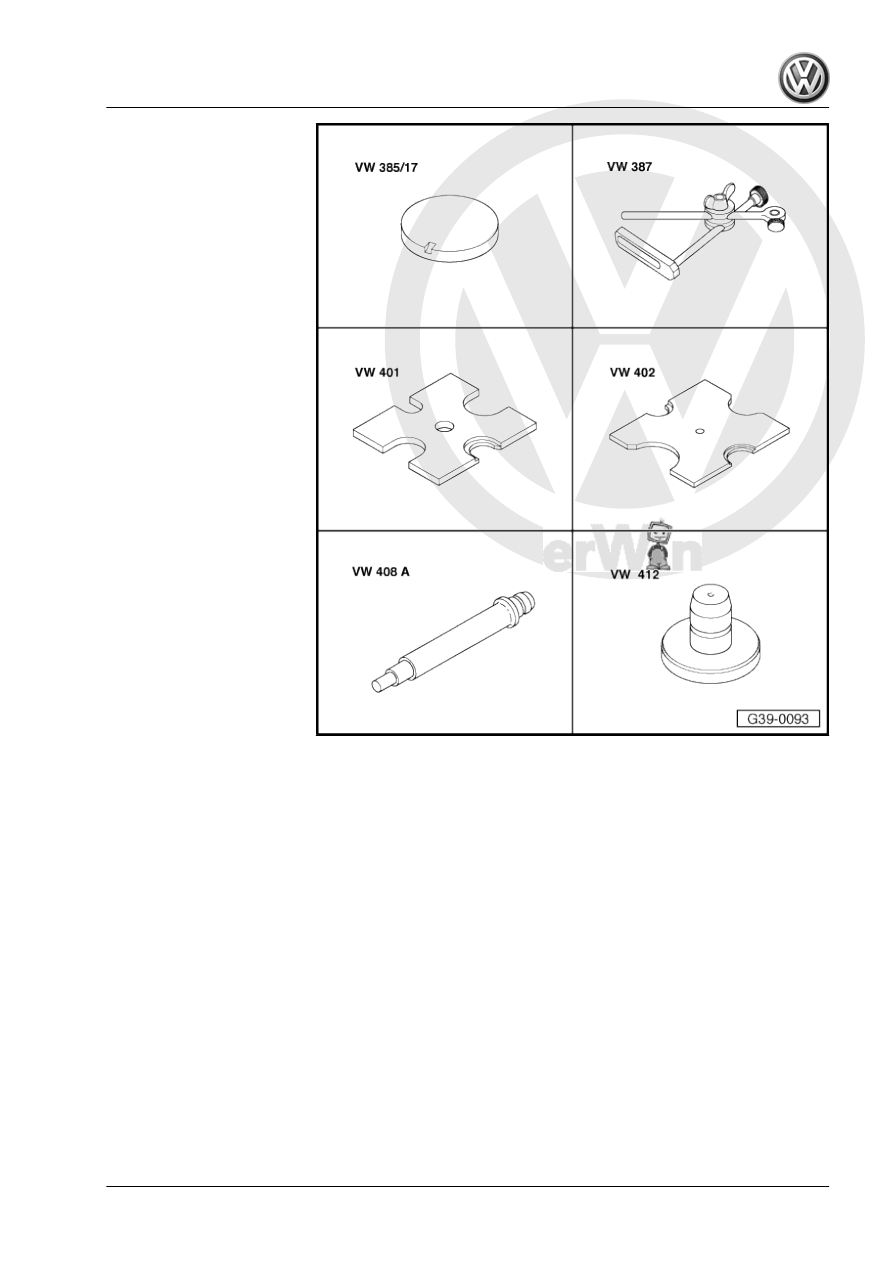

ameter - VW385/17-

♦ Universal Dial Gauge

Mount - VW387-

♦ Press Plate - VW401-
♦ Press Plate - VW402-
♦ Press Piece - Rod -

VW408-

♦ Press Piece - Rod -

VW412-

3. Special Tools

183
