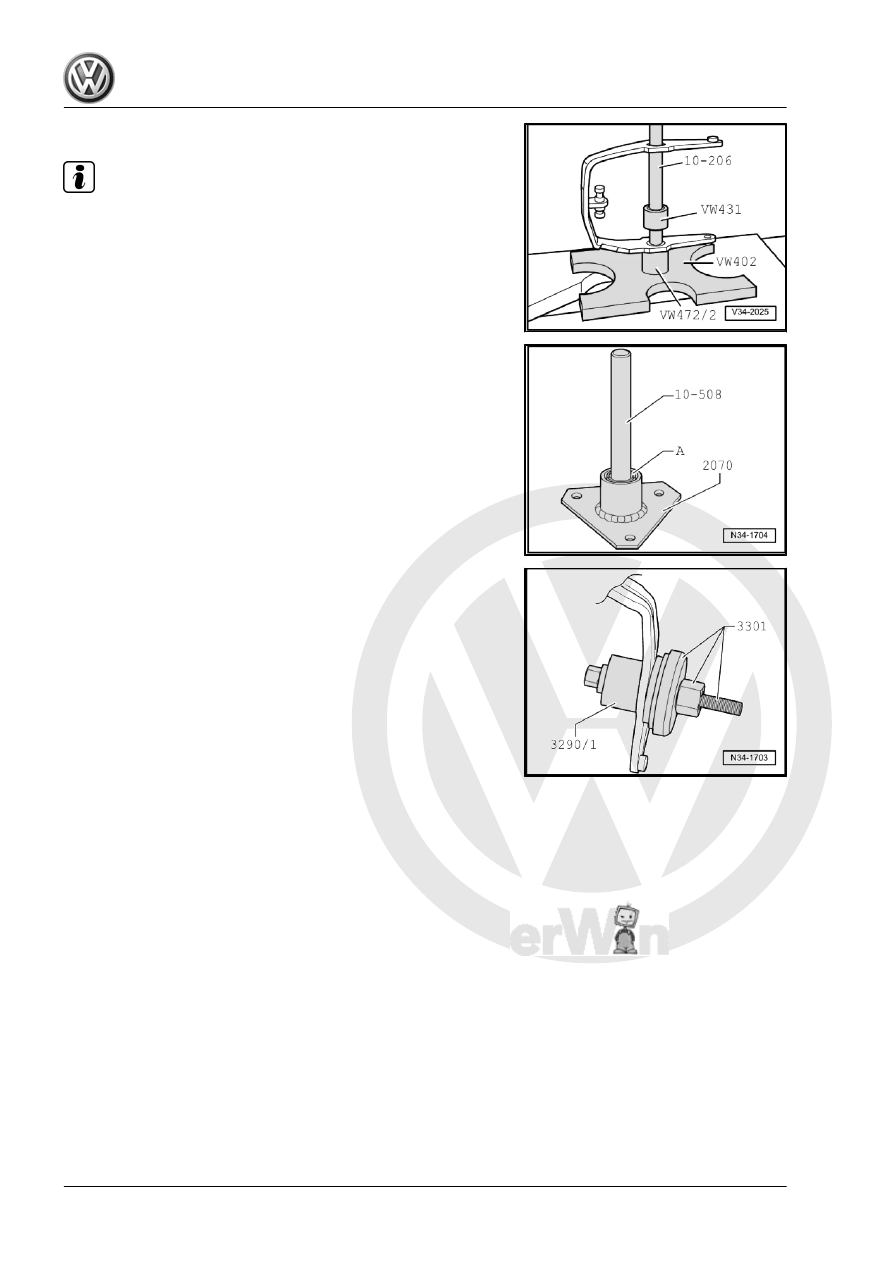

Note

Be careful not to bend the shift forks when removing and installing

the angular contact ball bearing.

Installing the angular contact ball bearing inner race -A- into the

outer race
The bearing inner race must engage with outer race.

Installing the angular contact ball bearing into the shift fork
The recess in the Subframe Support Tool - Press Piece - 3290/1-

point to the ball bearing.

136

Special Tools

Special tools and workshop

equipment required
♦ Centering/Press Pin -

12-551-

♦ Press Piece - Pad - 30-555-
♦ Threaded piece from the

Seal Installer - Driver Set -

3066-

♦ Press Piece - Pivot Mount

Bushing - 3124-

♦ Punch - VW408A-
♦ Spacing Sleeve - VW472/2-

10. Special Tools

137

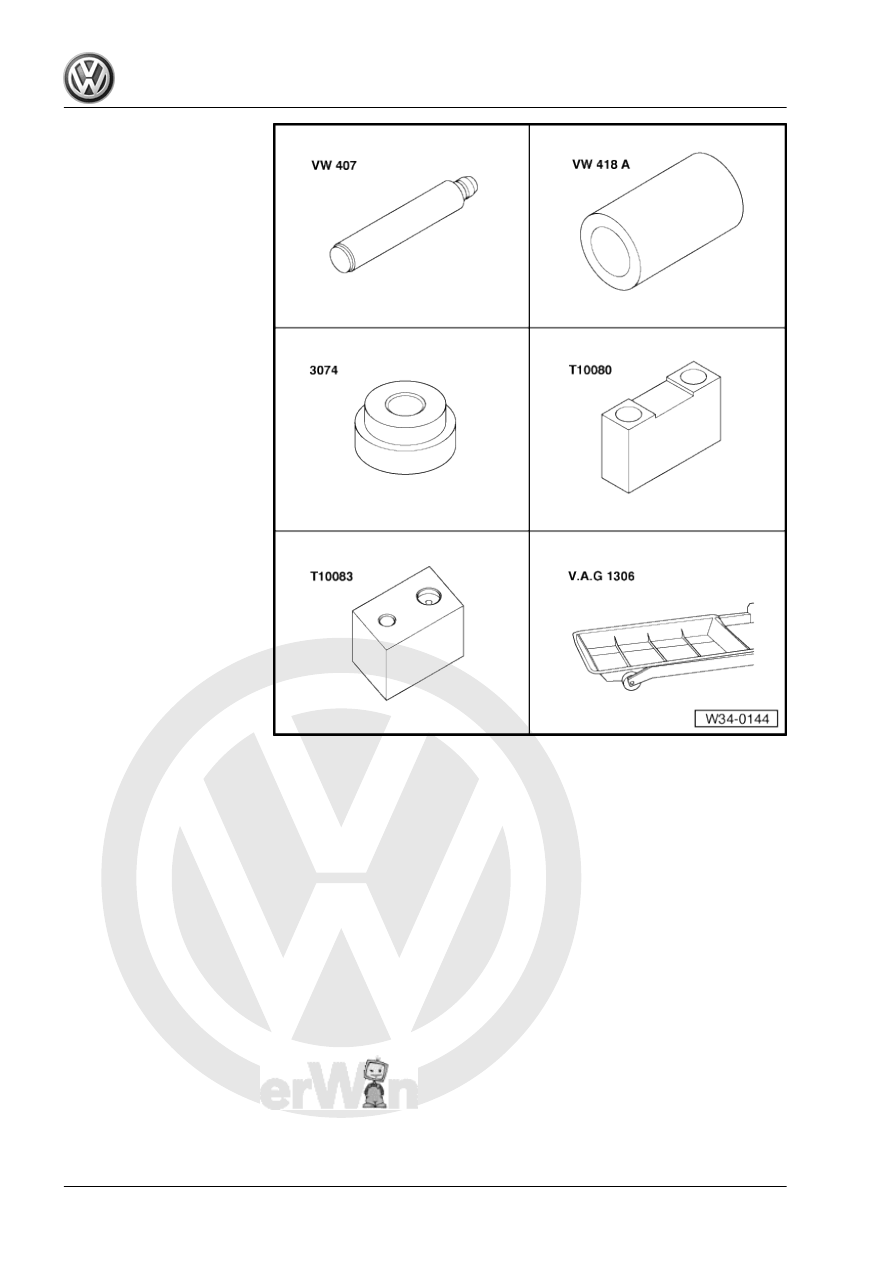

31.5mm - VW418A-

♦ Thrust Pad - 3074-
♦ Press Piece - T10080-
♦ Thrust Block - T10083-
♦ Press Piece - Block - Wash‐

er - T10083/1-

♦ Drip Tray - VAG1306-
♦ Punch - VW407-

138

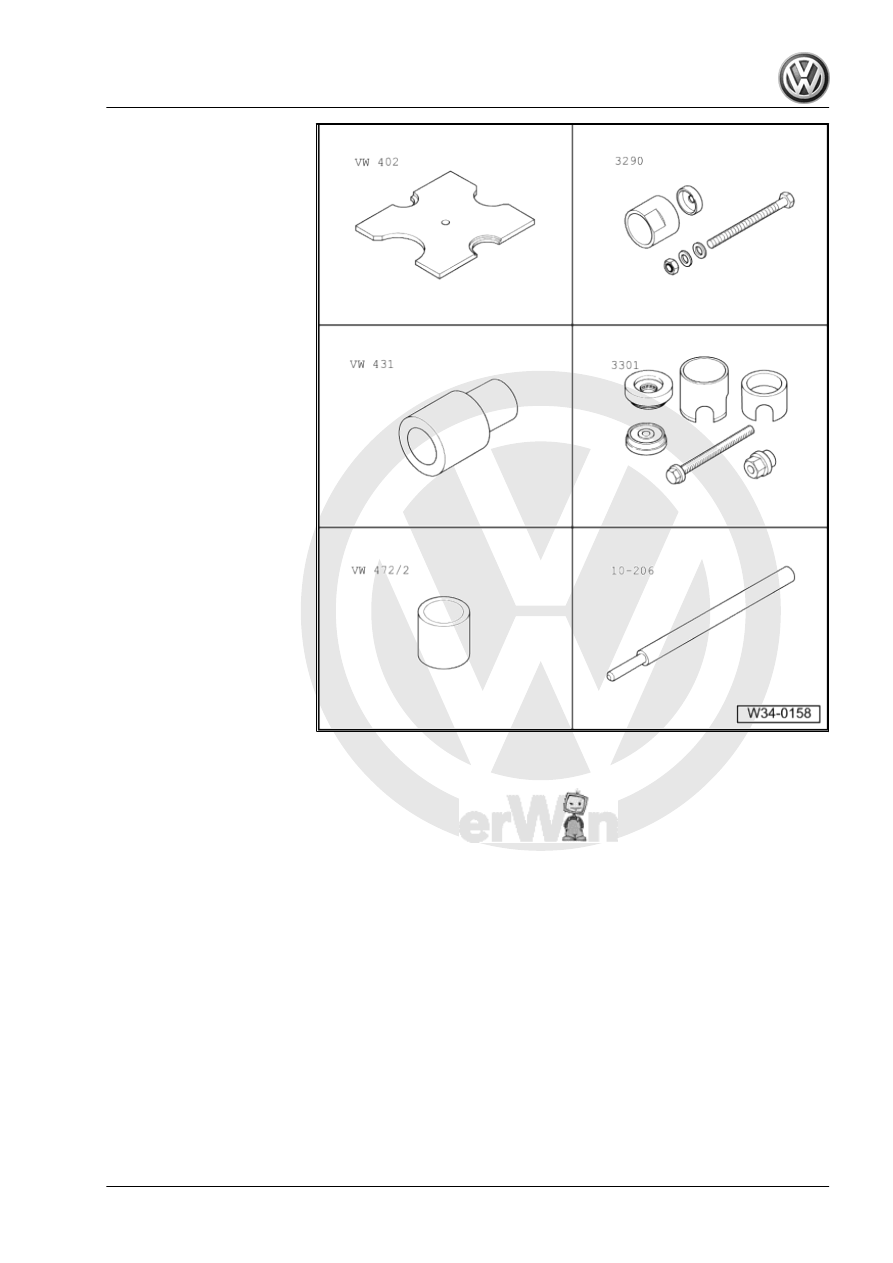

- VW431-

♦ Spacing Sleeve - VW472/2-
♦ Thrust Piece - 3290/1-
♦ Subframe Bushing Tool Kit

- 3301-

♦ Drift - 10-206-

10. Special Tools

139
