Volkswagen Golf Variant / Jetta. Manual - part 496





Tightening Specifications   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

4

Transmission, Transporting   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

5

Transmission Fluid, Checking   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

6

Transmission, Disassembling and Assembling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

6.1

Transmission Overview   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

6.2

Overview   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

6.3

Overview - Transmission Housing Cover and 5th Gear, Removing and Installing   . . . . . . . . 114

6.4

Overview - Clutch Housing, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

6.5

Overview - Input Shaft, Output Shaft, Differential Selector Mechanism and Shift Rods,

Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

6.6

Disassembly and Assembly Sequence   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

7

Transmission Housing and Clutch Housing, Servicing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

8

Shift Unit, Servicing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

9

Shift Forks, Disassembling and Assembling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

10

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

35 - Gears, Shafts   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

1

Input Shaft   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

1.1

Input Shaft, Disassembling and Assembling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

2

Output Shaft   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

2.1

Output Shaft, Disassembling and Assembling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

3

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

39 - Final Drive, Differential   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

1

Flange Shaft Seals, Manual Transmission Installed, Replacing   . . . . . . . . . . . . . . . . . . . . 170

1.1

Left Flange Shaft Seal, Replacing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

1.2

Right Flange Shaft Seal, Replacing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

2

Differential   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

2.1

Differential, Disassembling and Assembling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

2.2

Differential, Adjusting   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

2.3

Differential Shim S2, Selecting   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

3

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

4

Revision History   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

ii

    Contents

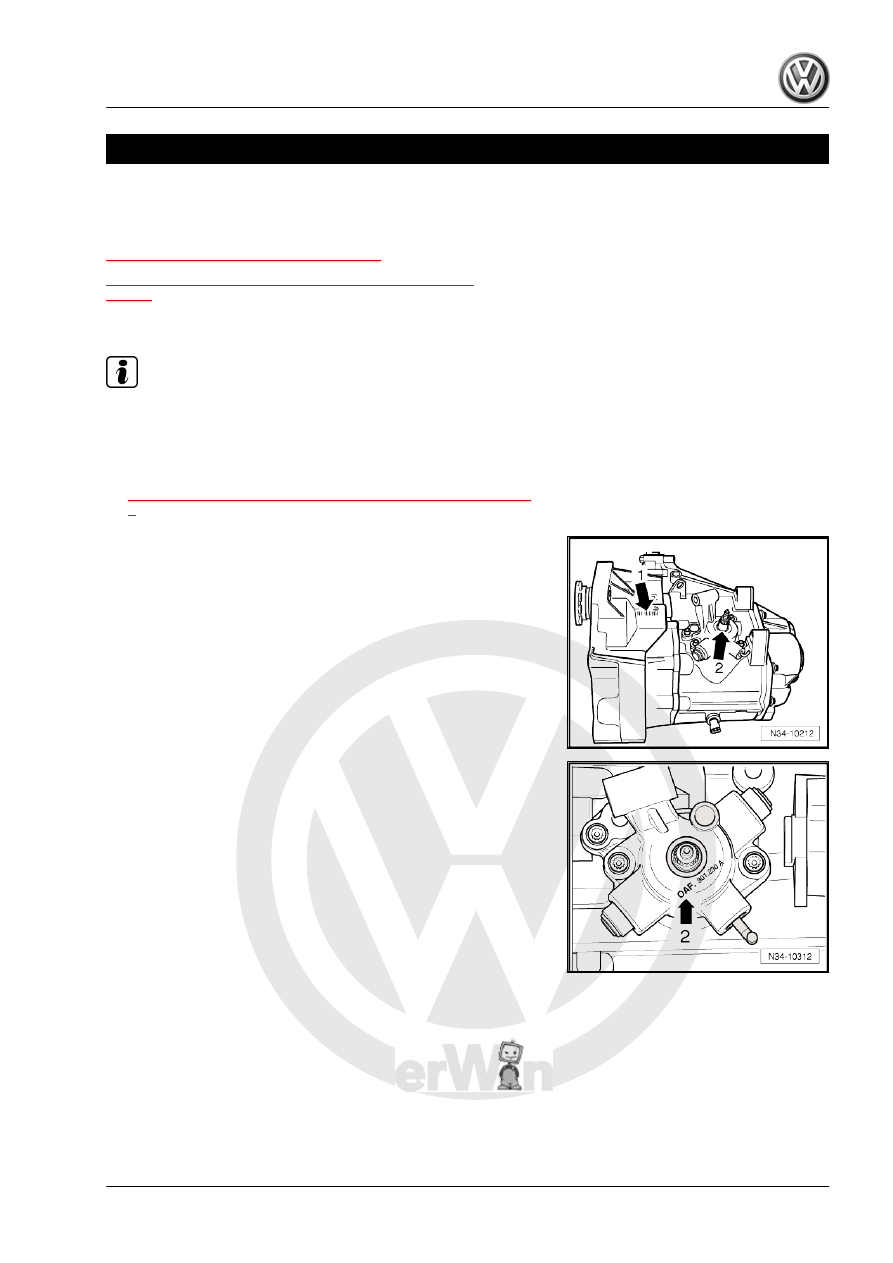

1

Transmission Identification

⇒ “1.1 Location on Transmission”, page 1
⇒ “1.2 Codes, Transmission Allocation and Capacities”,

page 2

1.1

Location on Transmission

Note

The manual transmission 0AF is a 5-speed transmission and

is installed in conjunction with a 4-cylinder engine in the Jetta

from MY 2005, Golf Wagon from MY 2007, Golf Wagon from

MY 2010 and Jetta from MY 2011.

Allocation. Refer to

⇒ “1.2 Codes, Transmission Allocation and Capacities”, page

2

 .

Codes and the production date -arrow 1-, manual transmission

0AF -arrow 2-

Manual Transmission 0AF -arrow 2-

1. Transmission Identification

1

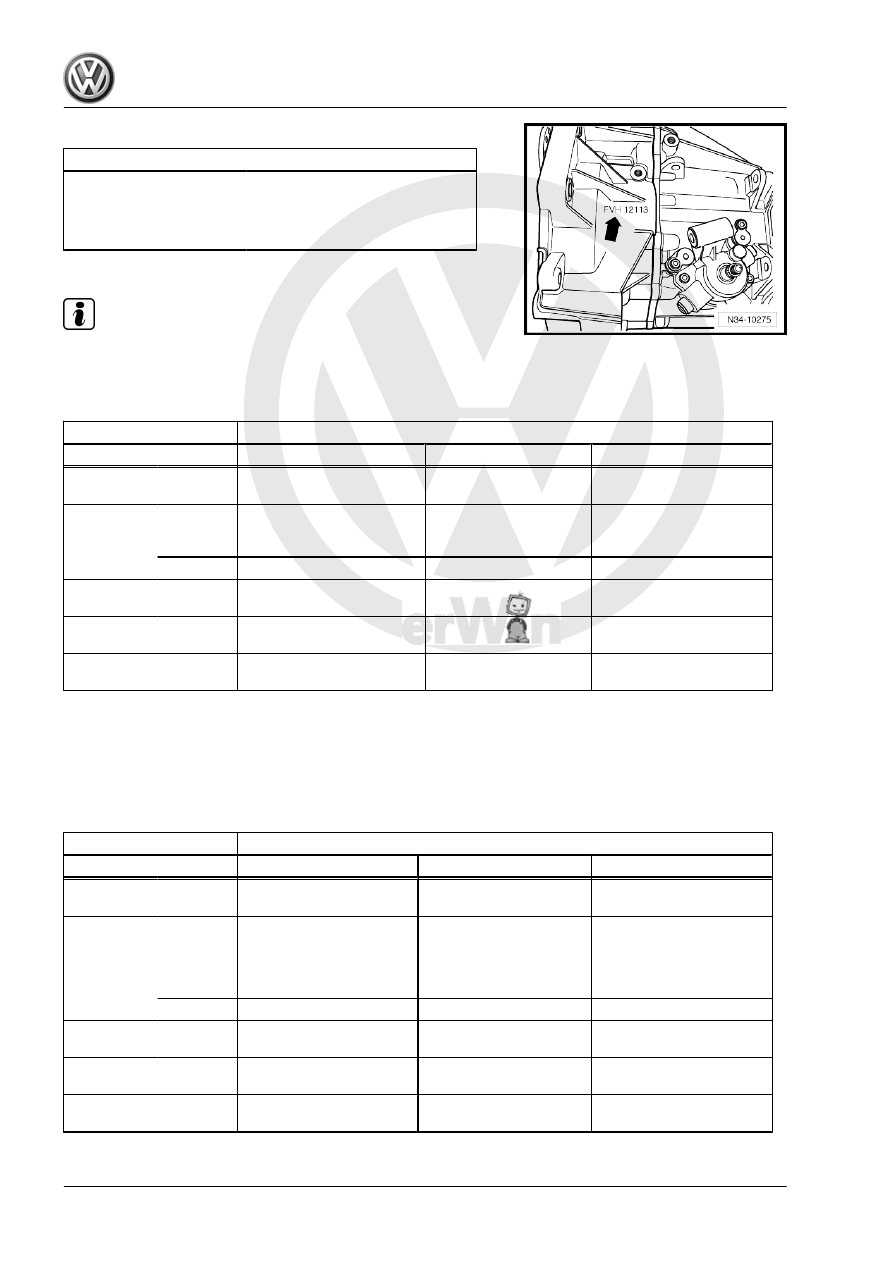

Example:

FVH

12

11

3



I

I

I

I



I

I

I

I



Codes

Day

Month Year (2003) of

manufacture

Additional data and information is provided by the factory.

Note

The transmission code is also listed on the vehicle data label.

1.2

Codes, Transmission Allocation and Capacities

Manual Transmission

5-speed 0AF

Codes

FVH

JHT

JHU

Manufac‐

tured

from

through

05/2005

11/2006

03/2009

Allocation

Type

Jetta from MY 2005

Golf Wagon from MY 2007

Jetta from MY 2005

Golf Wagon from MY

2007

Jetta from MY 2005

Golf Wagon from MY 2007

Golf Wagon from MY 2010



Engine

1.6L - 75 kW

1.6L - 75 kW

1.4L - 59 kW

Ratio

Z1 : Z2

Final Drive

68 : 15 = 4.533

68 : 15 = 4.533

68 : 15 = 4.533

Manual Transmission

Capacity

Refer to ⇒  Fluid Capacity

Tables; Rep. Gr.  03

Refer to ⇒  Fluid Capaci‐

ty Tables; Rep. Gr.  03

Refer to ⇒  Fluid Capacity

Tables; Rep. Gr.  03

Drive Axle Flange Diam‐

eter

100 mm

100 mm

90 mm

Refer to the Parts Catalog for the following information:
♦ The individual gear ratios
♦ Transmission fluid
♦ Clutch allocation

Manual Transmission

5-speed 0AF

Codes

LEG

LVN

LDZ

Manufac‐

tured

from

through

06/2009

05/2009

06/2010

Allocation

Type

Jetta from MY 2005

Golf Wagon from MY 2007

Golf Wagon from MY 2010

Jetta from MY 2005

Golf Wagon from MY

2007

Golf Wagon from MY

2010

Jetta from MY 2011



Engine

1.4L - 59 kW

1.6L - 75 kW

2.0L - 85 kW

Ratio

Z1 : Z2

Final Drive

61 : 14 = 4.357

68 : 15 = 4.533

59 : 15 = 3.933

Manual Transmission

Capacity

Refer to ⇒  Fluid Capacity

Tables; Rep. Gr.  03

Refer to ⇒  Fluid Capacity

Tables; Rep. Gr.  03

Refer to ⇒  Fluid Capacity

Tables; Rep. Gr.  03

Drive Axle Flange Diam‐

eter

90 mm

100 mm

100 mm

Refer to the Parts Catalog for the following information:

2

Manual Transmission

5-speed 0AF

Codes

NNL



Manufac‐

tured

from

through

12/2011



Allocation

Type

Jetta from MY 2011





Engine

1.6L - 77 kW





Ratio

Z1 : Z2

Final Drive

61 : 14 = 4.357



Manual Transmission

Capacity

Refer to ⇒  Fluid Capacity

Tables; Rep. Gr.  03





Drive Axle Flange Diam‐

eter

100 mm





Refer to the Parts Catalog for the following information:
♦ The individual gear ratios
♦ Transmission fluid
♦ Clutch allocation

1. Transmission Identification

3
