3185-

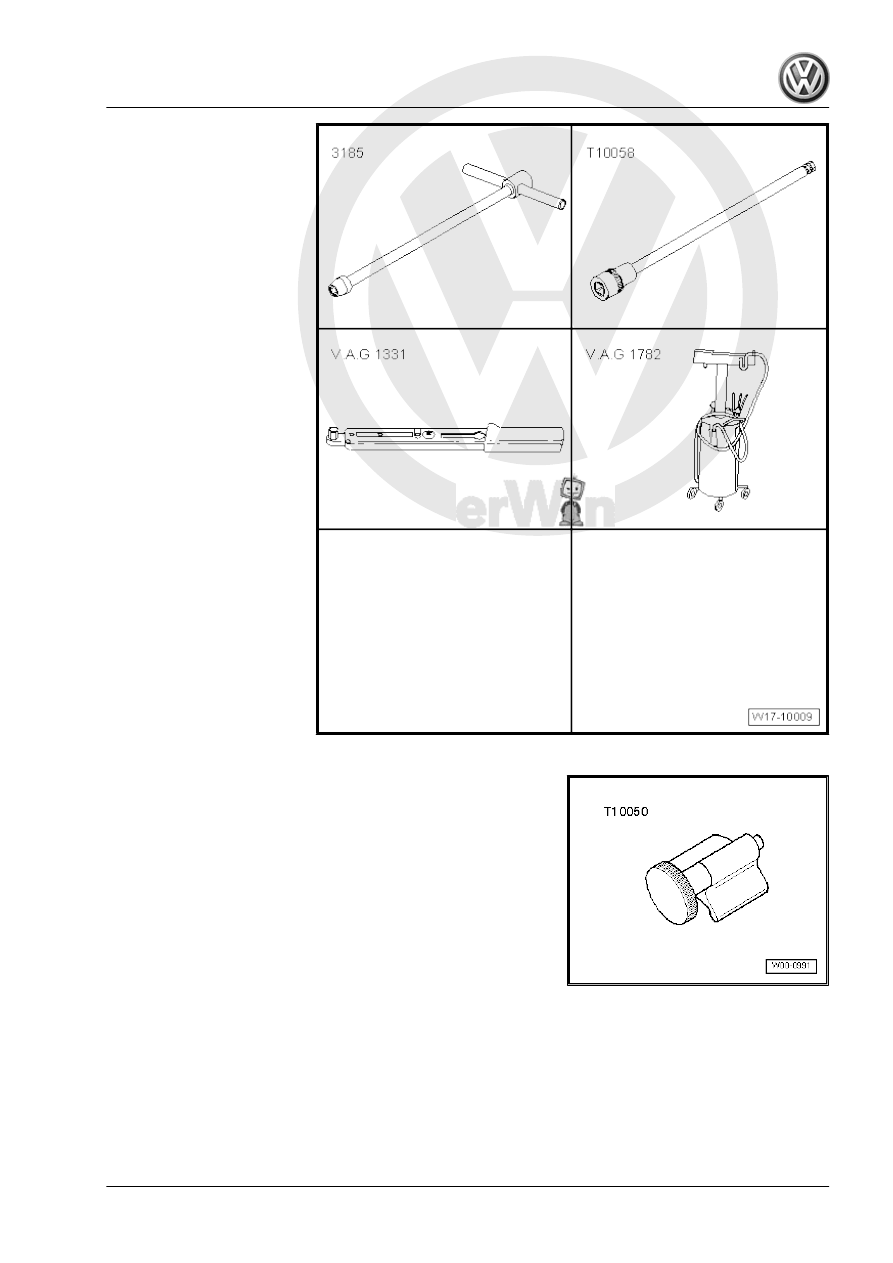

♦ Hex Ball Socket - T10058-
♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Used Oil Collection And Ex‐

traction Unit - SMN372500-

♦ Crankshaft Stop - T10050-

5. Special Tools

187

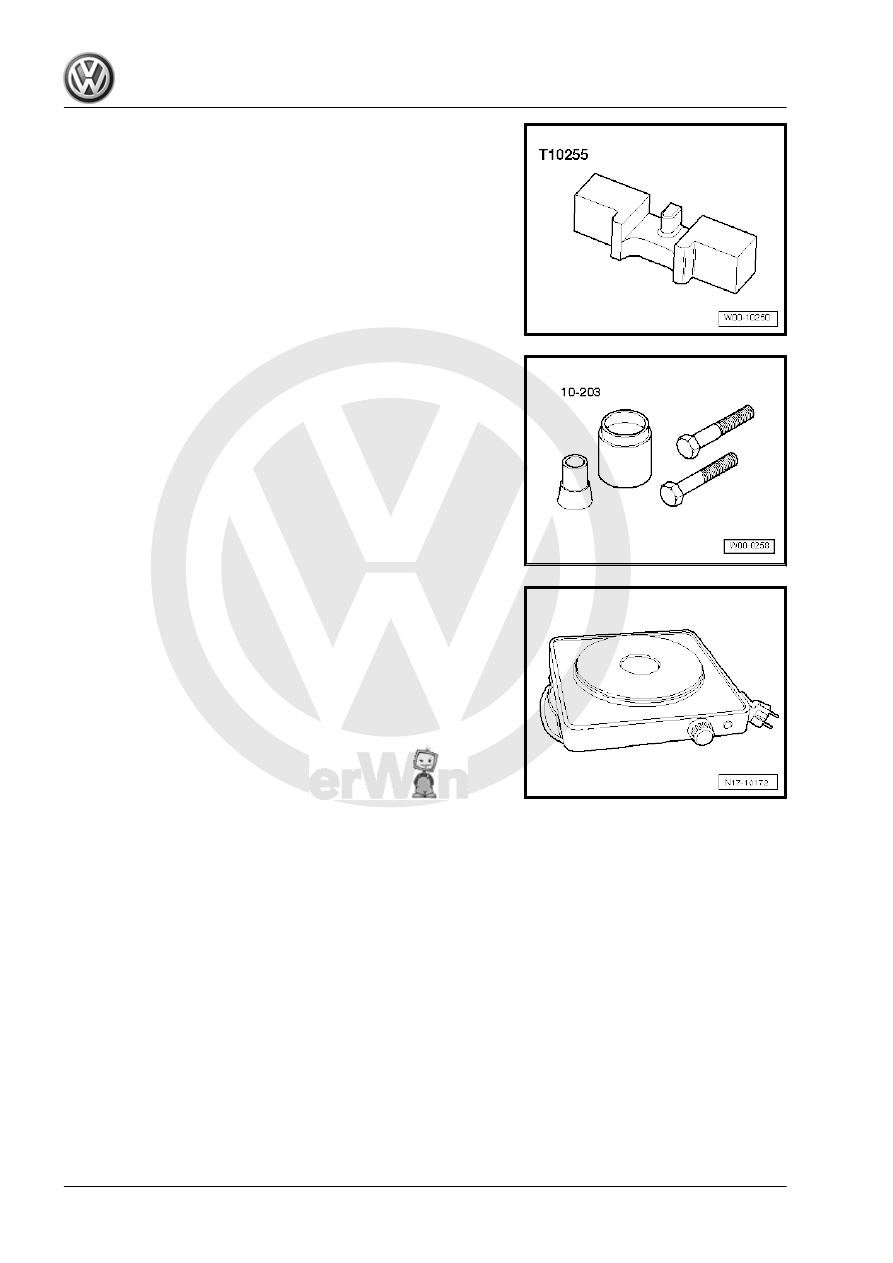

♦ Seal Installer - Crankshaft/Camshaft - 10-203-

♦ Commercially available hotplate

♦ Not illustrated:
♦ Puller - Spur Gear - T10392-
♦ Puller - Spur Gear - Thrust Piece - T10392/1-
♦ Digital Thermometer - VAS6519-
♦ Elbow Assembly Tool - T10118-

188

1

Cooling System Components

DANGER!

Risk of scalding due to hot steam and hot coolant:

♦ The cooling system is under pressure when the engine is

warm.

♦ Wear protective eyewear and protective clothing to pre‐

vent eye injury and scalding.

♦ Reduce the pressure by covering the coolant reservoir cap

with a cloth and carefully opening.

WARNING

When doing any assembly work, especially in the engine com‐

partment,  pay  attention  to  the  following  due  to  the  limited

space.

♦ Route all lines and wires in their original locations.
♦ For example, for fuel lines, hydraulic lines, EVAP system

lines, coolant and refrigerant lines, brake fluid lines and

vacuum lines.

♦ Make sure that there is sufficient clearance to all moving

or hot components.

Note

Secure all hose connections with hose clamps appropriate to

the model. Refer to the Parts Catalog.

Hoses are secured with spring clips. If a repair is required only

use spring clips.

Hose Clip Pliers - VAS6362- or the Hose Clip Pliers -

VAS6340- are recommended for installing spring clips.

When installing coolant hoses without tension, make sure they

do not come into contact with other components (observe the

marks on the coolant connections and hoses).

1. Cooling System Components

189
