⇒ “2.4 Sealing Flange, Removing and Installing, Belt Pulley

Side”, page 64

 .

– Remove the balance shaft assembly. Refer to

⇒ “2.4 Balance Shaft Assembly, Removing and Installing”,

page 159

 .

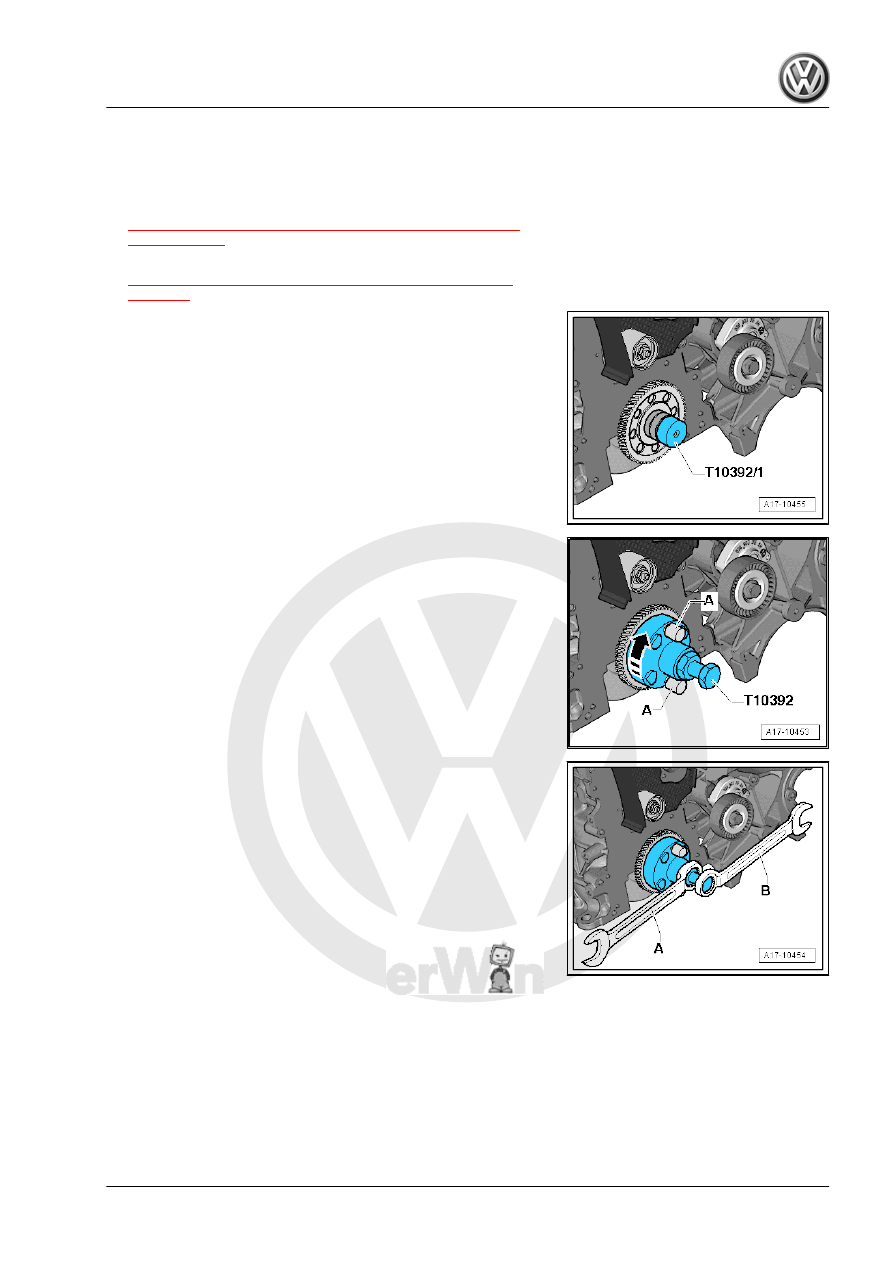

– Insert the Puller - Spur Gear - Press Piece 1 - T10392/1- into

the crankshaft journal.

– Insert the Puller - Spur Gear - T10392- into the holes in the

spur gear and turn it clockwise in direction of -arrow-, then in‐

stall the locating pin -A-.

– Counterhold the crankshaft with a wrench -A-. Remove the

spur gear by installing the spindle with the wrench -B- or ratch‐

et.

2. Lubrication System Components, Engine Code CBEA

167

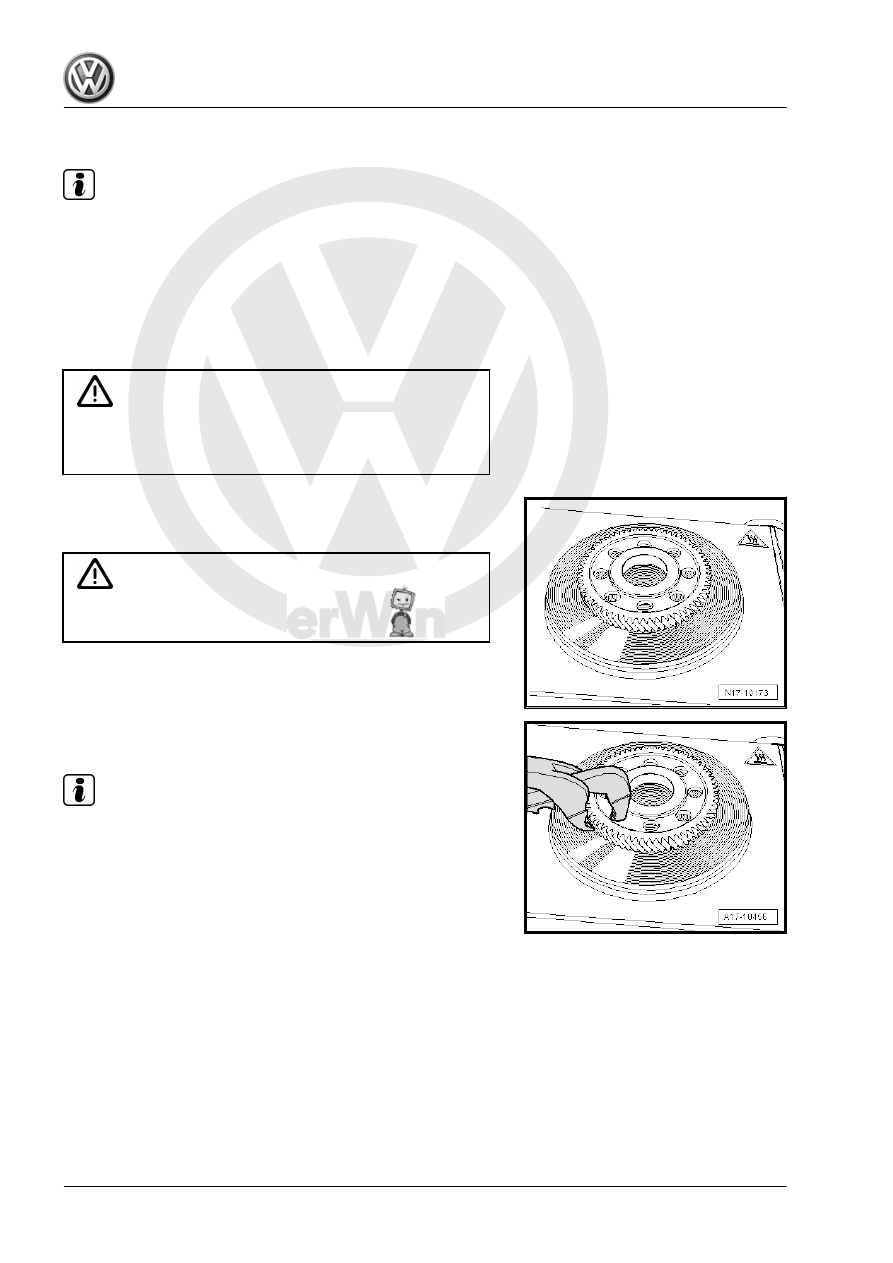

New Spur Gear, Shrink-Fitting

Note

Check the temperature with the Digital Thermometer -

VAS6519- when heating up the new spur gear.

When the temperature reaches 200 ℃ (392 °F), there are

about four seconds to position the spur gear on the crankshaft.

A higher temperature increases the amount of time available

for positioning (220 ℃ (428 °F) = approximately six seconds).

Make sure the crankshaft journal is clean.

Caution

Do not exceed the maximum temperature of 240 ºC (464 °F).

Otherwise the spur gear will discolor and possibly become dis‐

torted.

– Lay the entire surface of the new spur gear on a commercially

available hot plate and heat it to at least 200 ºC (392 °F), max‐

imum 240 ºC (464 °F). The lettering faces upward.

WARNING

There is a risk of burns. Wear suitable safety gloves during the

rest of the procedure.

– After the temperature is reached, remove the spur gear from

the pliers as shown.

Note

Make sure the splines on the spur gear are not damaged.

168

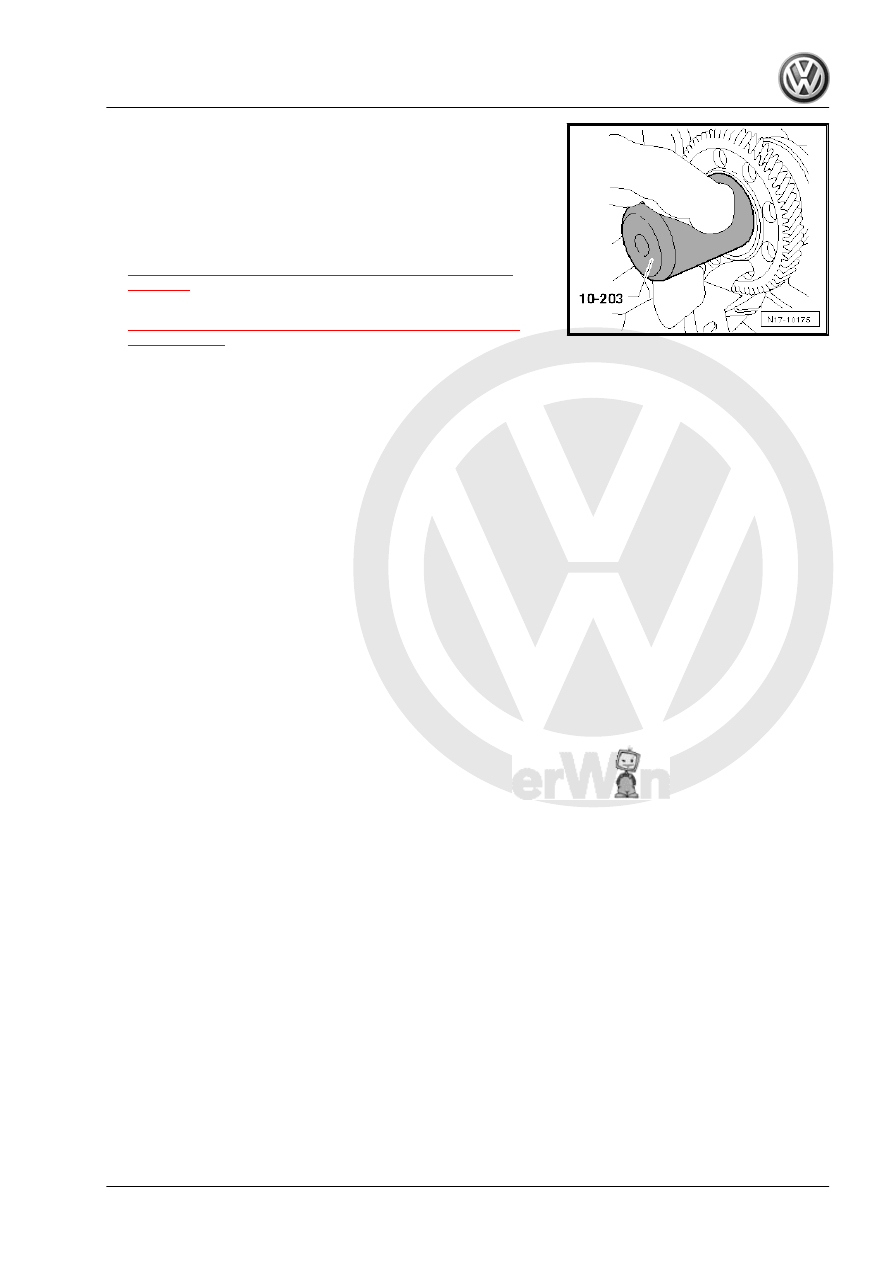

the way by hand. Use the Seal Installer - Crankshaft/Camshaft

- 10-203- for assistance and do not tilt the gear.

– Let the spur gear cool a few minutes.
The rest of the installation is performed in reverse order of re‐

moval, while doing so pay attention to the following:
– Install the balance shaft assembly. Refer to

⇒ “2.4 Balance Shaft Assembly, Removing and Installing”,

page 159

 .

– Install the belt pulley side sealing flange. Refer to

⇒ “2.4 Sealing Flange, Removing and Installing, Belt Pulley

Side”, page 64

 .

2. Lubrication System Components, Engine Code CBEA

169

Lubrication System Components,

Engine Code CJAA

⇒ “3.1 Overview - Oil Pump and Oil Pan”, page 170
⇒ “3.2 Oil Pan, Removing and Installing”, page 172
⇒ “3.3 Oil Pump, Removing and Installing”, page 175

Caution

If large quantities of metal shavings or abraded material are

detected during engine repairs, it may mean the crankshaft or

connecting rod bearings are damaged. To prevent subsequent

damage, perform the following steps after the repair:

♦ Clean the oil channels carefully
♦ Replace the oil spray jets
♦ Replace the oil cooler
♦ Replace the oil filter.

3.1

Overview - Oil Pump and Oil Pan

“Pay attention to the warnings”. Refer to

⇒ page 170

 .

Oil spray nozzle and pressure relief valve. Refer to

⇒ Fig. ““Oil Spray Jet and Pressure Relief Valve”“ , page 172

 .
