4

EGR System, Engine Codes CBDA, CBDB and CEGA   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 403

4.1

Overview - Exhaust Gas Recirculation System Components   . . . . . . . . . . . . . . . . . . . . . . 403

5

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405

28 - Ignition/Glow Plug System   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

1

Glow Plugs   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

1.1

General Information   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

1.2

Glow Plug, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408

1.3

Glow Plug Connectors, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

2

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

3

Revision History   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 414

Contents

v

vi

    Contents

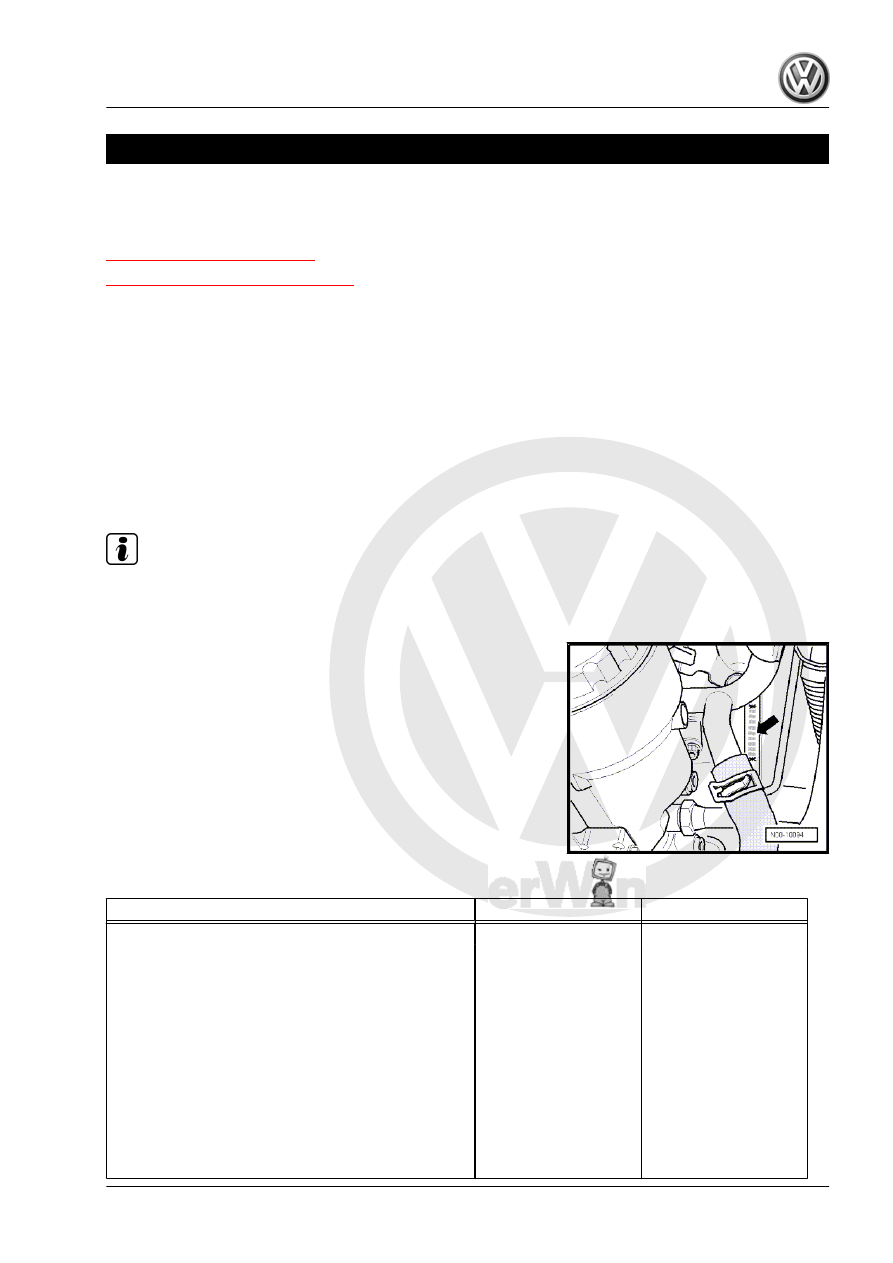

1

Technical Data

⇒ “1.1 Engine Number”, page 1

 .

⇒ “1.2 Engine Specifications”, page 1

 .

1.1

Engine Number

♦ Four-letter engine codes were introduced in MY 2008.
♦ The first three positions describe the mechanical engine struc‐

ture. They are stamped on the engine. The fourth position

describes the engine output and depends on the Engine Con‐

trol Module - J623- .

♦ The four-letter engine code is on the type label, the vehicle

data label and the Engine Control Module - J623- .

♦ The vehicle data label is located in both the customer main‐

tenance schedule and on the vehicle rear in the spare tire well

or on the luggage compartment floor.

Note

Vehicles for some countries do not have a type label. Vehicle data

label and type label locations. Refer to ⇒ Maintenance ; Booklet

20.1 .

♦ The engine number (“engine code” and “serial number”) are

located at the engine/transmission joint -arrow-.

♦ A sticker with the “engine code” and “serial number” is also on

the toothed belt guard.

♦ The engine number consists of up to nine characters (alpha‐

numeric).

♦ The first part (maximum four letters) represents the “engine

code”, the second part (six digit) is the “serial number”.

♦ If more than 999,999 engines with the same engine code are

produced, the first of the six characters is replaced with a letter.

1.2

Engine Specifications

Codes

CBEA

CJAA

Manufactured

from 04/2008

from 05/2009

Emissions values

in accordance with

LEV II standard

ULEV2 Standard

Displacement

liters

2.0

2.0

Output

kW at RPM

103/4000

103/4000

Torque

Nm at RPM

320/1750 to 2500

320/1750 to 2500

Bore

Diameter in mm

81.0

81.0

Stroke

mm

95.5

95.5

Valves per cylinder

4

4

Compression ratio

16.5

16.5

Diesel fuel

in accordance with ASTM D 975 Standard

1)

ASTM D 975 Standard

1)

Ignition sequence



1-3-4-2

1-3-4-2

Balance Shaft Assembly

yes

no

1. Technical Data

1

CBEA

CJAA

NOx Reduction Catalytic Converter

yes

yes

Slip Catalyst

yes

yes

Exhaust Gas Recirculation (EGR)

yes

yes

Turbocharger, Supercharger

yes

yes

Charge Air Cooler

yes

yes

Particulate Filter

yes

yes

1) with a sulfur content less than 15 mg/kg of diesel fuel
