Volkswagen Golf Variant / Jetta. Manual - part 316





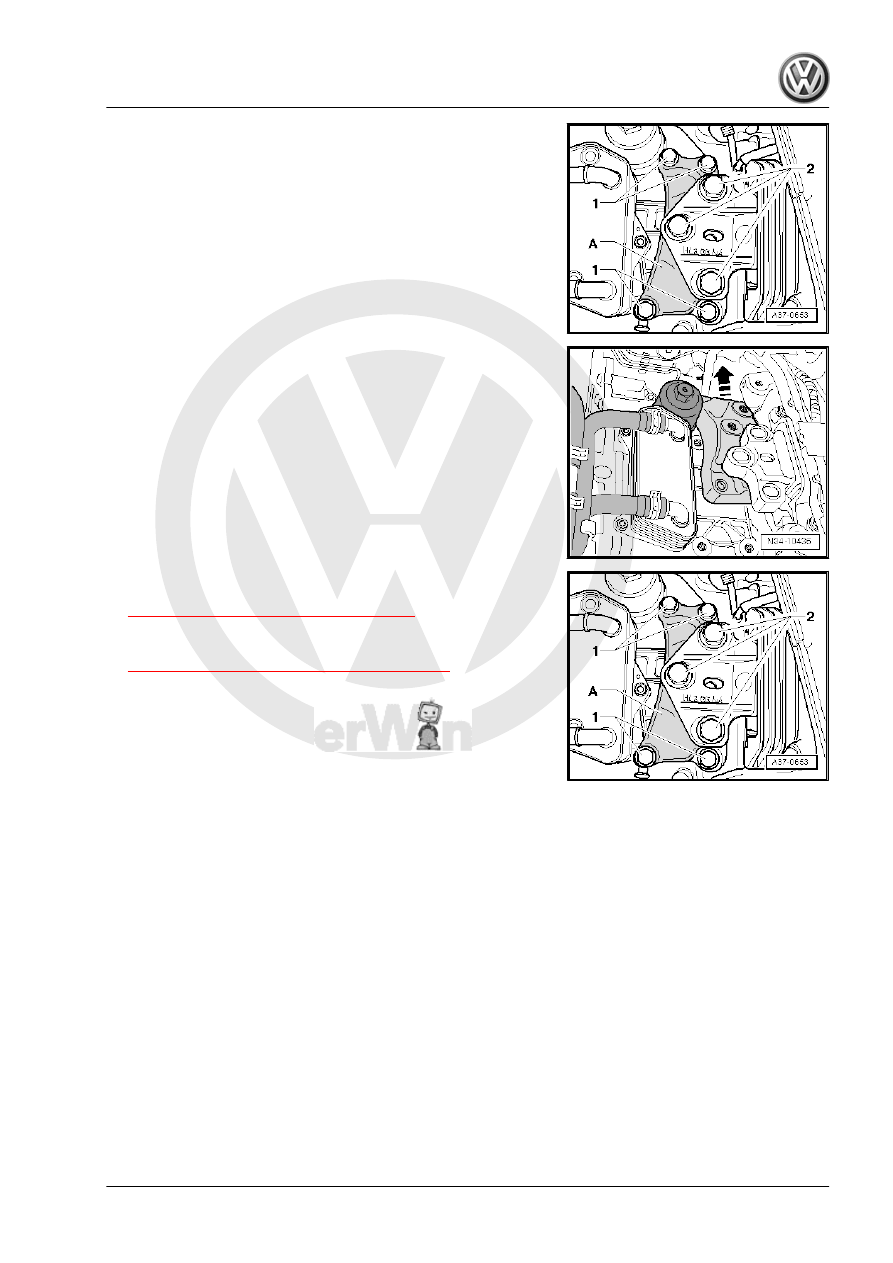

-A-.

The bolts must be replaced.
– Then slightly lower the engine/transmission using the Engine

Support Bridge - 10-222A- spindles until the transmission

bracket can be removed.

In most cases two turns on the spindle are enough to remove the

bracket in direction of -arrow-.
After reading the transmission code, re-assemble in reverse order

of removal.
– Follow all the instructions.
– Replace all the bolts from the left subframe mount.
– Install all new bolts first by hand.

– Attach the transmission bracket -A- to the transmission using

the bolts -1 and 2-. Refer to

⇒ “6.3 Tightening Specifications”, page 100

 .

– After installing the transmission bracket, always adjust the se‐

lector lever cable. Refer to

⇒ “5.6 Selector Lever Cable, Adjusting”, page 80

 .

3. Transmission Identification

11

Engine Codes - Engine Allocation

⇒ “4.1 Codes”, page 12

4.1

Codes

If original parts are needed for a repair, always pay attention to

the transmission codes.

DSG Transmission 02E



JBT, JPS, KDC,

KNF, KPY, KVV,

LRC

GPW, GYQ, HLH,

HQH, HQQ, HQN,

HXU, JPL, KCW,

KMZ, KPQ, LQS,

MKJ, MLW

HBP, HFQ, HLE,

HQF, HQL, HXS,

JPJ, KCU, KMW,

KMX, KPS, KQC,

LQT, LTD, LQV,

LTE, MFL, MFM,

MSU, MSV, NJK,

NLP, PBF, PPY

HBQ, HRW,

HUS, HUT, HXW,

JPP, KCZ, KNC,

KPV, LQZ, LTL,

MMA, MSX,

MSY, NJL, NJM,

NLQ, NVW, PBG,

PPZ, PQL



1.4L - 103 kW TSI

1.4L - 125 kW TSI

1.9L - 74 kW TDI

1.9L - 77 kW TDI

2.0L - 100 kW TDI

2.0L - 103 kW TDI

2.0L - 125 kW TDI

2.0L - 147 kW

TFSI

installed in

Golf Wagon from MY 2007, Golf Wagon from MY 2010, Jetta from MY 2005 and

Jetta from MY 2011

For the following data. Refer to the Parts Catalog.
♦ The individual gear ratios
♦ Transmission fluid
♦ Clutch allocation

12

Capacity

Capacities

DSG Transmission 02E

Refill

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Change

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Change after removing and installing the

Mechatronic with the transmission installed

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Grease

Transmission fluid for DSG

®

 transmission 02E. Refer to the

Parts Catalog .

5. Capacity

13

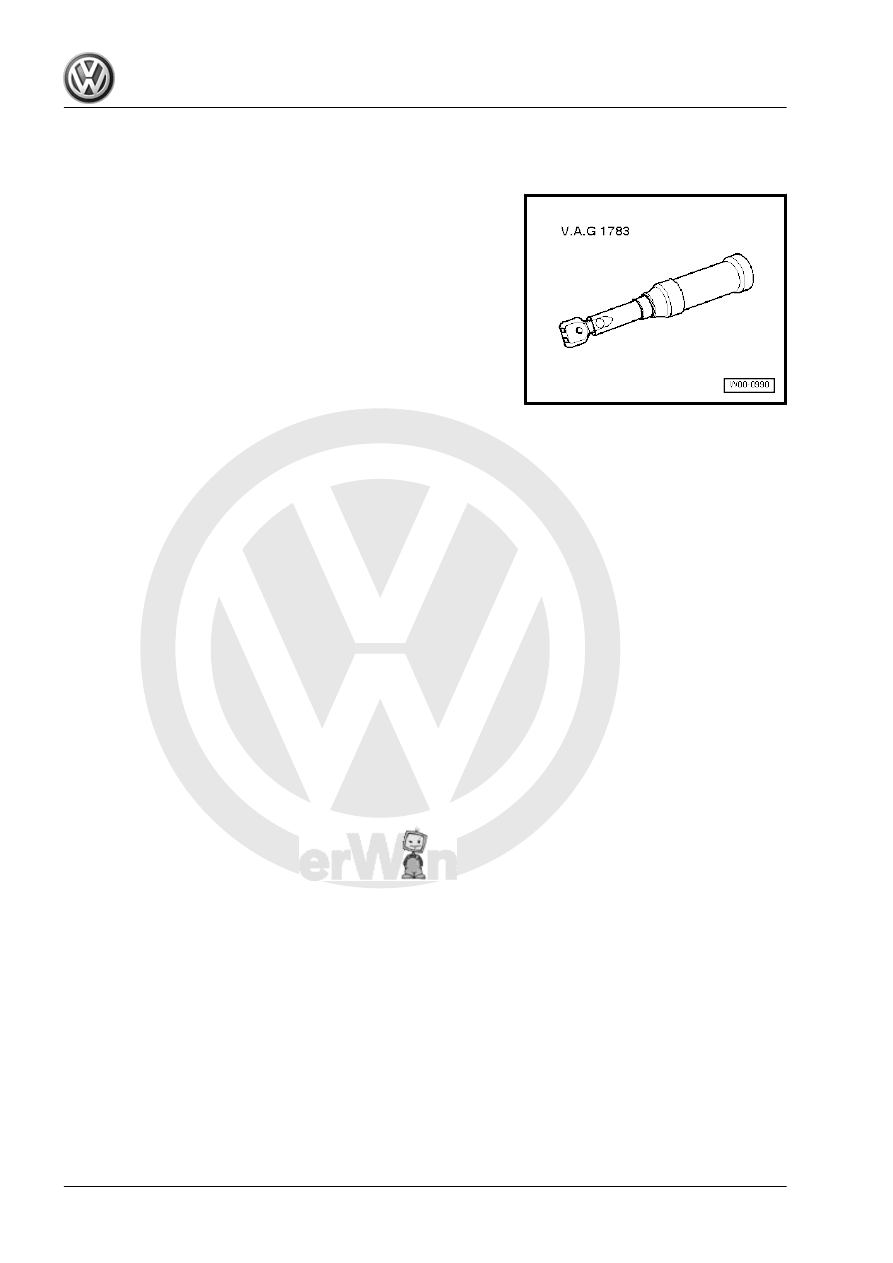

Special Tools

Special tools and workshop equipment required
♦ Torque Wrench 2-10Nm - VAG1783-

14
