Volkswagen Golf Variant / Jetta. Manual - part 283





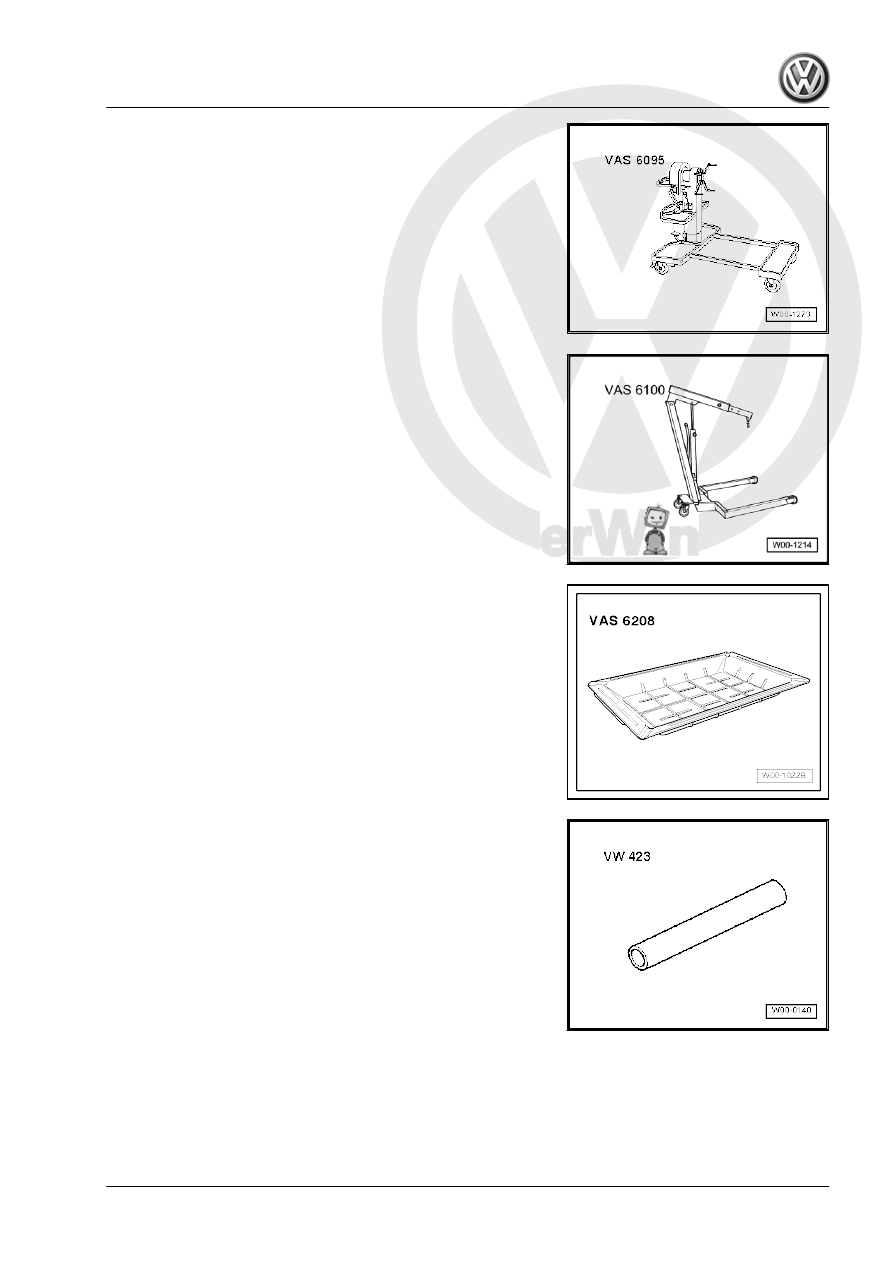

♦ Shop Crane - VAS6100-

♦ Drip Tray for VAS6100 - VAS6208-

♦ Press Piece - Shift Rod/Alternator - VW423-

17. Special Tools

307

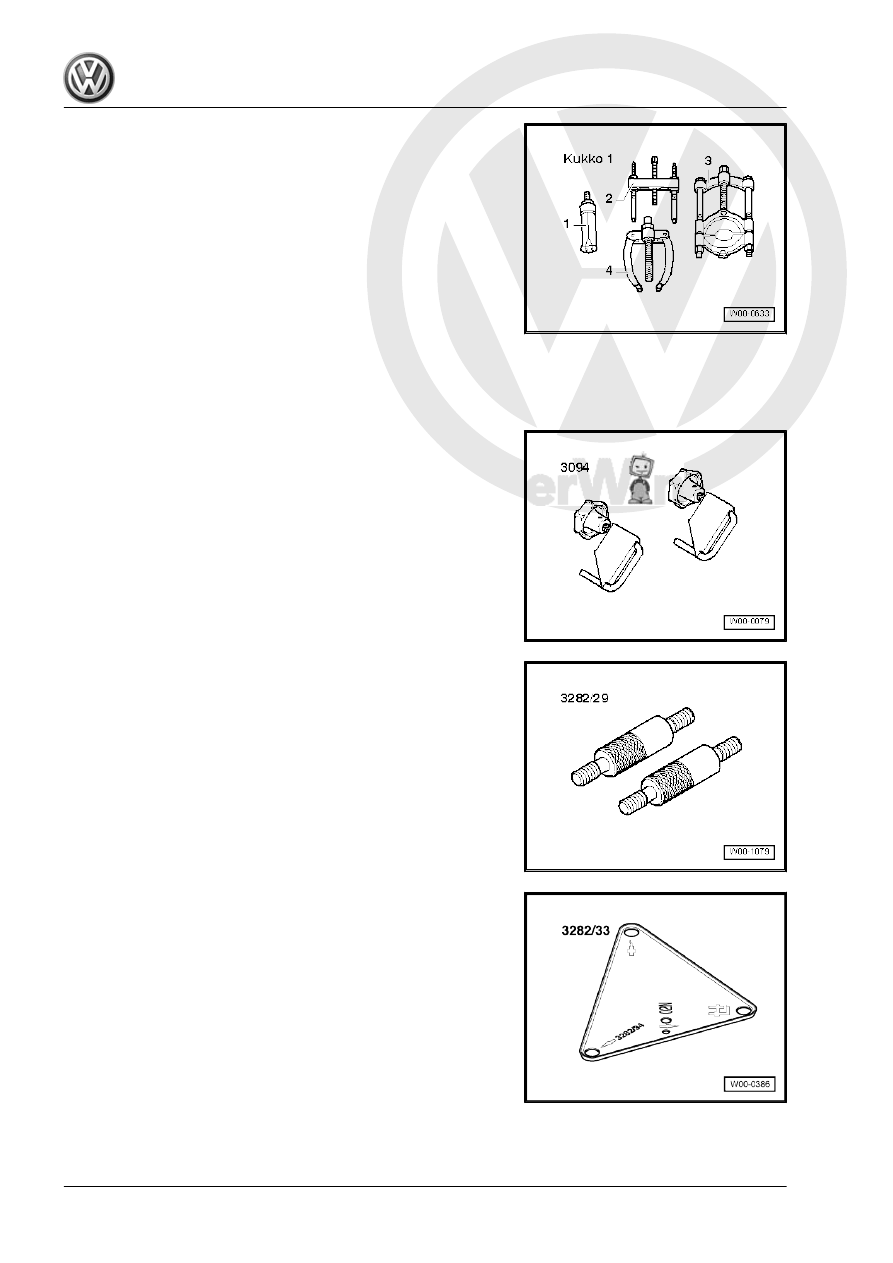

♦ -1- Puller - Kukko Internal - 20-30mm - 21/4-
♦ -4- Puller - Kukko Counterstay - 22/2-
♦ Thread adaptor from Puller - Kukko Counterstay - 22/1-
♦ Hose Clamps - Up To 25mm - 3094-

♦ Transmission Support - Pins 29 - 3282/29-

♦ Transmission Support - Mounting Plate 33 - 3282/33-

308

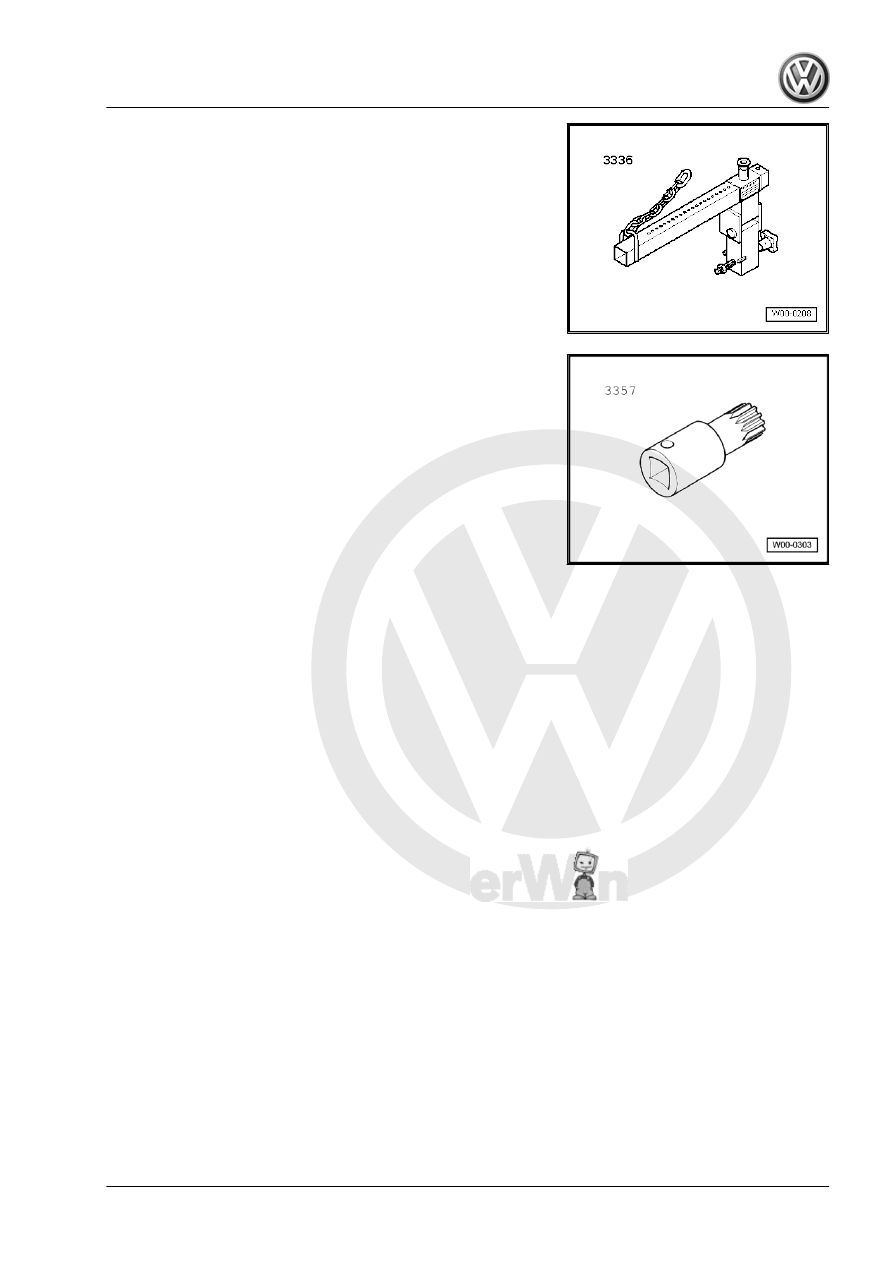

♦ Triple Square Socket Driver - 3357-

17. Special Tools

309

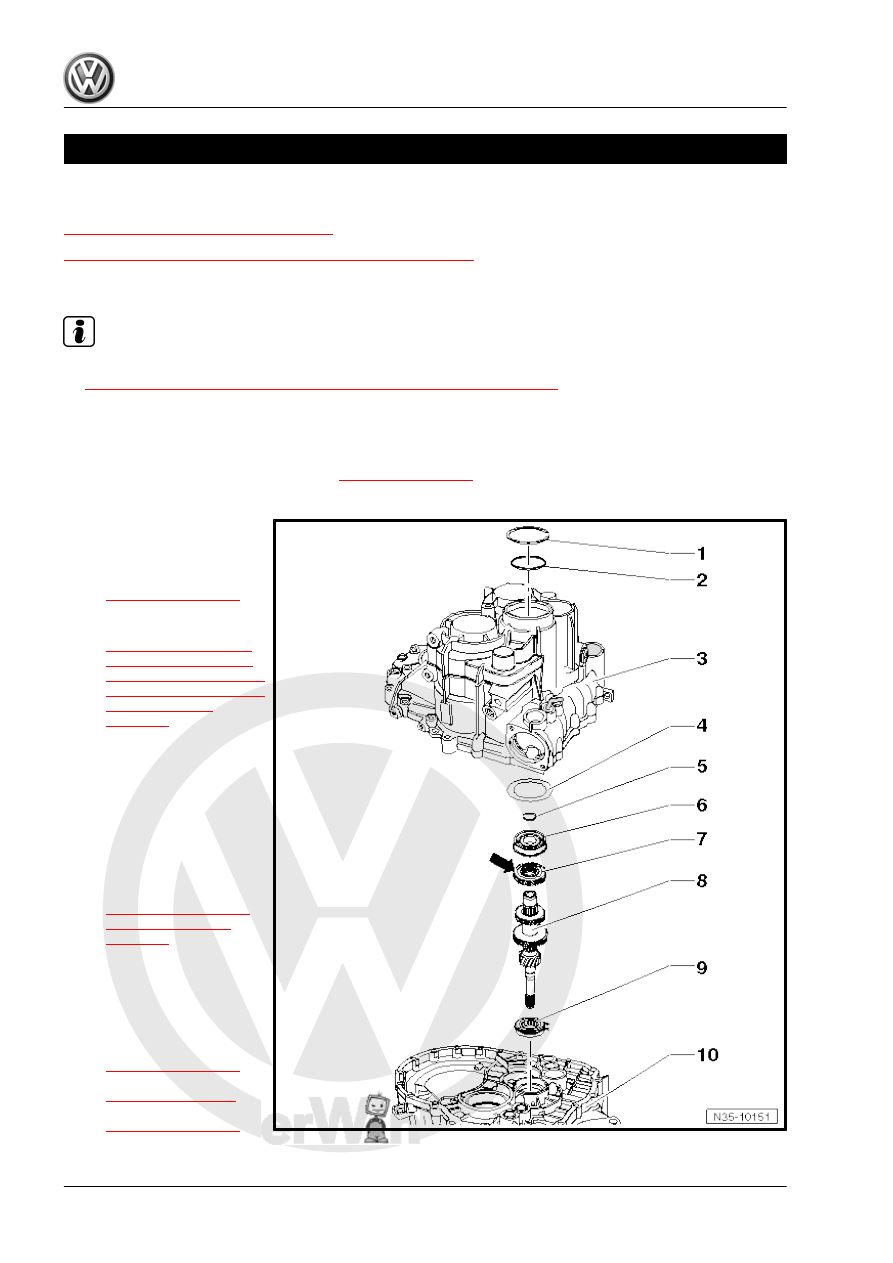

1

Input Shaft

⇒ “1.1 Overview - Input Shaft”, page 310
⇒ “1.2 Input Shaft, Disassembling and Assembling”, page 311

1.1

Overview - Input Shaft

Note

Secure the transmission on the assembly stand. Refer to

⇒ “7 Transmission, Securing in Engine/Transmission Holder”, page 191

 .

Warm the toothed gear to approximately 100 °C (212 °F) using Inductive Heater - VAS6414- . Wear pro‐

tective gloves.

Install all input shaft bearings with transmission fluid.

Replace grooved ball bearing -item 6-

⇒ Item 6 (page 311)

 after removing.

1 - Circlip

❑ For the grooved ball

bearing/input shaft

-item 6-

⇒ Item 6 (page 311)

 .

❑ Removing and instal‐

ling. Refer to

⇒ “11.8 Assembly Se‐

quence, Transmission

without a Securing Ring

A for the Metal Cover for

the Input Shaft”,

page 235

 .

2 - Washer

❑ Outer circumference =

78.6 mm

❑ Only insert with the

changed transmission

housing (from transmis‐

sion production date

04/10/2006 through ap‐

proximately

01/20/2008). Refer to

⇒ “1.2.1 Grooved Ball

Bearing Changes”,

page 315

 .

❑ Refer to the Parts Cata‐

log.

3 - Transmission Housing

❑ Adapted in the grooved

ball bearing seat area

-item 6-

⇒ Item 6 (page 311)

and washers -item 2-

⇒ Item 2 (page 310)

 and

-item 4-

⇒ Item 4 (page 311)

from transmission build

310
