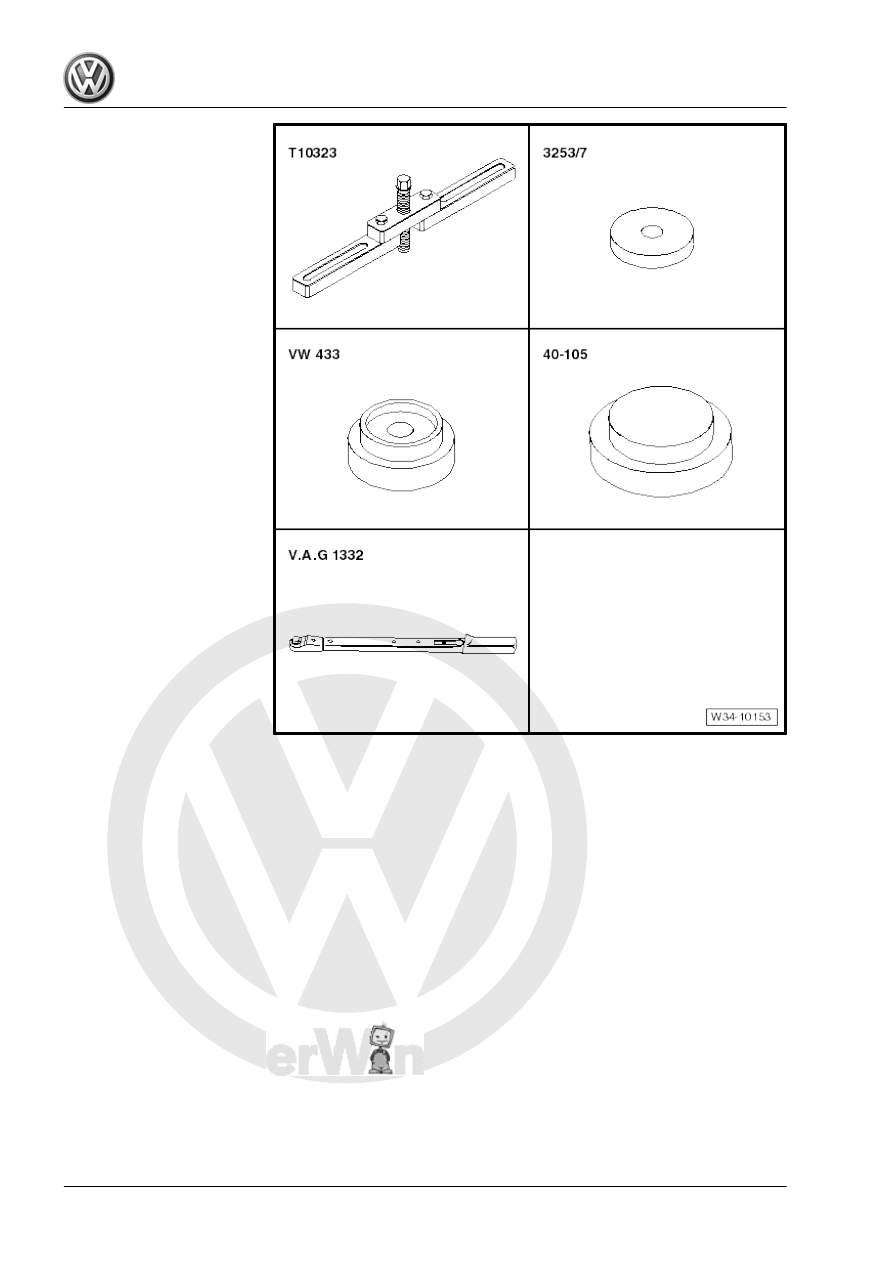

VAG1332-

♦ Thrust Piece - VW433-
♦ Subframe Support Assem‐

bling Device - 3253/7-

214

Washer (components of the

Puller - T10408- )

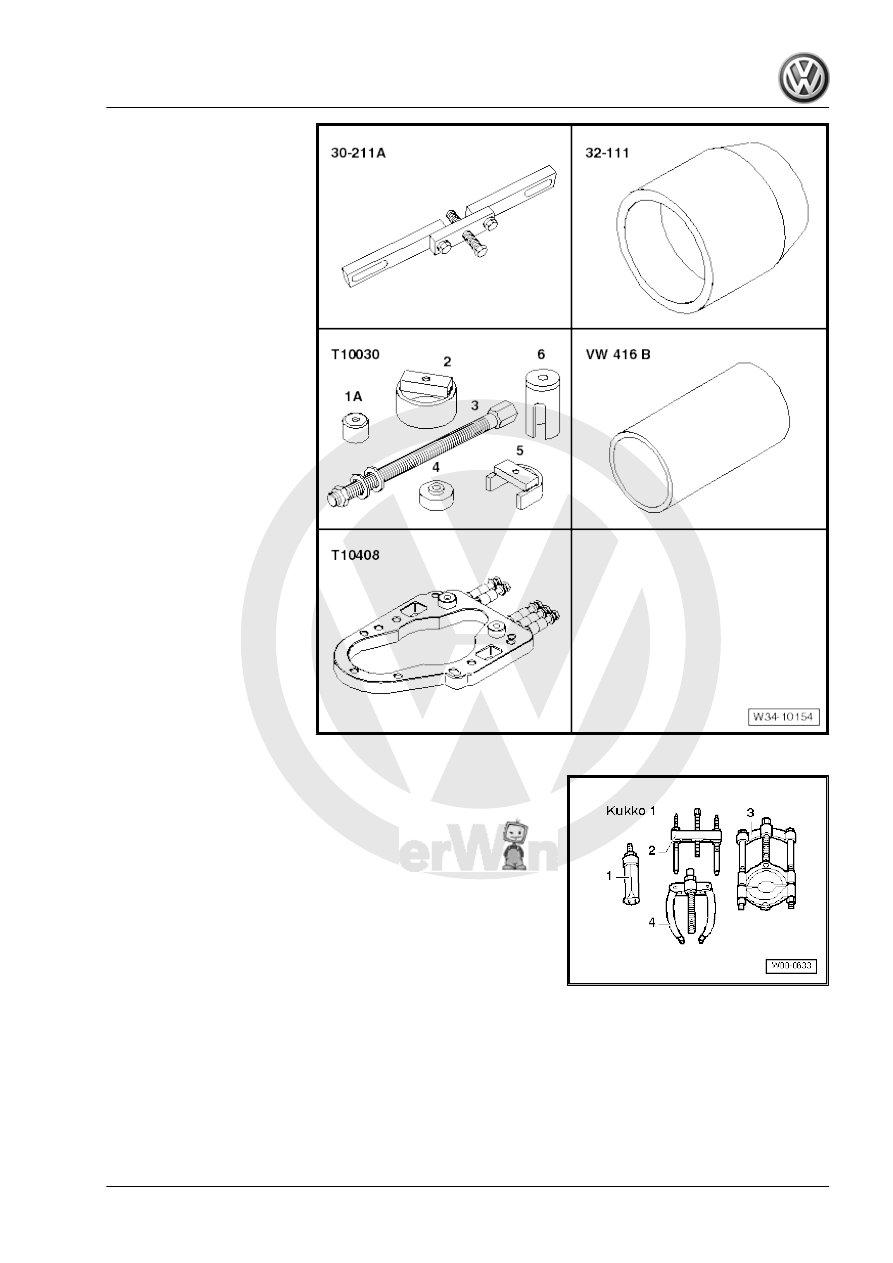

♦ Thrust Piece - T10408/2-
♦ Straps - T10408/3-
♦ Thrust Piece - T10030/4-

from Assembly Tool -

T10030-

♦ Pipe - VW416B-
♦ Support Bridge - 30-211A-
♦ Seal Driver - 32-111-

♦ -2- Puller - 18/1- (2 pieces)

12. Special Tools

215

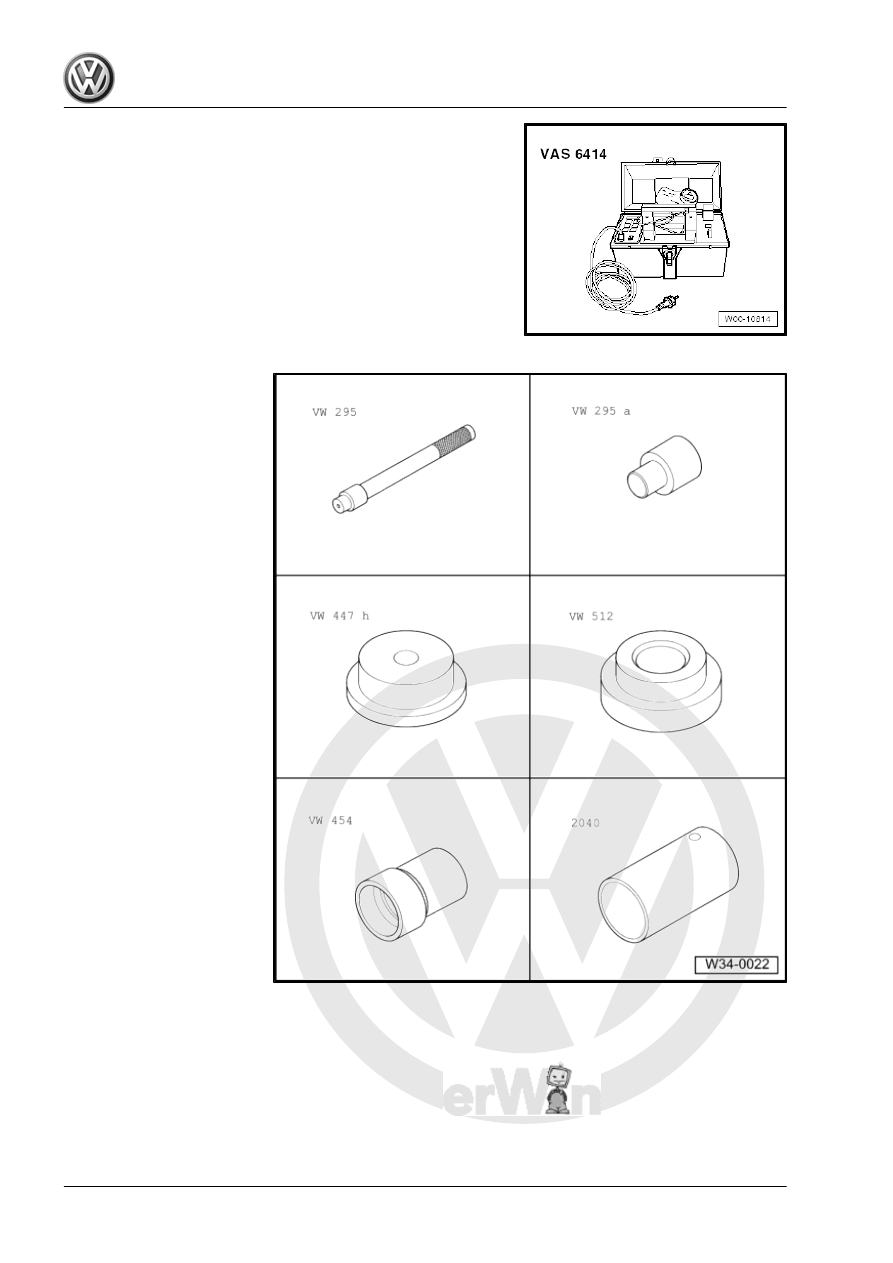

♦ Drift - VW295-
♦ Engine Support Adapter -

VW295A-

♦ Pressure Washer -

VW447H-

♦ Pressure Washer - VW512-
♦ Thrust Piece - VW454-
♦ Pipe - 2040-

216

ded with this transmission)

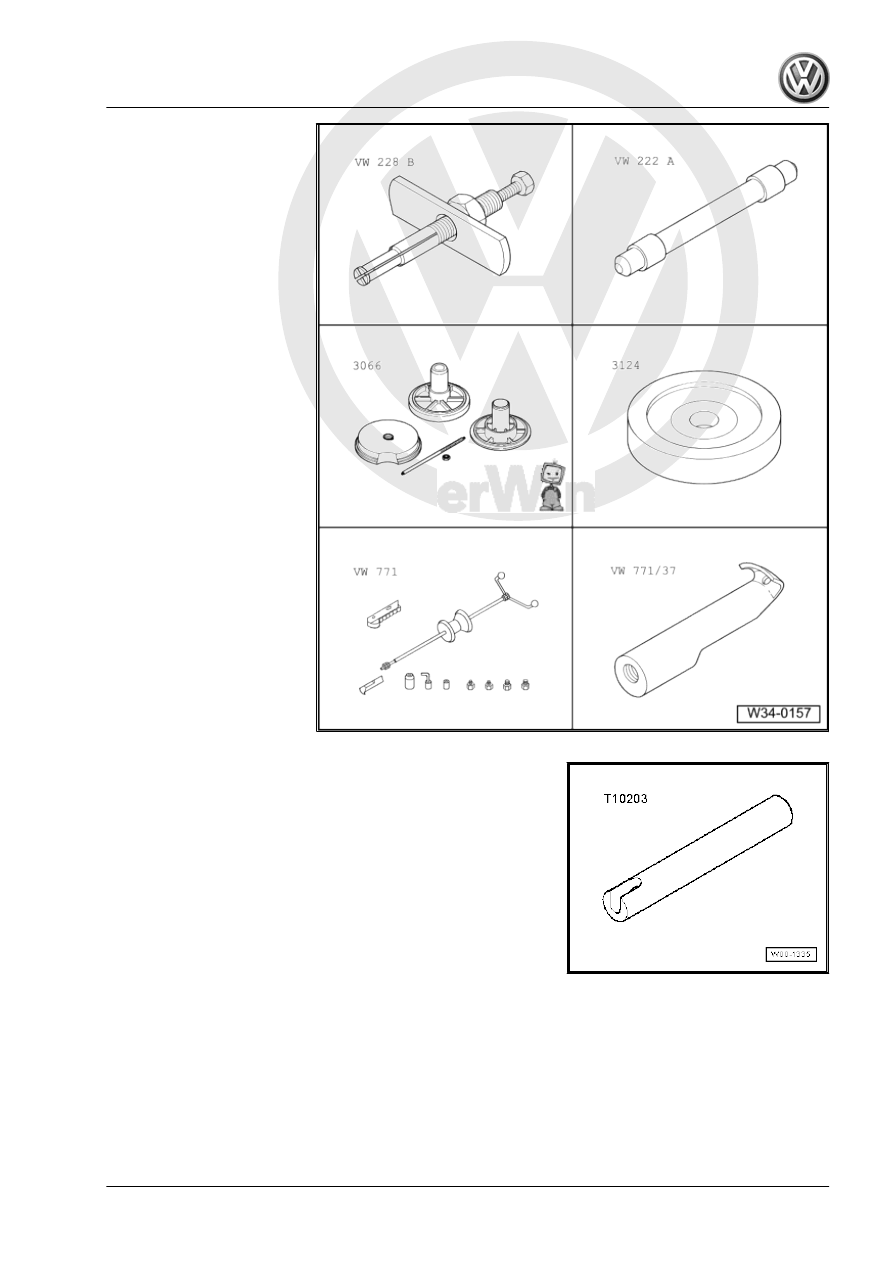

♦ Puller - VW228B- (not nee‐

ded with this transmission)

♦ Seal Installer Set - Rear Dif‐

ferential - 3066- (spindle)

♦ Thrust Pad - 3124- (the seal

and sleeve are in two

pieces)

♦ Slide Hammer-Complete

Set - VW771- (the seal and

sleeve are a single piece)

♦ Additional Part For VW771

- VW771/37- (the seal and

sleeve are a single piece)

Pipe - T10203-

12. Special Tools

217
